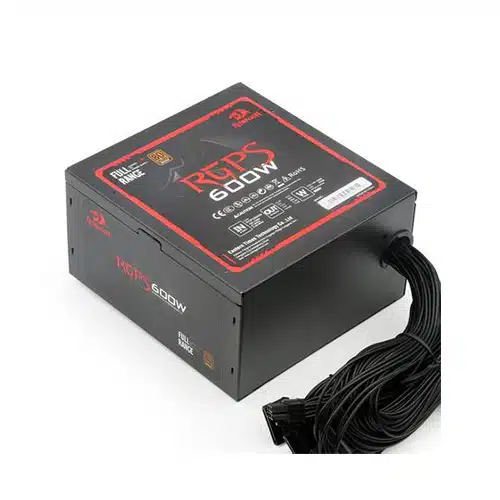

Redragon RGPS GC-PS002 600W 80 Plus Bronze Non-Modular Power Supply

Description

Certified non-modular Power supply

Redragon RGPS GC-PS002 600W 80 Plus Bronze Non-Modular Power Supply has a 80 PLUS Bronze Certification. This ensures maximum energy efficiency and minimal heat production.The energy Efficiency is around 85% and the typical input voltage is 100V to 240V. The Frequency Range is 47Hz to 63Hz with 10A at 100VAC and 10A at 240VAC Input Current. The load Range supported is 3.3V at 15Amp, plus 5V at 22Amp; plus 12V at 50A; minus 12V at 0.3Amp and 5VSB at 2.5A with one plus 12V Rails.  This power supply also comes with built in comprehensive protection functions like Over Voltage Protection(OVP), Under Voltage Protection (UVP), Short Circuit Protection(SCP) and Over Load Protection(OLP).

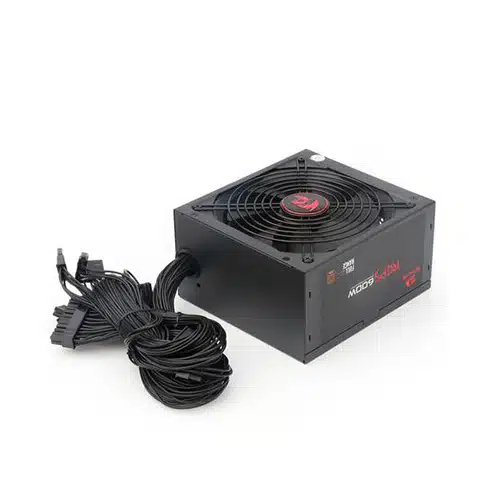

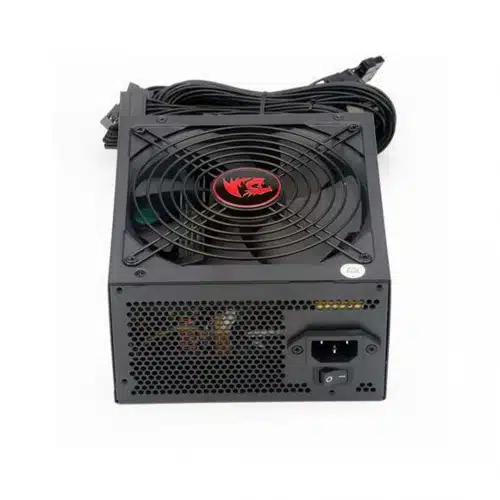

Cooling Fan

With a 140mm ultra quite cooling fan; The fan ensures enhanced airflow. With premium curcuit and Japan-made main capacitors, It has a lasting durable build. This capacitors also has a longer lifespan than regular electrolytic capacitors. it is a non-modular PSU with an easy installation and cable management Option with reduce clutter. It also has a Low-profile nylon sleeve cables for professional cable management build.

Drive and Power Specifications

Redragon RGPS GC-PS002 600W 80 Plus Bronze Non-Modular Power Supply has an ATX Connector with 20 plus 4 pin. The ATX Connector has a 4 plus 4 pin with 12V voltage capacity. The PSU has 4 graphics Connector of 6 plus 2 pin. It also supports the older Molex Connector and has 3 of them. but apart from all that This PSU has 6 SATA Connector with active PFC.

Physical Specification

The dimension of Redragon RGPS GC-PS002 600W 80 Plus Bronze Non-Modular Power Supply is 3.39 x 5.91 x 6.3 inches. This Power Supply’s weight is 2.18kg.

Specifications

• Dimension:160*150*86MM
• Watts: 600W
• Color: Black I/O
• Switch: yes Fan: 14cm*1
• Fan color: Black+Red
• Cable length(outside): 500mm
• Cable color: Black
• Connector: 24P(20+4)*1, IDE*2, SATA*6, PCI-E 8P(6+2)*1, CPU 8P(4+4)*1
• Connector color: Black
• AC power cable: 1.5m EU
• PFC: PFC
• Efficiency: 80plus bronze
• Voltage: 100V/240V
• Frequency Range: 47Hz-63Hz
• Current: 10A @ 100VAC / 10A @ 240VAC

Warranty: 2 Years
