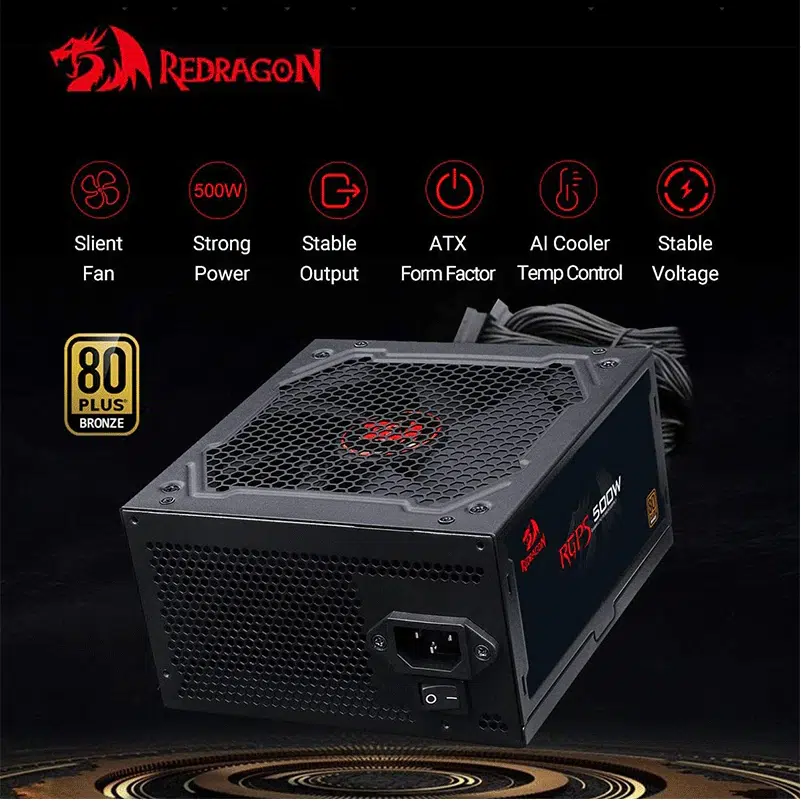

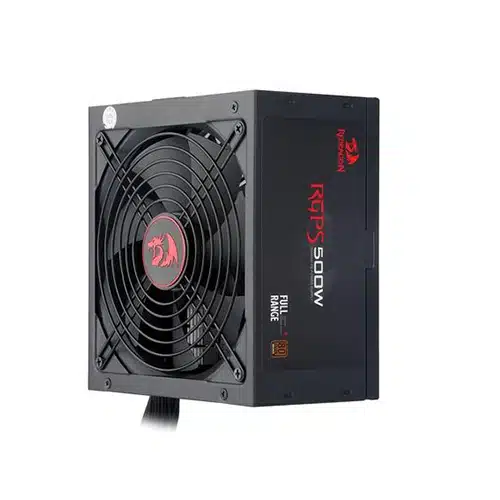

Redragon RGPS GC-PS001 500W 80 Plus Bronze Non-Modular Power Supply

Redragon RGPS GC-PS001 500W 80 Plus Bronze Non-Modular Power Supply comes with 80 Plus Bronze certification, Over Voltage Protection(OVP), Under Voltage Protection (UVP), Short, Circuit Protection(SCP), Over Load Protection(OLP).

4,300.00

Buy Now Compare
Availability: In Stock
SKU:vibe_55241

Description

Redragon RGPS GC-PS001 500W 80 Plus Bronze non-modular power supply

Redragon power supplies provide the ideal balance of price and performance. Redragon GC-PS001 500W 80 Plus Bronze non-modular power supply is another fine example of this. This 500W 80 Plus Bronze non-modular power supply switching power supply with PCI-Express Power Connectors. It also supports SLI and Cross-fire Systems. It has a Single plus 12V output rail which offers a maximum compatibility for demand.

Certified non-modular Power supply

Redragon GC-PS001 500W Non-modular power supply has a 80 PLUS Bronze Certification. This ensures maximum energy efficiency and minimal heat production.The energy Efficiency is  around 85% and the typical input voltage is 100V to 240V. The Frequency Range is 47Hz to 63Hz with 10A at 100VAC and 10A at 240VAC Input Current. The load Range supported is 3.3V at 15Amp, plus 5V at 22Amp. It also has an I/O switch.It can deliver a plus 12V at  50A; minus 12V at 0.3Amp and 5VSB at 2.5A with a plus 12V Rail. This power supply also comes with built in comprehensive protection functions like Over Voltage Protection(OVP), Under Voltage Protection (UVP), Short Circuit Protection(SCP) and Over Load Protection(OLP). With a 140mm ultra quite cooling fan; The fan ensures enhanced airflow. With premium curcuit and Japan-made main capacitors, It has a lasting durable build. This capacitors also has a longer lifespan than regular electrolytic capacitors. it is a non-modular PSU with an easy installation and cable management Option with reduce clutter. It also has a Low-profile nylon sleeve cables for professional cable management build.

Drive and Power Specifications

Redragon GC-PS001 power supply has an ATX Connector with 20 plus 4 pin. The ATX Connector has a 4 plus 4 pin with 12V voltage capacity. The PSU has 4 graphics Connector of 6 plus 2 pin. It also supports the older Molex Connector and has 3 of them. but apart from all that This PSU has 6 SATA Connector with active PFC.

Physical Specification

The dimension of this power supply is 160 x 150 x 86 mm. This Power Supply’s weight is 2.20kg.

Warranty

Redragon GC-PS001 power supply has a warranty of 2 Years.

Specification
Key Features
Continuous Power 500W
Efficiency (Approx.) 80%
Certification 80 Plus Bronze
Fan Size 140mm on the top side

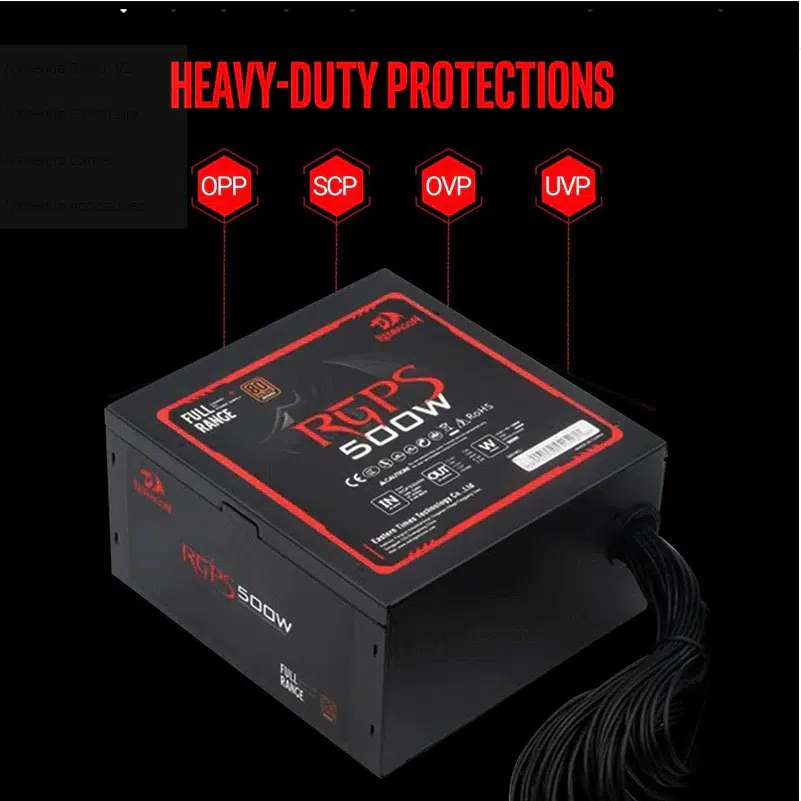

Others Over Voltage Protection(OVP)
Under Voltage Protection (UVP)
Short Circuit Protection(SCP)
Over Load Protection(OLP)
Input
Voltage 100V and 240V
Frequency Range 47Hz to 63Hz
Current Input Current: 10A @ 100VAC / 10A @ 240VAC
Load Range:+3.3V@15A; +5V@22A; +12V@50A; [email protected]; [email protected]
+12V Rails: 1
Output
Modular Type Non-modular
Total Power 500W
Peak Power 500W
AC Input 10A @ 100VAC / 10A @ 240VAC
Connector
Main Power 500W
PCI-E PCI-Express Power Connectors, fully support SLI & CrossFire Systems
SATA SATA Connector: 6
Molex Molex Connector: 3
Price of Redragon RGPS GC-PS001 500W 80 Plus Bronze Non-Modular Power Supply is 4300৳. You can buy the Redragon RGPS GC-PS001 500W 80 Plus Bronze Non-Modular Power Supply at the best price in Bangladesh from Vibe Gaming on our website and our showroom.
