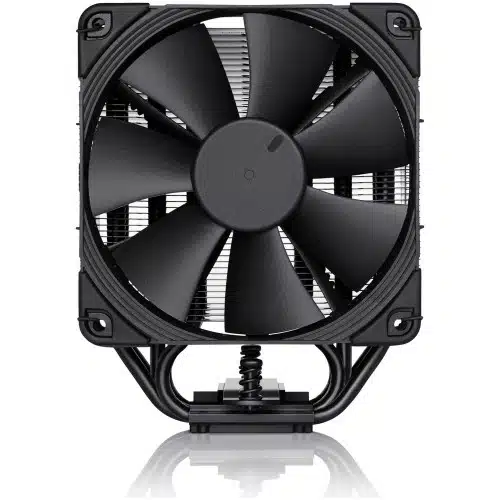

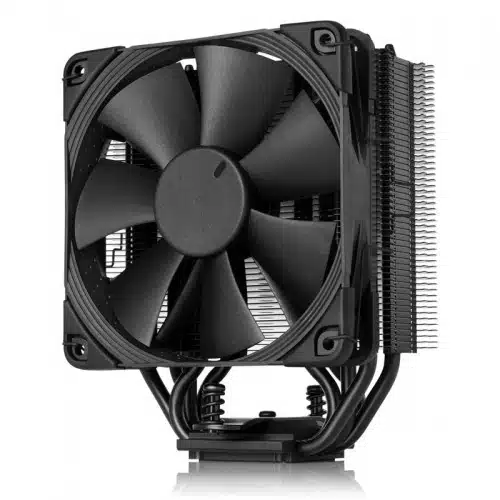

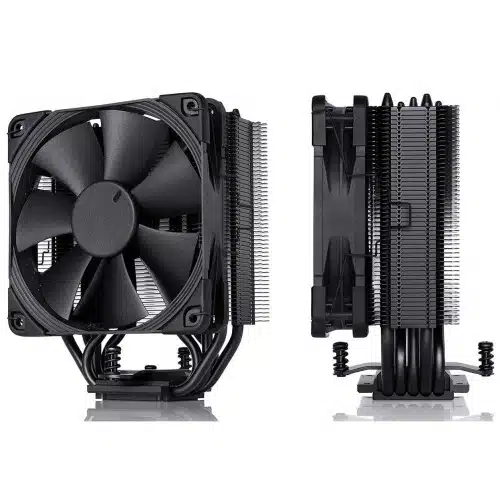

Noctua NH-U12S Chromax CPU Cooler with NF-F12 120mm Focused Flow PWM Fan

Description

Colour-customisable

Using the optional NA-HC1 and NA-HC2 heatsink covers as well as the NA-SAVP1 anti-vibration pads (available in black, blue, green, red, yellow, white), the Noctua NH-U12S Chromax CPU Cooler with NF-F12 120mm Focused Flow PWM Fan can be fully customised to fit popular build colour schemes such as black and red or black and white.

Classic 120mm tower size for excellent overall compatibility

Measuring 125mm wide (including fan and fan clips), the cooler stays clear of the top PCIe slot on most standard ATX or Micro-ATX motherboards, ensuring optimum compatibility with multi-GPU setups.

100% RAM compatibility

Thanks to its slim design with only 45mm fin depth, the NH-U12S will not overhang the RAM slots even with two fans installed. This gives the user full access to the memory modules on all current CPU sockets and guarantees 100% compatibility with tall heatspreaders or optional memory fans.

PWM support and Low-Noise Adaptor

The NF-F12 120mm fan supplied with the Noctua NH-U12S Chromax CPU Cooler with NF-F12 120mm Focused Flow PWM Fan supports PWM for convenient automatic speed control through the motherboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.

Specifications

• Type: Air Cooler
• Fan Speed:
  Max. rotational speed (+/- 10%): 1500 RPM
  Max. rotational speed with L.N.A. (+/- 10%): 1200 RPM
• Fan Airflow:
  Max. airflow: 93.4 m³/h
  Max. airflow with L.N.A.: 74.3 m³/h
• Max. acoustical noise: 22.4 dB(A)
• Max. acoustical noise with L.N.A.: 18.6 dB(A)

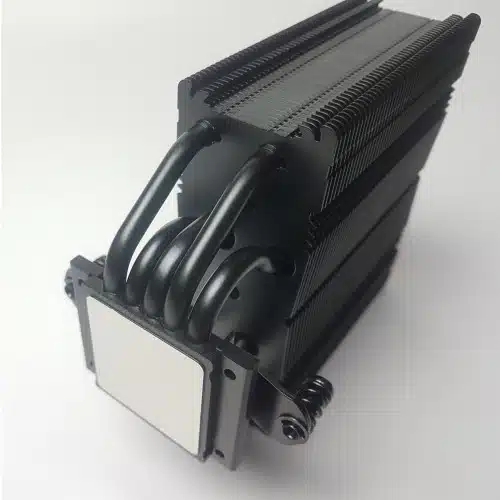

• Cooler: Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
• Dimension of Cooler:
  Height (without fan) 158 mm
  Width (without fan) 125 mm
  Depth (without fan) 45 mm
  Height (with fan) 158 mm
  Width (with fan) 125 mm
  Depth (with fan) 71 mm
• Fan:
  Height: 120mm
  Width: 120mm
  Depth: 26mm
• Weight:
  Weight (without fan) 580 g
  Weight (with fan) 755 g
• Fan: Weight 175g
• Supported Sockets
• Intel: LGA2066, LGA2011-0 & LGA2011-3, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150
• AMD: AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+, AM4

Warranty: 6 Years
