Description
140mm performance in 120mm size

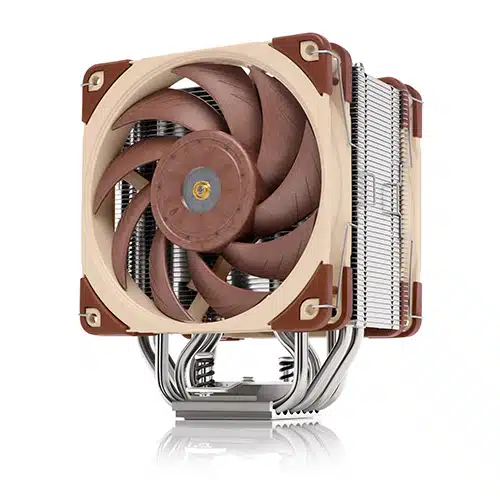

The thoroughly optimised 7 heatpipe layout, 37% more fin surface area and a dual fan push/pull configuration that uses the new, state-of-the-art NF-A12x25 fans, the NOCTUA NH-U12A Premium 120mm CPU Cooler pushes the performance envelope in the 120mm class and can actually match or even outperform many 140mm sized coolers.
Dual NF-A12 120mm fans
The NOCTUA NH-U12A Premium 120mm CPU Cooler is highly optimised next-generation 120mm fan that integrates Noctua’s latest innovations in aerodynamic engineering in order to achieve an unprecedented level of quiet cooling performance. Using this elite-class fan in a push/pull dual fan configuration is one of the cornerstones of the NH-U12A’s commanding performance and acoustic efficiency.
PWM support and Low-Noise Adaptors
The NF-A12 120mm fans supplied with the NH-U12A support PWM for convenient automatic speed control through the motherboard: full performance under load, virtually silent at idle! In addition, maximum fan speed can be reduced from 2000 to 1700rpm using the supplied Low-Noise Adaptors for even quieter operation.
Classic 120mm tower size for excellent case and PCIe compatibility
Measuring 125mm wide (including fan and fan clips), the NOCTUA NH-U12A Premium 120mm CPU Cooler stays clear of the top PCIe slot on most standard ATX or Micro-ATX motherboards, ensuring optimum compatibility with multi-GPU setups.
Specifications
- Fan Speed:
Max. rotational speed (+/- 10%): 2000 RPM
Max. rotational speed with L.N.A. (+/- 10%): 1700 RPM
Min. rotational speed (PWM, +/-20%): 450 RPM - Fan Airflow:
Max. airflow102,1 m³/h
Max. airflow with L.N.A.84,5 m³/h - Noise:
Scope of delivery: 2x Low-Noise Adaptor (L.N.A)
Max. acoustical noise: 22,6 dB(A)
Max. acoustical noise with L.N.A.: 18,8 dB(A) - Material: Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
- Dimension:
Height (without fan): 158 mm
Width (without fan): 125 mm
Depth (without fan): 58 mm
Weight (without fan): 760 g
Height (with fan): 158 mm
Width (with fan): 125 mm
Depth (with fan): 112 mm
Weight (with fan): 1220 g - Weight:
Weight (without fan): 760 g
Weight (with fan): 1220 g - Supported Sockets Intel: LGA1150, LGA1151, LGA1155, LGA1156, LGA2011, LGA2066, LGA1700
- AMD: AM4, AM3(+), AM2(+), FM1, FM2(+)
