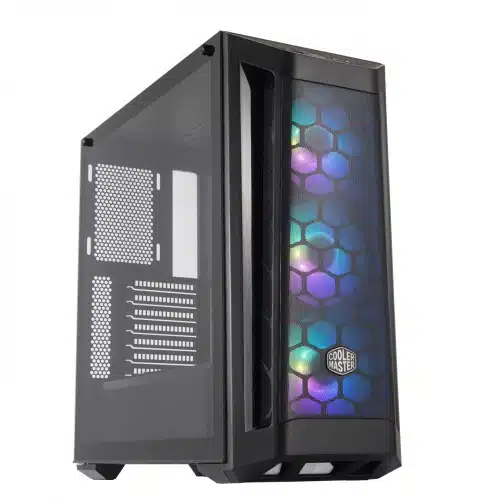

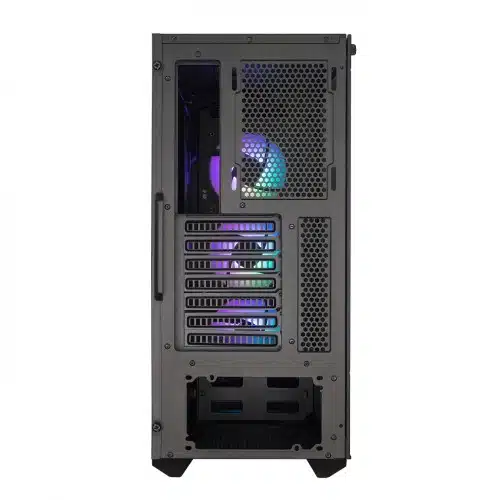

Cooler Master MasterBox MB511 ARGB Gaming Casing

Description

Fine Mesh Front Panel

The Fine Mesh design on the front panel of Cooler Master MasterBox MB511 ARGB Gaming Casing is proven, by reviewers and critics alike, to provide considerable airflow while simultaneously filtering out dust. Light also refracts and behaves uniquely to the Fine Mesh, creating a halo effect against the included ARGB fans.

ARGB Lightening System

Three pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system.

Tempered Glass Side Panel

With the Cooler Master MasterBox MB511 ARGB Gaming Casing gaming hardware, cooling components, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.

Versatile Cooling Options

Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure that even the most extreme systems stay cool.

Sickleflow PWM Fans Included

Cooler Master MasterBox MB511 ARGB Gaming Casing has newly optimized blade design with updated curve that provides best balance between airflow and static pressure to take the heat away while remain extremely silence.

Specifications

• Type: Mid Tower
• Tempered Glass Panel: Yes
• Motherboard Support: Mini ITX, Micro ATX, ATX
• E-ATX: support for up to 12″ x 10.7″
• Color(s): Black
• Weight: 6.59 kg
• Dimensions: 496 x 217 x 469 mm
• Front Ports:
  2x USB 3.2 Gen 1 (formerly USB 3.0)
  1x 3.5mm Audio Jack
  1x 3.5mm Mic Jack
• Expansion Slots: 7
• Radiator Support:
  RADIATOR SUPPORT – TOP: 120mm, 240mm, 360mm, (44mm max motherboard component height)
  RADIATOR SUPPORT – FRONT: 120mm, 140mm, 240mm, 280mm, 360mm, (75mm clearance)
  RADIATOR SUPPORT – REAR: 120mm
• Fan Support:
  FAN SUPPORT – TOP: 3x 120mm, 2x 140mm
  FAN SUPPORT – FRONT: 3x 120mm, 2x 140mm
  FAN SUPPORT – REAR: 1x 120mm
• Pre- Installed Fans: 3x 120mm ARGB Fans
• Drive Bays:
  2.5″ / 3.5″ DRIVE BAYS (COMBO): 2
  2.5″ DRIVE BAYS: 5
• I/O Port:
  2x USB 3.2 Gen 1 (formerly USB 3.0)
  1x 3.5mm Audio Jack
  1x 3.5mm Mic Jack
  1x ARGB Controller
  1x ARGB 2-to-3 splitter
• PSU: 180mm
• Side Panel: Tempered Glass
• Maximum CPU Cooler Height: 165mm
• Maximum Graphics Card Length: 410mm
