Mesh Front Panel
The mesh front panel of Cooler Master MasterBox MB511 RGB Gaming Casing offers efficient airflow for demanding systems.

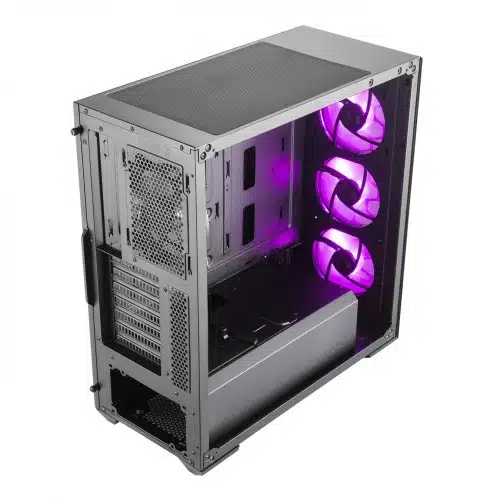

RGB LED Fans & Light Control
Three 120mm RGB LED fans in front are pre-installed to create an amazing lighting effect. One RGB controller is included in the accessory pack. If your motherboard does not support the RGB control function, you can connect the RESET button and control the RGB lighting directly from the I/O panel.
Excellent Thermal Performance
Cooler Master MasterBox MB511 RGB Gaming Casing has optimized airflow due to the semi-meshed front panel and ventilation holes on top of the case.
Expanding The Possibilities
The spacious interior fits all standard motherboards for your gaming needs.
Fan and Radiator Support
It supports front: three 120mm or two 140mm fans and up to a 360mm radiator with a maximum thickness of 50mm without fans. Top: Two 120mm or two 140mm fans and supports a 120mm or a 240mm radiator. Rear: One 120mm fan or radiator. All to ensure you don’t have to compromise on performance.
Edge To Edge Tempered Glass Side Panel
With the Cooler Master MasterBox MB511 RGB Gaming Casing showcase your build and system lighting effect through the 4mm-thick tempered glass side panel. The side panel bracket hinges on an angle during removal, while two captive screws are held in place with rubber so they are not misplaced.
- Type: Mid Tower
- Front Panel: 2 x USB 3.0, Audio In & Out (supports HD audio)
- Tempered Glass Panel: Yes
- Motherboard Support: ATX, Micro ATX, Mini ITX
- Color(s): Black
- Dimensions 496 x 217 x 469 mm
- Front Ports: 2x USB 3.0, Audio In & Out
- Expansion Slots: 7
- RADIATOR SUPPORT – FRONT: 120mm, 140mm, 240mm, 280mm, 360mm
- RADIATOR SUPPORT – TOP: 120mm, 240mm
- RADIATOR SUPPORT – REAR: 120mm
- FAN SUPPORT – TOP: 2x 120mm, 2x 140mm
- FAN SUPPORT – FRONT: 3x 120mm, 2x 140mm
- FAN SUPPORT – REAR: 1x 120mm
- PRE-INSTALLED FANS – FRONT: 3x 120mm RGB Fan
- PRE-INSTALLED FANS – REAR: 1x 120mm
- 2.5″ / 3.5″ DRIVE BAYS (COMBO): 2
- 2.5″ DRIVE BAYS: 5 (Max.6)
- PSU: 180mm
- Maximum CPU Cooler Height: 165mm
- Maximum Graphics Card Length: 410mm
