Description

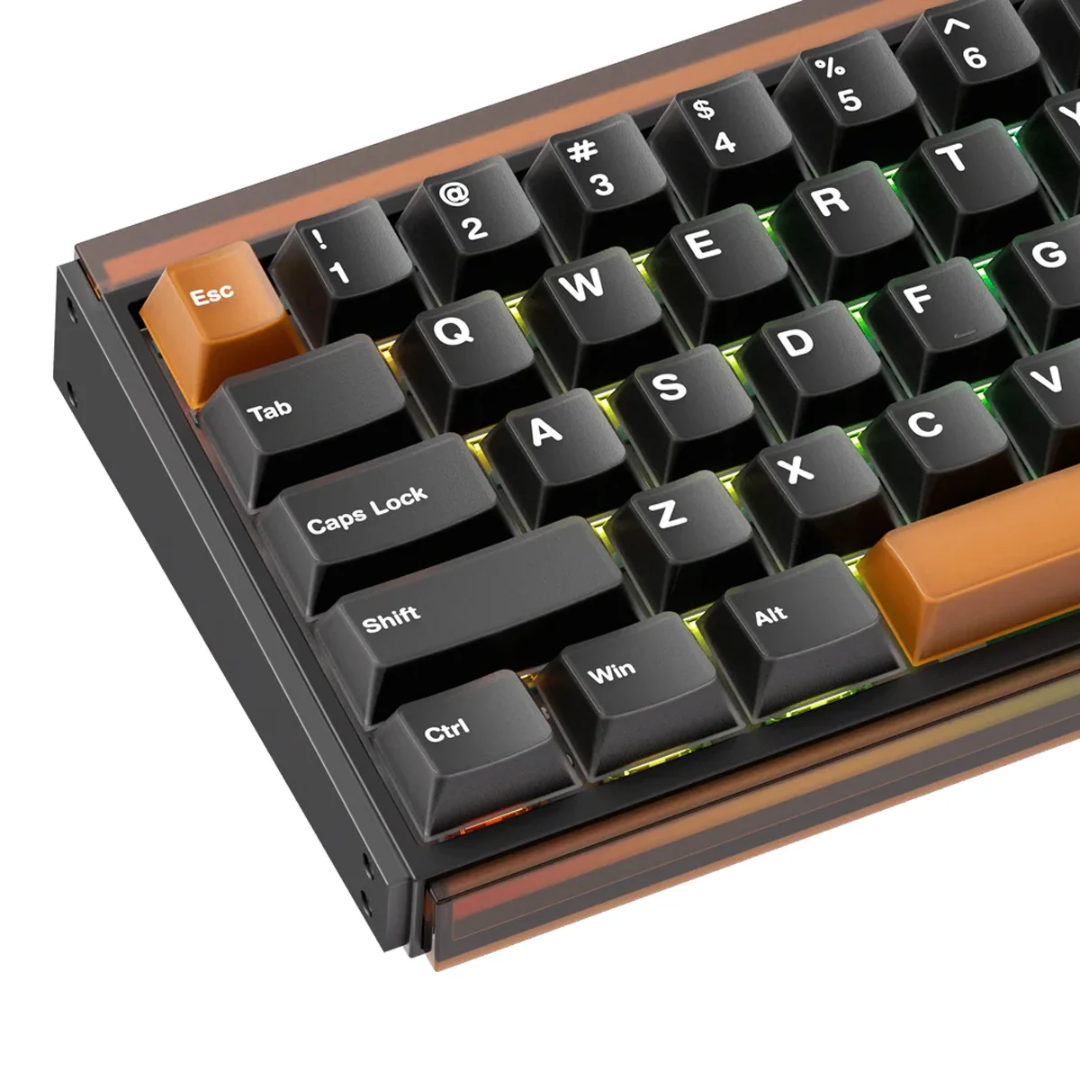

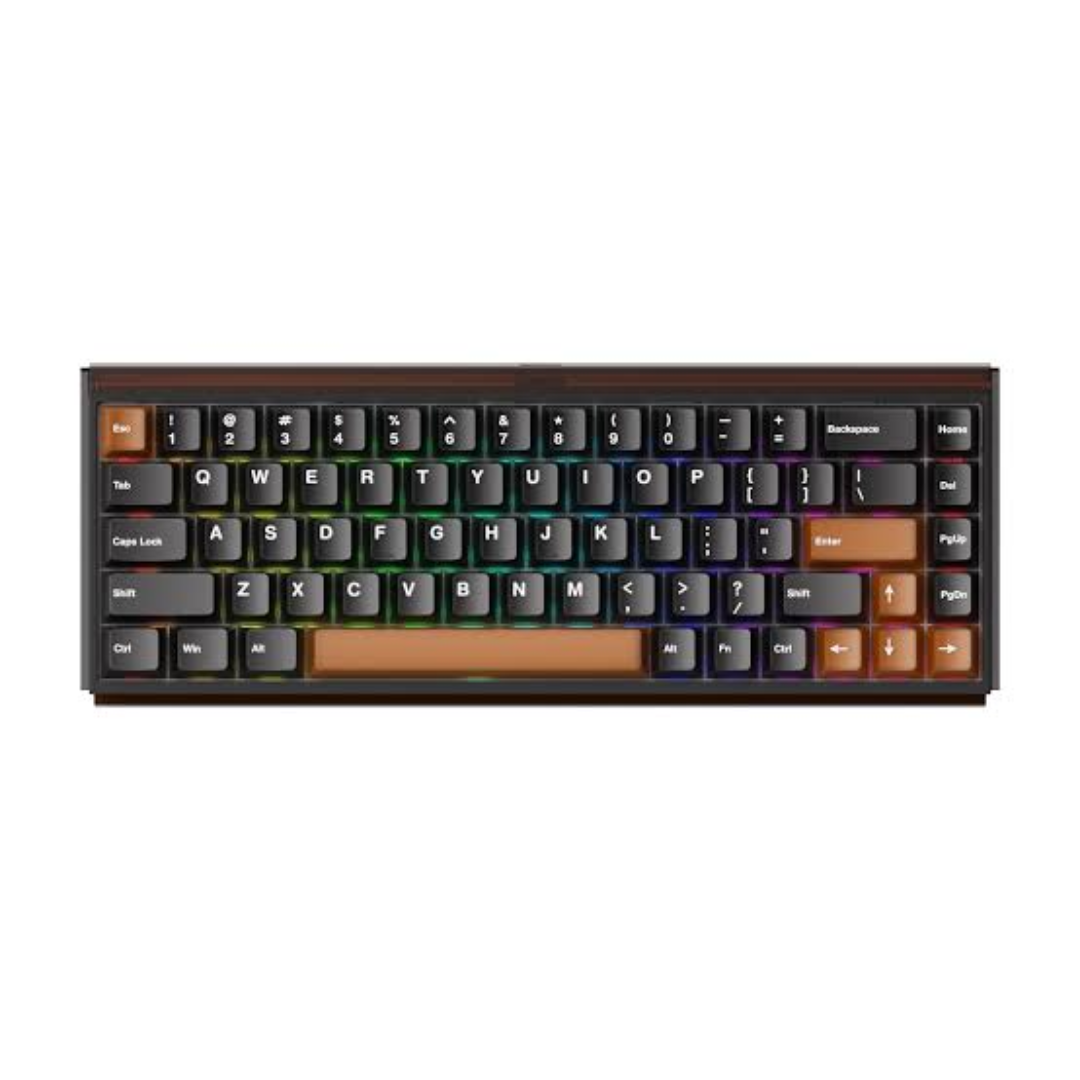

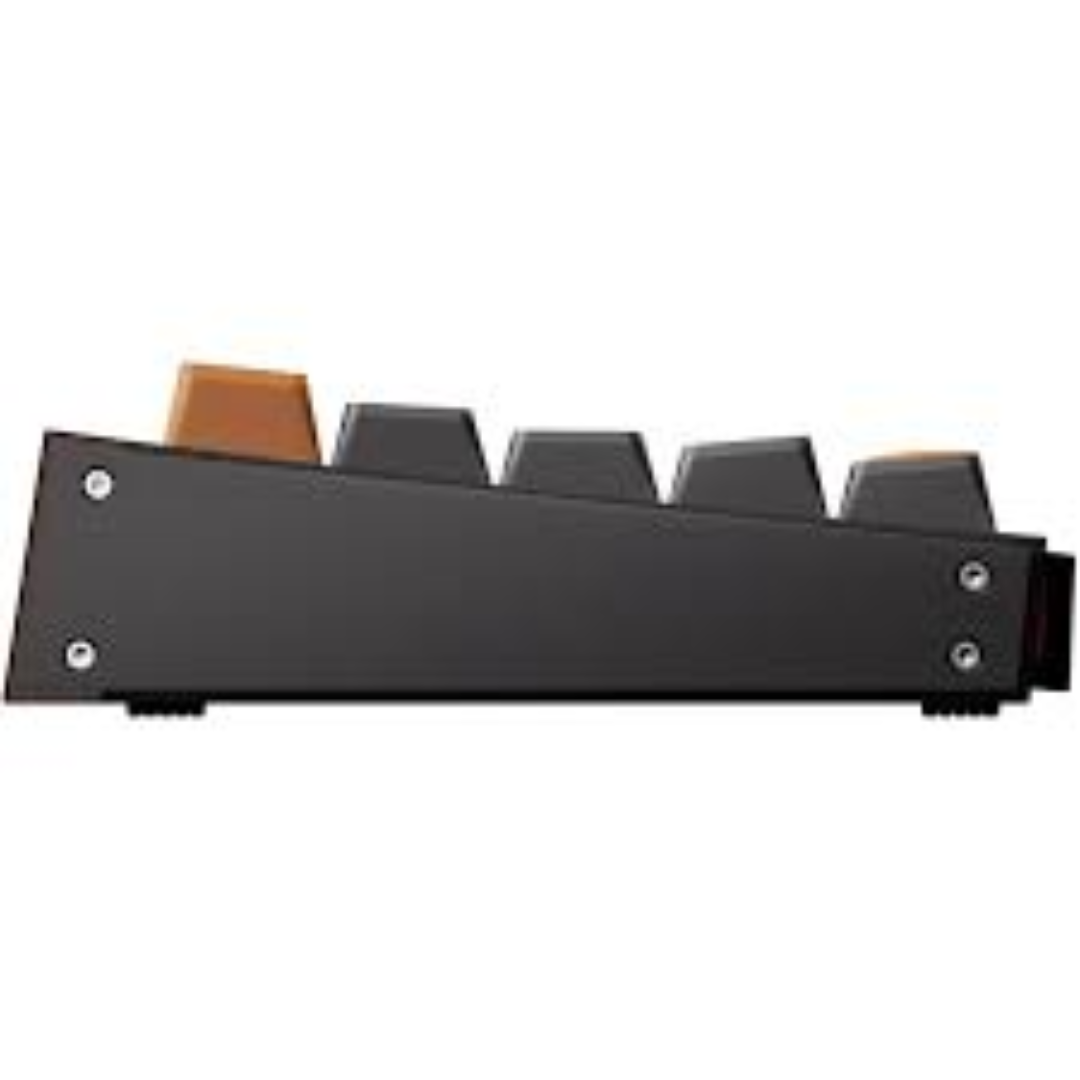

The AKKO Ray68 HE Wired Magnetic Keyboard is a performance-focused 65% gaming keyboard designed for competitive gamers who demand extremely fast and precise key response. Its compact 68-key ANSI layout saves valuable desk space while retaining essential navigation and arrow keys, making it suitable for FPS gaming, esports and everyday use. The keyboard is equipped with Akko AstroAim Magnetic Switches, allowing users to customize actuation points from approximately 0.1mm to 3.4mm according to their preferred typing or gaming style.
For competitive gameplay, the Ray68 HE offers Rapid Trigger with 0.01mm precision, together with an impressive 8000Hz polling rate and 160kHz scan rate. Its rated latency can reach as low as 0.125ms, helping deliver extremely responsive keyboard input during fast-paced gaming.
The keyboard also features a distinctive Light Box design with south-facing aRGB lighting and a 500Hz lighting refresh rate. Color-matching Cherry-profile PBT keycaps provide a durable and comfortable typing surface while complementing the overall design.
Through AKKO’s configuration tools, users can access gaming-focused functions including Rapid Trigger, custom actuation, Dynamic Keystroke, Mod-Tap, Toggle Key, key remapping and SOCD/Snap Key. The Snap Key functionality prioritizes directional input changes, which can be particularly useful in fast-moving FPS gameplay.
With its direct wired USB-C connection, ultra-high polling rate and advanced Hall Effect magnetic switch technology, the AKKO Ray68 HE Wired is an excellent choice for gamers looking for speed, customization and compact performance in a modern gaming keyboard.
Specification
| Specification | Details |
|---|---|
| Brand | AKKO |
| Model | Ray68 HE |
| Keyboard Type | Magnetic / Hall Effect Gaming Keyboard |
| Layout | 65% ANSI |
| Number of Keys | 68 Keys |
| Switch Type | Akko AstroAim Magnetic Switch |
| Structure | Tray Mount |
| Housing Material | ABS PC |
| Plate Material | Aluminum |
| Rapid Trigger Precision | 0.01mm |
| Adjustable Actuation | 0.1mm – 3.4mm |
| Polling Rate | 8000Hz |
| Scan Rate | 160kHz |
| Latency | 0.125ms |
| Backlight | South-Facing aRGB |
| RGB Refresh Rate | 500Hz |
| Keycaps | Color-Matching Cherry Profile PBT Keycaps |
| Connectivity | Wired USB-C |
| Software | AKKO Web Driver |
| Special Features | Rapid Trigger, SOCD/Snap Key, Dynamic Keystroke, Mod-Tap, Toggle Key, Key Remapping, Custom Actuation, Customizable RGB |
Akko AstroAim Magnetic Switch
The Ray68 HE uses Akko AstroAim Magnetic Switches, providing adjustable actuation and precise Hall Effect input detection. Unlike conventional fixed-actuation switches, users can customize how far a key needs to travel before registering.
0.01mm Rapid Trigger Precision
Rapid Trigger allows keys to dynamically activate and reset based on movement rather than relying on a traditional fixed reset point. The Ray68 HE supports 0.01mm RT precision, making rapid repeated directional inputs highly responsive.
8000Hz Polling & 160kHz Scan Rate
With an 8000Hz polling rate combined with a 160kHz scan rate, the keyboard is engineered to detect and transmit keystrokes at very high speed. Its specified latency is as low as 0.125ms.
Adjustable Actuation
Each magnetic switch supports customizable actuation from around 0.1mm to 3.4mm. Gamers can choose a shallow actuation point for faster responses or a deeper setting to reduce accidental key presses during typing.
South-Facing aRGB Light Box Design
The Ray68 HE combines south-facing aRGB illumination with a distinctive Light Box design. The lighting system operates at a stated 500Hz refresh rate, giving the keyboard a modern gaming-oriented appearance.
Warranty : 1 Year
