Description
The ZOTAC GAMING GeForce RTX 5060 AMP delivers exceptional gaming performance in a compact form factor, making it perfect for small form factor (SFF) builds without compromising on power. Built on NVIDIA’s revolutionary Blackwell Architecture, this graphics card features 8GB of ultra-fast GDDR7 memory and 3840 CUDA cores to handle the latest AAA titles with ease. With DLSS 4 technology, you’ll experience AI-enhanced graphics that boost frame rates while maintaining stunning visual quality.
The AMP edition comes with a strong factory overclock, pushing the engine clock to an impressive 2550 MHz for enhanced performance right out of the box. The advanced BladeLink cooling solution ensures optimal thermal management, keeping temperatures in check during intense gaming sessions. With 614 AI TOPS, this card is ready for the future of AI-accelerated gaming and content creation.
Connectivity is robust with three DisplayPort 2.1b ports supporting UHBR20 and one HDMI port, allowing you to run up to four displays simultaneously. Whether you’re gaming at 4K 480Hz or exploring 8K 165Hz content, the RTX 5060 AMP delivers smooth, tear-free visuals. With PCIe 5.0 support and a modest 155W power consumption requiring only a 600W PSU, this card offers an excellent balance of performance and efficiency for modern gaming systems.
Specifications
| Component | Details |
|---|---|
| GPU | NVIDIA GeForce RTX 5060 GPU |
| CUDA Cores | 3840 |
| Video Memory | 8GB GDDR7 |
| Memory Bus | 128-bit |
| Engine Clock | 2550 MHz |
| Memory Clock | 28 Gbps |
| AI TOPS | 614 |
| PCI Express | PCI Express 5.0 x8 |
| Display Outputs | 3 x DisplayPort 2.1b with UHBR20, 1 x HDMI |
| HDCP Support | 2.3 |
| Multi Display Capability | Quad Display |
| Recommended Power Supply | 600W |
| Power Consumption | 155W |
| Power Input | 1 x 8-pin |
| DirectX | Microsoft DirectX 12 Ultimate |
| OpenGL | 4.6 |
| Cooling | Air Cooled with BladeLink Fans |
| Slot Size | 2 |
| SLI Support | No |
| Supported OS | Windows 11 / Windows 10 64-bit |
| Card Dimensions | 220.5mm x 120.25mm x 41.6mm (8.7″ x 4.7″ x 1.6″) |
NVIDIA Blackwell Architecture and DLSS 4
The RTX 5060 AMP is powered by NVIDIA’s groundbreaking Blackwell Architecture, representing the latest evolution in GPU technology. This architecture brings significant improvements in ray tracing performance, AI processing capabilities, and overall efficiency. DLSS 4 (Deep Learning Super Sampling) takes AI-enhanced gaming to new heights, using advanced neural networks to generate additional frames and boost performance without sacrificing image quality. This means you can enjoy higher frame rates in demanding titles while maintaining crystal-clear visuals. The combination of Blackwell architecture and DLSS 4 ensures your gaming experience is smoother, more responsive, and visually stunning, even in the most graphically intensive games.
Compact Design with SFF-Ready Form Factor
Measuring just 220.5mm in length and occupying only 2 slots, the RTX 5060 AMP is specifically designed for small form factor (SFF) builds where space is at a premium. This compact design doesn’t mean compromised performance – ZOTAC has engineered this card to deliver full gaming power in a chassis-friendly package. Whether you’re building a mini-ITX system for your living room, a portable LAN party rig, or simply want a cleaner, more compact desktop setup, this graphics card fits perfectly. The thoughtful engineering ensures that even in tight spaces, the cooling system operates efficiently, making it an ideal choice for gamers who value both performance and a smaller footprint.
Advanced BladeLink Cooling Technology

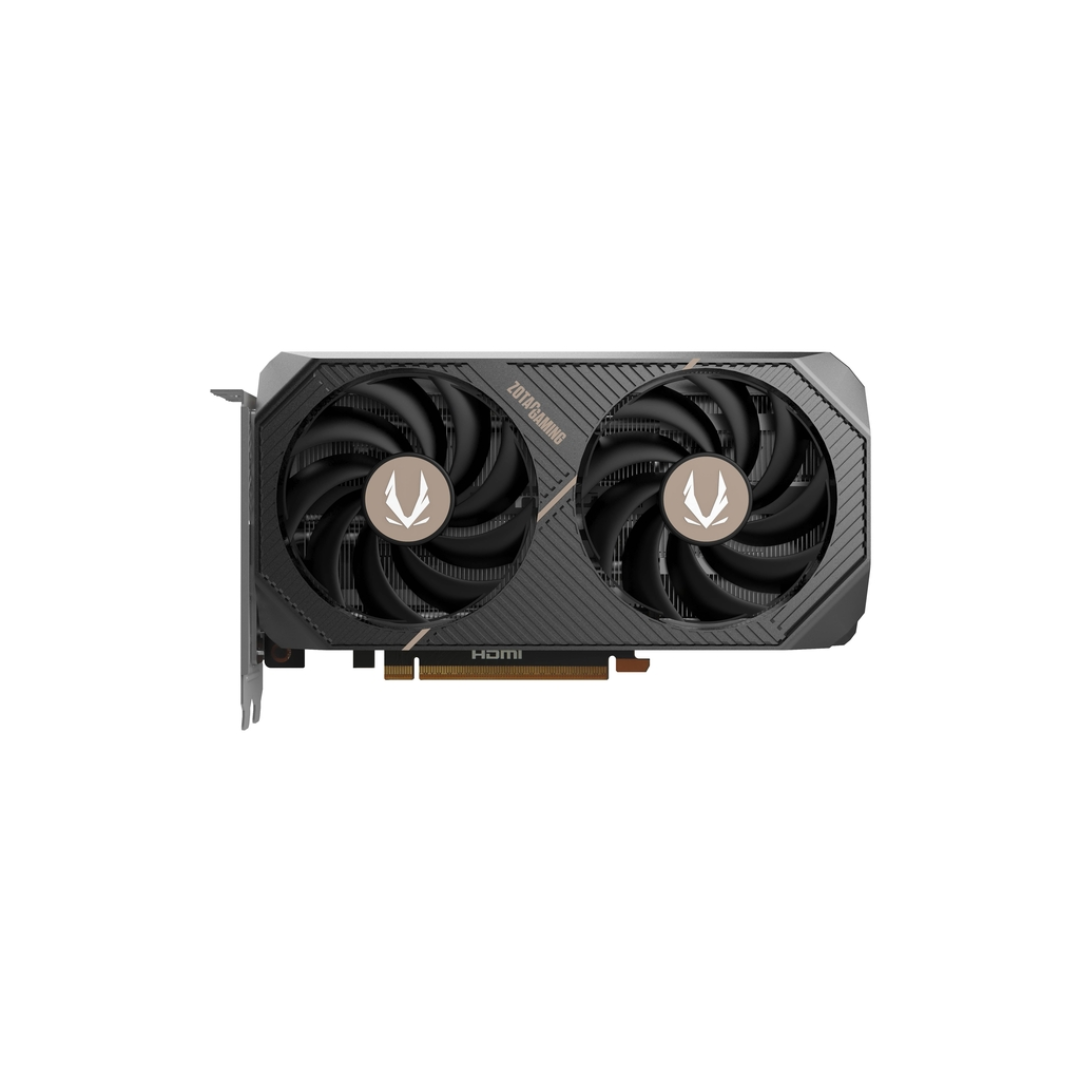

ZOTAC’s BladeLink cooling solution is engineered to keep the RTX 5060 AMP running cool and quiet under load. The innovative fan design features optimized blade geometry that maximizes airflow while minimizing noise levels, ensuring a peaceful gaming environment. The dual-fan configuration works in tandem to efficiently dissipate heat from the GPU and memory modules, maintaining optimal operating temperatures even during extended gaming sessions. The cooling system automatically adjusts fan speeds based on temperature, remaining whisper-quiet during light tasks and ramping up only when needed. This intelligent thermal management not only ensures consistent performance but also extends the lifespan of your graphics card.
Exceptional Display Connectivity and Multi-Monitor Support

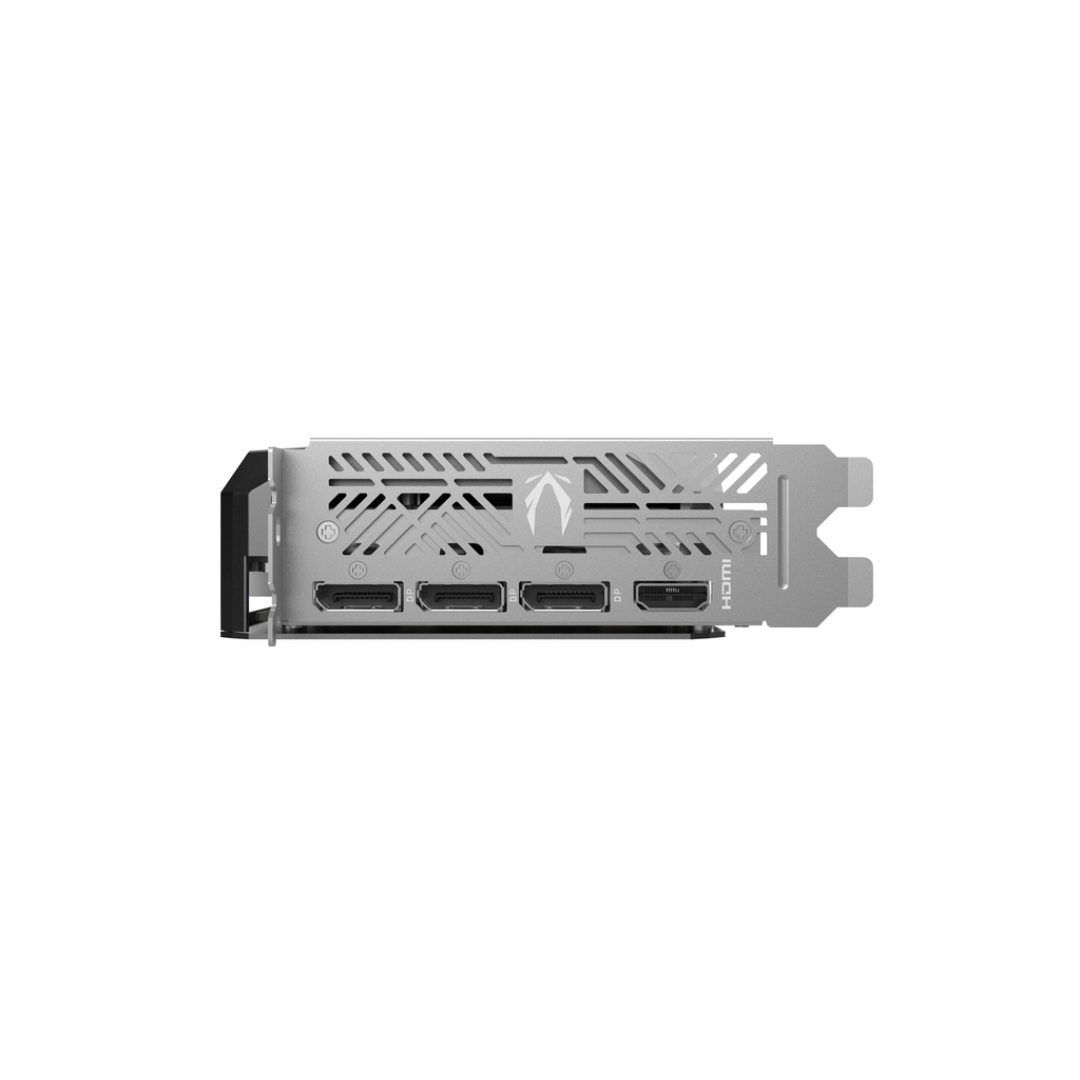

The RTX 5060 AMP offers cutting-edge display connectivity with three DisplayPort 2.1b ports featuring UHBR20 technology and one HDMI port. This versatile configuration supports quad display setups, perfect for immersive gaming, professional workflows, or content creation. DisplayPort 2.1b delivers incredible bandwidth, enabling resolutions up to 8K at 165Hz with Display Stream Compression (DSC), or 4K at an astounding 480Hz for the smoothest possible gaming experience. The HDMI port supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, along with Gaming VRR (Variable Refresh Rate) as specified in HDMI 2.1b. Whether you’re a competitive esports player demanding ultra-high refresh rates or a content creator working with multiple displays, this card has you covered.
AI-Powered Performance and Future-Ready Technology
With 614 AI TOPS (Tera Operations Per Second), the RTX 5060 AMP is built for the AI-driven future of gaming and content creation. This immense AI processing power enables advanced features like DLSS 4 frame generation, AI-enhanced ray tracing, and improved performance in AI-accelerated applications. The 8GB of GDDR7 memory running at 28 Gbps provides blazing-fast bandwidth for handling high-resolution textures and complex scenes. PCIe 5.0 x8 support ensures maximum data transfer speeds with compatible motherboards, future-proofing your system for next-generation hardware. DirectX 12 Ultimate and OpenGL 4.6 support guarantee compatibility with the latest games and professional applications, making this card an excellent investment for years to come.
Efficient Power Design and Easy Installation
Despite its impressive performance capabilities, the RTX 5060 AMP maintains excellent power efficiency with a TDP of just 155W. This modest power consumption means it can be paired with a 600W power supply unit, making it accessible for a wide range of systems without requiring expensive PSU upgrades. The single 8-pin PCIe power connector simplifies installation and cable management, keeping your build clean and organized. The card’s two-slot design ensures compatibility with most motherboards and cases, even those with limited expansion space. ZOTAC has optimized the power delivery system to provide stable, reliable performance across all workloads, from casual gaming to intensive rendering tasks.
