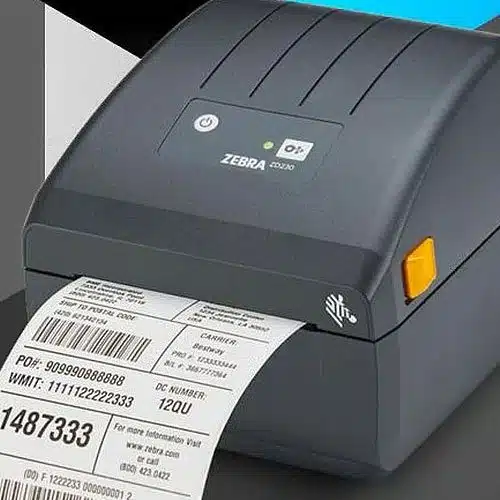

The Zebra ZD230 Barcode Label Printer is a barcode label printer. It is very simple to install and begin printing. It uses ZPL and EPL programming languages. It has built-in factory-installed USB, Ethernet, USB 802.11ac Wi-Fi and Bluetooth 4.1 which enables universal interoperability.

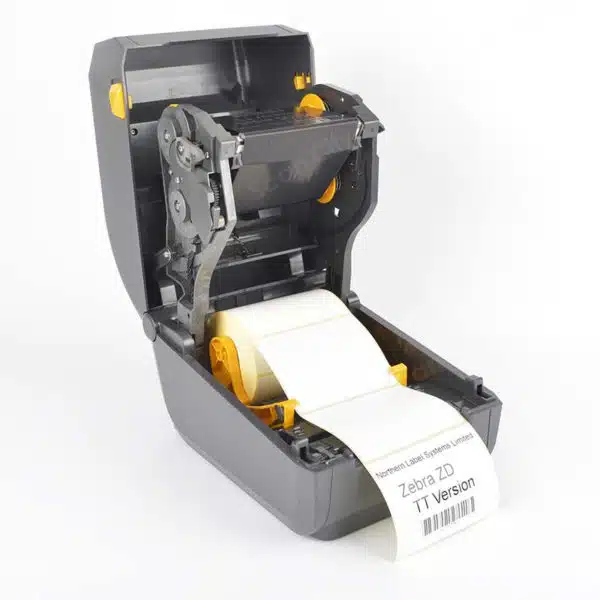

Zebra ZD230 Barcode Label Printer can accommodate a 300m ribbon roll to lengthen the time between media changes. The 4-inch printer produces labels quickly, up to 6in. per second.
To make it easy to operate and identify printer status, a single LED indicator and a single button for feed/pause have been used. Zebra ZD230 Barcode Label Printer can print at the resolution of 203 dpi/8 dots per mm. A movable black mark sensor, limited range from centre to left side and Fixed off-centre gap sensor has been used in this barcode printer. A factory-installed peeler or cutter has been used for media handling. Zebra ZD230 Barcode Label Printer is ideal for use in transportation and logistics, light manufacturing, retail and healthcare applications to print a variety of tickets, tags, passes, labels and receipt.
|Power||Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified|
10.5 in. L x 7.75 in. W x 7.5 in. H
267 mm L x 197 mm W x 191 mm H
8.6 in. L x 6.9 in. W x 5.9 in. H
220 mm L x 176 mm W x 151 mm H
|Weight||2.5 lbs/1.1 kg|
|Print Speed||6 in./152 mm per second|
|Resolution||203 dpi/8 dots per mm|
|Print Technology||Thermal Transfer or Direct Thermal print method|
