Description
The ViewSonic TD2455 23.8-inch IPS FHD Multi-Touch Monitor is designed for interactive productivity, education, presentations, and collaborative work. It features a 23.8-inch Full HD (1920 × 1080) IPS display with 178° viewing angles, 250 cd/m² brightness, and 1,000:1 static contrast for clear and consistent visuals. Its 10-point projected capacitive multi-touch technology provides smooth and responsive interaction, making it ideal for interactive applications. The anti-glare, 3H hard-coated surface helps reduce reflections and resist scratches. With a 60Hz refresh rate and 6ms GTG response time, it delivers fluid everyday performance. Connectivity includes HDMI, DisplayPort, USB 3.2 Type-A, USB Type-B, and USB Type-C with 60W power delivery. Built-in 2W × 2 speakers, flicker-free technology, low blue light, tilt adjustment, and VESA 100 × 100 mm support further enhance usability.
Specifications
| Specification | Details |
|---|---|
| Brand | ViewSonic |
| Model | TD2455 |
| Display Size | 23.8 / 24 Inch |
| Display Type | LED |
| Panel Type | IPS |
| Resolution | Full HD (1920 × 1080) |
| Pixel Pitch | 0.275 mm (H) × 0.275 mm (V) |
| Display Surface | Anti-Glare, Hard Coating (3H) |
| Aspect Ratio | 16:9 |
| Viewing Angle | 178° Horizontal, 178° Vertical |
| Brightness | 250 cd/m² (Typical) |
| Static Contrast Ratio | 1,000:1 (Typical) |
| Dynamic Contrast Ratio | 50M:1 |
| Refresh Rate | 60Hz |
| Color Support | 16.7M Colors |
| Color Depth | 8-bit (6-bit + Hi-FRC) |
| Color Gamut | 72% NTSC / 103% sRGB |
| Response Time | 6ms GTG / 6ms GTG with OD |
| Curvature | Flat |
| Touch Screen | Projected Capacitive, 10-Point Multi-Touch |
| Flicker-Free | Yes |
| Low Blue Light | Yes |
| Operating System Compatibility | Windows 7/8/8.1/10/11; macOS Tested |
| HDMI | 1 × HDMI 1.4 |
| USB Type-A | 2 × USB 3.2 Type-A Downstream |
| USB Type-B | 1 × USB 3.2 Type-B Upstream |
| USB Type-C | 1 × USB 3.2 Type-C Upstream; DisplayPort Alt Mode; 60W Power Delivery |
| DisplayPort | DisplayPort 1.2 / DisplayPort Out |
| Audio Jack | 1 × 3.5mm Audio Out |
| Built-in Speaker | Yes |
| Speaker Output | 2W × 2 |
| Tilt Adjustment | -5° to 60° |
| VESA Wall Mount | 100 × 100 mm |
| Security | Kensington Lock Slot |
| Color | Black |
| Physical Dimensions | 21.2 × 16.8 × 11.3 inches |
| Dimensions Without Stand | 21.2 × 12.6 × 2 inches |
| Packaging Dimensions | 24.3 × 16.3 × 11.2 inches |
| Net Weight | 6.4 kg |
| Net Weight Without Stand | 3.7 kg |
| Gross Weight | 8.4 kg |
| Power Supply | Internal |
| Power Consumption (Typical) | 17.9W |
| Power Consumption (Maximum) | 20.4W |
| Eco Mode – Conserve | 9.7W |
| Eco Mode – Optimized | 12.8W |
| Standby Power | 0.3W |
| Voltage | AC 100–240V, 50/60Hz |
| Operating Temperature | 0°C to 40°C |
| Backlight Life | 30,000 Hours |
Full HD IPS Display
The ViewSonic TD2455 features a 23.8-inch IPS panel with Full HD 1920 × 1080 resolution. It produces sharp and detailed visuals with vibrant colors, while the 178° horizontal and vertical viewing angles ensure consistent image quality from different positions.

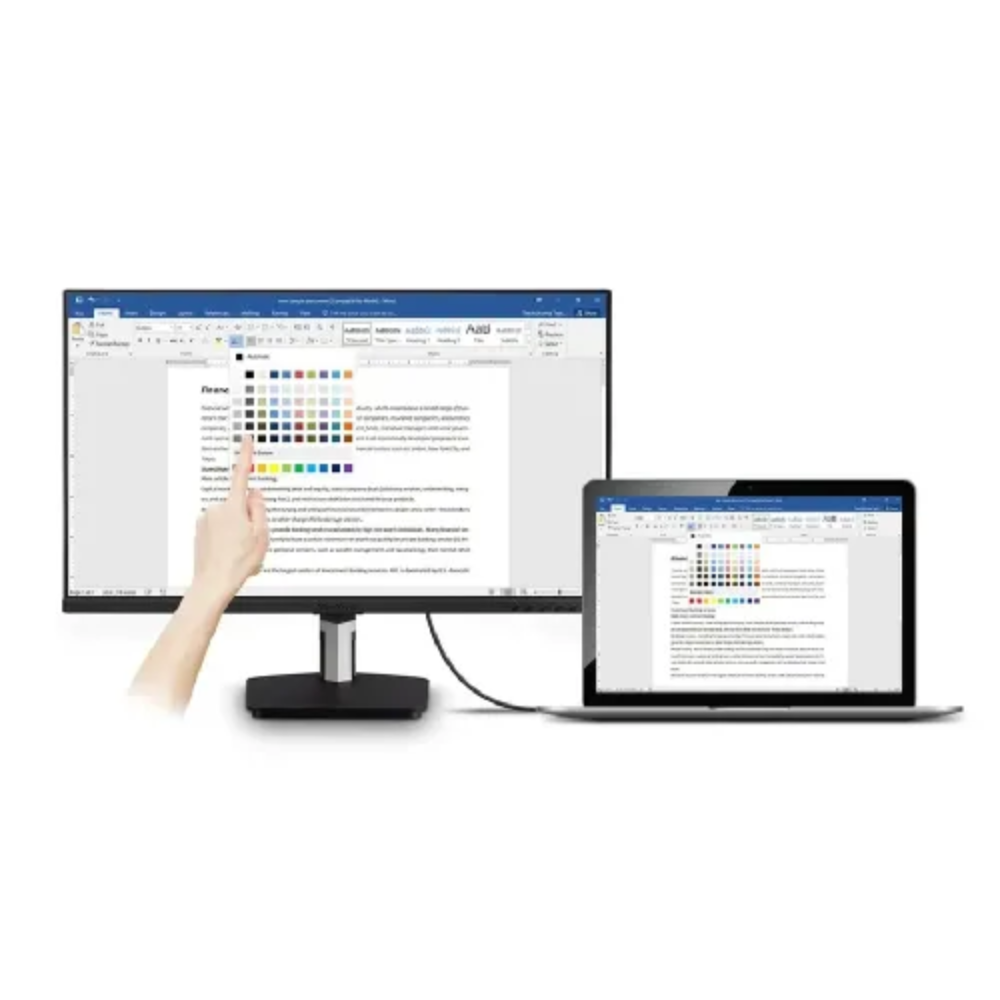

10-Point Multi-Touch Technology
Designed for interactive use, the monitor supports 10-point projected capacitive multi-touch functionality. This allows users to interact naturally with compatible applications using multiple touch points, making it suitable for presentations, classrooms, collaborative work, and interactive learning.
Clear and Smooth Visual Performance
With a 60Hz refresh rate and 6ms GTG response time, the TD2455 provides smooth performance for everyday computing, presentations, office applications, and multimedia. The 250 cd/m² brightness and 1,000:1 static contrast ratio help deliver clear and balanced images.
Anti-Glare and Eye-Care Features
The anti-glare display surface helps reduce distracting reflections, while the 3H hard coating provides additional surface durability. Flicker-free technology and a low blue light solution are included to help provide a more comfortable viewing experience during extended usage.

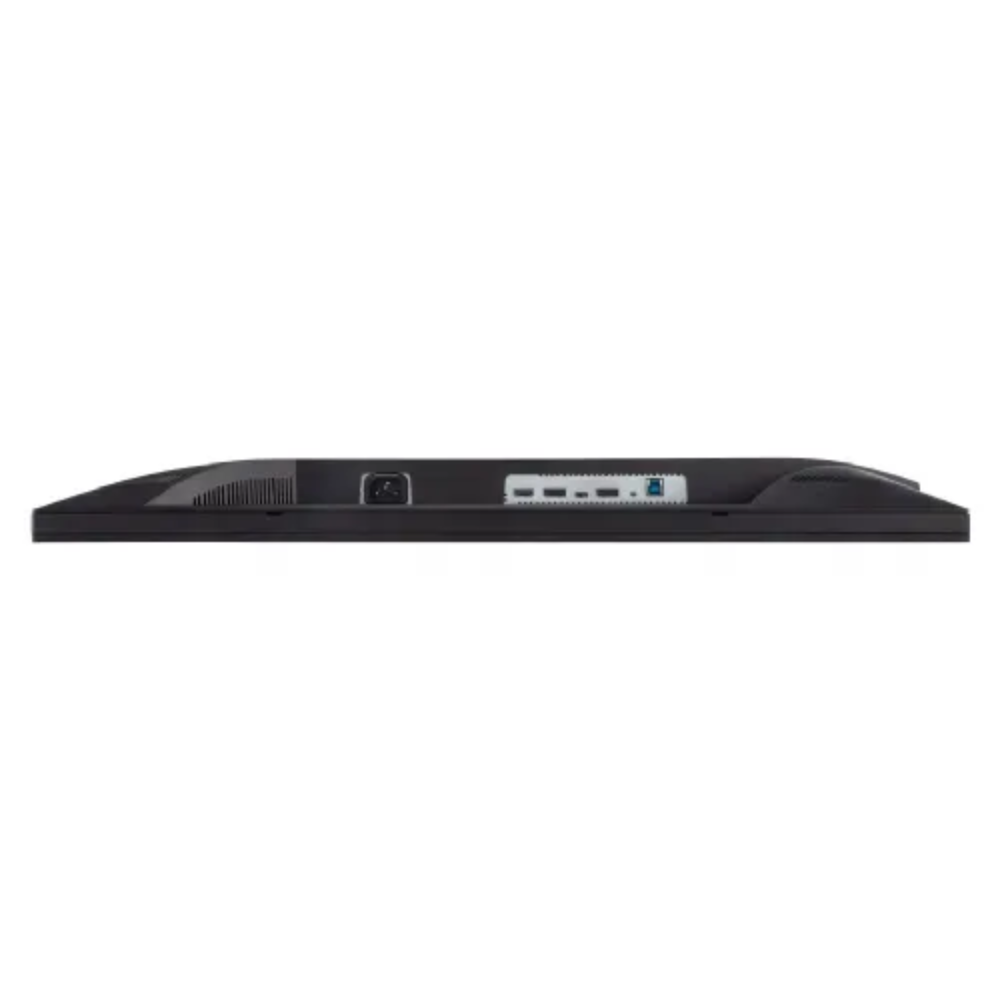

Versatile Connectivity
The monitor offers a wide range of connection options, including HDMI 1.4, DisplayPort, USB 3.2 Type-A, USB Type-B, and USB Type-C. Its USB Type-C connection supports DisplayPort Alt Mode and up to 60W power delivery, providing convenient connectivity for compatible devices.
Built-In Audio and Ergonomic Design
Dual 2W built-in speakers provide audio for multimedia and video calls without requiring separate speakers. The adjustable stand supports a wide tilt range from -5° to 60°, allowing users to position the display comfortably for different interactive applications.
Flexible Installation and Efficient Power Use
The TD2455 supports VESA 100 × 100 mm mounting, making it suitable for wall or monitor-arm installation. Its internal power supply and Eco Mode options help reduce energy consumption, with Eco Mode (Conserve) lowering typical consumption to 9.7W.
