Description

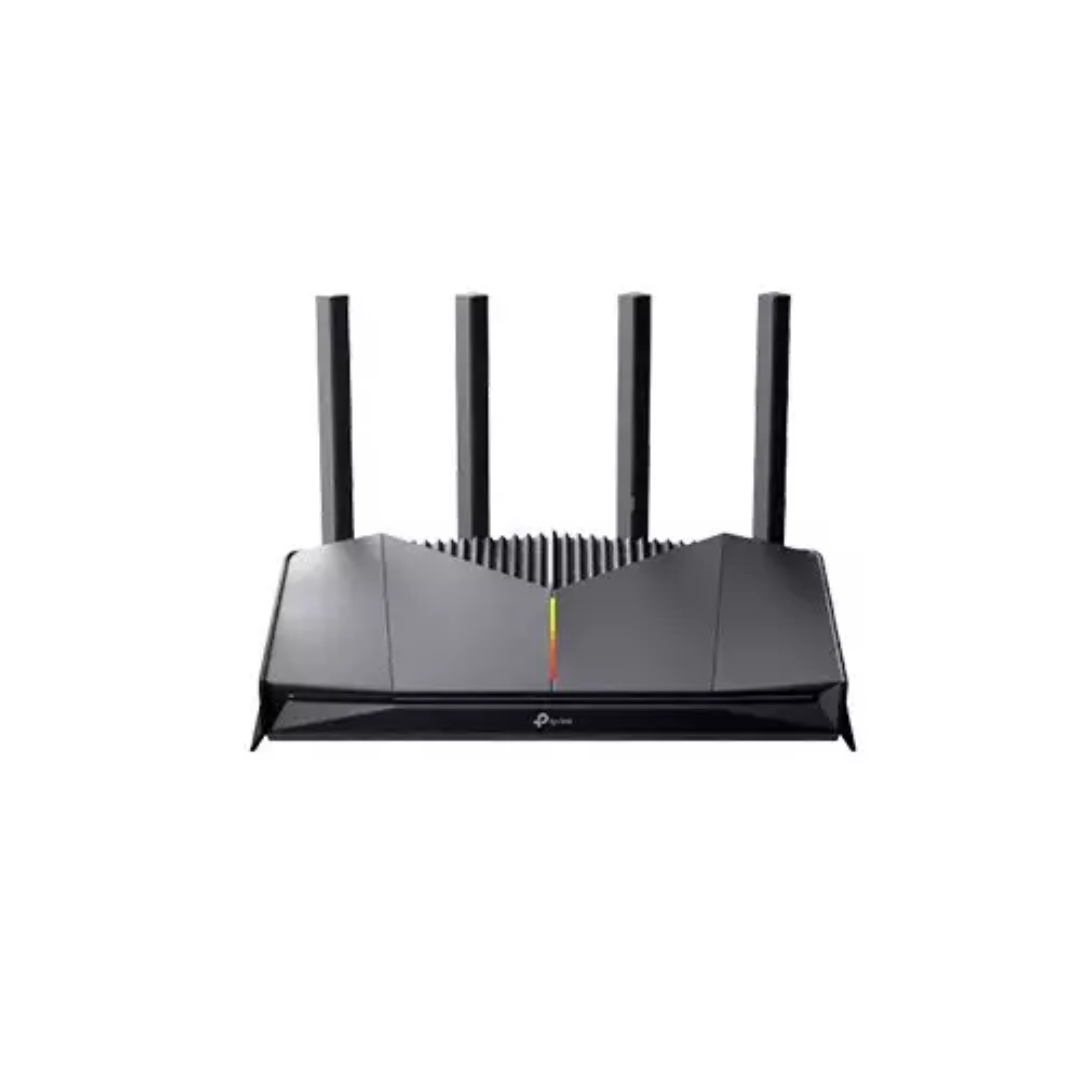

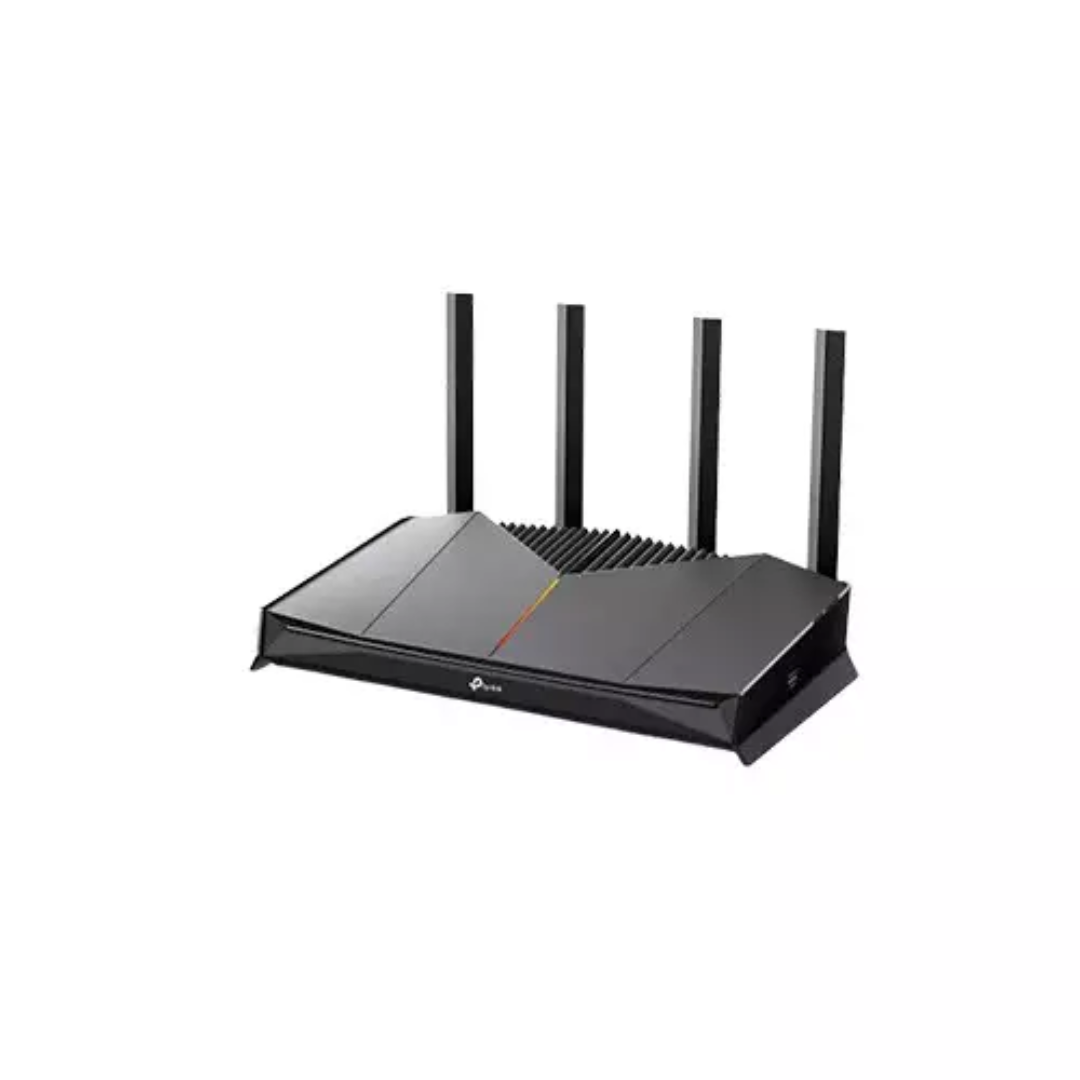

The TP-Link Archer GE230 Wi-Fi 7 BE3600 Dual-Band Gigabit Gaming Router is designed for gamers who demand faster wireless performance, lower latency, and reliable connectivity. Powered by the latest Wi-Fi 7 technology, it delivers a combined wireless speed of up to 3570Mbps—2882Mbps on the 5GHz band and 688Mbps on the 2.4GHz band. Advanced technologies such as Multi-Link Operation, 4K-QAM, and Multi-RUs improve network efficiency, responsiveness, and connection stability.

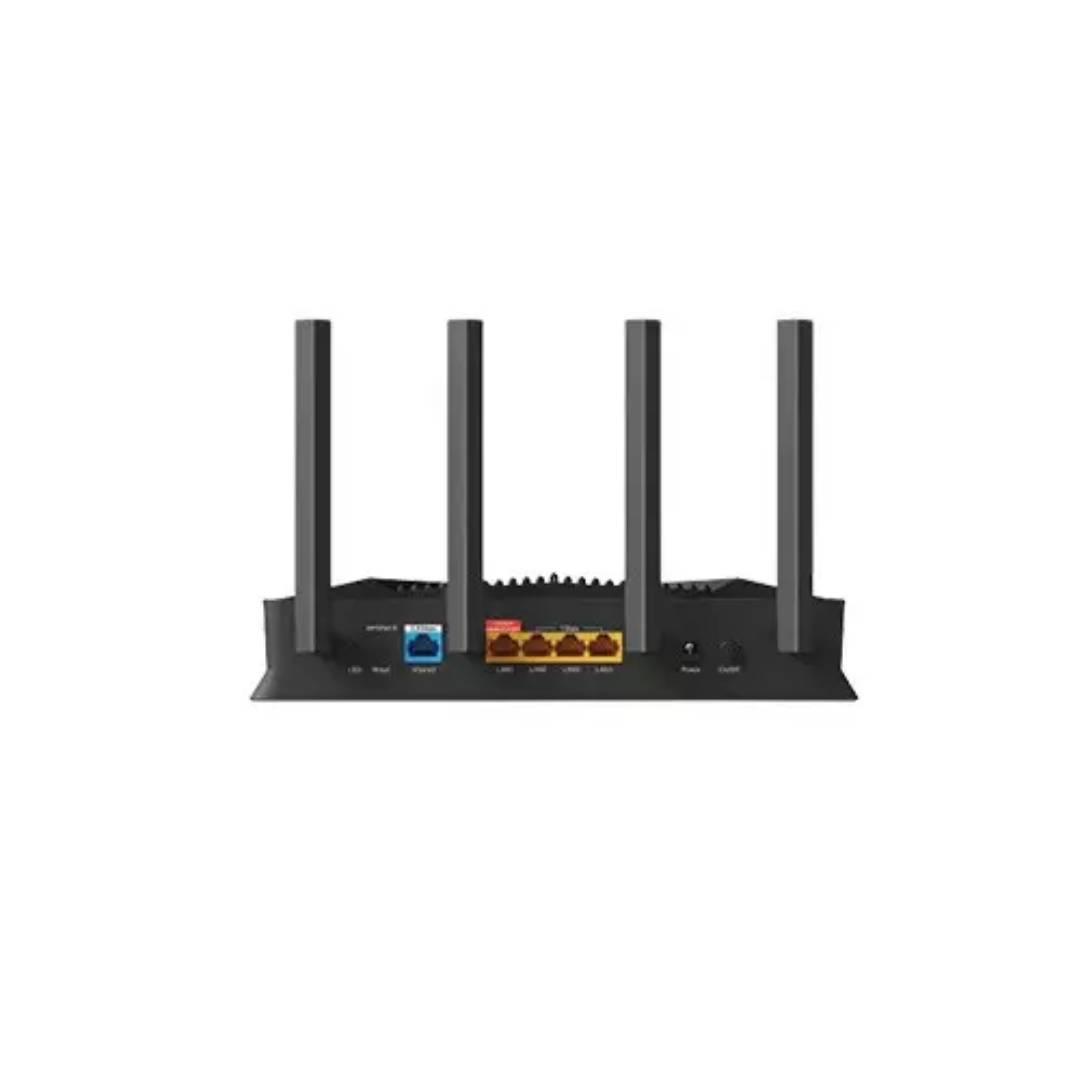

The router features one 2.5Gbps WAN port and one 2.5Gbps LAN port for high-speed internet and wired gaming. Three additional Gigabit LAN ports allow users to connect gaming PCs, consoles, smart TVs, and other wired devices. Turbo Game Acceleration prioritizes gaming applications and devices to help reduce lag, ping, and jitter.
Four external antennas combined with Beamforming provide stable signal coverage throughout the home. EasyMesh compatibility allows users to create a seamless whole-home mesh network using compatible routers or range extenders. TP-Link HomeShield, WPA3 encryption, VPN support, and parental controls offer additional network protection and management. Its racing-inspired design and customizable RGB lighting also make the Archer GE230 an attractive addition to any modern gaming setup.
Specifications
| Category | Details |
|---|---|
| Brand | TP-Link |
| Model | Archer GE230 |
| Router Type | BE3600 Dual-Band Wi-Fi 7 Gaming Router |
| Wi-Fi Standard | IEEE 802.11be Wi-Fi 7 |
| Wireless Bands | 2.4GHz and 5GHz |
| Wireless Speed | 5GHz: 2882Mbps; 2.4GHz: 688Mbps |
| Wi-Fi Streams | 4 Streams |
| Antennas | 4× External Antennas |
| Coverage Technology | Beamforming |
| Capacity Technology | 2×2 MU-MIMO, OFDMA, Airtime Fairness and DFS |
| Wi-Fi 7 Features | MLO, 4K-QAM and Multi-RUs |
| Operating Modes | Router Mode and Access Point Mode |
| WAN Port | 1× 2.5Gbps WAN |
| LAN Ports | 1× 2.5Gbps LAN and 3× Gigabit LAN |
| USB Port | 1× USB 3.0 |
| USB Functions | FTP Server, Media Server and Samba Server |
| Gaming Features | Gaming QoS, Gaming Port, GPN Server Acceleration, Game Panel and 5GHz Gaming Band |
| Network Security | SPI Firewall, Access Control, IP & MAC Binding, ALG and HomeShield |
| Guest Network | 1× 5GHz and 1× 2.4GHz Guest Network |
| VPN Server | OpenVPN, PPTP, L2TP and WireGuard |
| VPN Client | OpenVPN, PPTP, L2TP and WireGuard |
| Encryption | WPA, WPA2, WPA3 and WPA/WPA2-Enterprise |
| Protocol | IPv4 and IPv6 |
| WAN Types | Dynamic IP, Static IP, PPPoE, PPTP and L2TP |
| Quality of Service | QoS by Device |
| Mesh Technology | EasyMesh Compatible |
| Smart Assistant | Alexa and Google Assistant |
| Management | TP-Link Tether App and Web Interface |
| Buttons | Power, LED, WPS and Reset |
| Power Supply | 12V ⎓ 2A |
| Color | Black |
| Warranty | 1 Year |
Next-Generation BE3600 Wi-Fi 7 Performance
TP-Link Archer GE230 delivers combined wireless speeds of up to 3.6Gbps. Wi-Fi 7 technologies such as MLO, 4K-QAM, and Multi-RUs provide improved efficiency, faster response times, and stable performance on compatible devices. It is ideal for competitive gaming, 4K streaming, cloud gaming, and high-speed downloads.
Turbo Game Acceleration
The router can prioritize gaming applications through QoS and connected gaming devices through its dedicated Gaming Port. It also supports game-server acceleration through GPN. These features help minimize network congestion, ping, jitter, and latency during online gameplay.
Dual 2.5G Multi-Gigabit Ports
A 2.5Gbps WAN port allows users to take advantage of multi-gigabit internet connections, while the dedicated 2.5Gbps LAN port provides high-speed wired connectivity for a gaming PC or console. Three additional Gigabit LAN ports are available for other wired devices.
Dedicated Game Panel and RGB Lighting
The dedicated gaming dashboard provides information about network status, router performance, accelerated games, connected gaming devices, and RGB settings. Customizable RGB lighting and the racing-inspired exterior give the router a distinctive gaming appearance.
EasyMesh Whole-Home Coverage
Four high-performance external antennas and Beamforming help improve wireless coverage and signal stability. EasyMesh support lets users connect compatible routers or range extenders to create a unified whole-home mesh network with seamless roaming and a single Wi-Fi name.
HomeShield Security and VPN Support
TP-Link HomeShield provides network scanning, malicious website blocking, intrusion prevention, DDoS protection, IoT protection, and parental controls. The router also supports OpenVPN, PPTP, L2TP, and WireGuard in both VPN server and VPN client modes.
Warranty : 1 Years
