Description
The TOTOLINK X30 AX3000 Wi-Fi 6 Smart Mesh System represents the next generation of home networking technology, delivering blazing-fast wireless speeds of up to 3000Mbps. Powered by MediaTek’s advanced Filogic 820 chipset with a 1.3GHz dual-core processor, this router harnesses Wi-Fi 6 (802.11ax) technology to provide 2402Mbps on the 5GHz band and 574Mbps on the 2.4GHz band. The X30 features full gigabit connectivity with one WAN port and four LAN ports, ensuring seamless wired and wireless performance throughout your home.
Built with Easy Mesh technology, the X30 creates a unified network that eliminates dead zones and enables seamless roaming as you move through your space. OFDMA technology increases network capacity by four times, allowing dozens of devices to stream, game, and browse simultaneously without congestion. Four high-performance internal antennas with loop layout design ensure consistent signal coverage, while Target Wake Time (TWT) technology extends battery life for connected devices. Enhanced with WPA3 security protocols, comprehensive parental controls, and support for up to 256 users, the X30 is the perfect solution for large homes and small offices demanding reliable, high-speed connectivity. Easy setup and management are available through an intuitive phone interface and the TOTOLINK Router APP.
Specifications
| Category | Details |
|---|---|
| Model | TOTOLINK X30 AX3000 |
| Wi-Fi Standard | IEEE 802.11ax/ac/n/g/b/a |
| Wireless Speed | 2.4GHz: Up to 574Mbps, 5GHz: Up to 2402Mbps (Total: 3000Mbps) |
| Processor | MediaTek Filogic 820, Dual-Core 1.3GHz |
| Frequency Bands | – 2.4~2.4835GHz
– 5.18~5.24GHz – 5.745~5.825GHz |
| Antennas | 4 × Internal Antennas |

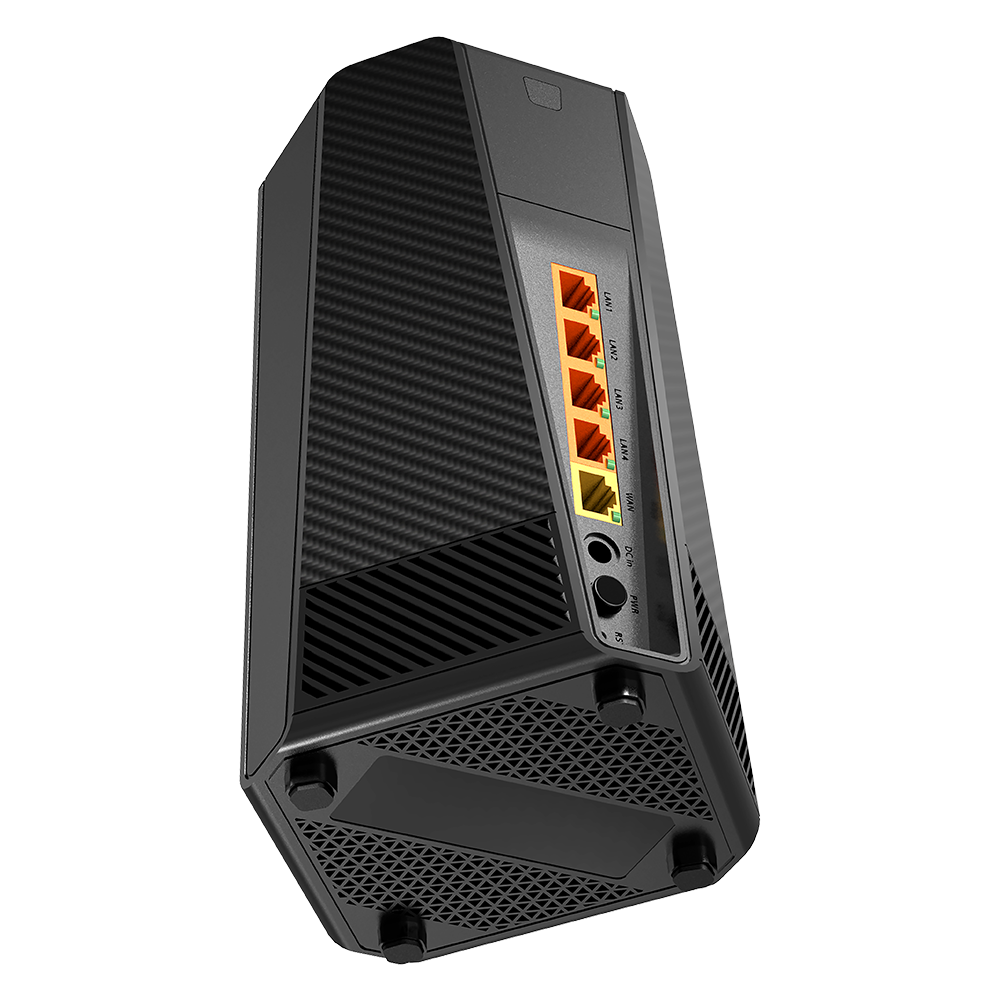

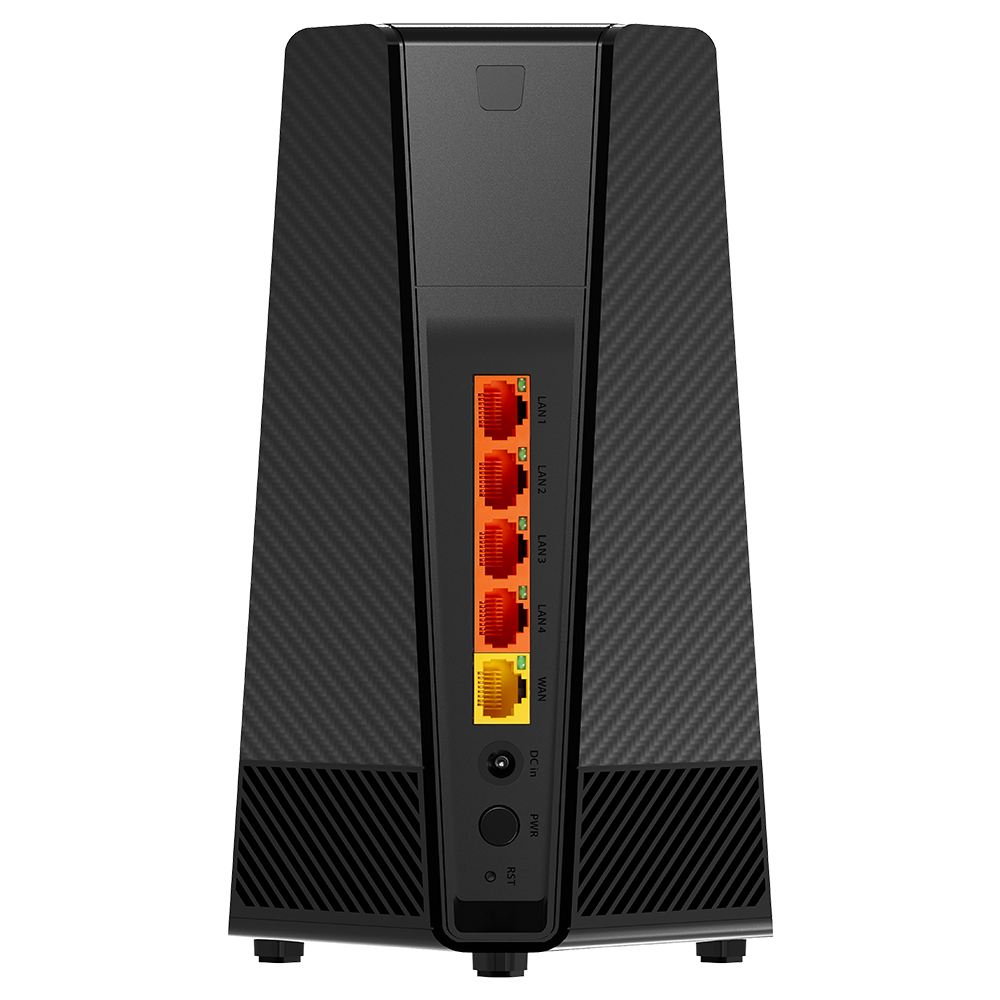

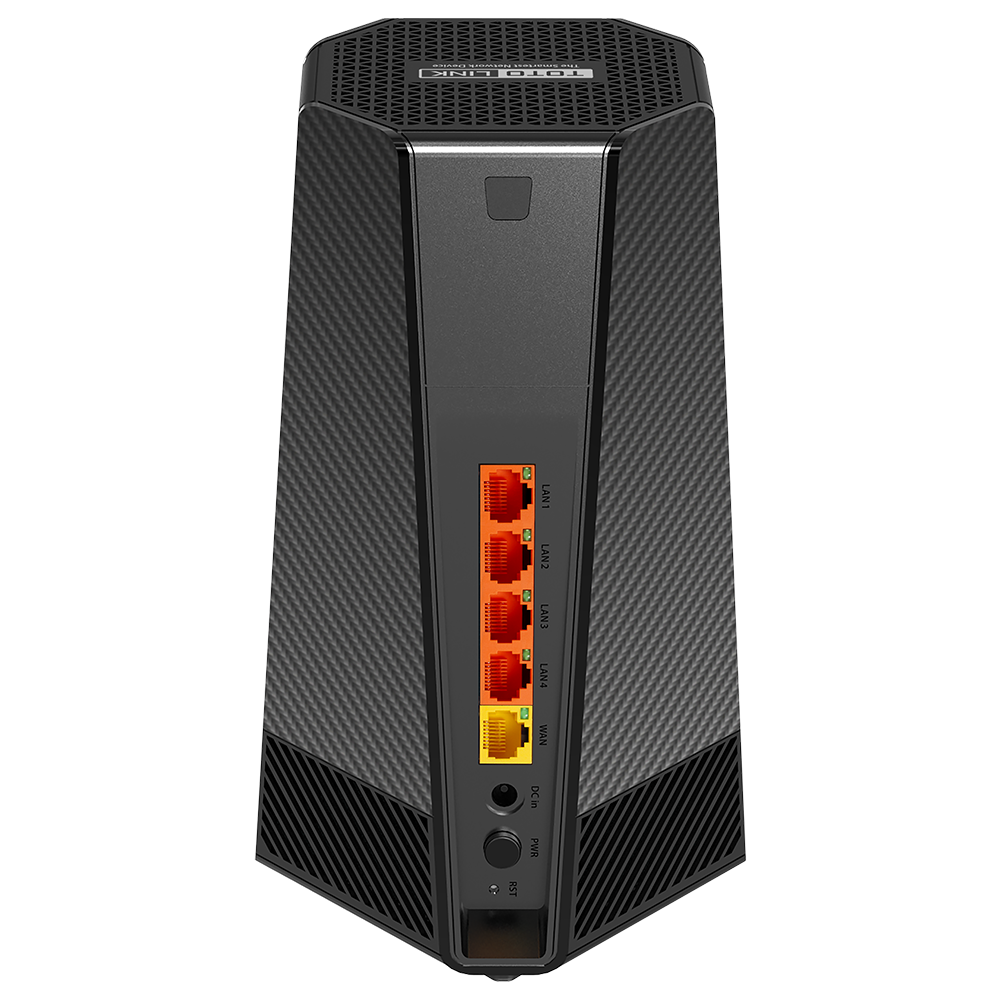

| Ports | 1 × 1000Mbps WAN Port, 4 × 1000Mbps LAN Ports |
| Buttons | 1 × Reset, 1 × MESH, 1 × Power On/Off |

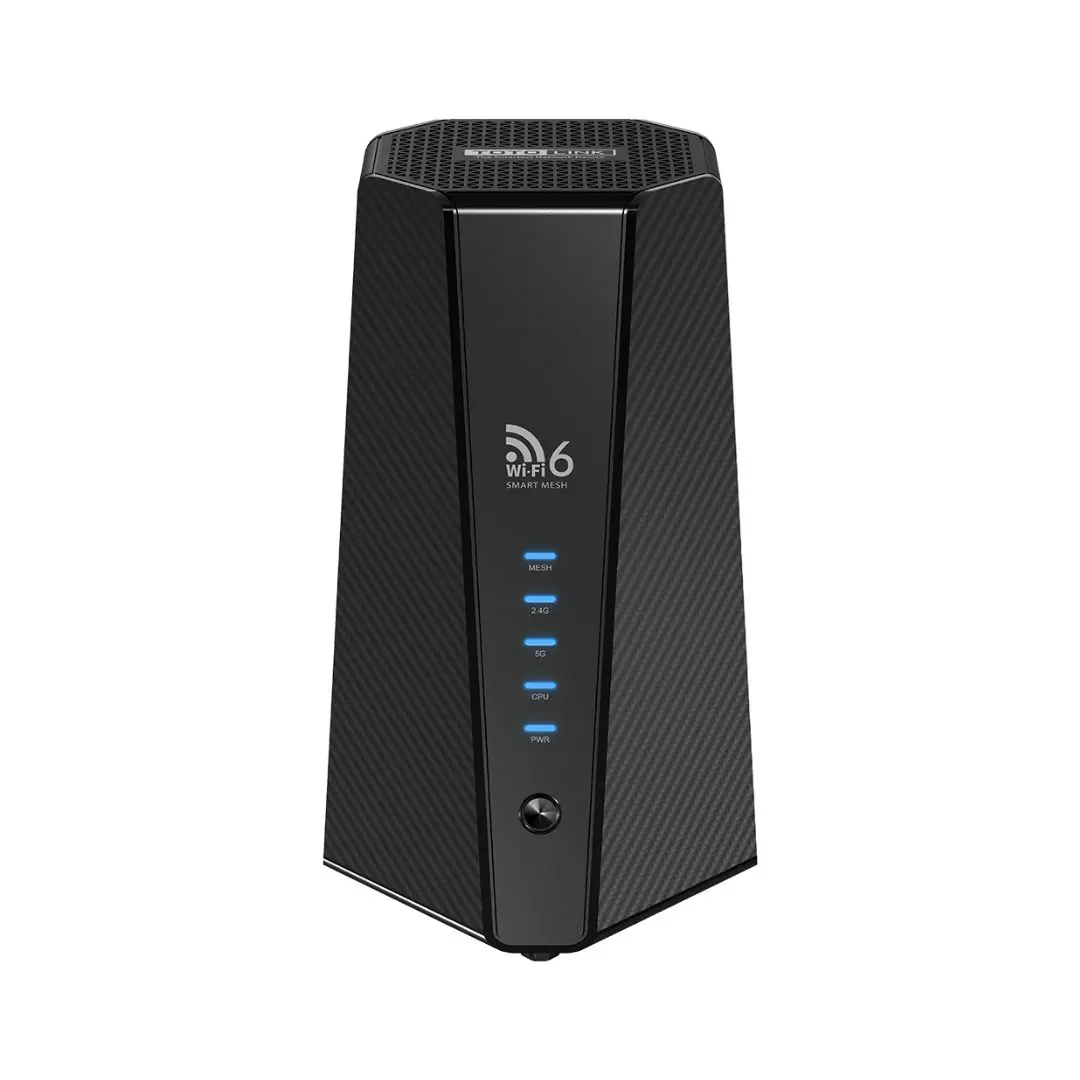

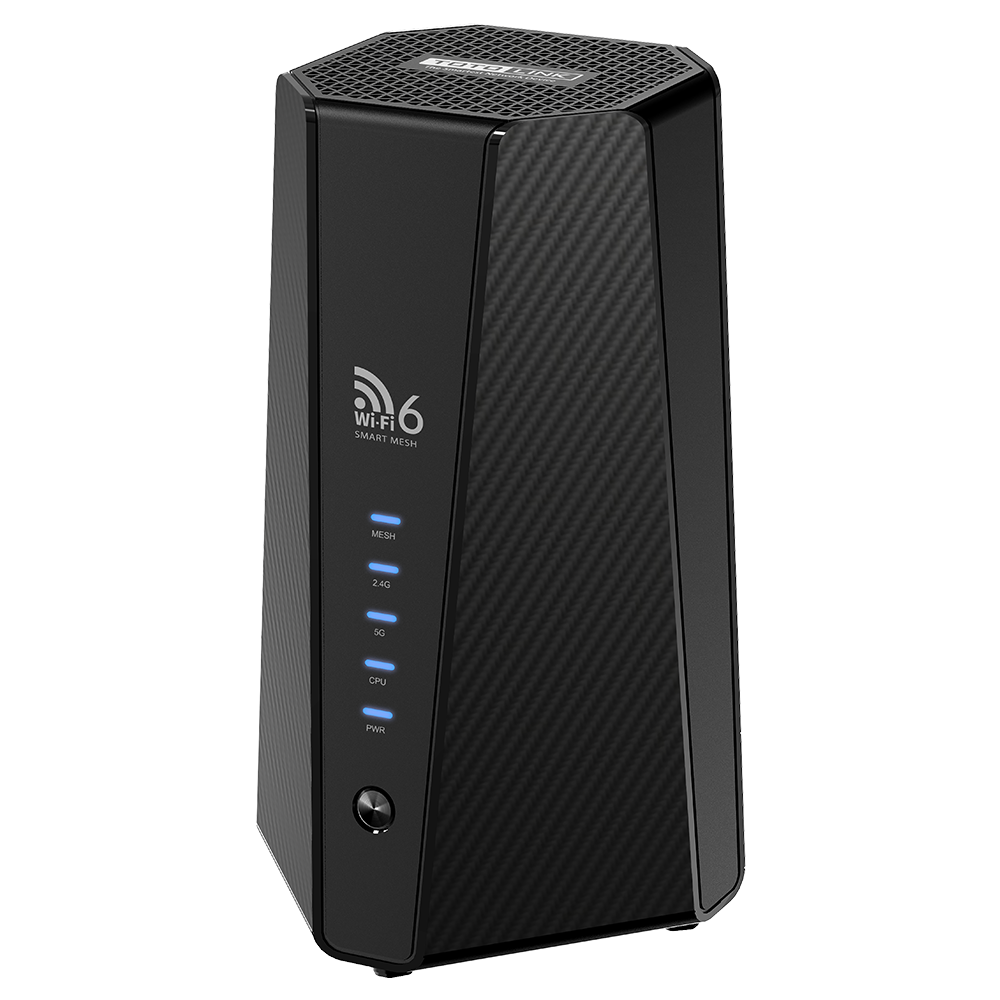

| LED Indicators | PWR, CPU, 5G, 2.4G, MESH |
| Security | WPA2/WPA3 |
| Wireless Features | OFDMA, MU-MIMO, Beamforming, TWT, 160MHz Bandwidth |
| Device Capacity | Up to 256 Users |
| WAN Connection Types | Static IP, DHCP, PPPoE, PPTP, L2TP |
| Operation Modes | Gateway, Bridge, Repeater, WISP |
| VPN Server | L2TP VPN with Account Management |
| Additional Features | Easy Mesh, Guest Network, Parental Control, QoS, DDNS, IPv6 |
| Power Supply | 12V DC/1A |
| Dimensions (L × W × H) | 127 × 142 × 216 mm |
| Operating Temperature | 0℃~40℃ (32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
Next-Generation Wi-Fi 6 Technology for Ultra-Fast Speeds
The TOTOLINK X30 is built on the latest Wi-Fi 6 (IEEE 802.11ax) standard, delivering combined wireless speeds of up to 3000Mbps across dual bands. With 2402Mbps on the 5GHz band utilizing 160MHz bandwidth and 1024-QAM modulation, and 574Mbps on the 2.4GHz band, the X30 provides true gigabit wireless performance. This remarkable speed upgrade makes every online activity more fluid and responsive, whether you’re streaming 4K videos, engaging in competitive online gaming, downloading large files, or conducting video conferences. Both frequency bands benefit from the advanced Wi-Fi 6 technology, ensuring that legacy devices on 2.4GHz and modern devices on 5GHz all experience optimal performance. The router’s ability to maintain high speeds even under heavy network load makes it ideal for modern households with multiple users and dozens of connected devices simultaneously accessing bandwidth-intensive applications.
Easy Mesh Technology for Seamless Whole-Home Coverage
The X30 features advanced Easy Mesh technology that allows multiple units to work together as a unified network system with a single network name (SSID). This intelligent mesh capability eliminates Wi-Fi dead zones throughout your home by creating a blanket of consistent, high-speed coverage. As you move from room to room, your devices automatically connect to the X30 unit providing the strongest signal without any manual switching or dropped connections. This seamless roaming experience ensures uninterrupted streaming, gaming, and browsing as you move throughout your space. The mesh system is incredibly easy to set up—simply place additional X30 units in areas that need coverage, and they’ll automatically connect to form an optimized network. With four high-performance internal antennas featuring a loop layout design, each unit provides robust signal propagation and reception. This makes the X30 perfect for large homes, multi-story buildings, or offices where traditional single-router setups struggle to provide adequate coverage.
OFDMA and MU-MIMO for Enhanced Multi-Device Performance
The X30 incorporates Orthogonal Frequency Division Multiple Access (OFDMA) technology, which revolutionizes how your router handles multiple connected devices. OFDMA increases network capacity by up to four times compared to previous Wi-Fi generations by dividing a single transmission channel into multiple smaller sub-channels. This allows the router to communicate with multiple devices simultaneously within the same transmission, dramatically reducing latency and improving overall network efficiency. When combined with MU-MIMO (Multi-User, Multiple-Input, Multiple-Output) technology, the X30 can transmit data to multiple devices at the same time rather than sequentially. This means dozens of devices can stream videos, play online games, browse the web, and download files concurrently without experiencing slowdowns or buffering. The router’s advanced Beamforming technology further enhances performance by focusing wireless signals directly toward connected devices rather than broadcasting in all directions, improving both range and reliability of your Wi-Fi connections.
Powerful Processing for Demanding Networks
At the heart of the X30 is MediaTek’s cutting-edge Filogic 820 chipset, featuring a dual-core 1.3GHz processor built on an advanced 12nm manufacturing process. This powerful CPU ensures the router can handle the computational demands of modern networking, including packet processing, Quality of Service (QoS) management, security protocol encryption, and simultaneous data streams to multiple devices. The robust processing capability supports up to 256 connected users without performance degradation, making the X30 suitable for environments with numerous IoT devices, smartphones, tablets, computers, smart TVs, and other connected equipment. The router includes full gigabit Ethernet ports—one WAN port for your internet connection and four LAN ports for wired devices—providing maximum throughput for devices that benefit from wired connections like gaming consoles, desktop computers, and network-attached storage. The combination of powerful processing, gigabit ports, and advanced wireless technology ensures that the X30 can handle concurrent real-time applications including 4K/8K video streaming, online gaming, VoIP calls, and large file transfers without any bottlenecks.
Advanced Security and Energy Efficiency Features
Security is paramount in the X30, which supports the latest WPA3 wireless security protocol to protect your network from unauthorized access, brute-force attacks, and other cybersecurity threats. WPA3 provides enhanced encryption and more secure authentication methods compared to older protocols, keeping your personal information, connected devices, and online activities safe. The router includes comprehensive parental control features that allow you to manage internet access for specific devices based on time schedules and MAC addresses, helping you create a safer online environment for children. Target Wake Time (TWT) technology, a key feature of Wi-Fi 6, allows connected devices to negotiate when they need to wake up to send or receive data, significantly reducing power consumption and extending battery life for smartphones, tablets, laptops, and IoT devices. Additional features include guest network support for visitors, Smart QoS for bandwidth prioritization, Wi-Fi scheduling to automatically turn off wireless at specific times, VPN server functionality for secure remote access, DDNS support, IPv6 compatibility, and multiple operation modes (Gateway, Bridge, Repeater, WISP) to suit various networking scenarios.
Easy Setup and Comprehensive Management
The TOTOLINK X30 is designed for hassle-free installation and management through an intuitive web interface and the dedicated TOTOLINK Router mobile app. The quick setup wizard guides you through the initial configuration process in minutes, automatically detecting your internet connection type and optimizing settings. Once configured, you can manage all router functions from your smartphone or computer, including network settings, connected devices, security options, parental controls, and firmware updates. The router supports multiple WAN connection types including Static IP, DHCP, PPPoE, PPTP, and L2TP to work with various ISPs worldwide. Advanced features like Virtual Server (port forwarding), DMZ, UPnP, IPTV support, IP/MAC binding, URL filtering, and remote management provide comprehensive control over your network. The system includes diagnostic tools like ping tests and route tracking to troubleshoot connectivity issues. Firmware updates can be performed with a single click to ensure your router always has the latest features and security patches. With its compact dimensions of 127 × 142 × 216mm and sleek design featuring discrete LED indicators for power, CPU, 2.4G, 5G, and MESH status, the X30 fits seamlessly into any home or office environment.
