Description
Illuminate with Twisting Blade

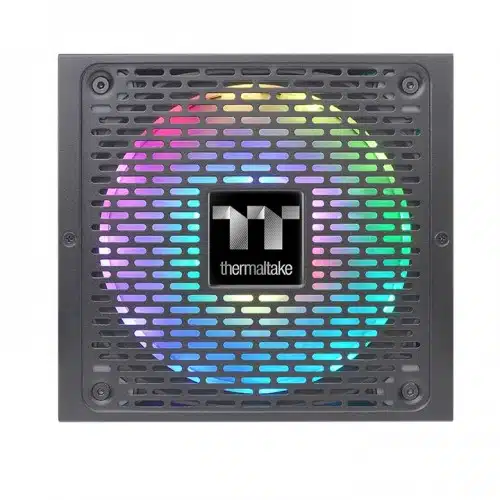

The built-in Riing Duo 14 RGB Fan features dual rings with 18 addressable LEDs, great light coverage, and uniform color and brightness to paint your build with 16.8 million colors.
Shining from Perfect Circles
Show off the fascinating illumination through the unique ARGB side cover design and add the amazing effect on your build.
Sync with Motherboard ARGB Software
To reach endless lighting customization, the Toughpower GF1 ARGB supports motherboards with a 5V addressable RGB header from ASUS, GIGABYTE, MSI, and ASRock. Users get to control the lights directly from the software released by those brands without enabling any additional lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI and ASRock official websites.
Zero Cable Platform
Farewell to messy cables! The daughterboards are directly soldered to the motherboard for better heat dissipation and impressive output power quality.
Ultra Quiet Smart Zero Fan
With Smart Zero Fan starting to operate when the power supply working load goes over 40%, the undesired noise will be minimized. A user-friendly switch is set on the back panel for those who prefer the fan to spin constantly.
< 30 mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V, or +3.3V from 0% to 100% load to ensure an excellent performance and a reliable operation.
Extremely Strict Voltage Regulation < ±2%
The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.
100% High Quality Japanese 105°C/221°F Capacitors
Comes with high quality 105 °C (221 ° F) Japanese capacitors to help improve the durability and offer impressive stability.

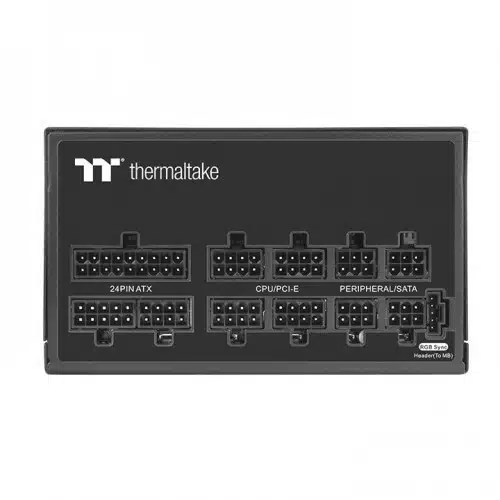

Fully Modular Low-profile Flat Black Cables
The series offers cable selection for users while powering the system at an advantageous voltage. The low-profile flat black cables make cable management easier, reduce clutter and increase airflow inside the chassis.
High Amperage Single +12V Rail Design
Powerful single +12V rail helps ensure a stable and reliable supply to other PC components.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
Specifications
- Efficiency (Approx.): 90%
- Certification: 80 PLUS Gold
- Fan Size: 140mm
- Lighting Effect: ARGB Fan
- Input Voltage: 100V – 240V~
- Frequency Range: 50Hz – 60Hz
- Current: 12A
- Modular Type: Full Modular
- Total Power: 850W
- Peak Power: 1020W
- Main Power: 24pin x1 (600mm)
- CPU: ATX 12V 4 + 4pin x2 (650mm)
- PCI-E: PCI-E 6 + 2pin x6 (500mm = 150mm)
- SATA: SATA 5pin x12 (500mm + 150mm + 150mm + 150mm)
- Molex: Peripheral 4pin x4 (500mm + 150mm + 150mm + 150mm)
- Floppy: Floppy Adapter 4pin x1 (150mm)
