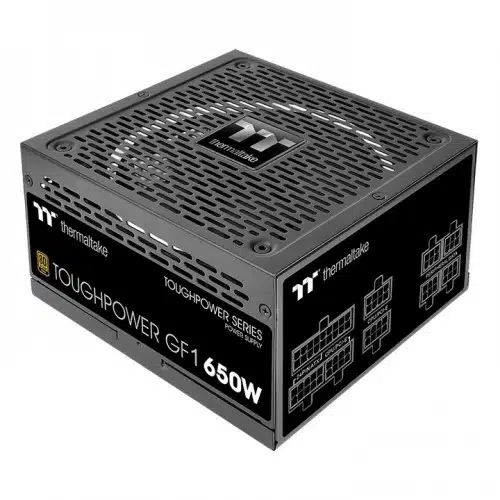

Thermaltake Toughpower GF1 650W 80 Plus Gold Fully Modular Power Supply

Description

Illuminate with Twisting Blade Shining from Perfect Circles

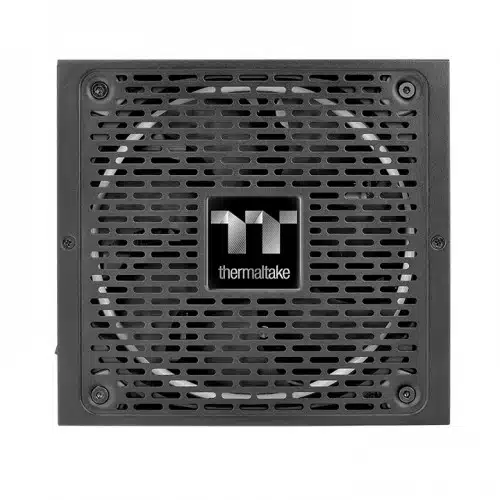

The built-in Riing Duo 14 RGB Fan in Thermaltake Toughpower GF1 Fully Modular Power Supply features dual rings with 18 addressable LEDs, great light coverage, and uniform color and brightness to paint your build with 16.8 million colors.

Zero Cable Platform & Ultra Quiet Smart Zero Fan

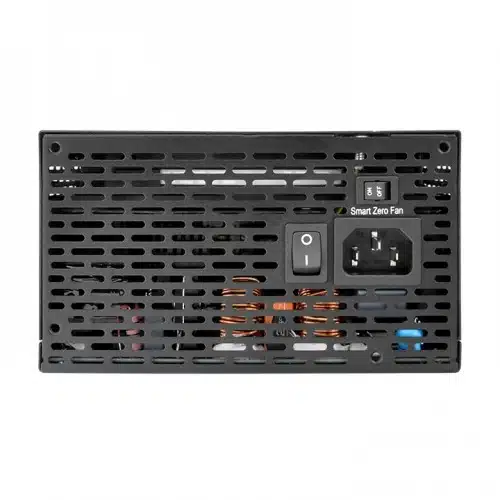

Farewell to messy cables! The daughterboards are directly soldered to the motherboard for better heat dissipation and impressive output power quality. And also the Smart Zero Fan starts to operate when the power supply working load goes over 40%, the undesired noise will be minimized. In this Power Supply, the user-friendly switch is set on the back panel for those who prefer the fan to spin constantly.

Ripple Noise & Extremely Strict Voltage

All ripples are lower than 30mV on +12V, +5V, or +3.3V from 0% to 100% load to ensure excellent performance and a reliable operation. The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance. This new 650W power supply comes with high-quality 105 °C (221 ° F) Japanese capacitors to help improve durability and offer impressive stability.

Fully Modular Low-profile Flat Black Cables

Thermaltake Toughpower GF1 Fully Modular Power Supply offers cable selection for users while powering the system at an advantageous voltage. The low-profile flat black cables make cable management easier, reduce clutter and increase airflow inside the chassis.

Specifications:

WATTS: 650W
MODEL: PS-TPD-0650FNFAGx-1
TYPE: TTP-650AH3FCG
MAX. OUTPUT CAPACITY: 650W
PEAK OUTPUT CAPACITY: 780W
DIMENSION ( W / H / D ): 150mm(W) x 86mm(H) x 160mm(D)
PFC (POWER FACTOR CORRECTION): Active PFC
POWER GOOD SIGNAL: 100-500 msec
HOLD UP TIME: > 16msec at 100% of full load
INPUT CURRENT: 10A
INPUT FREQUENCY RANGE: 50Hz – 60Hz
INPUT VOLTAGE: 100V – 240V~
COOLING SYSTEM: 14cm hydraulic bearing fan
EFFICIENCY: Meet 80 PLUS®Gold at 115Vac input.
PROTECTION: OCP, OVP, UVP, OPP, SCP, OTP

Warranty: 10 years
