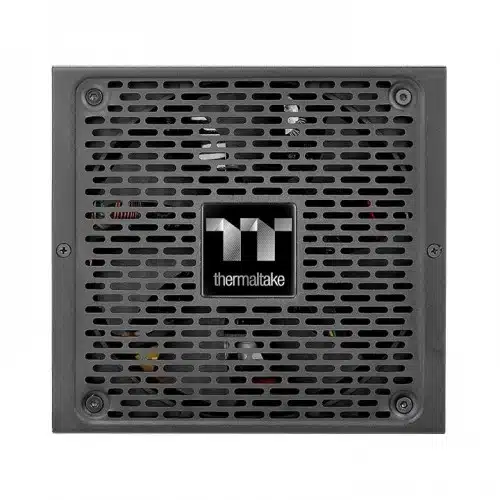

Thermaltake Toughpower GF 850W 80 Plus Gold Fully Modular Power Supply

Description

Ultra Quiet 140mm Fluid Dynamic Bearing Fan

The Thermaltake Toughpower GF 850W 80 Plus Gold Fully Modular Power Supply adopts a 140mm ultra quiet Fluid Dynamic Bearing Fan, ensuring the overall good cooling performance and silent operation.

Fully Modular Flat Cable Design

Soft flat black cables come with sleeve cabling, designed to make cable installation an easy task while fully powering the system at optimal voltages.

High quality Japanese Main Capacitor

High quality Japanese main capacitor greatly improves the power supplies durability and ensures the Toughpower GF 850W to have highest stability and reliability.

DC to DC for Stable Output Voltage

With DC to DC design, the unit can optimize maximum energy harvest for your system. Such as efficiently change voltage level for 12V, 5V, and 3V and to match the loads to your power supply.

Single +12V Rail

The powerful single +12V rail ensures a stable and reliable supply to other PC components.

80 PLUS Gold Certified and Lake C6/C7 States Ready

Thermaltake Toughpower GF 850W 80 Plus Gold Fully Modular Power Supply saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving

Specifications

• Continuous Power: 850W
• Efficiency (Approx.): Meet 80 PLUS Gold at 115Vac input.
• Certification: 80 PLUS Gold
• Fan Size: 140mm
• Input Voltage: 100V – 240V
• Frequency Range: 47Hz – 63Hz
• Current: 12A max.
• Modular Type: Fully Modular
• Total Power: 850W
• Peak Power: 1020W
• Main Power: 24pin Main connector (600mm) x 1
• CPU:
  ATX 12V 4+4pin connector (650mm) x 1
  ATX 12V 8pin connector (600mm) x 1
• PCI-E:
  PCI-E 6+2pin connectors (500mm + 150mm) x 2
  PCI-E 6+2pin connectors (500mm + 150mm) x 2
  PCI-E 6+2pin connectors (500mm + 150mm) x 2
• SATA:
  SATA connectors (500mm + 150mm + 150mm) x 4
  SATA connectors (500mm + 150mm + 150mm) x 4
  SATA connectors (500mm + 150mm + 150mm) x 4
• Molex: Peripheral connectors (500mm + 150mm + 150mm+ 150mm) x 4
• Floppy: Peripheral to FDD adapter cable (150mm) x 1

Warranty: 3 Years
