Description

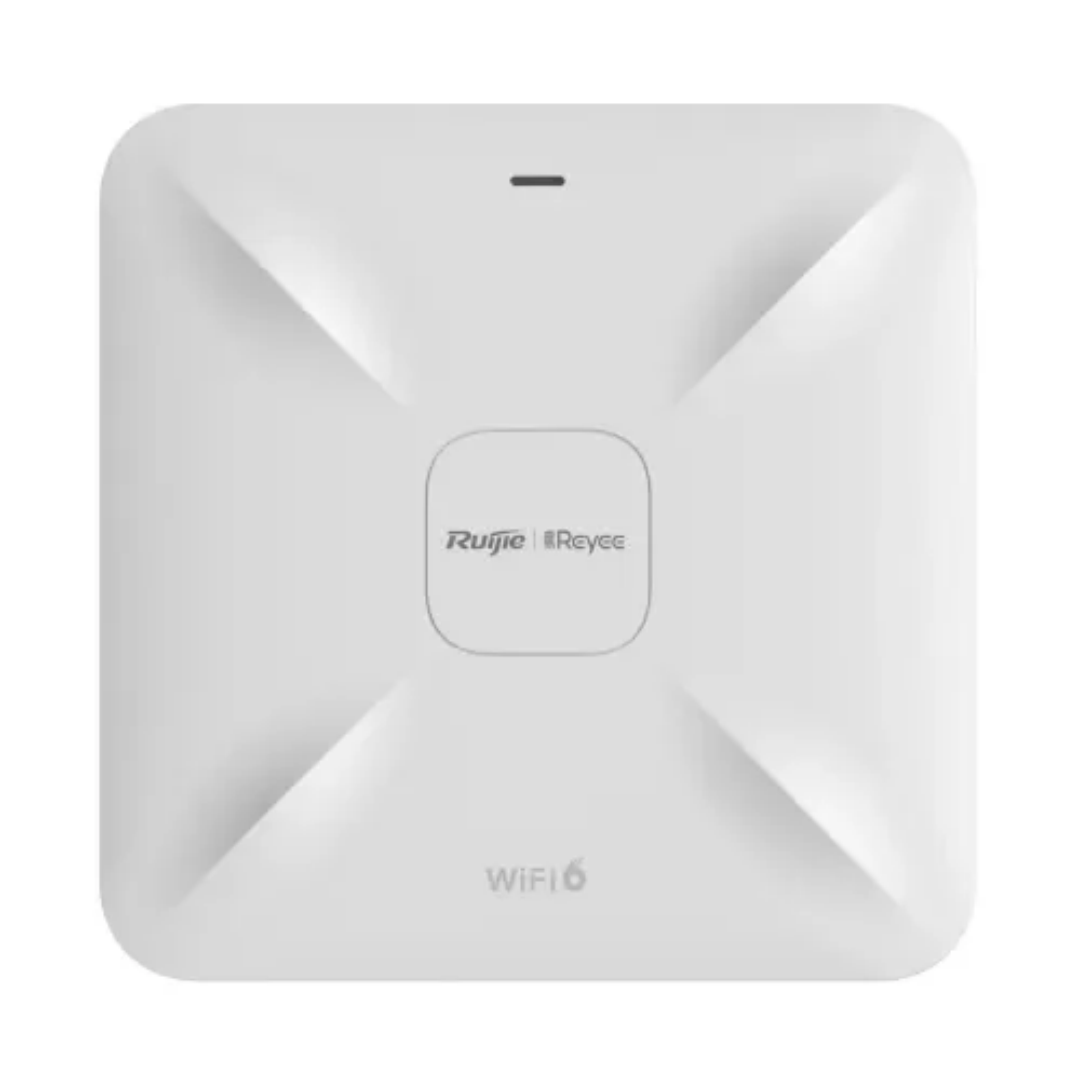

The Ruijie RG-RAP2260(G) AX1800 Ceiling Access Point is a high-performance wireless networking solution developed for offices, hotels, educational institutions, restaurants and other high-density environments. Equipped with advanced Wi-Fi 6 or 802.11ax technology, this access point provides a combined wireless throughput of up to 1800Mbps for fast and reliable internet connectivity.
Its simultaneous 2.4GHz and 5GHz dual-band operation helps distribute connected devices efficiently while reducing wireless congestion. Built-in omnidirectional antennas and 2×2 MIMO technology provide stable signal coverage throughout the installation area. The access point can accommodate up to 512 connected clients, making it highly suitable for busy commercial networks.
The Ruijie RG-RAP2260(G) comes with one 2.5 Gigabit Ethernet port and one Gigabit Ethernet port, ensuring high-speed wired network connectivity. It supports both AP and routing modes along with Layer 3 roaming and Reyee unified networking.
Network administrators can remotely configure, monitor and optimise the access point through the Ruijie Cloud App or Ruijie Cloud Platform. Support for 802.3at PoE and 12V/1.5A DC power also ensures flexible and convenient installation. Its compact ceiling-mount design blends neatly with modern business interiors.
Specifications
| Specification | Details |
|---|---|
| Brand | Ruijie |
| Model | RG-RAP2260(G) |
| Product Type | Ceiling Access Point |
| Wireless Standard | Wi-Fi 6 (802.11ax) |
| Wireless Throughput | Up to 1800Mbps |
| Frequency Bands | 2.4GHz and 5GHz |
| MIMO | 2×2 MIMO on 2.4GHz and 2×2 MIMO on 5GHz |
| Antenna | Built-in omnidirectional antenna |
| Client Capacity | Up to 512 clients |
| Ethernet Ports | 1× 2.5GE and 1× GE |
| Operating Modes | AP Mode and Routing Mode |
| Roaming Support | Layer 3 Roaming |
| Network Management | Ruijie Cloud App and Ruijie Cloud Platform |
| Power Input | 802.3at PoE or 12V/1.5A DC |
| Power Consumption | Less than 15.3W |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 220 × 220 × 35mm |
| Weight | 0.56kg, excluding mounting kits |
| Mounting Type | Ceiling Mount |
| Certifications | CE and RoHS |
| Warranty | 3 Years |
Key Features
- Advanced Wi-Fi 6 wireless technology
- Maximum throughput of up to 1800Mbps
- Simultaneous dual-band connectivity
- Supports up to 512 wireless clients
- Built-in omnidirectional antennas
- Dual 2×2 MIMO configuration
- 2.5 Gigabit and Gigabit Ethernet ports
- AP and routing operating modes
- Layer 3 roaming support
- Ruijie Cloud remote management
- 802.3at PoE power support
- Compact ceiling-mount design
Advanced Wi-Fi 6 Performance
The Ruijie RG-RAP2260(G) supports the latest Wi-Fi 6 standard, delivering improved wireless capacity, efficiency and overall performance. With throughput reaching up to 1800Mbps, it provides reliable connectivity for browsing, video conferencing, cloud applications and other bandwidth-intensive activities.
Dual-Band Wireless Connectivity
This access point operates simultaneously on both 2.4GHz and 5GHz wireless bands. The 2.4GHz band offers extended coverage, while the 5GHz band provides higher speed and lower interference for compatible wireless devices.
Supports Up to 512 Clients
With support for as many as 512 connected clients, the RG-RAP2260(G) is designed for high-density networking environments. It is suitable for offices, schools, conference rooms, hotels, restaurants and other locations with numerous wireless users.
Built-in Omnidirectional Antenna
The built-in omnidirectional antenna distributes the wireless signal in multiple directions for dependable indoor coverage. Its 2×2 MIMO configuration on both frequency bands helps improve data transmission and connection stability.

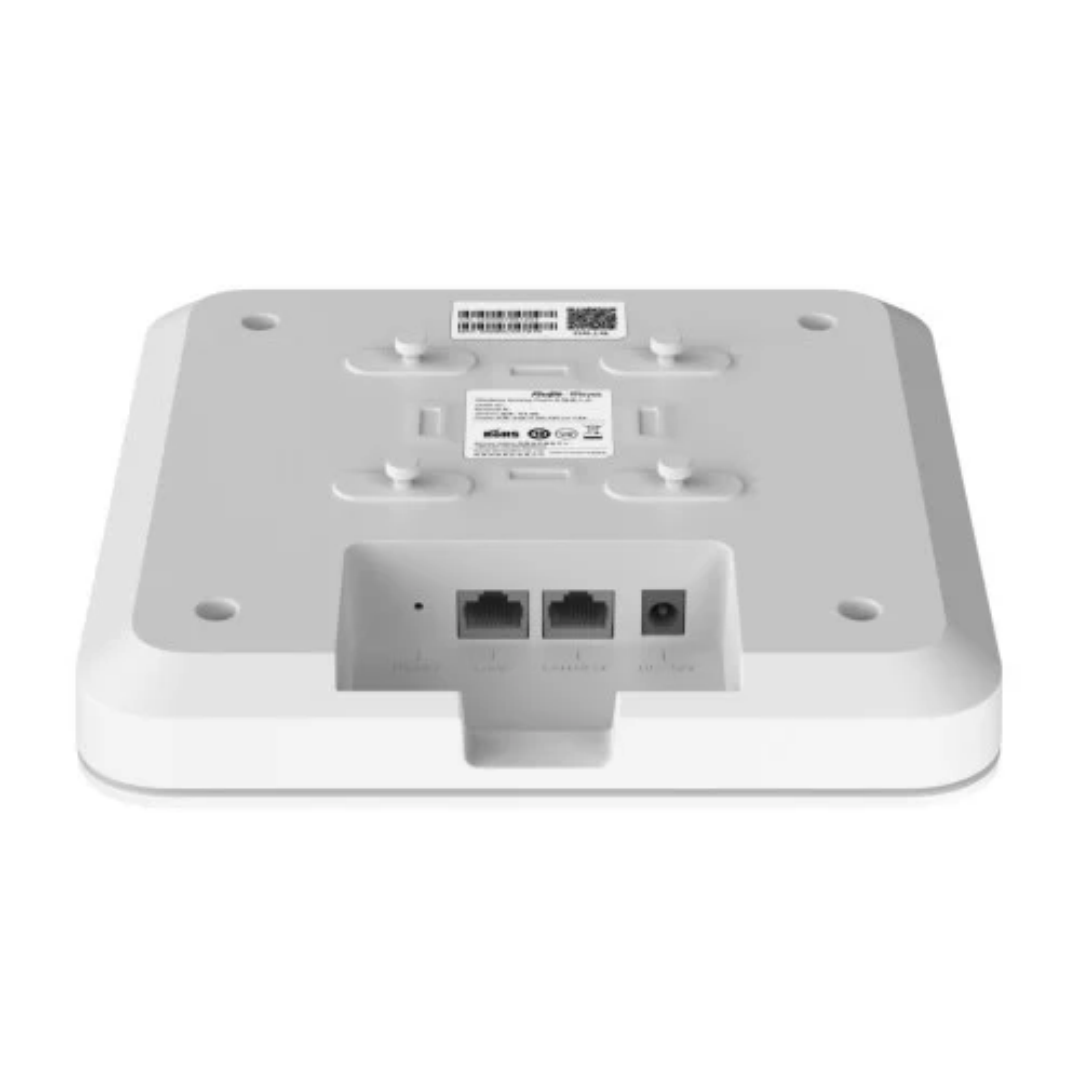

High-Speed Ethernet Ports
The Ruijie RG-RAP2260(G) features one 2.5GE port and one GE port. The 2.5 Gigabit Ethernet connection provides sufficient wired bandwidth to utilise the access point’s high-speed wireless capability without creating a network bottleneck.
Cloud-Based Network Management
Ruijie Cloud App and Ruijie Cloud Platform support allow administrators to monitor, configure and manage the wireless network remotely. It also supports Reyee unified networking and Layer 3 roaming for convenient expansion and smoother wireless connectivity.
Flexible PoE Installation
The access point supports 802.3at Power over Ethernet, allowing both data and electrical power to be delivered through a single Ethernet cable. It can also be powered using a compatible 12V/1.5A DC adapter for flexible installation.
