Description

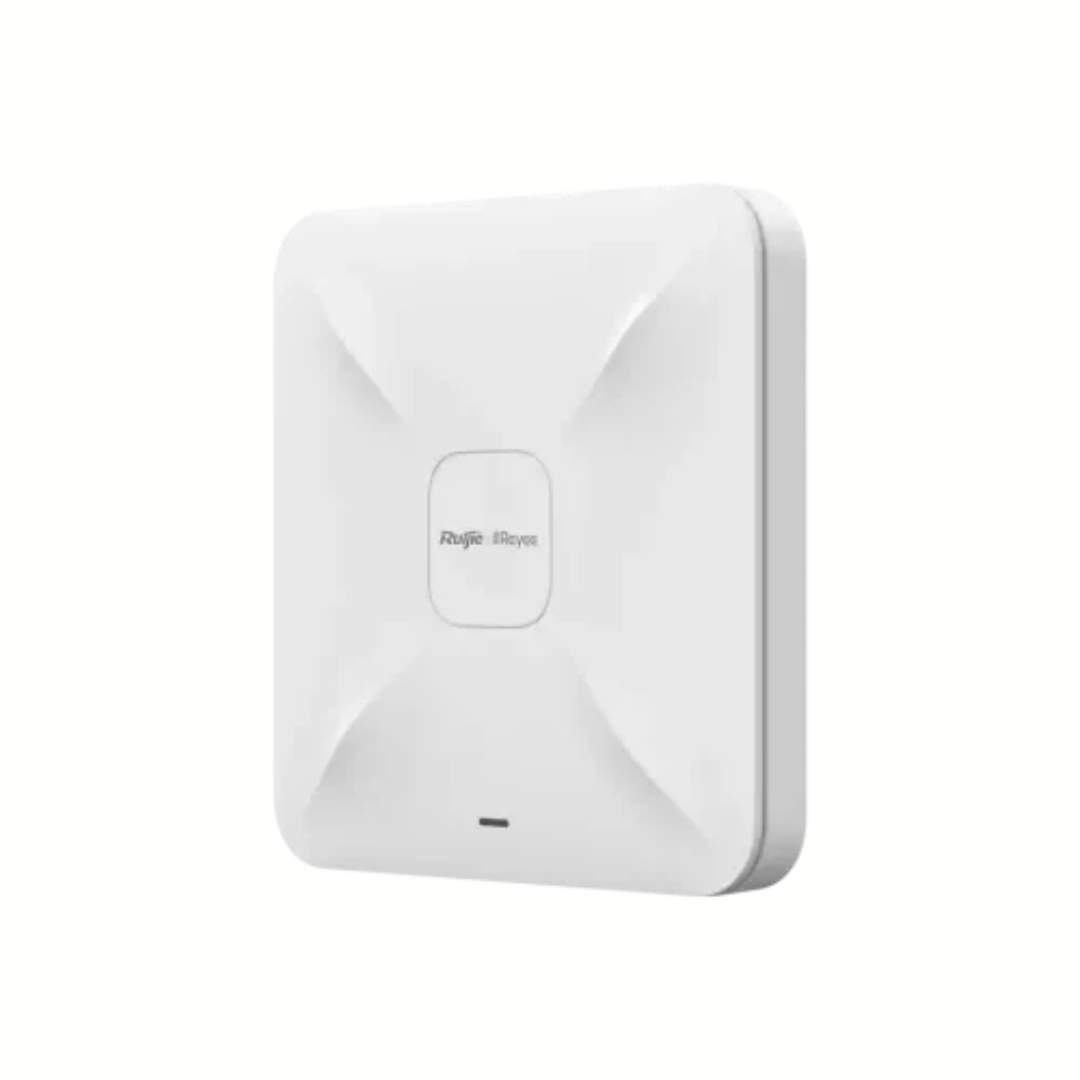

The Ruijie RG-RAP2200(E) is a powerful Wi-Fi 5 ceiling access point designed to deliver stable and high-speed wireless connectivity in offices, hotels, restaurants, educational institutions and other commercial environments. Its dual-radio system offers a combined wireless speed of up to 1267Mbps—400Mbps on the 2.4GHz band and 867Mbps on the 5GHz band.
Equipped with 802.11ac Wave 2 and 2×2 MU-MIMO technology, the Ruijie RG-RAP2200(E) can communicate efficiently with multiple devices simultaneously. It supports up to 110 connected wireless clients, making it suitable for locations where numerous users need reliable network access.

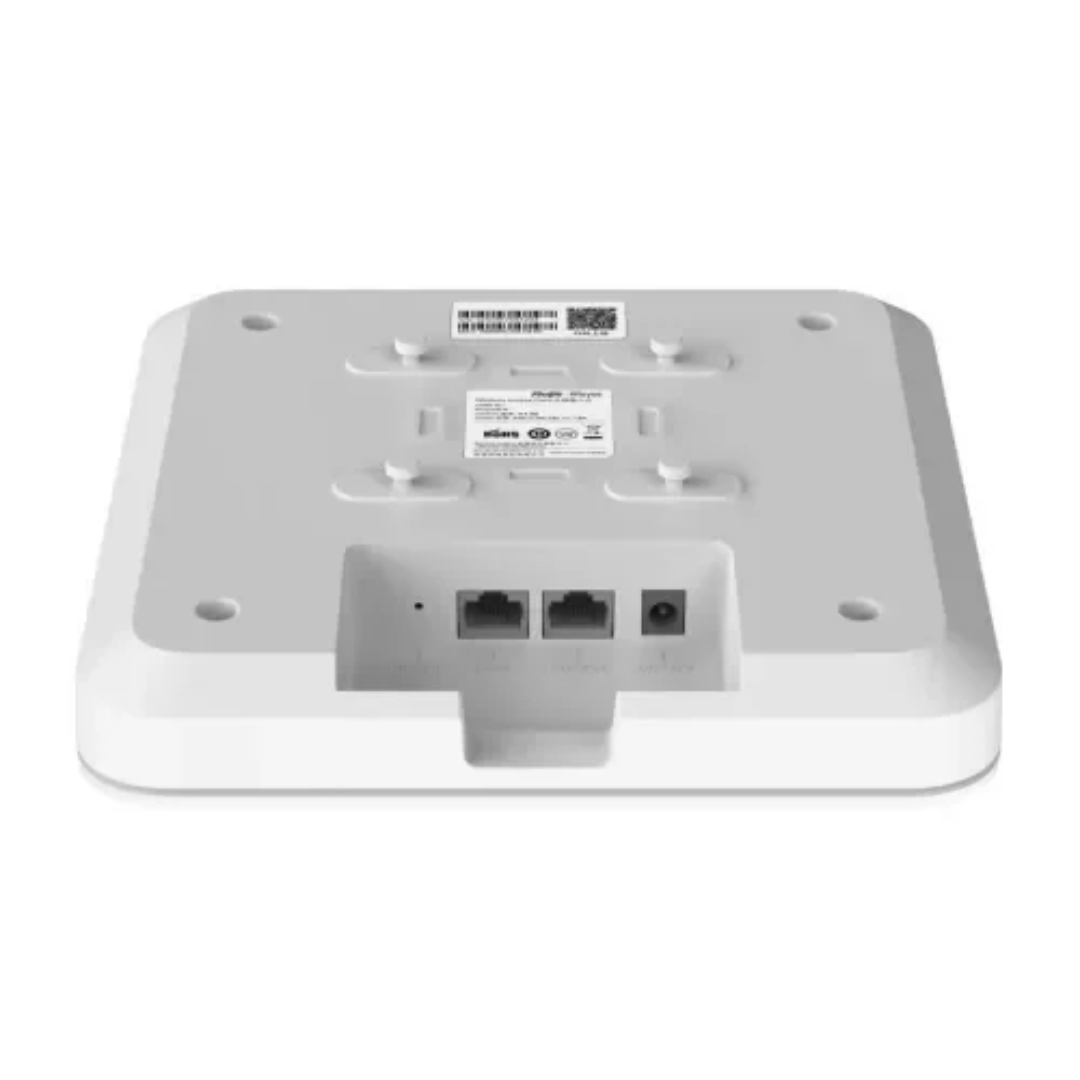

The access point includes two Gigabit Ethernet ports for high-speed wired network connectivity. It supports both IEEE 802.3af/at PoE and 12V DC power input, offering flexible installation options. Its built-in omnidirectional antennas provide balanced wireless coverage without requiring external antennas.
Ruijie’s Wi-Fi Intelligent Optimization technology allows administrators to optimize network performance with a single click. Reyee Mesh and seamless Layer 3 roaming help users move between access points without noticeable connection interruptions.
The Ruijie Cloud App makes the network easy to configure, monitor and maintain remotely. With centralized cloud management, Self-Organizing Network technology and cloud portal authentication, the RG-RAP2200(E) provides a convenient networking solution for small and medium-sized businesses.
Key Features
- Wi-Fi 5 ceiling-mount access point
- Combined wireless speed of up to 1267Mbps
- 400Mbps on 2.4GHz and 867Mbps on 5GHz
- Dual-band, dual-radio operation
- 2×2 MU-MIMO on both wireless bands
- Two 10/100/1000Mbps Gigabit Ethernet ports
- Supports up to 110 connected wireless clients
- Built-in omnidirectional antennas
- IEEE 802.3af/at PoE and 12V DC power support
- Reyee Mesh and seamless Layer 3 roaming
- One-click Wi-Fi Intelligent Optimization
- Ruijie Cloud App remote management
Specifications
| Specification | Details |
|---|---|
| Brand | Ruijie |
| Model | RG-RAP2200(E) |
| Product Type | Ceiling Access Point |
| Wi-Fi Standard | IEEE 802.11ac Wave 2 |
| Wi-Fi Generation | Wi-Fi 5 |
| Frequency Bands | 2.4GHz and 5GHz |
| Maximum Wireless Speed | 1267Mbps |
| 2.4GHz Speed | Up to 400Mbps |
| 5GHz Speed | Up to 867Mbps |
| Radio Design | Dual Radio |
| Spatial Streams | 4 |
| MIMO | 2×2 at 2.4GHz, 2×2 at 5GHz |
| Antenna | Built-in omnidirectional antennas |
| Network Ports | 2× 10/100/1000BASE-T Gigabit ports |
| Maximum Connected Clients | Up to 110 |
| Recommended Clients | Up to 80 |
| Power Supply | IEEE 802.3af/at PoE or 12V/1.5A DC |
| Maximum Power Consumption | 12.95W |
| Cloud Management | Ruijie Cloud |
| Mesh Support | Reyee Mesh |
| Roaming | Seamless Layer 3 roaming |
| IPv6 Support | Yes |
| Mounting Method | Ceiling or wall mounting |
| Operating Temperature | 0°C–40°C |
| Dimensions | 194 × 194 × 35mm |
| Weight | Up to 0.45kg |
| Color | White |
Dual-Band 1267Mbps Wireless Performance
The Ruijie RG-RAP2200(E) provides a combined speed of up to 1267Mbps through its dual-band wireless architecture. The 2.4GHz band delivers broader coverage, while the faster 5GHz band is suitable for video streaming, online meetings and other bandwidth-intensive applications.
Better Connectivity with MU-MIMO
Its 802.11ac Wave 2 MU-MIMO technology enables the access point to serve multiple compatible devices simultaneously. This reduces network congestion and provides a smoother browsing experience in busy environments with many connected users.
Reyee Mesh and Seamless Roaming
Reyee Mesh technology allows additional compatible access points to be installed with reduced cabling requirements. Seamless Layer 3 roaming helps connected devices switch between access points smoothly while users move around the coverage area.
Flexible PoE Installation
The RG-RAP2200(E) supports IEEE 802.3af/at PoE, allowing power and network data to pass through a single Ethernet cable. A 12V/1.5A DC power input is also available, providing flexibility for different installation environments.
Easy Ruijie Cloud Management
Through the Ruijie Cloud App, administrators can configure, monitor and maintain the wireless network remotely. Self-Organizing Network technology simplifies deployment, while centralized management and one-click optimization make ongoing network maintenance easier.
Warranty : 3 Years
