Description
Introducing the PNY NVIDIA GeForce RTX™ 5070 ARGB EPIC-X RGB™ OC GDDR7 12GB Triple Fan Graphics Card, a powerhouse built on the revolutionary Blackwell architecture. This cutting-edge graphics card delivers exceptional gaming and creative performance with 6,144 CUDA® Cores and 12GB of lightning-fast GDDR7 memory running at 28 Gbps. The advanced triple-fan cooling system ensures optimal thermal management while the customizable ARGB lighting adds a stunning visual element to your build. With support for up to 4K gaming at 480Hz or 8K at 165Hz with DSC, this card is engineered for enthusiasts who demand the ultimate in visual fidelity and frame rates. The 192-bit memory interface provides up to 672 GB/sec bandwidth, ensuring smooth performance in the most demanding games and applications. Whether you’re gaming at ultra-high refresh rates, creating content, or rendering complex 3D scenes, the RTX 5070 delivers the power you need. With multiple display outputs including three DisplayPort 2.1b and one HDMI® 2.1b port, you can connect up to four screens simultaneously for an immersive multi-monitor experience.
Specifications
| Specification | Details |
|---|---|
| Architecture | Blackwell |
| CUDA® Cores | 6,144 |
| Base Clock Speed | 2.16 GHz |
| Memory Type | 12GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 192-bit |
| Memory Bandwidth | Up to 672 GB/sec |
| TDP | 250 W |
| NVLink Support | Not Supported |
| Display Outputs | 3x DisplayPort 2.1b, 1x HDMI® 2.1b |
| Multi-Screen Support | Up to 4 displays |
| Maximum Resolution | 4K at 480Hz or 8K at 165Hz (with DSC) |
| Power Connectors | One 16-pin (includes adapter to Two 8-pin) |
| Bus Interface | PCI-Express 5.0 x16 |
| Card Dimensions | 11.80″ x 4.73″ x 1.9″ (2.4 Slot) |
| Required System Power | 650W |
| Operating System Support | Windows® 11 64-bit, Linux 64-bit |
Revolutionary Blackwell Architecture
The PNY RTX 5070 is powered by NVIDIA’s groundbreaking Blackwell architecture, representing the latest evolution in GPU technology. This next-generation architecture introduces significant improvements in ray tracing performance, AI acceleration, and power efficiency. With 6,144 CUDA® Cores working in harmony, the Blackwell architecture delivers unprecedented performance for gaming, content creation, and professional applications. The enhanced shader execution units and improved cache hierarchy ensure that every frame is rendered with exceptional detail and speed. This architecture also brings advanced AI capabilities through NVIDIA’s Tensor Cores, enabling features like DLSS 3.5 for intelligent upscaling and frame generation that dramatically boost performance without sacrificing visual quality.
Next-Generation GDDR7 Memory
Equipped with 12GB of cutting-edge GDDR7 memory, this graphics card sets a new standard for memory performance. Running at an impressive 28 Gbps, the GDDR7 memory delivers up to 672 GB/sec of bandwidth through its 192-bit interface, ensuring that data-intensive applications and high-resolution textures are handled effortlessly. This massive bandwidth eliminates bottlenecks in memory-intensive scenarios, whether you’re gaming at 4K with maximum settings, editing 8K video footage, or working with complex 3D models. The GDDR7 technology also operates more efficiently than previous generations, contributing to lower power consumption while delivering superior performance. This makes the RTX 5070 ideal for creators and gamers who demand both speed and capacity for their most demanding projects.
Advanced Cooling and RGB Design
The EPIC-X RGB™ triple-fan cooling solution combines form and function to keep your graphics card running cool while looking spectacular. Three high-performance fans work together to provide exceptional airflow across the large heatsink array, ensuring that the GPU maintains optimal temperatures even during extended gaming sessions or intensive rendering tasks. The customizable ARGB lighting system allows you to personalize your build with millions of color options and dynamic lighting effects that can be synchronized with other RGB components in your system. The robust 2.4-slot design incorporates premium materials and a reinforced backplate that not only adds structural rigidity but also aids in heat dissipation, ensuring long-term reliability and consistent performance.
Extreme Display Capabilities

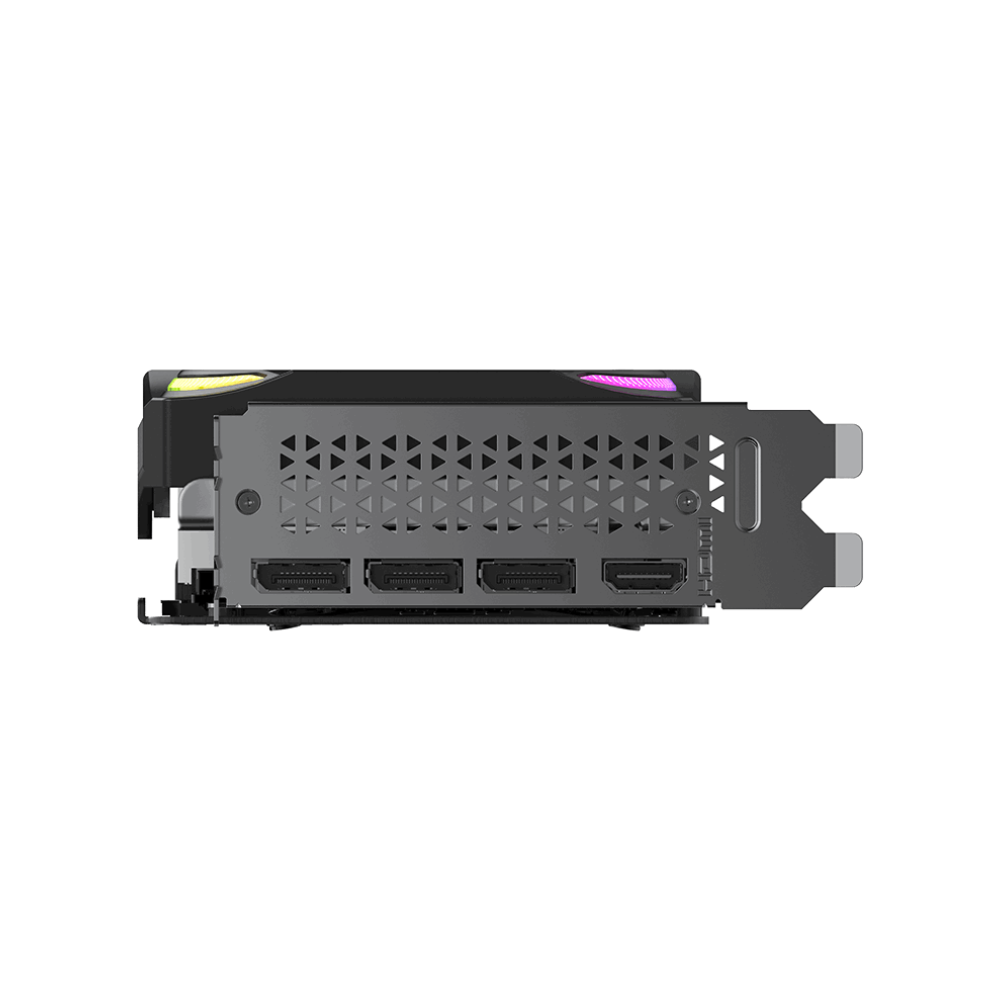

With support for up to four simultaneous displays, the RTX 5070 transforms your workspace or gaming setup into an immersive multi-monitor environment. The three DisplayPort 2.1b outputs and one HDMI® 2.1b port provide the latest connectivity standards, supporting resolutions up to 4K at an incredible 480Hz or 8K at 165Hz when using Display Stream Compression. This means buttery-smooth gameplay on high-refresh-rate monitors or stunning detail on ultra-high-resolution displays. The card supports HDR with 12-bit color depth, delivering over 68 billion colors for lifelike images with enhanced contrast and brightness. Whether you’re a competitive gamer seeking every frame-rate advantage, a content creator working with multiple timelines, or a professional requiring extensive screen real estate, the display capabilities of the RTX 5070 exceed expectations.
Powerful Performance and Efficiency
Rated at 250W TDP, the RTX 5070 strikes an excellent balance between raw performance and power efficiency. The card requires a 650W power supply and connects via a single 16-pin power connector (with an included adapter for dual 8-pin connectors for broader compatibility). The PCI-Express 5.0 x16 interface ensures maximum data transfer bandwidth between the GPU and your system, eliminating any potential bottlenecks. Despite its powerful specifications, the Blackwell architecture’s efficiency improvements mean you get more performance per watt compared to previous generations. This makes the RTX 5070 an excellent choice for builders who want high-end performance without requiring an oversized power supply or dealing with excessive heat output.
Professional-Grade Build Quality
Measuring 11.80″ x 4.73″ x 1.9″ and occupying 2.4 slots, the PNY RTX 5070 features a premium construction designed for long-term reliability. The card requires a PCI Express-compliant motherboard with a 2.4-width x16 graphics slot, ensuring proper fitment and optimal performance. Compatible with both Windows® 11 64-bit and Linux 64-bit operating systems, this graphics card serves both gamers and professionals across different platforms. The robust PCB design, high-quality components, and rigorous testing ensure that this card delivers consistent performance for years to come. The included dual 8-pin to 16-pin adapter provides flexibility for various power supply configurations, making the upgrade process straightforward regardless of your current system setup.
