Description
The PNY NVIDIA GeForce RTX™ 5060 is a cutting-edge graphics card built on the revolutionary Blackwell architecture, designed to deliver exceptional performance for gaming and creative workflows. Equipped with 8GB of ultra-fast GDDR7 memory and 3840 CUDA cores, this GPU provides the power needed for smooth 4K gaming at high refresh rates and demanding content creation tasks. The dual-fan cooling solution ensures optimal thermal performance while maintaining quiet operation during intensive workloads.
Featuring advanced display capabilities, the RTX 5060 supports up to four monitors simultaneously with DisplayPort 2.1b and HDMI 2.1b connectivity, enabling resolutions up to 4K at 480Hz or 8K at 165Hz with DSC technology. The 128-bit memory interface delivers an impressive 448 GB/sec bandwidth, ensuring rapid data transfer for seamless gaming experiences. With a compact 2-slot design measuring just 200 x 120 x 40mm, this graphics card fits easily into most PC builds without sacrificing performance. The PCI-Express 5.0 x8 interface provides future-proof connectivity, while the 145W TDP ensures efficient power consumption. Whether you’re a competitive gamer seeking high frame rates or a creator working with graphics-intensive applications, the PNY GeForce RTX 5060 delivers outstanding performance in a sleek, efficient package.
Specifications
| Specification | Details |
|---|---|
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 3840 |
| Base Clock Speed | 2280 MHz |
| Boost Clock Speed | 2497 MHz |
| Memory Size | 8GB GDDR7 |
| Memory Interface | 128-bit |
| Memory Speed | 28 Gbps |
| Memory Bandwidth | 448 GB/sec |
| TDP | 145 W |
| NVLink Support | Not Supported |
| Display Outputs | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Multi-Monitor Support | Up to 4 Displays |
| Maximum Resolution | 4K at 480Hz or 8K at 165Hz (with DSC) |
| Power Connector | 8-pin |
| Interface | PCI-Express 5.0 x8 |
| Card Dimensions | 200 x 120 x 40mm (7.87″ x 4.72″ x 1.57″) |
| Slot Size | 2-Slot |
| Box Dimensions | 322 x 179 x 70mm (12.68″ x 7.05″ x 2.76″) |
Blackwell Architecture Performance
The PNY GeForce RTX 5060 is powered by NVIDIA’s groundbreaking Blackwell architecture, representing the latest evolution in graphics processing technology. This advanced architecture delivers significant improvements in performance per watt, ray tracing capabilities, and AI-accelerated features compared to previous generations. The Blackwell design incorporates enhanced shader cores, improved memory management, and optimized data pathways that work together to provide exceptional gaming performance and professional application acceleration. With 3840 CUDA cores operating at boost speeds up to 2497 MHz, the RTX 5060 handles even the most demanding modern games and creative applications with ease. The architecture’s efficiency improvements mean you get maximum performance without excessive heat or power consumption, making it an ideal choice for builders seeking a balance between capability and efficiency.
GDDR7 Memory Technology
At the heart of the RTX 5060’s performance is its 8GB of cutting-edge GDDR7 memory, the latest generation of graphics memory technology. Running at 28 Gbps with a 128-bit interface, this memory subsystem delivers an impressive 448 GB/sec of bandwidth, ensuring smooth texture streaming, rapid asset loading, and seamless multitasking across multiple applications. GDDR7 represents a substantial leap forward in memory efficiency and speed, enabling higher resolutions, better texture quality, and improved overall gaming experiences. The 8GB capacity provides ample headroom for modern AAA games at high settings, 4K content creation, and multi-monitor setups. This advanced memory technology also contributes to the card’s overall power efficiency, delivering top-tier performance while maintaining the 145W TDP, making it suitable for a wide range of system configurations without requiring excessive power supply upgrades.
Advanced Display Capabilities

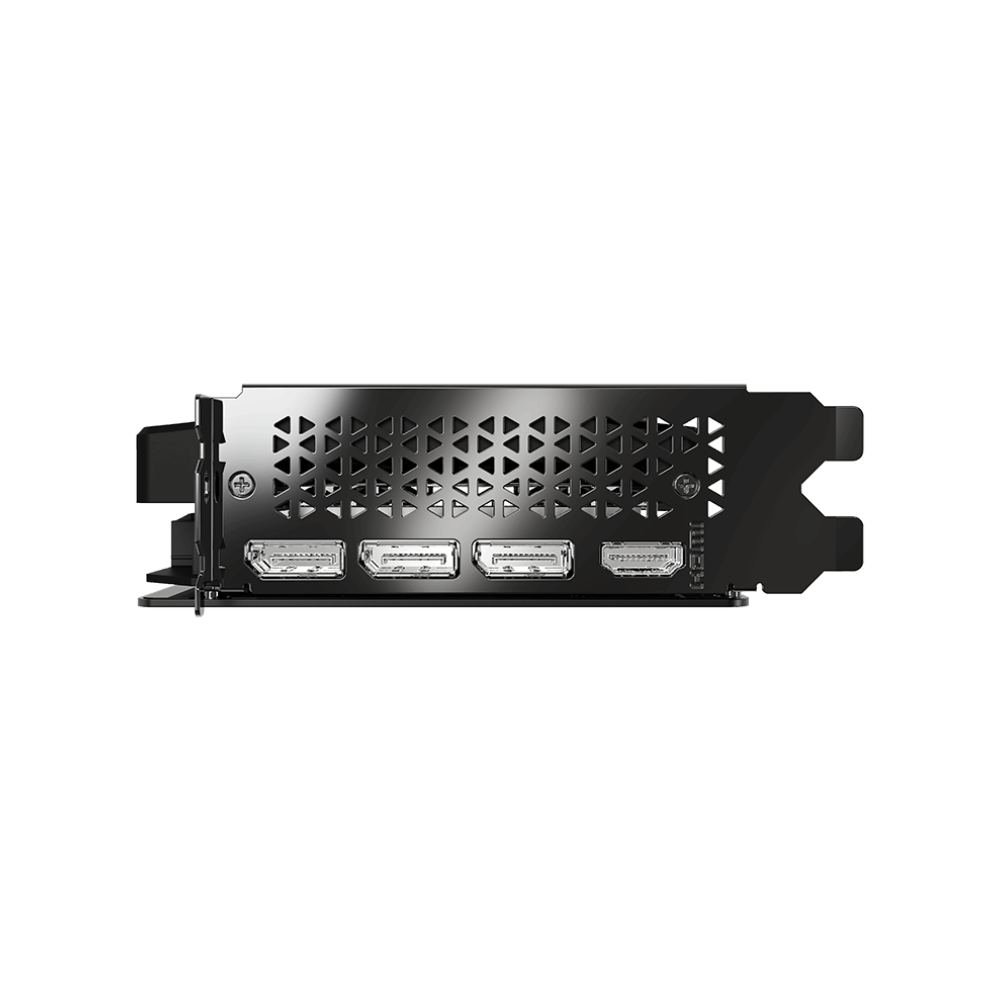

The PNY GeForce RTX 5060 excels in display flexibility and output quality, featuring three DisplayPort 2.1b outputs and one HDMI 2.1b port for comprehensive connectivity options. This configuration supports up to four simultaneous displays, perfect for productivity workflows, immersive gaming setups, or content creation environments requiring multiple monitors. The DisplayPort 2.1b technology enables stunning 4K visuals at up to 480Hz with DSC (Display Stream Compression), ideal for competitive gamers who demand ultra-smooth motion clarity. For those seeking maximum resolution, the card supports 8K output at 165Hz with DisplayPort or 120Hz with HDMI, both utilizing DSC technology to maintain pristine image quality. The HDMI 2.1b connectivity ensures compatibility with the latest gaming monitors and 4K/8K televisions, supporting features like variable refresh rate (VRR) and auto low latency mode (ALLM) for the best possible gaming experience on any display.
Efficient Cooling and Compact Design
Despite its powerful specifications, the PNY RTX 5060 maintains a compact 2-slot form factor measuring just 200 x 120 x 40mm, making it compatible with a wide variety of PC cases, including smaller form-factor builds. The dual-fan cooling solution is engineered to efficiently dissipate the 145W thermal output while maintaining low noise levels during operation. The carefully designed fan blades and heatsink arrangement ensure optimal airflow across the GPU core and memory modules, keeping temperatures in check even during extended gaming sessions or intensive rendering tasks. This efficient thermal management means the card can maintain its boost clock speeds for longer periods, delivering consistent performance without thermal throttling. The compact dimensions also leave room for other expansion cards and ensure adequate airflow throughout your entire system, contributing to overall system stability and longevity.
Future-Proof Connectivity
The RTX 5060 features PCI-Express 5.0 x8 interface support, providing future-proof connectivity with the latest motherboards and ensuring optimal data transfer rates between the GPU and CPU. While utilizing an x8 configuration rather than the traditional x16, the PCIe 5.0 specification’s doubled bandwidth per lane means the card still has more than sufficient bandwidth for peak performance without bottlenecks. This forward-thinking design ensures compatibility with both current and next-generation platforms while maintaining excellent performance across a wide range of systems. The 8-pin power connector provides stable and reliable power delivery, easily accommodated by most modern power supplies rated at 550W or higher. This combination of modern interface standards and reasonable power requirements makes the RTX 5060 an excellent upgrade path for existing systems and a solid foundation for new builds.
Gaming and Content Creation Excellence
Whether you’re gaming at competitive frame rates or creating professional content, the PNY GeForce RTX 5060 delivers exceptional performance across diverse workloads. For gamers, the combination of 3840 CUDA cores and fast GDDR7 memory ensures smooth gameplay in modern AAA titles at 1080p and 1440p resolutions, with many games achieving playable frame rates at 4K with optimized settings. The Blackwell architecture’s enhanced ray tracing capabilities bring realistic lighting, reflections, and shadows to supported games, immersing you in visually stunning worlds. Content creators benefit from hardware-accelerated encoding and decoding, accelerating video editing workflows, 3D rendering, and livestreaming applications. The 8GB GDDR7 memory provides sufficient capacity for working with high-resolution textures, complex 3D scenes, and multi-layer compositions in applications like Adobe Premiere Pro, DaVinci Resolve, Blender, and more, making the RTX 5060 a versatile choice for both entertainment and productivity.
