Description

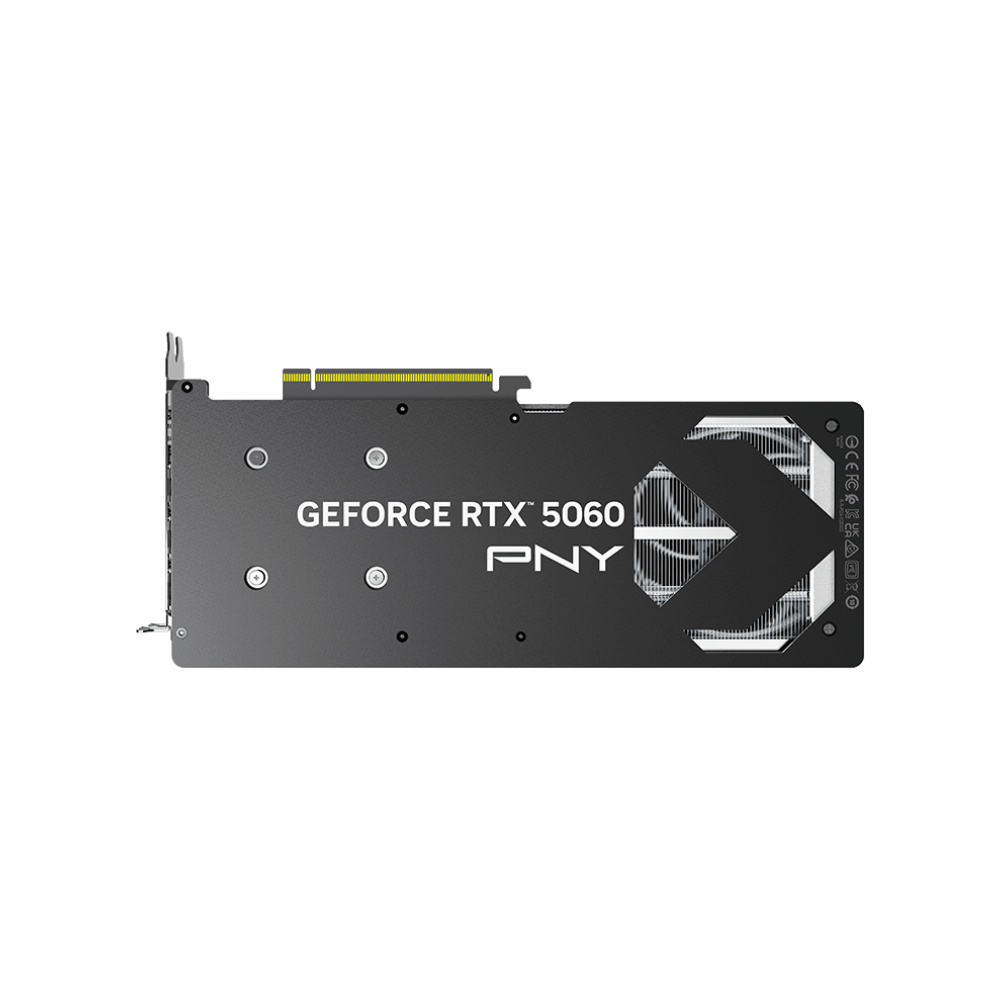

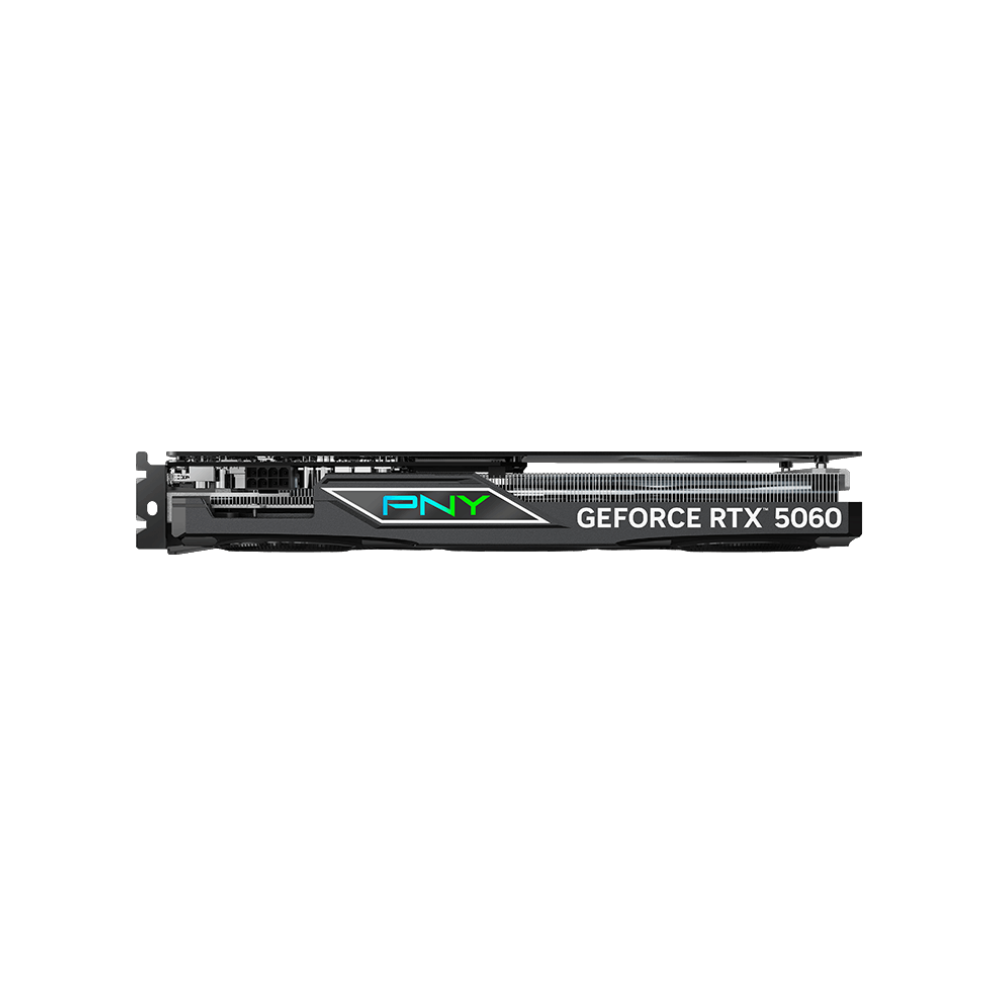

The PNY GeForce RTX™ 5060 ARGB EPIC-X RGB™ OC Triple Fan Graphics Card represents the latest innovation in NVIDIA’s Blackwell architecture, delivering exceptional performance for gaming and creative workloads. Built with 3840 CUDA cores and 8GB of cutting-edge GDDR7 memory, this graphics card is engineered to handle modern AAA titles and demanding applications with ease. The triple-fan cooling solution ensures optimal thermal performance while the ARGB lighting adds a vibrant aesthetic to any build. With a boost clock of 2580 MHz and 448 GB/sec memory bandwidth, the RTX 5060 provides smooth, high-framerate gaming at 1080p and 1440p resolutions. Supporting the latest display technologies including DisplayPort 2.1b and HDMI 2.1b, it can drive up to four monitors simultaneously with support for resolutions up to 4K at 480Hz or 8K at 165Hz with DSC. The factory overclocked design pushes performance beyond reference specifications while maintaining a reasonable 145W TDP. Whether you’re gaming, streaming, or content creating, the PNY RTX 5060 EPIC-X RGB delivers the power and features needed for an exceptional PC experience.
Specifications
| Component | Details |
|---|---|
| Architecture | NVIDIA Blackwell |
| CUDA® Cores | 3840 |
| Base Clock Speed | 2280 MHz |
| Boost Clock Speed | 2580 MHz |
| Memory Type | 8GB GDDR7 |
| Memory Interface | 128-bit |
| Memory Speed | 28 Gbps |
| Memory Bandwidth | 448 GB/sec |
| TDP | 145 W |
| Power Connector | 8-pin |
| NVLink Support | Not Supported |
| Display Outputs | 3x DisplayPort 2.1b, 1x HDMI® 2.1b |
| Multi-Monitor Support | Up to 4 displays |
| Maximum Resolution | 4K at 480Hz / 8K at 165Hz (with DSC) |
| Bus Interface | PCI-Express 5.0 x8 |
| Card Dimensions | 280 x 120 x 40mm (11.02″ x 4.72″ x 1.57″) |
| Slot Size | 2-Slot |
| Recommended PSU | 550W |
| Operating Systems | Windows® 11 64-bit, Linux 64-bit |
Next-Generation Blackwell Architecture
The PNY GeForce RTX 5060 is powered by NVIDIA’s revolutionary Blackwell architecture, representing a significant leap forward in GPU technology. This advanced architecture introduces improved ray tracing cores, enhanced AI processing capabilities, and superior power efficiency compared to previous generations. The Blackwell design enables realistic lighting, shadows, and reflections in real-time gaming environments while maintaining high frame rates. With architectural improvements across the entire pipeline, from rendering to AI acceleration, this GPU delivers a comprehensive performance upgrade that benefits both gaming and professional applications.
High-Performance GDDR7 Memory System
Equipped with 8GB of next-generation GDDR7 memory running at 28 Gbps, the RTX 5060 provides exceptional bandwidth for handling high-resolution textures and complex gaming scenarios. The 128-bit memory interface delivers 448 GB/sec of memory bandwidth, ensuring smooth data flow between the GPU and memory subsystem. This advanced memory configuration eliminates bottlenecks in modern games and applications, allowing for higher detail settings and improved overall performance. GDDR7 technology also brings improved power efficiency, reducing heat generation while maintaining peak performance during extended gaming sessions.

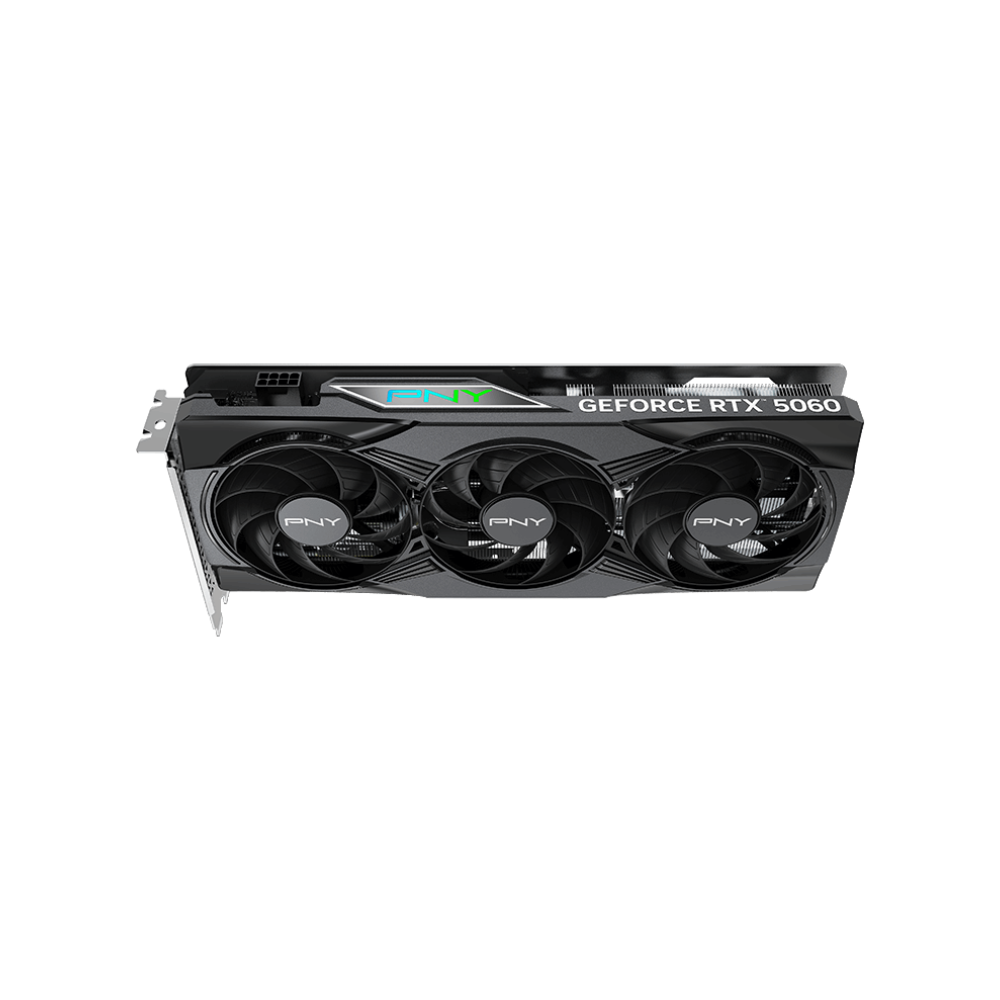

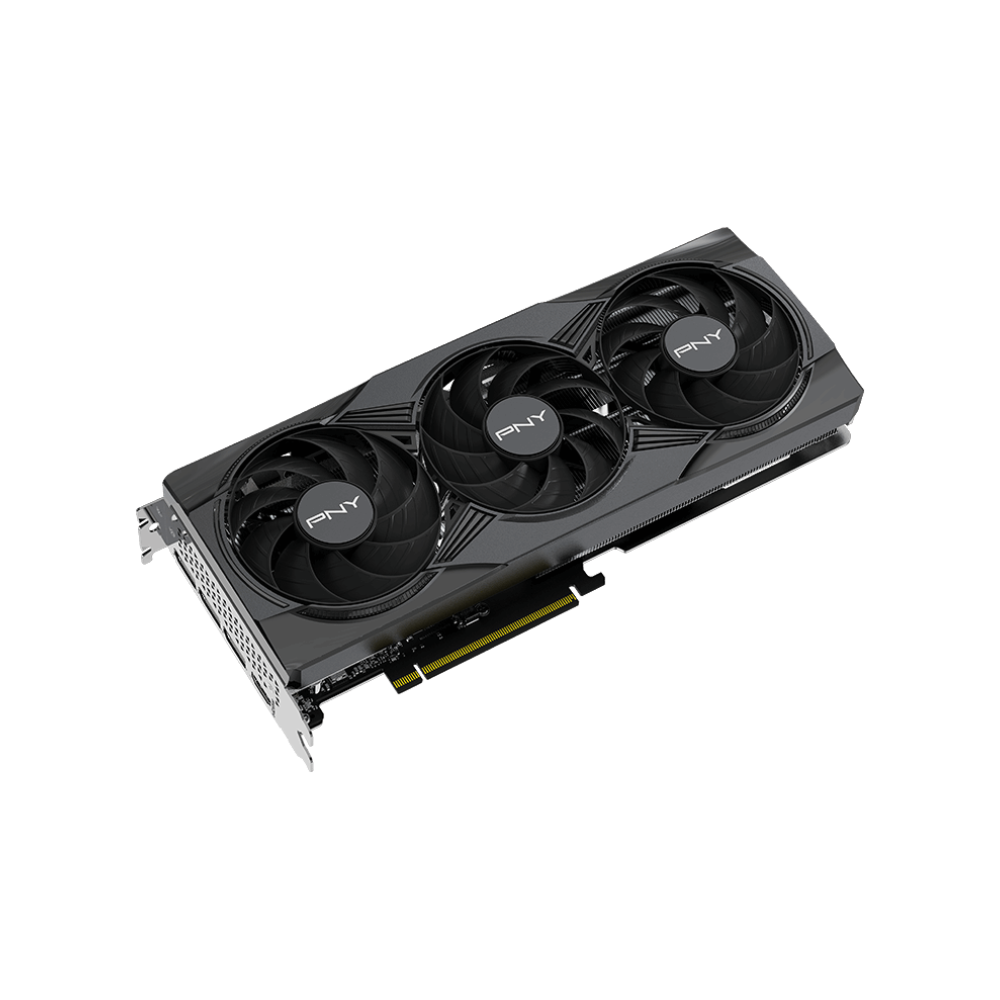

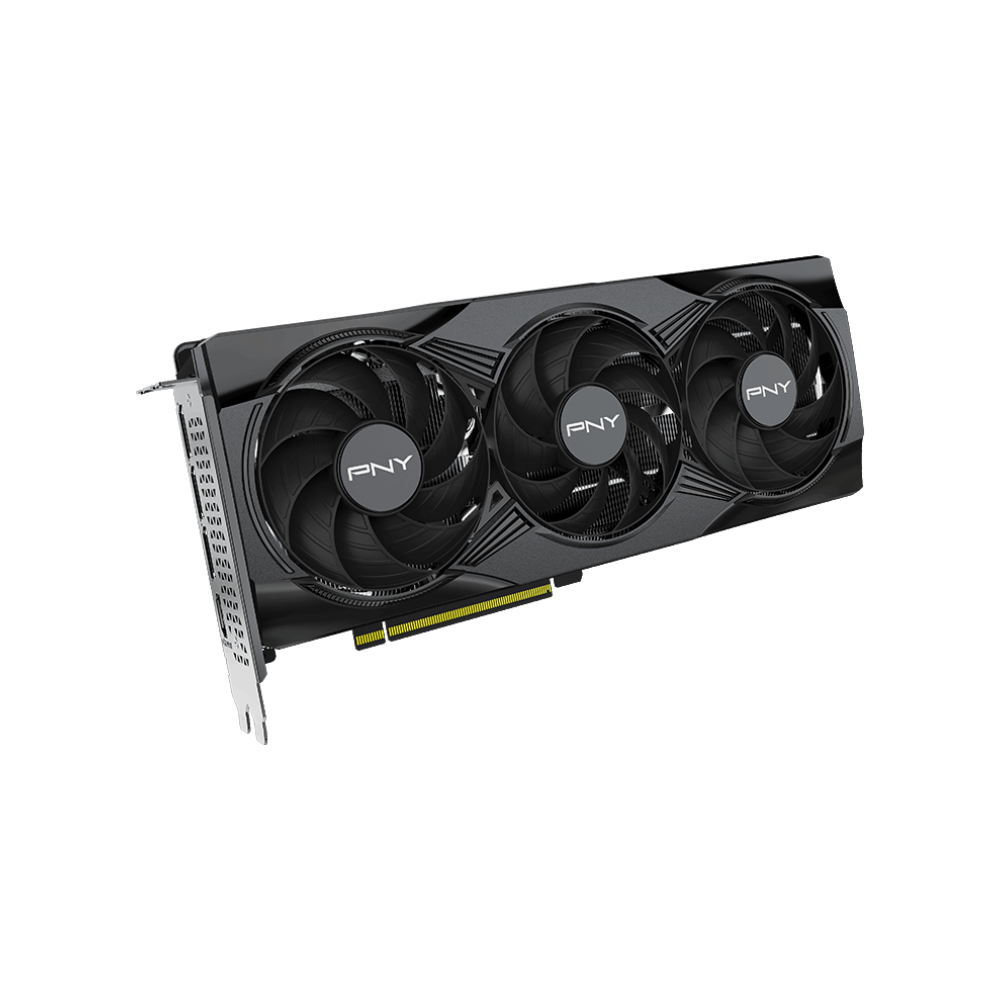

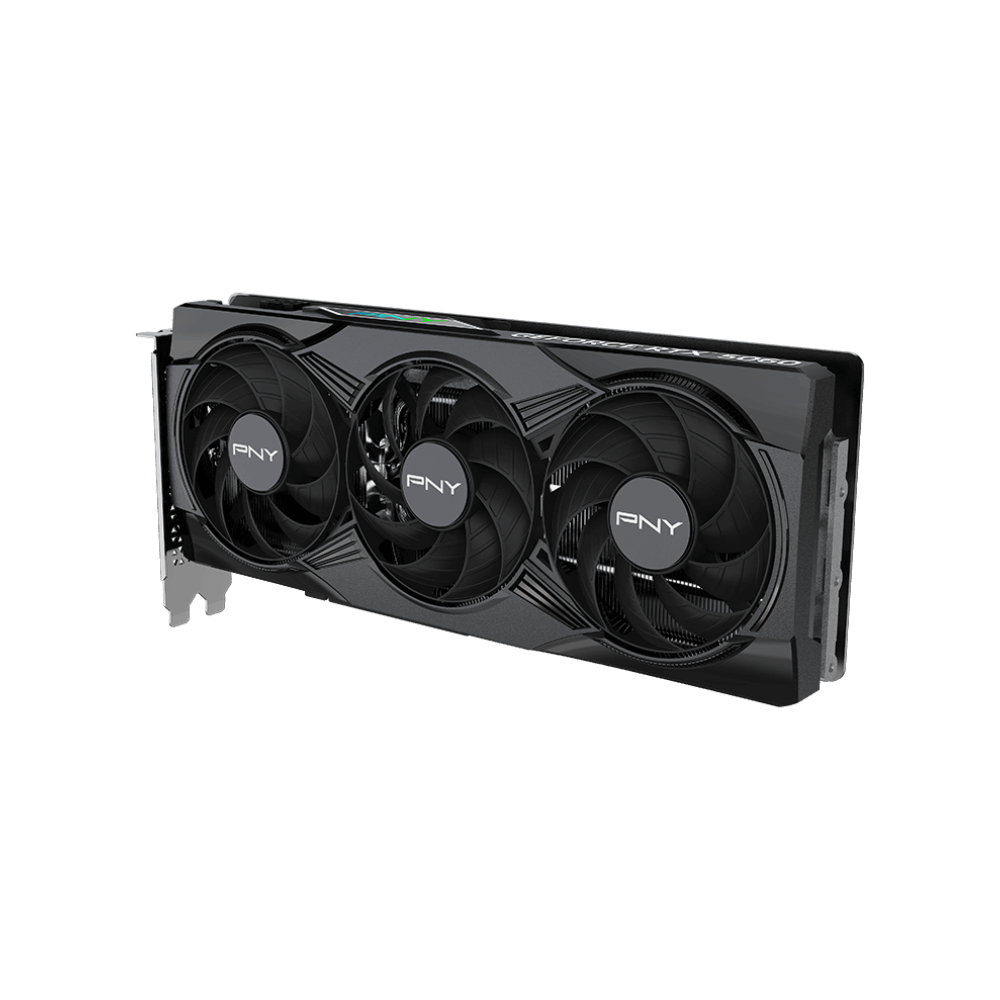

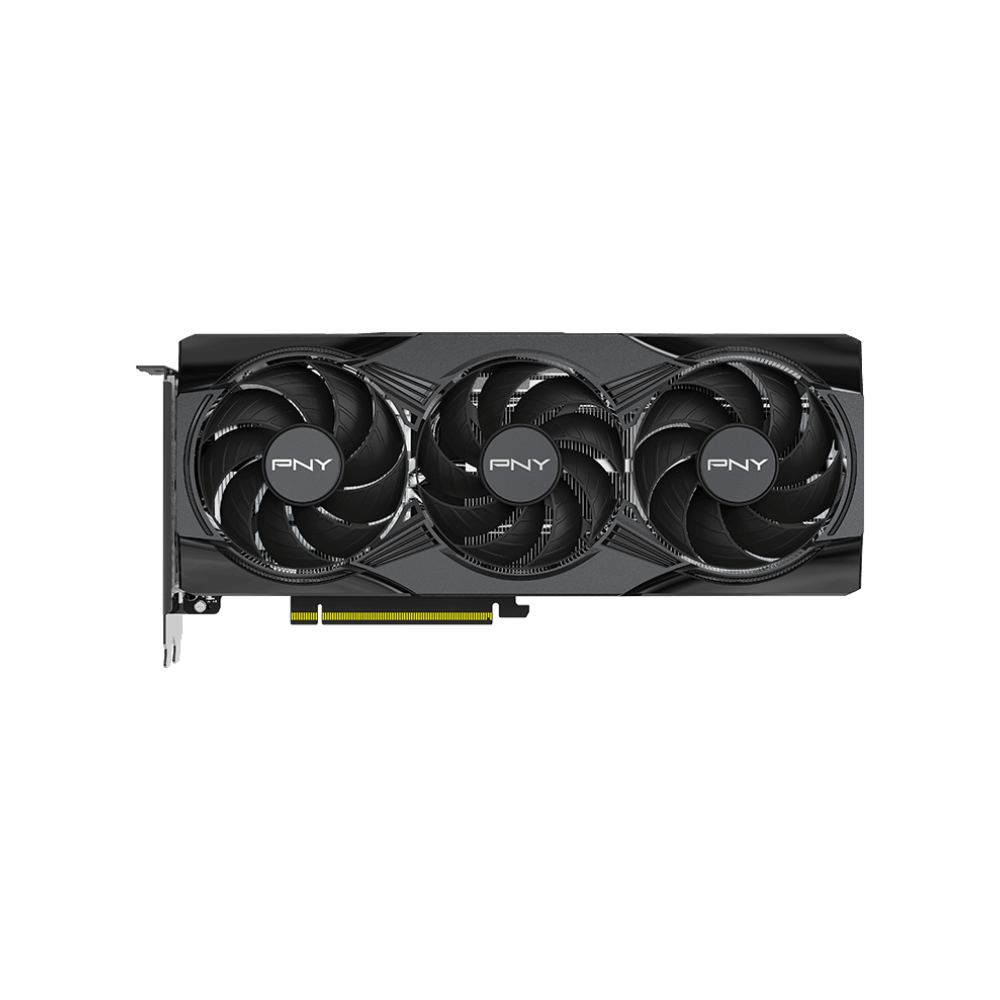

Advanced Triple-Fan Cooling with ARGB Lighting
The EPIC-X RGB™ cooling solution features three high-performance fans designed to provide optimal airflow and heat dissipation across the entire heatsink assembly. This triple-fan configuration operates quietly under normal loads while ramping up intelligently during demanding workloads to maintain ideal operating temperatures. The integrated ARGB lighting system offers customizable illumination effects that can be synchronized with other compatible components in your system. The robust cooling design ensures the GPU maintains its boost clocks consistently, delivering stable performance during marathon gaming sessions or intensive rendering tasks.

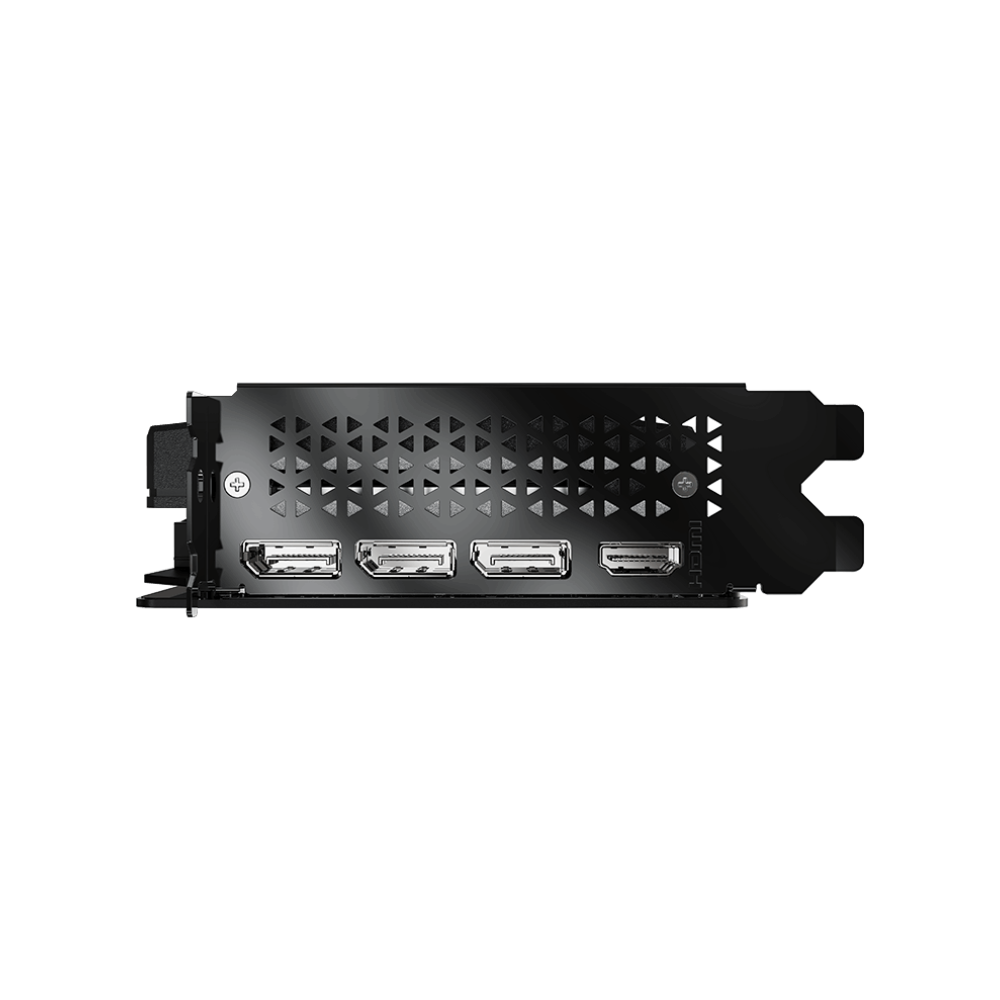

Versatile Display Connectivity and Multi-Monitor Support
With three DisplayPort 2.1b outputs and one HDMI 2.1b port, the RTX 5060 offers extensive connectivity options for modern displays. This configuration supports up to four simultaneous displays, making it ideal for multi-monitor gaming setups, productivity workstations, or content creation environments. The latest display standards enable incredible resolutions including 4K at 480Hz or 8K at 165Hz when using Display Stream Compression. Whether you’re using a high-refresh-rate competitive gaming monitor, a 4K content creation display, or multiple screens for productivity, this graphics card has you covered with cutting-edge display technology.
Factory Overclocked Performance
The PNY RTX 5060 EPIC-X RGB comes factory overclocked with a boost clock of 2580 MHz, exceeding reference specifications for enhanced out-of-the-box performance. This carefully tuned overclock has been tested and validated to ensure stability and reliability while delivering higher frame rates in games and faster processing in creative applications. The premium components and robust power delivery system support these elevated clock speeds without compromising longevity. Users can enjoy this performance boost immediately without manual overclocking, though enthusiasts can push further using overclocking utilities for even greater performance gains.
Efficient Power Design and System Requirements
Despite its impressive performance capabilities, the RTX 5060 maintains a reasonable 145W TDP, making it accessible for a wide range of system configurations. The card requires a single 8-pin power connector and a 550W power supply, allowing it to fit into mid-range builds without necessitating expensive PSU upgrades. The PCI-Express 5.0 x8 interface ensures compatibility with modern motherboards while providing ample bandwidth for data transfer. The compact 2-slot design measuring 280 x 120 x 40mm allows installation in most standard ATX cases, making this powerful GPU accessible to builders with various case sizes and configurations.
