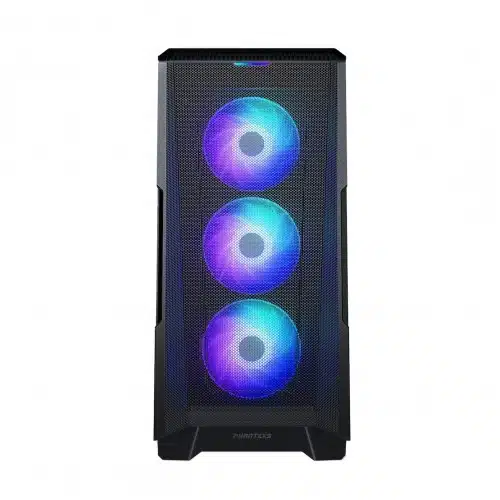

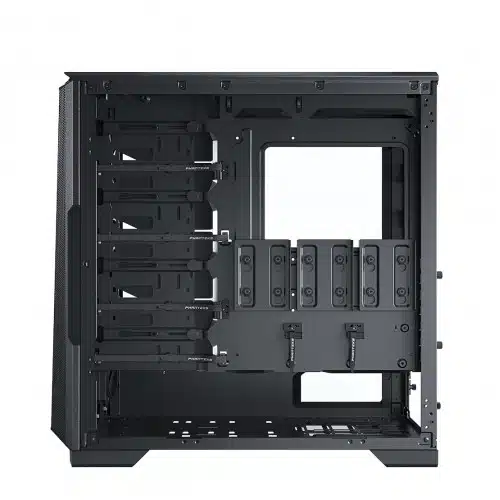

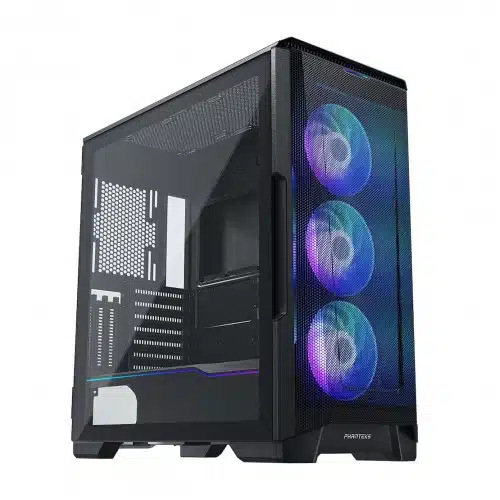

Phanteks Eclipse P500A D-RGB ATX Mid Tower Casing

Description

Ultra Fine Mesh

The Ultra fine mesh of Phanteks Eclipse P500A D-RGB ATX Mid Tower Casing increases the air intake with enlarged mesh surface which minimizes flow resistance with integrated dust filter. It has a seamless front panel design with ultra fine perforations.

RGB Lightening

PHANTEKS equips the Eclipse P500A D-RGB with extensive options for placing enclosure fans. The pre-installed fans and light strips with digitally addressable RGB lighting illuminate the front and left side of the case. The RGB controller works autonomously, but it can also be connected to a motherboard using a 3-pin addressable RGB connector to control the lighting via ASUS Aura Sync, MSI Mystic Light Sync, ASRock Polychrome Sync and Gigabyte RGB Fusion.

Fans

In total, up to seven 120mm or six 140mm fans can be mounted to the case: three 120mm or 140mm models to the front, three 120mm or two 140mm fans to the roof, and one 120mm or 140mm to the rear. Three 140mm fans with digitally addressable RGB lighting are pre-installed to the front of the chassis.

Liquid Cooling

The Phanteks Eclipse P500A D-RGB ATX Mid Tower Casing also supports liquid cooling. A 360mm or 420mm triple radiator can be installed to the front, a 360mm triple or 280mm dual radiator to the roof and a 120mm or 140mm single radiator to the rear.

Drive Bays

The Eclipse P500A D-RGB also inherited the possibility to accommodate numerous drives. With the included modular drive cages, two 3.5/2.5-inch drives can be installed underneath the PSU shroud. Three more 2.5-inch drives can be mounted to the back of the motherboard tray. With separately available accessories, two additional 3.5/2.5-inch cages can be placed underneath the PSU shroud and six more can be mounted to the right of the motherboard.

I/O Panel

The I/O panel on the roof of the Phanteks Eclipse P500A D-RGB ATX Mid Tower Casing provides one USB 3.1 Type-C port, two USB 3.0 Type-A ports and a power button. It also provides a combined 3.5mm audio jack (TRRS) for headsets, as well as a colour and mode button for the integrated RGB controller.

Specifications

• Type: Mid-Tower
• Front Panel: 1x USB 3.1 Type-C
  2x USB 3.0 Type-A
  1x 3.5mm jack (4-pole/TRRS)
• Tempered Glass Panel: Yes
• Motherboard Support: E-ATX (up to 280mm width), ATX, Micro-ATX, Mini-ITX
• Color(s): Black
• Weight: 8kg
• Dimensions: 240 x 510 x 505mm
• Front Ports:
  1x USB 3.1 Type-C
  2x USB 3.0 Type-A
  1x 3.5mm jack (4-pole/TRRS)
• Expansion Slots: 7 + 3 (vertical)
• Radiator Support:
  1x max. 360/420mm (front)
  1x max. 120/140mm (rear)
  1x max. 360/280mm (roof)
• Fan Support:
  3x 140/120mm (front)
  2x 140 / 3x 120mm (roof)
  1x 140/120mm (rear)
• Pre- Installed Fans:
  3x 140mm PHANTEKS SK140 D-RGB (3-pin header, 500-1.500 rpm, front)
• Drive Bays:
  2x 3.5″/2.5″ (internal; vibration-free; + 8x optional with optional HDD brackets)
  3x 2.5″ (internal)
• I/O Port:
  1x USB 3.1 Type-C
  2x USB 3.0 Type-A
  1x 3.5mm jack (4-pole/TRRS)
• PSU: 250mm (195mm using four HDD cages)
• Side Panel: Tempered Glass
• Maximum CPU Cooler Height: 190mm
• Maximum Graphics Card Length: 410mm (435mm without fans, 294mm using the HDD cage)
