Description
Colour-customisable
Using the optional NA-HC3 and NA-HC4 heatsink covers as well as the NA-SAVP3 anti-vibration pads (available in black, blue, green, red, yellow, white), the NH-D15S chromax.black can be fully customised to fit popular build colour schemes such as black and red or black and white.
High-compatibility version of NH-D15

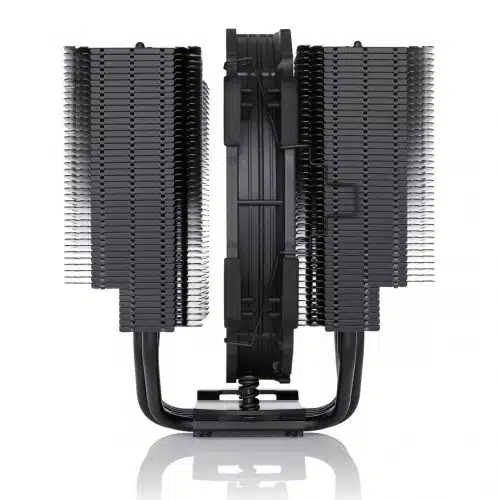

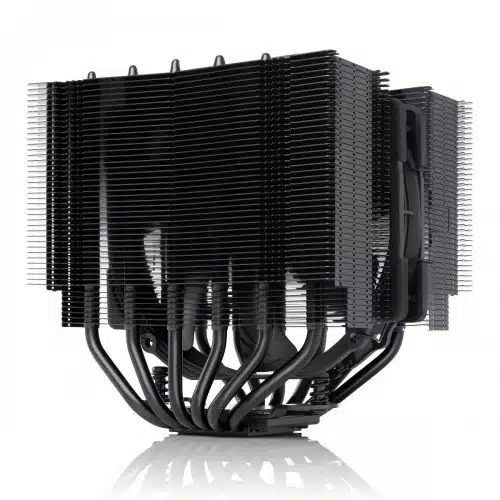

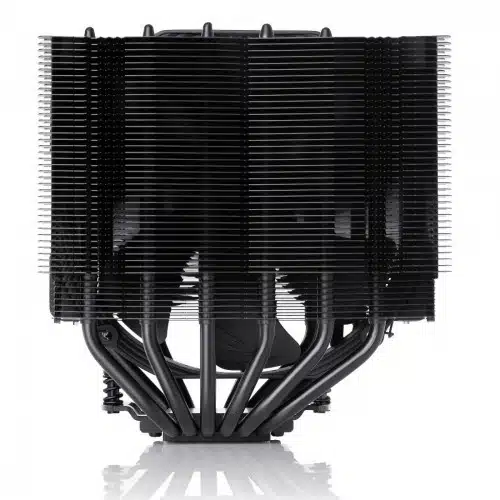

Compared to the NH-D15, the S-version uses an off-set, asymmetrical layout and a single instead of dual NF-A15 fans. This allows the Noctua NH-D15S chromax.black Premium Dual-Tower CPU Cooler to provide state-of-the-art heatsink performance while maintaining superior RAM and PCIe compatibility.
NF-A15 140mm fan
Complying with Noctua’s AAO standard and featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 has quickly built up a reputation as one of the best 140mm fans on the market.
Dual-fan ready
Using the supplied extra fan clips, the NH-D15S can be upgraded with either a second round-frame 140mm fan with 120mm mounting holes (such as the NF-A15) for maximum performance or a common 120mm fan (such as the NF-F12) for improving performance while maintaining compatibility with RAM modules of up to 45mm height.
PWM support and Low-Noise Adaptor
The NF-A15 premium fan supplied with the Noctua NH-D15S chromax.black Premium Dual-Tower CPU Cooler supports PWM for convenient automatic speed control through the motherboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.
Specifications
- Fan Speed:
Max. rotational speed (+/- 10%) : 1500 RPM
Max. rotational speed with L.N.A. (+/- 10%) : 1200 RPM
Min. rotational speed (PWM, +/-20%) : 300 RPM - Fan Airflow:
Max. airflow : 140,2 m³/h
Max. airflow with L.N.A. : 115,5 m³/h - Noise:
Max. acoustical noise : 24,6 dB(A)
Max. acoustical noise with L.N.A. : 19,2 dB(A) - Material: Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
- Input power: 1,56 W
- Voltage range: 12 V
- MTTF: >150.000 h
- Dimension:
Height (without fan) : 160 mm
Width (without fan) : 150 mm
Depth (without fan) : 135 mm
Height (with fan) : 160 mm
Width (with fan) : 150 mm
Depth (with fan) : 135 mm
Weight (without fan) : 980 g
Weight (with fan) : 1150 g - Intel: Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA1700
- AMD: AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4
