Description
120mm LOW NOISE FAN

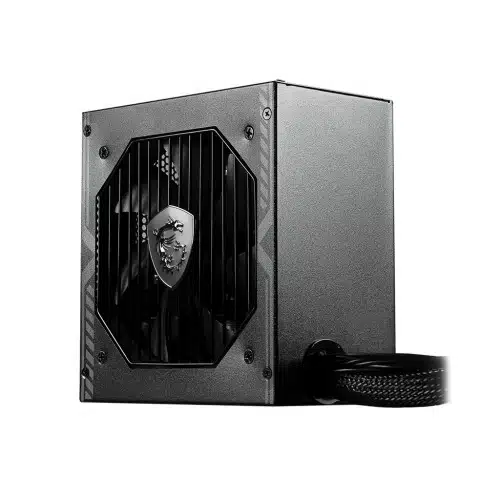

MSI MAG A650BN Power Supply has a 120 mm cooling fan. The fan is made with sleeve bearing. These bearings reduces the noise overall noise made by the fan. so very low noise is generated while maintaining excellent heat dissipation.
80 PLUS BRONZE CERTIFIED
The efficiency of a power supply directly influences the system’s performance and power consumption. The 80 PLUS BRONZE certification promises lower energy consumption when ensuring higher efficiency. The EFFICIENCY of this PSU is Up to 85%.
DC TO DC CIRCUIT DESIGN
Adopted DC-DC circuit design reduces the instability of output voltage, and ads stability to the supply of power.
COMPREHENSIVE CIRCUIT PROTECTION
MSI MAG A650BN Power Supply supports OCP, OVP, SCP, OPP, OTP protection mechanisms and provides comprehensive protection to your systems. The dimension of this product is 150mm x140mm x86mm.
Specification
| Key Features | ||
| Continuous Power | 650W | |
| Efficiency (Approx.) | 85% | |
| Certification | 80 Plus Bronze | |
| Fan Size | 120mm | |
| Others | PFC TYPE Active PFC PROTECTION OCP / OVP / OPP / OTP / SCP |
|
| Input | ||
| Voltage | 100-240Vac | |
| Frequency Range | 50Hz ~ 60Hz | |
| Current | 115Vac/8.0A max. 230Vac/4.0A max. | |
| Output | ||
| Modular Type | Non-modular | |
| Total Power | 650W | |
| Peak Power | 650W | |
| AC Input | INPUT VOLTAGE 100-240Vac INPUT CURRENT 115Vac/8.0A max. 230Vac/4.0A max. INPUT FREQUENCY 50Hz ~ 60Hz EFFICIENCY Up to 85% (80 Plus Bronze) |
|
| Connector | ||
| Main Power | 650W | |
