120mm Low Noise Fan

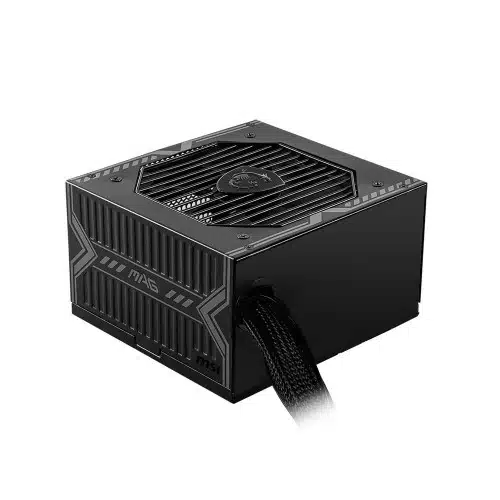

MSI MAG A550BN Power Supply has a 120 mm cooling fan. The fan is made with sleeve bearing. These bearings reduces the noise overall noise made by the fan. so very low noise is generated while maintaining excellent heat dissipation.
80 PLUS BRONZE Certified
The efficiency of a power supply directly influences the system’s performance and power consumption. The 80 PLUS BRONZE certification promises lower energy consumption when ensuring higher efficiency. The EFFICIENCY of this PSU is Up to 85%.
DC To DC Circuit Design
Adopted DC-DC circuit design reduces the instability of output voltage, and ads stability to the supply of power.
Comprehensive Circuit Protection
MSI MAG A550BN Power Supply supports OCP, OVP, SCP, OPP, OTP protection mechanisms and provides comprehensive protection to your systems. The dimension of this product is 150mm x140mm x86mm.
FORM FACTOR: ATX
RATED WATTAGE: 550W
EFFICIENCY RATING: Up to 85% (80 Plus Bronze)
FAN SIZE: 120 mm
DIMENSIONS (DXWXH): 150mm x140mm x86mm
PFC TYPE: Active PFC
INPUT VOLTAGE RANGE: 100-240Vac
INPUT FREQUENCY RANGE: 50Hz ~ 60Hz
PROTECTION: OCP / OVP / OPP / OTP / SCP
