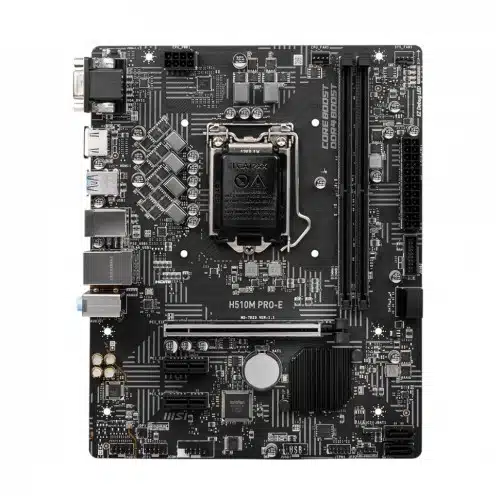

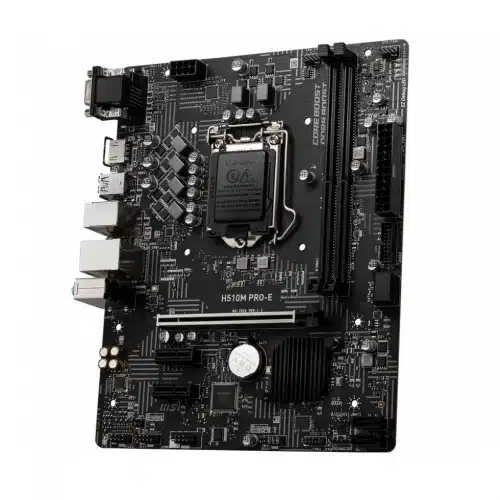

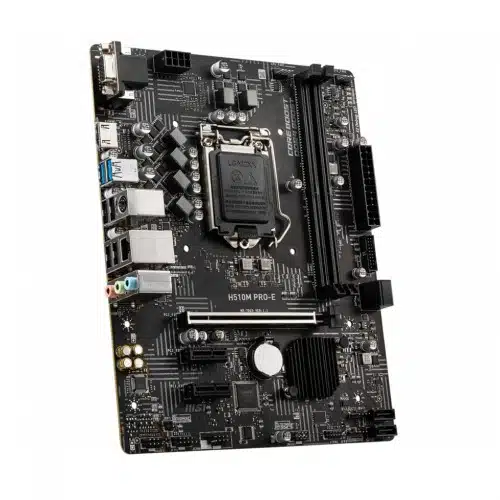

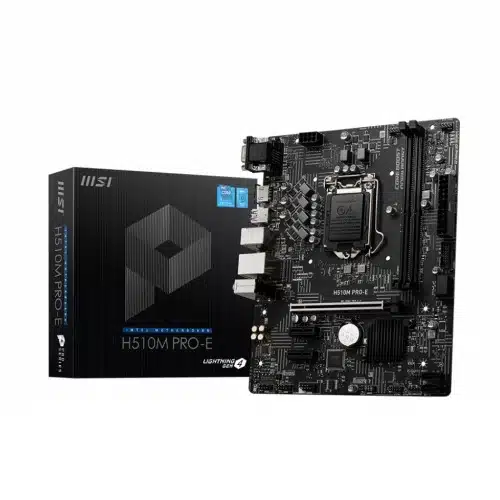

MSI H510M PRO-E Intel 10th Gen and 11th Gen Mirco-ATX Motherboard

Description

User Friendly Design

MSI H510M PRO-E Intel 10th Gen and 11th Gen Mirco-ATX Motherboard features tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.

FROZR AI Cooling

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

Connectivity

The most important thing of DIY is expandability. MSI H510M PRO-E Intel 10th Gen and 11th Gen Mirco-ATX Motherboard features plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.

Experience More

MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.

Specifications

• Supported CPU: Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors1
• Chipset: Intel H510 Chipset
• Form Factor: mATX Form Factor
  9.3 x 7.5 in. (23.6 cm x 19.0 cm)
• Audio:
  Realtek ALC897 Codec
  7.1-Channel High Definition Audio
• PCI:
  1x PCIe x16 slot (From CPU)
  Support up to PCIe 4.0 for 11th Gen Intel CPU
  Support up to PCIe 3.0 for 10th Gen Intel CPU
  2x PCIe 3.0 x1 slots (From PCH)
• Memory Type: DDR4
• Slots: 2x DDR4 memory slots
• Supported Memory:
  Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
  Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
  Supports Dual-Channel mode
  Supports non-ECC, un-buffered memory
  Supports Intel Extreme Memory Profile (XMP)
• Maximum Memory: up to 64GB
• Graphics:
  1x VGA port, supports a maximum resolution of 2048×1536 60Hz, 1920×1200 60Hz
  1x HDMI 1.4 port, supports a maximum resolution of 4K 30Hz
• HDMI:
  1x HDMI 1.4 port
• VGA (s):
  1x VGA port
• USB (s):
  Intel H510 Chipset
  4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
  6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
• LAN Port (s):
  1x Realtek RTL8111 Gigabit LAN controller
• Supported Storage:
  4x SATA 6Gb/s ports (From H510 Chipset)
• Audio:
  1x Front panel audio connector
• Internal I/O Ports:
  1x 24-pin ATX main power connector
  1x 8-pin ATX 12V power connector
  4x SATA 6Gb/s connectors
  1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports)
  1x USB 2.0 connector (support additional 2 USB ports)
  1x 4-pin CPU fan connector
  1x 4-pin system fan connector
  1x Front panel audio connector
  2x System panel connectors
  1x Serial port connector
  1x Chassis Intrusion connector
  1x Clear CMOS jumper
  1x TPM module connector
  TPM (Trusted Platform Module )
  1x TPM module connector

Warranty: 3 Years
