Description

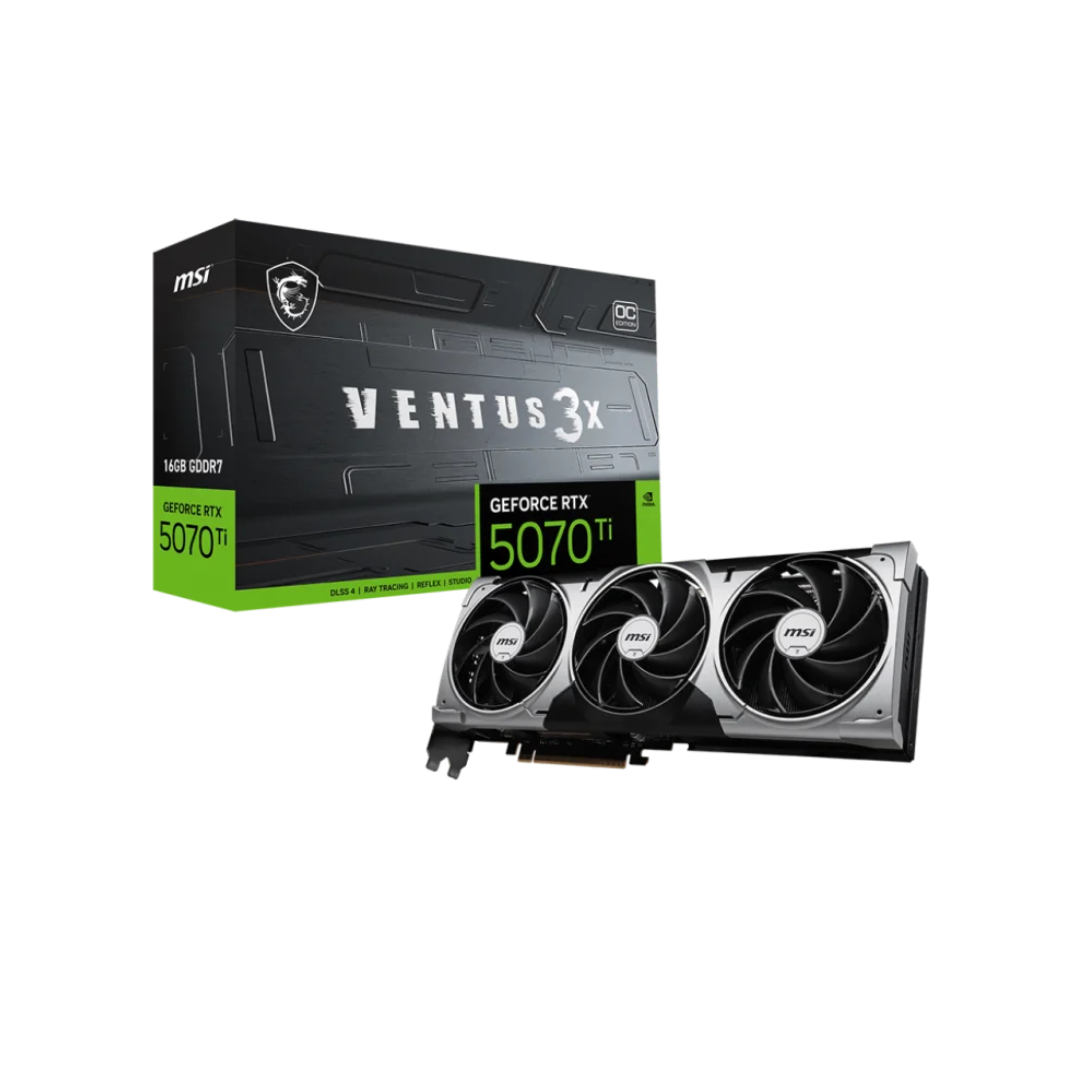

The MSI GeForce RTX 5070 Ti 16G VENTUS 3X OC is a powerhouse graphics card built on NVIDIA’s cutting-edge Blackwell Architecture, designed to deliver exceptional gaming and creative performance. Featuring 16GB of ultra-fast GDDR7 memory with a 256-bit memory bus and 28 Gbps speed, this GPU handles demanding 4K gaming, video editing, and 3D rendering with ease. With 8960 CUDA Cores and 70 Ray Tracing Cores, it brings lifelike visuals and realistic lighting effects to your favorite games. The card boasts an impressive boost clock of 2482 MHz and extreme performance mode at 2497 MHz through MSI Center. Supporting PCI Express 5.0 x16, it ensures maximum data transfer speeds for next-gen performance. The TRI FROZR 4 cooling system with STORMFORCE FAN technology keeps temperatures low and operation quiet during intense gaming sessions. With 3x DisplayPort 2.1b and 1x HDMI 2.1b outputs, the RTX 5070 Ti supports multi-monitor setups up to 8K resolution at 60Hz and 4K at 120Hz HDR with Variable Refresh Rate. This graphics card requires a 750W PSU and delivers 300W of power-efficient performance, making it an ideal choice for gaming enthusiasts and content creators seeking top-tier performance.
Specifications
| Specification | Details |
|---|---|
| GPU Architecture | NVIDIA Blackwell |
| Core Clock | Extreme Performance: 2497 MHz (MSI Center), Boost: 2482 MHz |
| CUDA Cores | 8960 |
| Video Memory | 16GB GDDR7 |
| Memory Bus | 256-bit |
| Memory Speed | 28 Gbps |
| Ray Tracing Cores | 70 |
| TMUs | 280 |
| ROPs | 96 |
| PCI Express | PCI Express 5.0 x16 |
| Display Outputs | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Multi Display Capability | Quad Display |
| Maximum Resolution | 15360×8460 @ 60Hz (DisplayPort), 8K @ 120Hz HDR (HDMI) |
| Cooling System | TRI FROZR 4 with STORMFORCE FAN |
| DirectX | 12 Ultimate (12_2) |
| OpenGL | 4.6 |
| Shader Model | 6.8 |
| HDCP Support | 2.3 |
| Power Consumption | 300W |
| Recommended PSU | 750W |
| Power Connector | 1x 12VHPWR |
| Slot Size | Triple-slot |
| Dimensions (W x D x H) | 303 x 121 x 49 mm |
| Weight | 1.073 KG (Card), 1.566 KG (Package) |
| Color | Black |
Next-Generation NVIDIA Blackwell Architecture
The MSI GeForce RTX 5070 Ti is powered by NVIDIA’s revolutionary Blackwell Architecture, representing the latest advancement in GPU technology. This architecture delivers unprecedented performance improvements and energy efficiency compared to previous generations. With 8960 CUDA Cores working in harmony, the Blackwell Architecture enables faster processing speeds for both gaming and professional applications. The advanced architecture also introduces enhanced AI capabilities, making it perfect for creators who work with AI-powered tools and applications. Whether you’re gaming at ultra settings or rendering complex 3D scenes, the Blackwell Architecture provides the computational power needed to handle the most demanding tasks with ease.
Ultra-Fast 16GB GDDR7 Memory for Superior Performance
Equipped with 16GB of next-generation GDDR7 memory, this graphics card delivers blazing-fast performance that outpaces traditional GDDR6 and GDDR6X solutions. The 256-bit memory bus combined with 28 Gbps memory speed ensures rapid data transfer, eliminating bottlenecks during intensive gaming sessions or professional workflows. This massive memory capacity allows you to work with high-resolution textures, complex 3D models, and multiple applications simultaneously without experiencing slowdowns. The GDDR7 memory is particularly beneficial for 4K and 8K gaming, where large amounts of texture data need to be processed quickly. Content creators will also appreciate the ability to edit 8K video footage and work with massive project files without running into memory limitations.
Advanced Cooling with TRI FROZR 4 Technology
The TRI FROZR 4 cooling system represents MSI’s commitment to keeping your graphics card running cool and quiet under all conditions. Featuring three STORMFORCE FANs with advanced aerodynamic blade design, this cooling solution maximizes airflow while minimizing noise levels. The fans are equipped with double ball bearings for extended lifespan and reliability. The heat sink design incorporates multiple heat pipes that efficiently transfer heat away from the GPU core, ensuring optimal thermal performance even during extended gaming marathons or intensive rendering tasks. The fans also feature intelligent fan stop technology, which turns off the fans during light loads for completely silent operation when you’re browsing or performing basic tasks.
Immersive Ray Tracing and Realistic Visuals
With 70 dedicated Ray Tracing Cores, the RTX 5070 Ti brings cinematic-quality graphics to your gaming experience. Ray tracing technology simulates the physical behavior of light, creating realistic reflections, shadows, and global illumination that dramatically enhance visual fidelity. Games that support ray tracing will showcase stunning realism, from accurate reflections in puddles and windows to soft, natural shadows that change dynamically with lighting conditions. The dedicated RT cores handle these complex calculations efficiently without significantly impacting frame rates, allowing you to enjoy beautiful, lifelike graphics while maintaining smooth gameplay. Combined with NVIDIA DLSS technology, you can maximize both visual quality and performance simultaneously.
Multi-Display Support for Enhanced Productivity

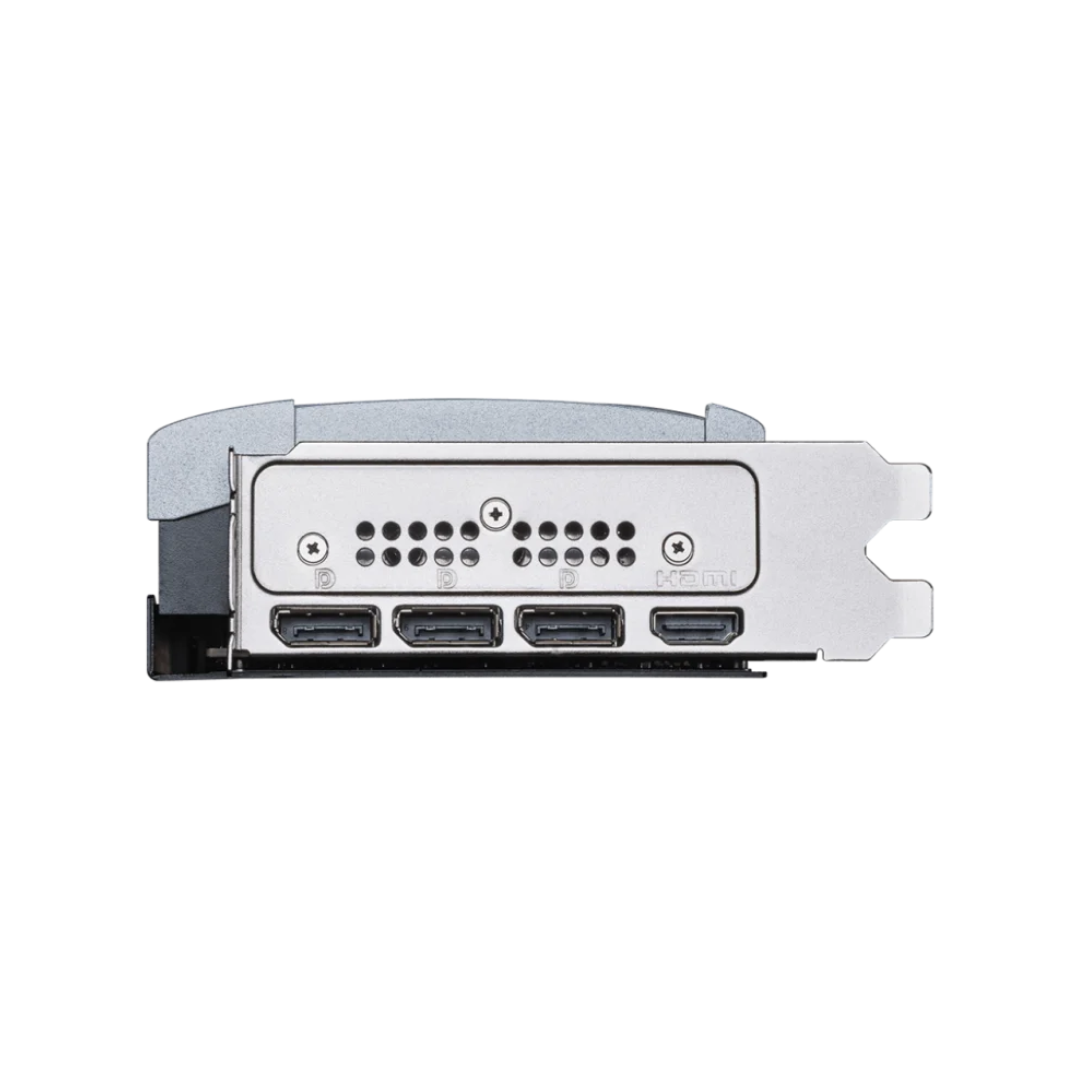

The RTX 5070 Ti excels in multi-monitor configurations with support for up to four displays simultaneously. Equipped with three DisplayPort 2.1b outputs and one HDMI 2.1b port, this card can drive ultra-high-resolution displays with ease. DisplayPort 2.1b supports resolutions up to 15360×8460 at 60Hz, while HDMI 2.1b enables 8K at 120Hz HDR and 4K at 480Hz HDR with Variable Refresh Rate support. This makes it ideal for gamers who want an immersive surround gaming setup, streamers who need multiple displays for monitoring content, or professionals who require extensive screen real estate for productivity applications. The Variable Refresh Rate technology ensures smooth, tear-free gaming experiences across all connected displays.
High-Efficiency Power Design for Stable Performance
Despite its impressive performance capabilities, the RTX 5070 Ti maintains reasonable power consumption at 300W, making it an efficient choice for high-performance systems. The card utilizes a single 12VHPWR power connector, which provides clean, stable power delivery for consistent performance. MSI recommends a 750W power supply to ensure adequate power headroom for the entire system, including the CPU and other components. The efficient power design means less heat generation and lower electricity costs over time. The triple-slot design provides ample space for the cooling system while maintaining compatibility with most modern PC cases, ensuring that you can build a powerful gaming rig without compromising on thermal performance or system stability.
