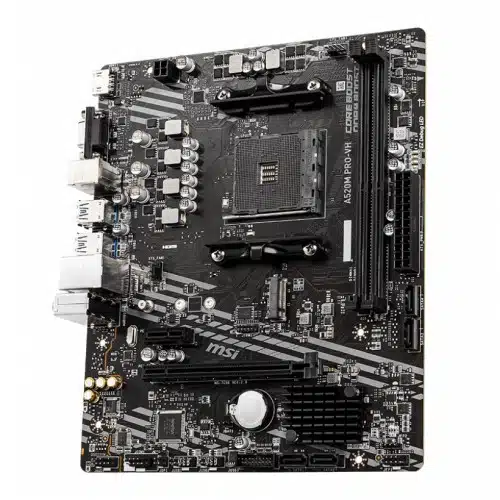

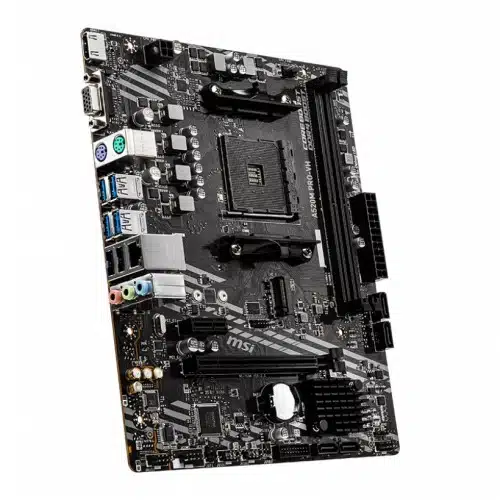

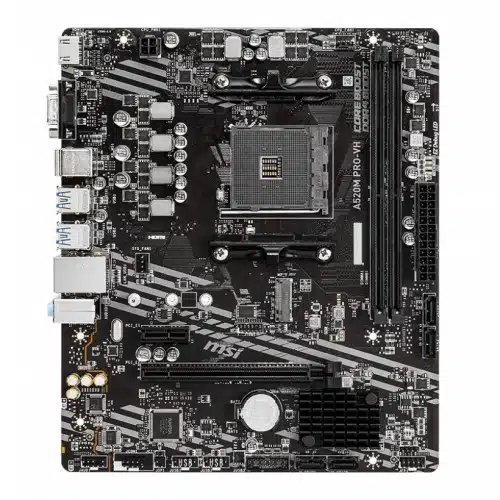

MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard

Description

Motherboard Support

MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors.

Memory Support

MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard supports DDR4 Memory, up to 4600(OC) MHz. Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.

M.2 Support

It features M.2 Shield Frozr. Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Features

MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard comes with a premium layout and digital power design to support more cores and provide better performance. Advanced technology to deliver pure data signals for the best performance and stability. It comes with a 2oz Thickened Copper PCB. An enhanced PCB design improves heat dissipation and performance reliability. Audio Boost rewards your ears with studio-grade sound quality. It features Dragon Center – A brand new software that integrates all MSI exclusive tools with a user-friendly user interface.

Specifications

• Supported CPU: AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors
• Chipset: AMD A520 Chipset
• Form Factor:
  mATX Form Factor
  9.3 in. x 7.9 in. (23.6 cm x 20 cm)
• Audio:
  Realtek ALC892/ALC897 Codec
  7.1-Channel High Definition Audio
• PCI:
  1x PCIe 3.0 x1 slot
  1x PCIe 3.0 x16 slot
• M.2 Socket: 1x M.2 slot (Key M) (from AMD Processor)
• Memory  Type: Dual-channel memory architecture
• Slots: 2x DDR4 memory slots
• Supported Memory:
  Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
  1DPC 1R max speed 4600 MHz
  1DPC 2R max speed 3866 MHz
  Supports non-ECC UDIMM memory
  Supports ECC UDIMM memory (non-ECC mode)
  Supports un-buffered memory
• Maximum Memory: 64GB
• Graphics:
  1x HDMI 1.4 port, supporting a maximum resolution of 4096×2160 @60Hz
  Support for HDMI 1.4 version, HDCP 1.4 & 2.3
  1 x VGA port, supporting a maximum resolution of 2048×1280 @60Hz
  Max Shared Memory: 16GB
• HDMI: 1x HDMI 1.4 port, supporting a maximum resolution of 4096×2160 @60Hz
• VGA (s): 1 x VGA port, supporting a maximum resolution of 2048×1280 @60Hz
• USB (s):
  AMD A520 Chipset:
  2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
  6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors
  AMD Processor:
  4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
• LAN Port (s): 1x Realtek RTL8111H LAN controller
• Supported Storage:
  AMD A520 Chipset
  4x SATA 6Gb/s ports
  1x M.2 slot (Key M) (from AMD Processor)
  Supports PCIe 3.0
  Supports SATA 6Gb/s
  Supports 2242/ 2260/ 2280 storage devices
• Audio: 1x Front panel audio connector
• Internal I/O Ports:
  1x 24-pin ATX main power connector
  1x 4-pin ATX 12V power connector
  4x SATA 6Gb/s connectors
  1x M.2 slots (M-Key)
  1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  1x 4-pin CPU fan connector
  1x 4-pin system fan connector
  1x Front panel audio connector
  2x System panel connectors
  1x Chassis Intrusion connector
  1x Clear CMOS jumper
• TPM (Trusted Platform Module ): 1x TPM module connector

Warranty: 3 Years
