Description
Indoor Use

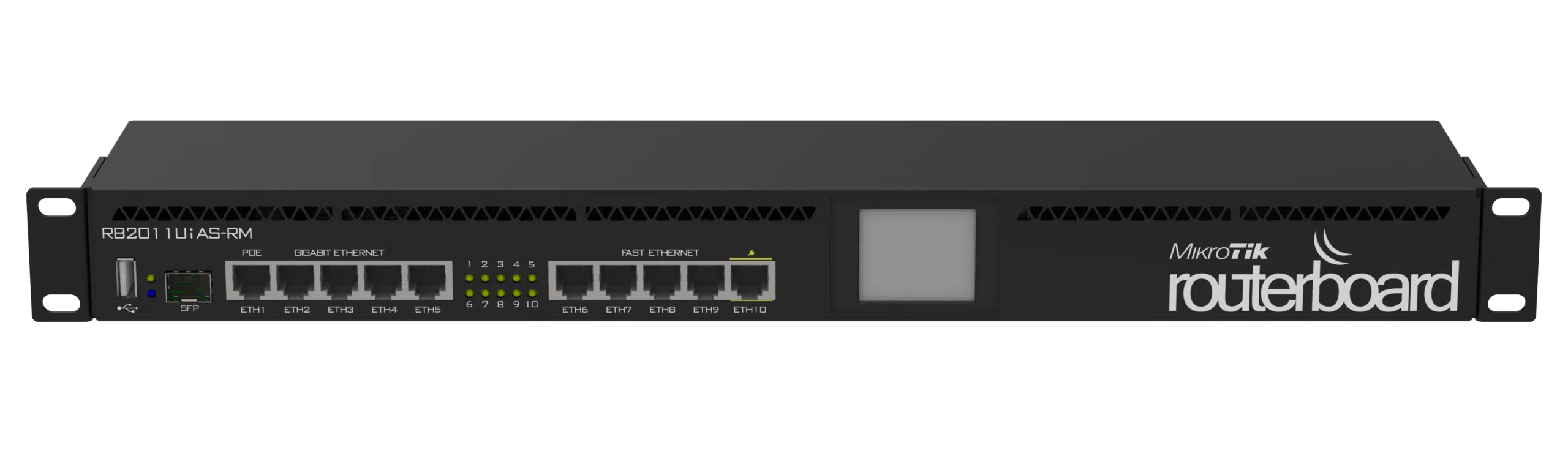

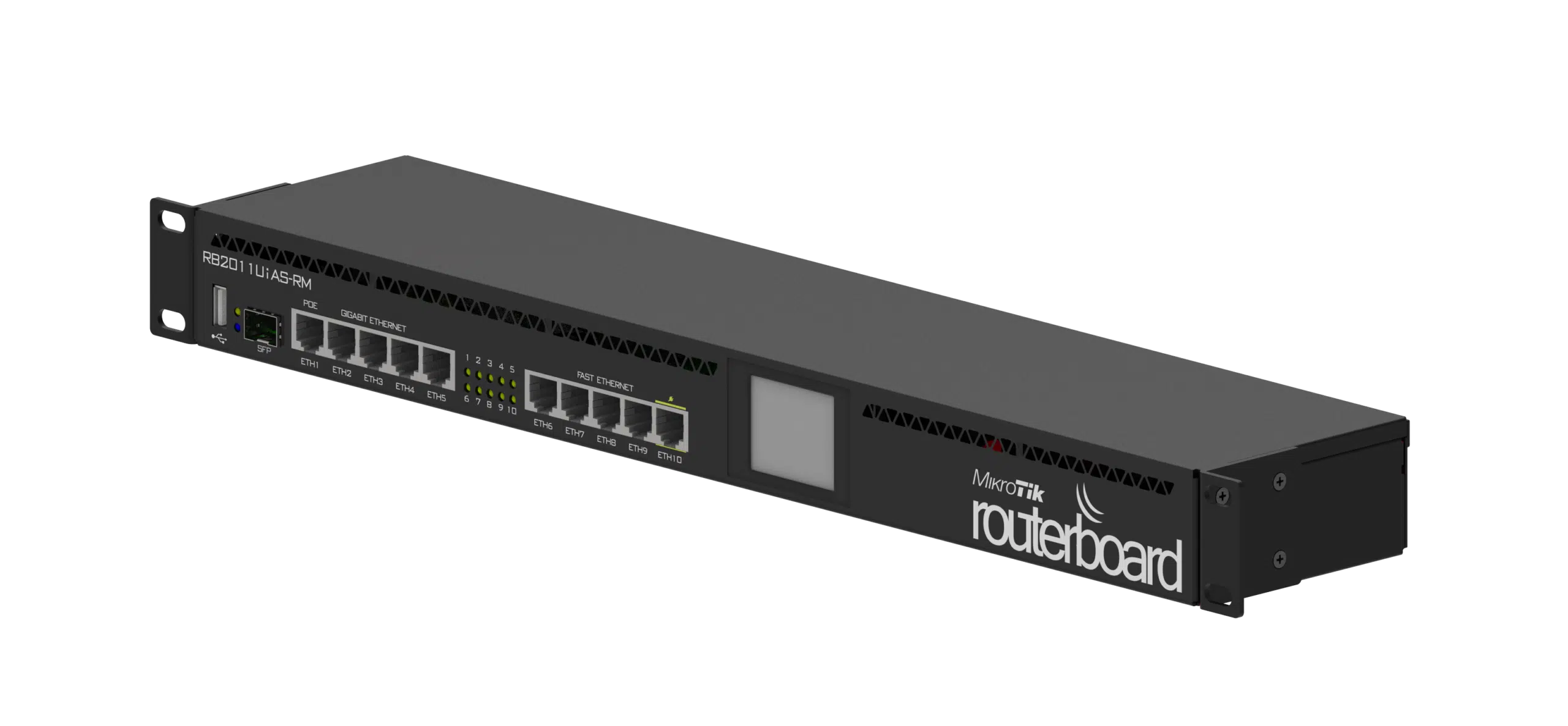

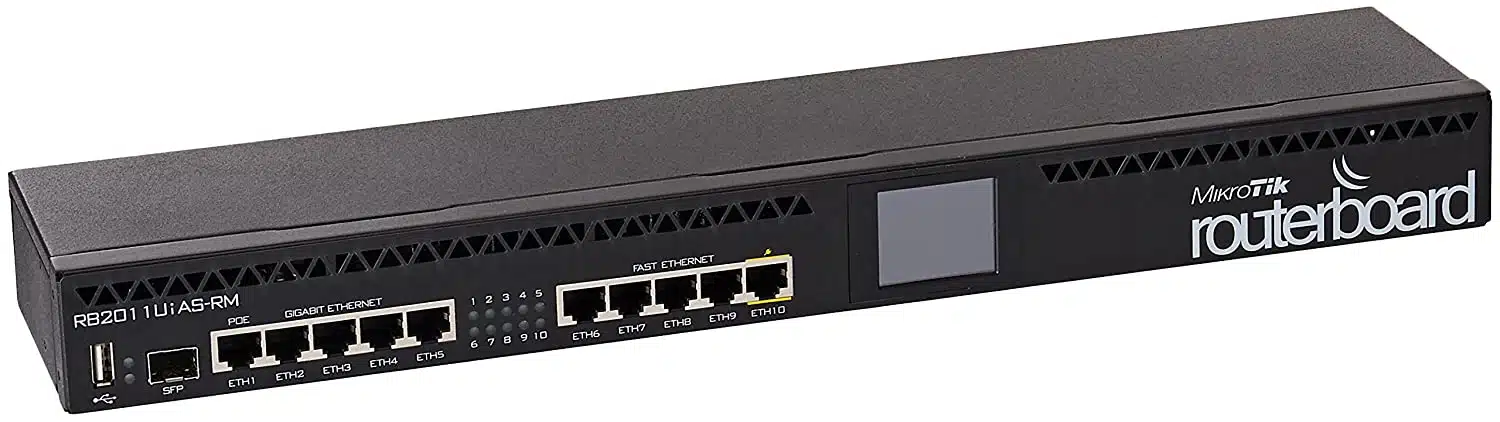

The Mikrotik RB2011UiAS-RM Gigabit Ethernet Router is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.
RoterOS
The Mikrotik RB2011UiAS-RM Gigabit Ethernet Router is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring – just a few of the vast number of features supported by RouterOS.
Features
RouterBOARD 2011UiAS-RM, in comparison with RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, microUSB port and more RAM (128MB instead of 64MB). Also, Mikrotik RB2011UiAS-RM Gigabit Ethernet Router has RouterOS L5 license (instead of L4) and nice touchscreen LCD for configuration. SFP cage is also present (SFP module not included!)
POE
There is PoE output function for port #10 – it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
Specifications
| Key Features | ||
| Frequency | 600 MHz | |
| Interface | Architecture MIPSBE CPU AR9344 CPU core count 1 RouterOS license 5 Size of RAM 128 MB Storage size 128 MB Storage type NAND |
|
| Ports | PoE-out ports Ether10 10/100 Ethernet ports 5 10/100/1000 Ethernet ports 5 SFP ports 1 |
|
| Others | PCB temperature monitor Yes Voltage Monitor Yes Beeper Yes |
|
| Operating System Support | RouterOS | |
| Power Source | ||
| Power Mode | Number of DC inputs 2 (DC jack, PoE-IN) DC jack input Voltage 8-30 V Max power consumption 28 W Max power consumption without attachments 6 W Cooling type Passive PoE in Passive PoE PoE in input Voltage 8-30 V USB Power Reset Yes |
|
| Physical Dimension | ||
| Dimension | 443 x 92 x 44 mm | |
