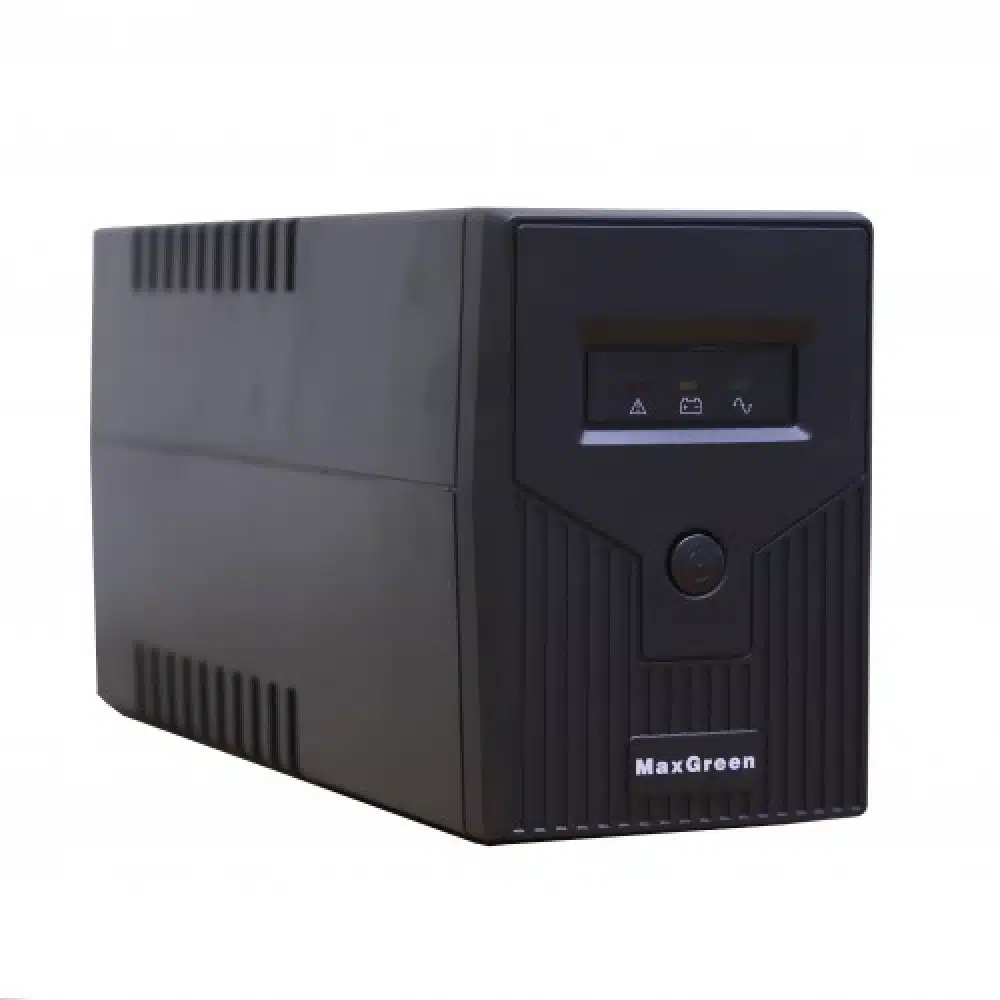

MaxGreen MG-GOLD5 650VA Offline UPS

Description

Voltage

MaxGreen 650VA MG-Gold5 UPS comes with 220Vac Input Voltage, 140-290VAC Input Voltage Range, 50 Hz Frequency, 220Vac Output Voltage. This offline UPS, It also features with ±10% (Bat Mode) AC Voltage Regulation, 50Hz ± 1Hz (Bat Mode) Frequency Range, 2-6ms Transfer time Typical that provides you good performance.

Battery

The MaxGreen 650VA Gold UPS also has Waveform Simulated Sine Wave (Bat Mode), Battery Internal maintenance-free lead-acid (Battery Type & Number 12V/9Ah*1). This UPS provide 4-6 hours recover time to 90% capacity,Full protection Short circuit, Overload, Battery discharge and overcharge, Surge protection.

Humidity

The MaxGreen MG-GOLD5 650VA Offline UPS has Humidity 0-90% Relative Humidity 0-40 ℃ (Non-condensing) and Noise Level Less than 40dB. The 650VA

Compatibility

Gold MaxGreen UPS supports Windows 2000/2003/XP/Vista/2008,Windows 7/8 Linux Unix and MAC operating system.

Specifications

• Capacity: 650VA
• Load Capacity: 360W
• Input Voltage: 220Vac
• Output Voltage: 220Vac
• Frequency (Battery Mode): 50Hz ± 1Hz
• Noise Level: Less than 40dB
• Battery:  Internal maintenance-free lead-acid (12V/9Ah*1)
• Alarm:
  Battery mode- Sounding every 10 seconds
  Low battery- Sounding every 10 seconds
  Overload -Sounding every 10 seconds
  Battery Replacement -Alarm Sounding every 10 seconds
  Fault- Continuously sounding
• Indications: Line Mode Green lighting ,Battery Mode Yellow Lighting ,Fault Red Lighting
• Frequency: 50 Hz
• Voltage Range: 140-290VAC
• Backup Time: up to 30 minutes
• Type of Wave: Simulated Sine Wave (Bat Mode)
• Transfer Time: Typical 2-6ms

Warranty: 1 Year
