Description
Fan Support

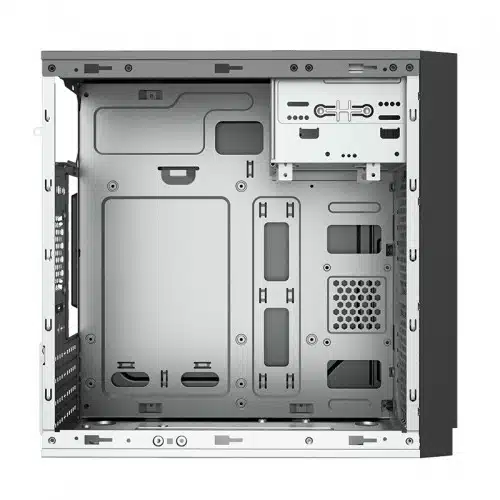

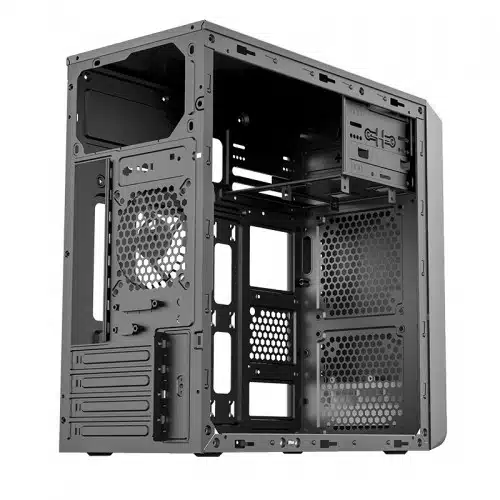

MaxGreen 6503BK M-ATX Casing supports 2 x 12cm fan on the front and 1x8cm fan rear. This casing is supported with Micro-ATX, Mini-ITX motherboards.
Front Panel
The front panel is made of ABS material and on both side panels, there are metal covers. Side cooling air hole structure ensures smooth air circulation to maintain optimum internal temperature.
Connections
6503BK casing comes with a 5.25″ (ODD) external drive bay, 2x 3.5″ (HDD) and 3x 2.5″ (SSD) internal drive bays. It comes with High speed USB3.0 port optional and headset, microphone connection.
Power Supply
MaxGreen 6503BK M-ATX Casing has a power supply of 500W (real 200W), with 2sata,8cm fan,220V,1.2 M power cord & Cable Management Depth of 14mm. Moreover it supports VGA Card Length of up to 270mm and a CPU Cooler Height of 140mm.
Specifications
- Type: Micro
- Front Panel: ABS
- Motherboard Support: Micro-ATX, Mini-ITX
- Color(s): Black
- Weight: 3 kgs
- Dimensions: (L)368 x (W)178 x (H)353mm
- Expansion Slots: 4
- Fan Support:
Front: 2×120/92/80mm(Fan optional)
Rear: 1×92/80(Fan optional)
Left Side: 1x120mm(Fan optional) - External Drive Bay(s): 5.25″ (ODD) x1
- Internal Drive Bay(s):
3.5″ (HDD) x2
2.5″ (SSD) x3 - I/O Port:
Buttons *2
USB2.0 Port(s) *2
HD Audio Support *1
Controller max. fans Kensington lock,Pad lock,Alarm Switch,electronic lock(Optional) - PSU: 500W (real 200W, with 2sata ,8cm fan ,220V,1.2 M power cord)
- Side Panel:
Left: Metal cover
Right: Metal cover - Maximum CPU Cooler Height: 140mm
- Maximum Graphics Card Length: up to 270mm
