Description

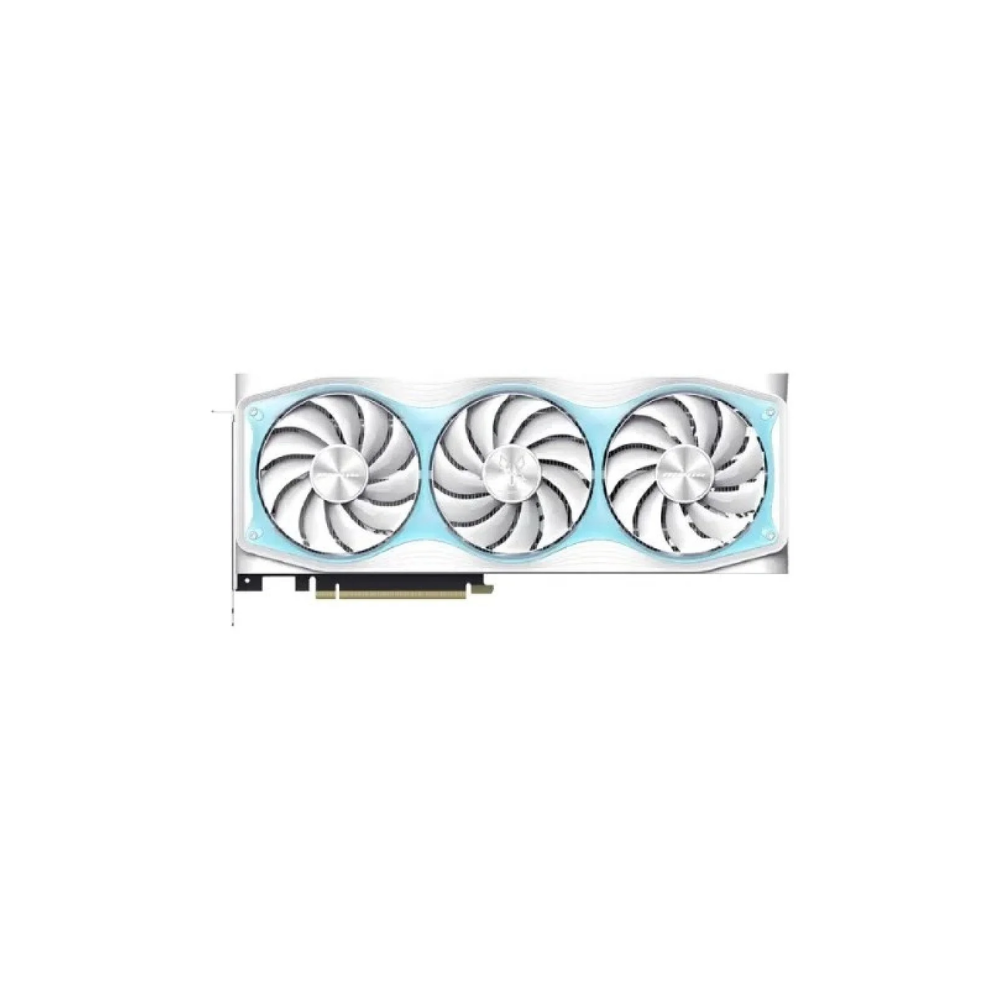

Introducing the Manli Polar Fox V2 GeForce RTX 5080 OC, a high-performance graphics card built for extreme gaming and creative workflows. Powered by NVIDIA’s next-gen architecture, this card harnesses the power of 10,752 CUDA cores and 16GB of ultra-fast GDDR7 memory running at 30 Gbps. With a boost clock of 2640 MHz, it delivers exceptional frame rates at 4K and even 8K resolutions (7680 x 4320). The card features exclusive DLSS 4 technology, including Multi Frame Generation and enhanced Ray Reconstruction, pushing visual fidelity and performance to new heights. Its triple-fan cooler, combined with a vapor chamber (VC) heatsink, ensures peak thermal performance even under sustained loads. Additionally, the 3.5-slot design includes an exclusive backplate and supports Windows 11 dynamic lighting and motherboard RGB control. The intelligent fan stop function eliminates noise during idle states, making this 360W powerhouse a perfect balance of raw speed, cooling efficiency, and modern aesthetics for enthusiasts.
Specifications
| Specification | Details |
|---|---|
| Model | Polar Fox V2 GeForce RTX 5080 OC |
| MPN | M-N508PO/D716G-M3651 |
| Video Memory | 16GB GDDR7 |
| Memory Clock | 30 Gbps |
| Memory Bandwidth | Up to 960 GB/s |
| Bus Type | 256-bit |
| Core Clock (Base) | 2295 MHz |
| Core Clock (Boost) | 2640 MHz |
| CUDA Cores | 10752 |
| Interface | PCIe |
| Display Outputs | 3x DisplayPort, 1x HDMI |
| Max Resolution | 7680 x 4320 |
| Multi Display | 4 |
| Power Consumption | 360W |
| Cooling Design | VC Heatsink with Triple Cooler |
| Width | 3.5-Slot |
| Dimensions (L x W x H) | 405 x 240 x 112mm |
| Special Features | DLSS 4, Multi Frame Generation, Ray Reconstruction, Fan Stop Function, RGB Lighting Control |
Performance and DLSS 4 Technology
The Manli Polar Fox V2 GeForce RTX 5080 OC is engineered to dominate modern gaming titles through its advanced architecture. DLSS 4 introduces Multi Frame Generation, which uses AI to generate multiple frames per traditionally rendered frame, dramatically increasing frame rates without compromising image quality. Enhanced Ray Reconstruction improves lighting, shadows, and reflections with greater accuracy. This means you can experience demanding ray-traced worlds at ultra-smooth refresh rates, making this card ideal for 4K high-refresh-rate monitors and even 8K gaming setups.
Advanced Cooling System
Maintaining peak performance requires superior thermal management. This card features a robust VC (Vapor Chamber) Heatsink combined with a triple-fan cooler. The vapor chamber spreads heat evenly across the surface before the three fans efficiently expel it. This design prevents thermal throttling during long gaming sessions or heavy rendering tasks. Despite its powerful cooling, the card includes an An-stop (fan stop) function at idle, so the fans stop spinning completely when temperatures are low, eliminating noise and conserving energy while you work or browse.
Memory and Bandwidth
Equipped with 16GB of next-generation GDDR7 memory operating at an effective speed of 30 Gbps, the Manli Polar Fox V2 offers a massive memory bandwidth of up to 960 GB/s across a 256-bit bus. This high-speed memory is critical for playing modern AAA games with high-resolution texture packs, running AI models, or editing 8K video. It ensures that data is instantly available to the 10,752 CUDA cores, reducing stutter and load times so you can work or play without interruption.
Connectivity and Multi-Display Support

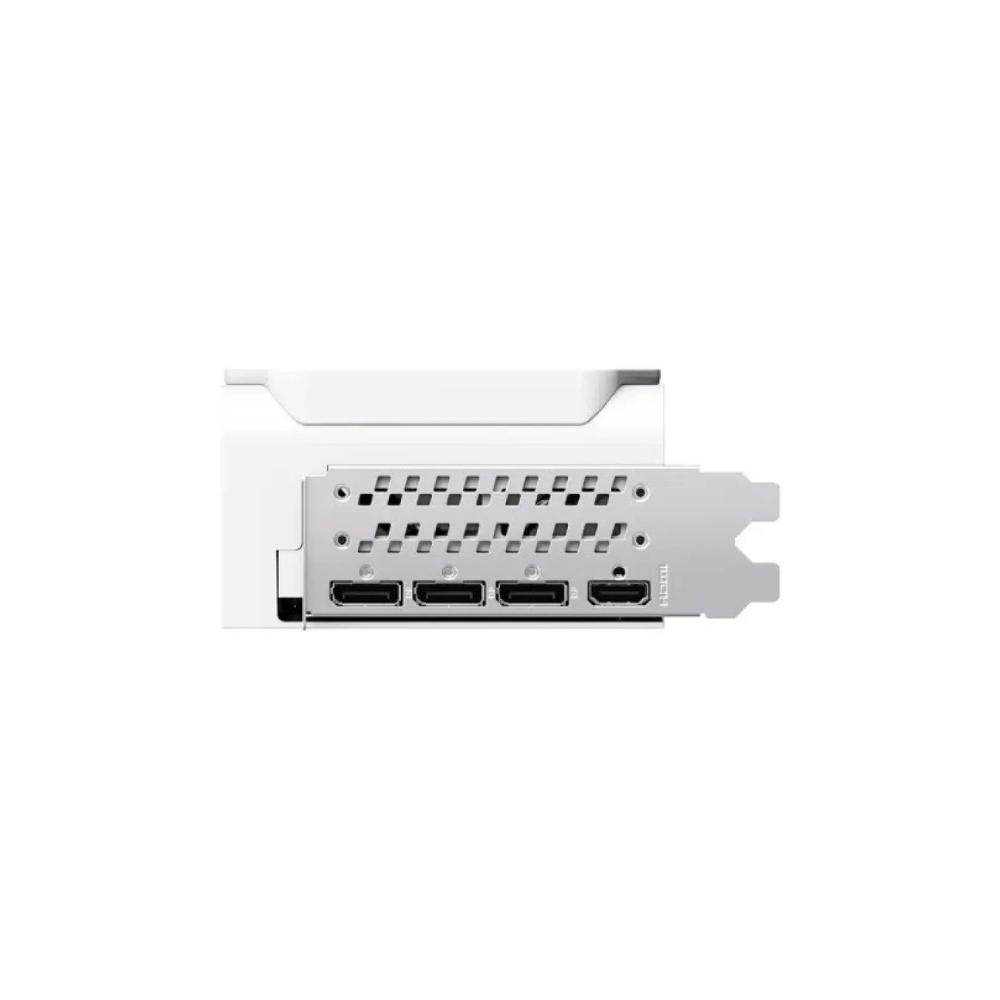

The RTX 5080 OC is designed for maximum workspace flexibility. It includes three DisplayPort outputs and one HDMI port, supporting up to four independent displays simultaneously. With a maximum resolution of 7680 x 4320 (8K) per display, you can create an immersive gaming surround setup or a massive multi-monitor productivity station. This makes it an excellent choice for flight simulator enthusiasts, stock traders, video editors, and content creators who need real-time monitoring across several screens.
Aesthetic and RGB Integration
Beyond raw performance, the Manli Polar Fox V2 offers a sleek visual experience. The exclusive backplate for the Polar Fox series adds structural rigidity and a premium look. The card supports Windows 11 dynamic lighting and motherboard RGB lighting control, allowing you to synchronize the card’s lighting effects with your fans, RAM, and other peripherals without extra software. This seamless integration ensures your build looks as fast as it performs, matching any color scheme or lighting pattern you prefer.
Physical Design and Power Requirements
At 405 x 240 x 112mm and occupying 3.5 slots, this is a large graphics card designed for mid to full-tower cases. Ensure your case has sufficient clearance before purchase. The card consumes up to 360W under full load, so a high-quality power supply unit (PSU) of at least 850W is recommended to handle transient power spikes and other system components. Use separate PCIe power cables rather than daisy-chained ones to ensure stable power delivery for optimal overclocking and performance.
