Description
The LINGBAO K68 8K Tri-Mode Magnetic Keyboard – Nebula Switch is a compact gaming keyboard engineered for players who demand rapid input response, precise actuation, and advanced customization. Featuring a 68-key layout, self-developed Nebula Magnetic Switches, an 8000Hz polling rate, and 128KHz key scanning, it is designed to support a highly responsive gaming experience while keeping your desk setup compact.
One of the keyboard’s standout features is its 0.01mm Rapid Trigger precision, which allows extremely fine changes in key position to control activation and reset. This is particularly useful for fast-paced competitive games where quick repeated inputs and accurate movement can make a difference. The magnetic switch system also supports advanced dynamic key functions, including RS, SOCD, DKS, MT, and TGL.
The K68 combines performance with flexibility through its tri-mode connectivity. Connect using a USB Type-C cable, Bluetooth, or 2.4GHz wireless, depending on your setup and preference. Its built-in 0.96-inch TFT display adds a distinctive visual element, while downward-facing ARGB lighting offers vibrant illumination with music-synchronized effects.
For a more refined typing experience, the keyboard features a gasket structure, six-layer internal filling, and magnetic stabilization for larger keys. Its 6000mAh battery is designed to provide approximately 30 hours of use with default lighting or up to 60 hours with the backlight switched off, depending on usage conditions.
With onboard memory, driver-based calibration, and support for magnetic switch customization, the LINGBAO K68 is a feature-rich option for gamers looking for an advanced magnetic keyboard in a space-saving format.
Specifications
| Specification | Details |
|---|---|
| Brand | LINGBAO |
| Model | K68 |
| Product Type | Magnetic Gaming Keyboard |
| Layout | 68 Keys |
| Switch Type | Nebula Magnetic Switch |
| Switch Initial Pressure | 27 ± 5gf |
| Switch Bottom-Out Pressure | 42 ± 5gf |
| Total Key Travel | 3.4 ± 0.1mm |
| Polling Rate | 8000Hz |
| Key Scanning Rate | 128KHz |
| Rapid Trigger Precision | 0.01mm |
| Connectivity | USB Type-C Wired / Bluetooth / 2.4GHz Wireless |
| Display | 0.96-inch TFT |
| Backlighting | Downward-Facing ARGB |
| Lighting Effects | Music-synchronized effects supported |
| Dynamic Key Functions | RS / SOCD / DKS / MT / TGL |
| Structure | Gasket Structure |
| Internal Filling | Six-layer structure |
| Magnetic Stabilization | Supported |
| Switch Customization | Mixed magnetic switch support |
| Onboard Memory | Supported |
| Calibration | Driver-based calibration in wired mode |
| Battery Capacity | 6000mAh (3000mAh × 2) |
| Battery Life | Approx. 30 hours with default lighting; up to 60 hours with backlight off |
| Battery Protection | NTC temperature protection |

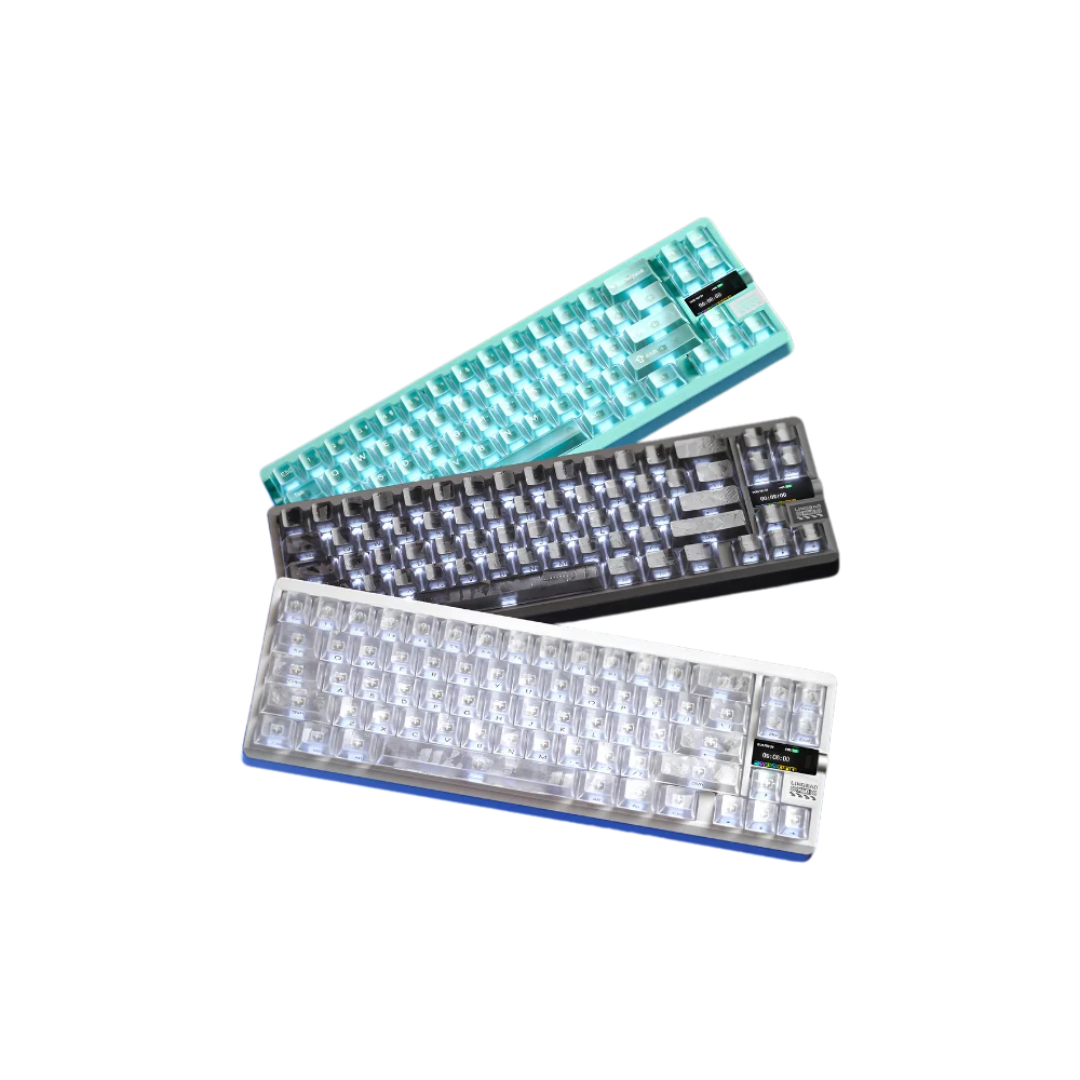

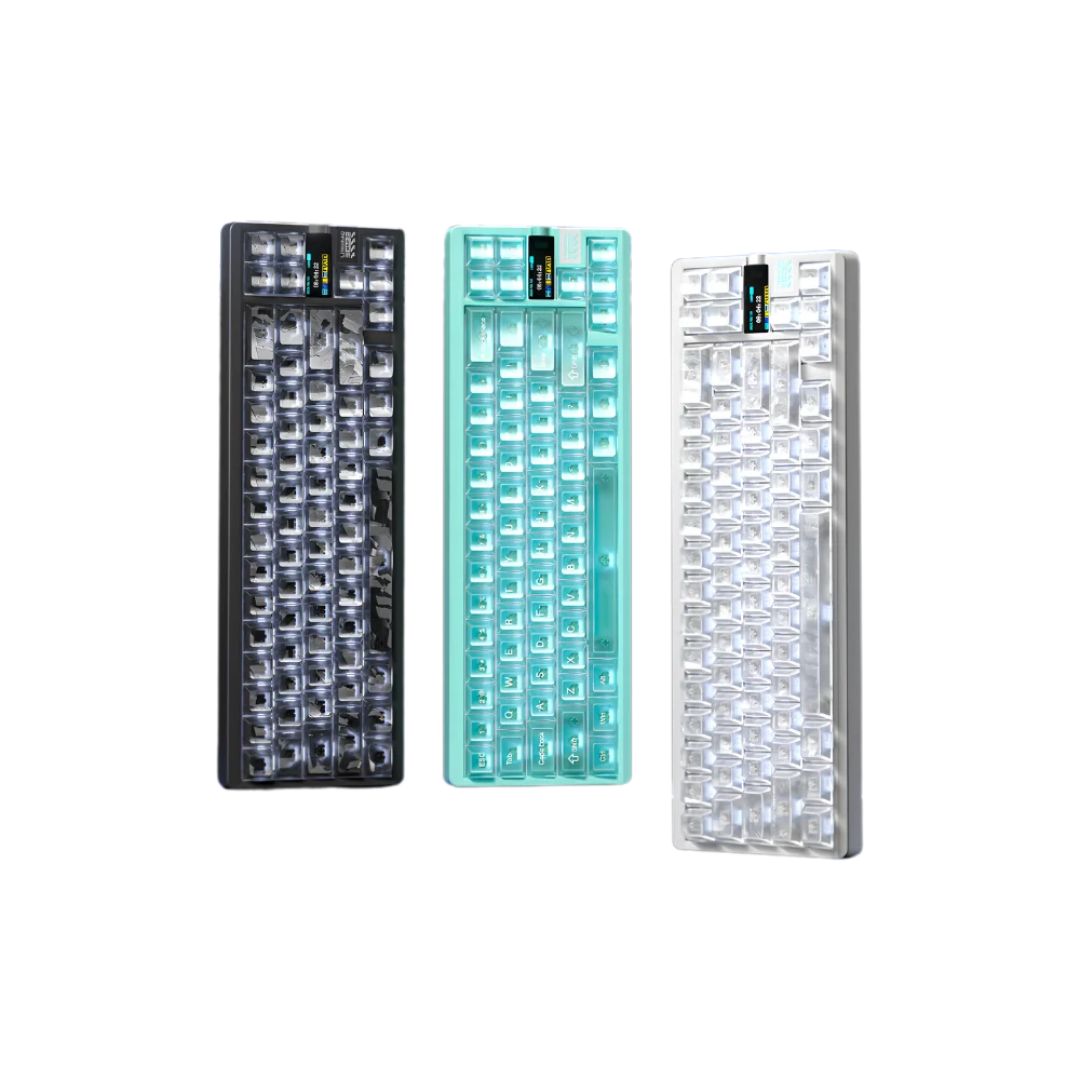

| Available Colors | Black Transparent / Green Mist / White Transparent |
| Warranty | 1 Years |
Nebula Magnetic Switch Technology
The LINGBAO K68 uses Lingbao’s self-developed Nebula Magnetic Switches, designed for responsive input and precise key detection. The magnetic sensing system supports adjustable activation behavior and rapid key resets. With a specified initial pressure of 27 ± 5gf, bottom-out pressure of 42 ± 5gf, and total travel of 3.4 ± 0.1mm, these switches are designed to balance responsiveness with controlled key movement.
0.01mm Rapid Trigger Precision
Rapid Trigger allows a key to activate and reset based on small changes in its movement rather than relying only on a fixed reset point. The K68 supports a specified 0.01mm Rapid Trigger precision, giving competitive players fine control over repeated keystrokes. This feature can be useful in games that demand quick directional changes, repeated movement inputs, and fast reactions.
8000Hz Polling and 128KHz Key Scanning
With an 8000Hz polling rate and 128KHz key scanning, the K68 is built for high-speed input reporting and key detection. The source specifies 8000Hz polling in wired and wireless modes. These performance-focused specifications make the keyboard suitable for players who prioritize responsive input, although the real-world experience also depends on the game, connection mode, and system configuration.
Tri-Mode Connectivity and TFT Display
Choose between USB Type-C wired, Bluetooth, and 2.4GHz wireless connectivity to suit your gaming desk or everyday setup. The built-in 0.96-inch TFT display adds a distinctive feature to the compact keyboard design. Combined with its versatile connection options, the K68 can fit different usage preferences without requiring a full-size keyboard.
ARGB Lighting and Refined Internal Structure
The keyboard features downward-facing ARGB lighting with support for approximately 16.7 million colors and music-synchronized effects. Its gasket structure and six-layer internal filling incorporate materials such as PORON, IXPE, PET, and silicone-based layers. These construction features are designed to refine the keyboard’s typing feel and acoustics, while magnetic stabilization helps maintain more consistent movement on larger keys.
Long-Lasting Battery and Advanced Key Functions
The K68 is equipped with a 6000mAh battery, configured as two 3000mAh cells, with NTC temperature protection. The listed battery life is approximately 30 hours with default lighting and up to 60 hours with the backlight off; actual performance may vary. Additional features include onboard memory, wired-mode driver calibration, mixed magnetic switch support, and dynamic functions such as RS, SOCD, DKS, MT, and TGL.
Warranty : 1 Years
