Description
Premium Aluminum Craftsmanship
Each Bracket Is Sturdily Designed With High-End Materials.
Revel In The Sandblasted And Anodized Finished Premium Aluminum.
Two Optional Styles Can Be Achieved By Mounting The Aluminum Wings Differently At The Front Panel Of The Dynamic And Dynamic R (Rotate) Mode, Revealing Or Concealing The Interior Components.
Premium Aluminum Craftsmanship

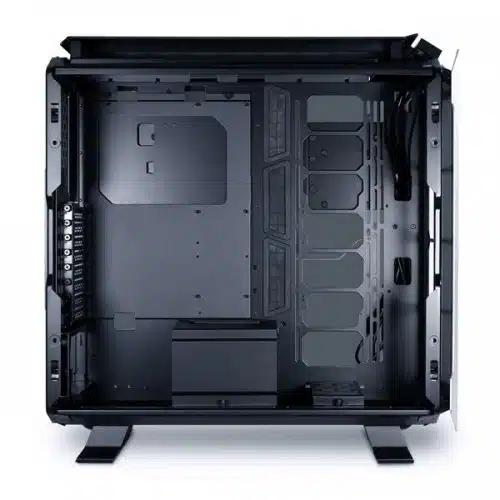

The Entire Designed Concept Of The Lian Li ODYSSEY X E-ATX Full Tower Silver Gaming Case Revolves Around An Open Airflow Case For The System To Run At Maximum Performance Without Thermal Throttling. Lighting Components Are Well Displayed Through The 4mm Thick Tinted Tempered Glass Panels While Abundant Airflow Comes Through Large Gaps Present In The Glass Panel Fold.
Optimized Cable Management And Ample Drive Mounting Space
With Rubber Grommets Covering The Cable Pass-Through Holes And The Presence Of The 5 Cable Channels Equipped With Velcro Straps, Routing Cables In The Lian Li ODYSSEY X E-ATX Full Tower Silver Gaming Case Is An Easy Job. Moreover, The Dynamic Mode Top Cover Is Converted Into A Cable Cover In Performance Mode, Enhancing The Look Of The Build.
There Are 3 Mounting Spaces For 2.5” SSD Or 3.5”HDD Behind The Motherboard Tray.
Front I/O Module
The I/O Port Module Can Be Relocated To Another Place In A Different Mode And Can Be Oriented In The User’s Preferred Direction.
Supports Up To EEB Motherboard
No Matter Configured In Which Mode, The ODYSSEY X Can Fit Up To EEB Motherboards With 8 Expansion Slots.
Flexible Layout For Long GPU And PSU
The Lian Li ODYSSEY X E-ATX Full Tower Silver Gaming Case Can Accommodate GPUs Of Up To 423mm In Length And PSUs Of Up To 280mm.
In Collaboration With DER8AUER
Like The O11 Dynamic Series, Lian Li ODYSSEY X E-ATX Full Tower Silver Gaming Case Consulted With DER8AUER To Review The Design Of The ODYSSEY X, A World-Renowned German Overclocking, Water Cooling, And Gaming Evangelist.
Specifications
| Case Type | ||
| Type | Full Tower Chassis | |
| Front Panel | Aluminum Steel |
|
| Tempered Glass Panel | 4.0mm Black tempered glass (both sides) | |
| Motherboard Support | EEB/E-ATX/ATX/Micro-ATX/Mini-ITX | |
| External Features | ||
| Color(s) | Silver | |
| Dimensions | Dynamic/Dynamic-R (Rotate): (D) 575.5mm x (W) 234mm x (H) 558.5mmPerformance: (D) 537.1mm x (W) 368.6mm x (H) 596.7mm |
|
| Expansion Slots | 8 | |
| Radiator Support | RADIATOR SUPPORT Dynamic: Front：1 x 360/280/240mm Side：1 x 360/280/240mmDynamic-R (Rotate): Front：1 x 360/280/240mm Base：1 x 480/420/360/280/240mm Performance: |
|
| Fan Support | Dynamic: Front：3 x 120mm or 2 x 140mm Top：3 x 120mm or 2 x 140mm Side：3 x 120mm or 2 x 140mmDynamic-R (Rotate): Front：3 x 120mm or 2 x 140mm Base：4 x 120mm or 3 x 140mm Performance: |
|
| Drive Bays | 3 X 3.5″ HDD or 3 X 2.5″ SSD | |
| I/O Port | 2 X USB 3.0, 1 X USB 3.1 TYPE-C, 1 X HD AUDIO | |
| Additional Feature | ||
| PSU | Max 280mm PSU Length Support | |
| Clearance Space | ||
| Maximum CPU Cooler Height | Max 167mm | |
| Maximum Graphics Card Length | Max 423mm | |
