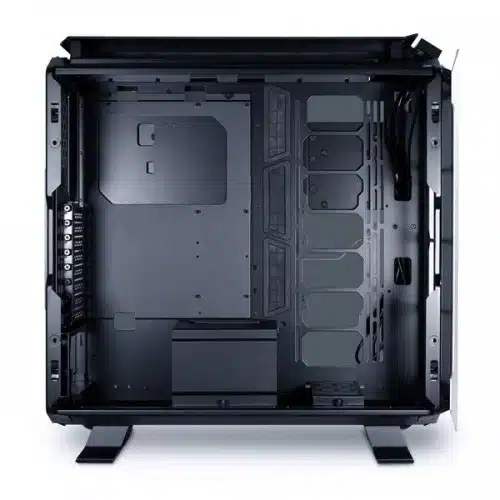

Lian Li ODYSSEY X E-ATX Full Tower Silver Gaming Case

Description

2 Styles with 3 Modes of Your Choice

ODYSSEY X enables PC enthusiasts to transform this full tower case into the mode they prefer.

Dynamic Mode

Simply assemble the exterior pieces to get the standard mode. Lian Li ODYSSEY X E-ATX Full Tower Silver Gaming Case supports up to two 360 radiators including an adjustable water pump mounting bracket.

Performance Mode

Flip the case 90° to achieve an unobstructed airflow for optimal thermal control. It supports 480mm + 280mm radiators or 360mm + 360mm radiators. Lian Li ODYSSEY includes adjustable water pump mounting bracket for tall water pump.

Premium Aluminum Craftsmanship

The entire designed concept of the ODYSSEY X revolves around an open airflow case for the system to run at maximum performance without thermal throttling. Lighting components are well displayed through the 4mm thick tinted tempered glass panels while abundant airflow comes through large gaps present in the glass panel fold.

Optimized Cable Management

With rubber grommets covering the cable pass-through holes and the presence of the 5 cable channels equipped with Velcro straps, routing cables in the Lian Li ODYSSEY X E-ATX Full Tower Silver Gaming Case is an easy job. Moreover, the Dynamic mode top cover is converted into a cable cover in Performance mode, enhancing the look of the build.

Front I/O Module

The I/O port module can be relocated to another place in a different mode and can be oriented in the user’s preferred direction.

Flexible Layout for Long GPU and PSU

The Lian Li ODYSSEY X E-ATX Full Tower Silver Gaming Case can accommodate GPUs of up to 423mm in length and PSUs of up to 280mm.

Specifications

• Type: Full Tower Chassis
• Front Panel: Aluminum, Steel
• Tempered Glass Panel: 4.0mm Black tempered glass (both sides)
• Motherboard Support: EEB/E-ATX/ATX/Micro-ATX/Mini-ITX
• Color(s): Black
• Dynamic/Dynamic-R (Rotate): (D) 575.5mm x (W) 234mm x (H) 558.5mm
• Performance: (D) 537.1mm x (W) 368.6mm x (H) 596.7mm
• Expansion Slots: 8
• RADIATOR SUPPORT Dynamic: Front：1 x 360/280/240mm, Side：1 x 360/280/240mm
• Dynamic-R (Rotate):
  Front：1 x 360/280/240mm
  Base：1 x 480/420/360/280/240mm
• Performance:
  Front：1 x 480/420/360/280/240mm
  Top：1 x 360/280/240mm
• Fan Support Dynamic:
  Front：3 x 120mm or 2 x 140mm
  Top：3 x 120mm or 2 x 140mm
  Side：3 x 120mm or 2 x 140mm
• Dynamic-R (Rotate):
  Front：3 x 120mm or 2 x 140mm
  Base：4 x 120mm or 3 x 140mm
• Performance:
  Front：4 x 120mm or 3 x 140mm
  Top：3 x 120mm or 2 x 140mm
• Drive Bays: 3 X 3.5″ HDD or 3 X 2.5″ SSD
• I/O Port: 2 X USB 3.0, 1 X USB 3.1 TYPE-C, 1 X HD AUDIO
• PSU: Max 280mm PSU Length Support
• Maximum CPU Cooler Height: Max 167mm
• Maximum Graphics Card Length: Max 423mm
