Description

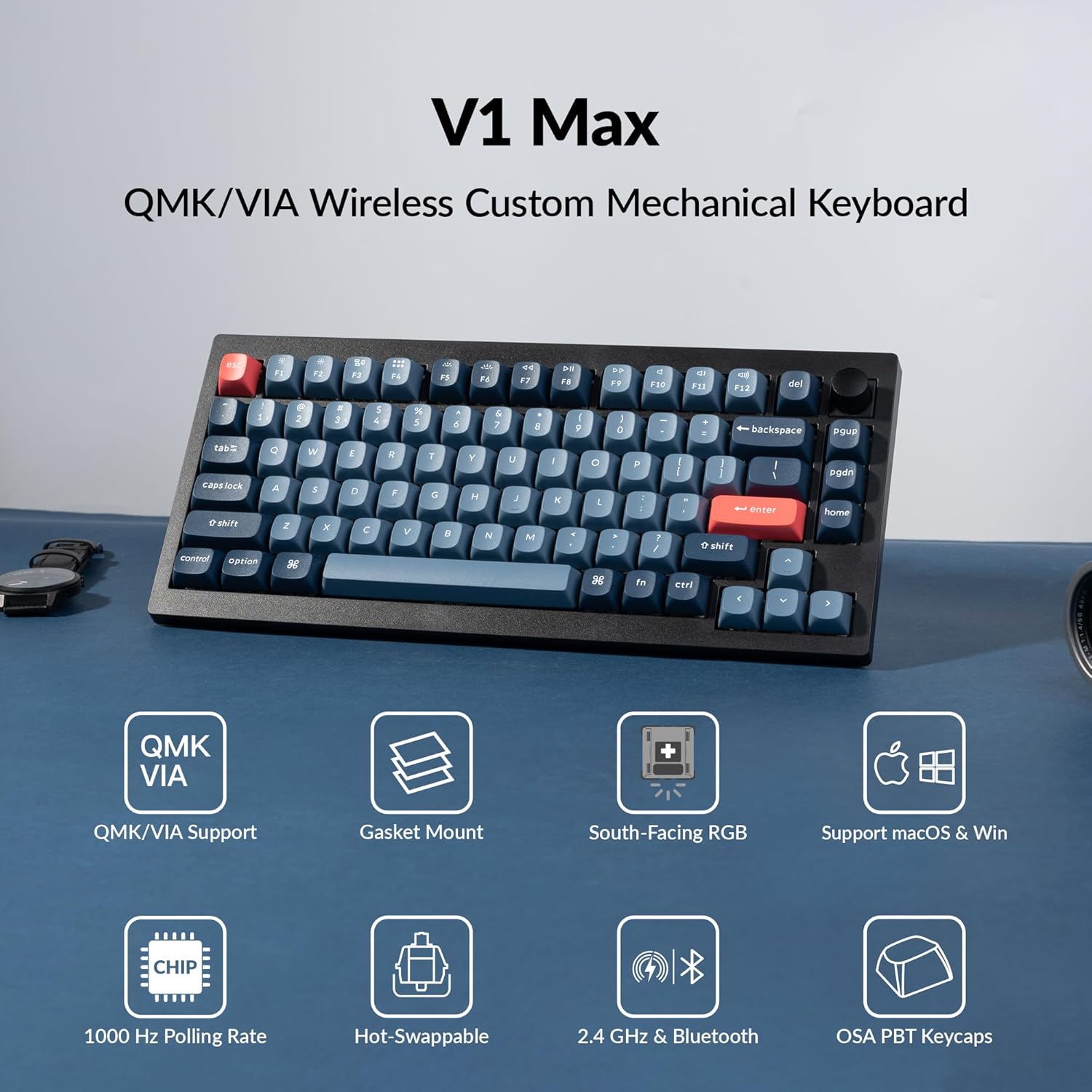

The Keychron V1 Max is a versatile and fully customizable 75% wireless mechanical keyboard, designed for both gaming and productivity. Featuring 2.4 GHz wireless with a 1000 Hz polling rate and Bluetooth 5.1 connectivity, it ensures seamless multitasking across multiple devices. Its gasket mount design and sound-absorbing foam provide a soft, quiet, and comfortable typing experience.
Equipped with double-shot OSA PBT keycaps, the V1 Max offers excellent durability and oil resistance. The Gateron Jupiter switches, pre-lubed for smooth keystrokes, guarantee up to 80 million keystrokes lifespan. The hot-swappable PCB supports both 3-pin and 5-pin MX switches, allowing effortless customization.
The south-facing RGB lighting enhances the backlight’s visibility without interference, and the screw-in PCB stabilizers ensure stable keystrokes on larger keys. Built for Windows, macOS, and Linux, it includes a system toggle and extra keycaps for easy switching. With QMK/VIA support, users can customize key mappings and macros effortlessly.
Powered by a 4000mAh battery, the V1 Max provides up to 225 hours of wireless use (backlight off). Featuring an ABS plastic body, PC plate, and USB-C connectivity, it is an ideal choice for enthusiasts seeking performance, flexibility, and comfort.
Specifications
- Layout: 75% Compact
- Connectivity: 2.4 GHz Wireless, Bluetooth 5.1, Wired (USB-C)
- Polling Rate: 1000 Hz (2.4 GHz & Wired) / 90 Hz (Bluetooth)
- Key Switches: Gateron Jupiter (Pre-lubed, 3-pin, 80M Keystroke Lifespan)
- Hot-Swappable: Yes, supports 3-pin & 5-pin MX switches (Gateron, Cherry MX, Kailh, etc.)
- Keycaps: Double-shot OSA PBT Keycaps (OEM Height, SA Shape)
- Backlight: South-facing RGB LED
- Mounting Style: Gasket Mount Design
- Plate Material: Polycarbonate (PC)
- Stabilizers: Screw-in PCB Stabilizers
- Body Material: ABS Plastic
- MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
- Battery: 4000mAh Rechargeable Li-polymer
- Battery Life: Up to 225 hours (Backlight Off) / Up to 100 hours (RGB at Lowest Brightness)
- Charging Time: Around 5 hours
- Operating System Compatibility: Windows, macOS, Linux
- N-Key Rollover (NKRO): Yes (Both Wired & Wireless)
- Bluetooth Device Name: Keychron V1 Max
- Charging Port: USB Type-C
- Cable Included: Type-C Cable + Type-A to Type-C Adapter
- Dimensions:
- Width: 148.7 mm
- Length: 328.5 mm
- Front Height: 21.5 mm (without keycaps)
- Back Height: 29.4 mm (without keycaps)
- Feet Height: 2 mm
- Angle: 3.5° / 7.1° / 9.5°
- Weight: 770 g ± 10 g (Fully Assembled Version)
- Operating Temperature: -10℃ to 50℃

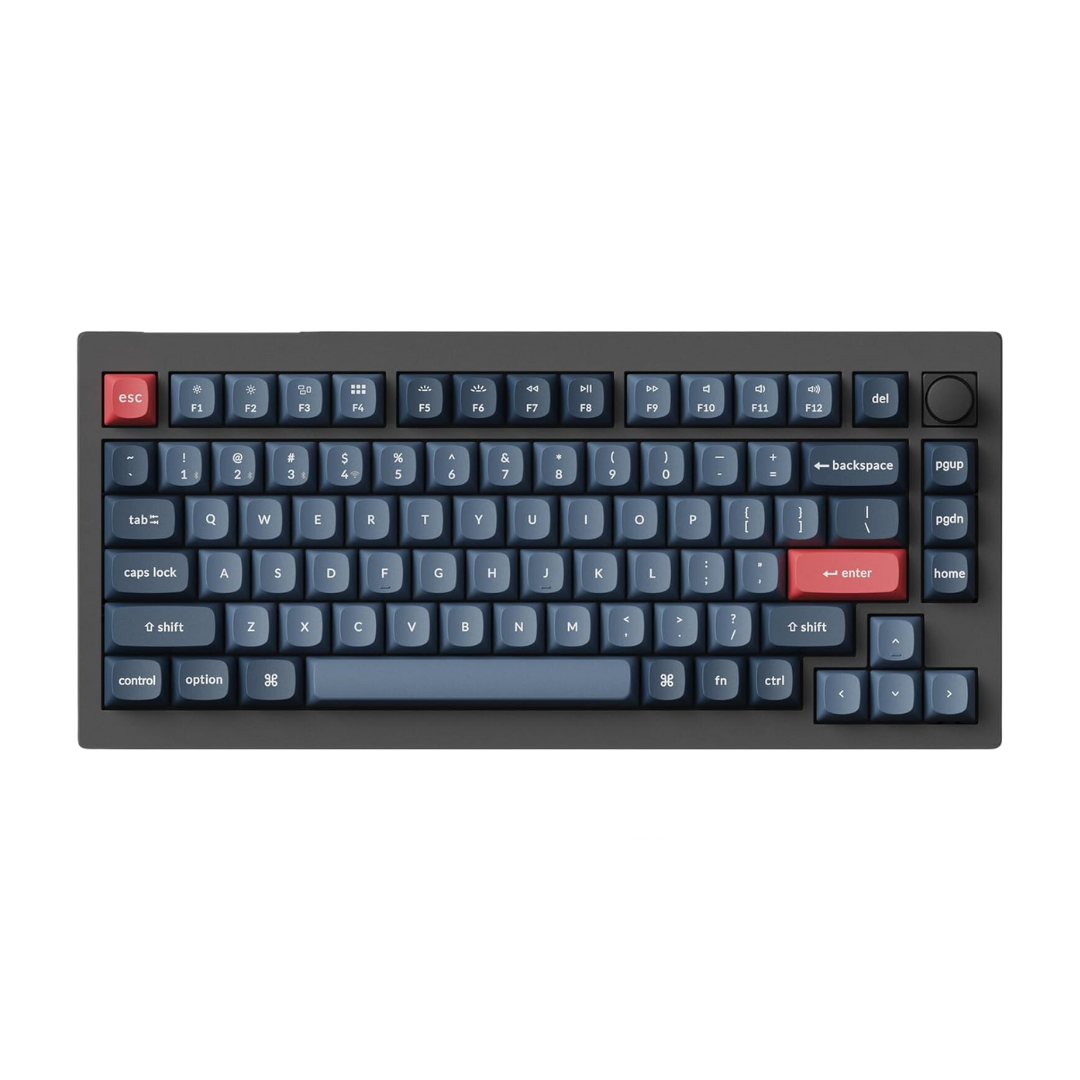

Compact and Versatile 75% Layout
The Keychron V1 Max features a compact 75% layout, striking a perfect balance between functionality and space-saving design. This layout retains essential keys while eliminating unnecessary bulk, making it ideal for both gaming and productivity. Whether you are a programmer, writer, or gamer, this keyboard offers a highly efficient and ergonomic typing experience.

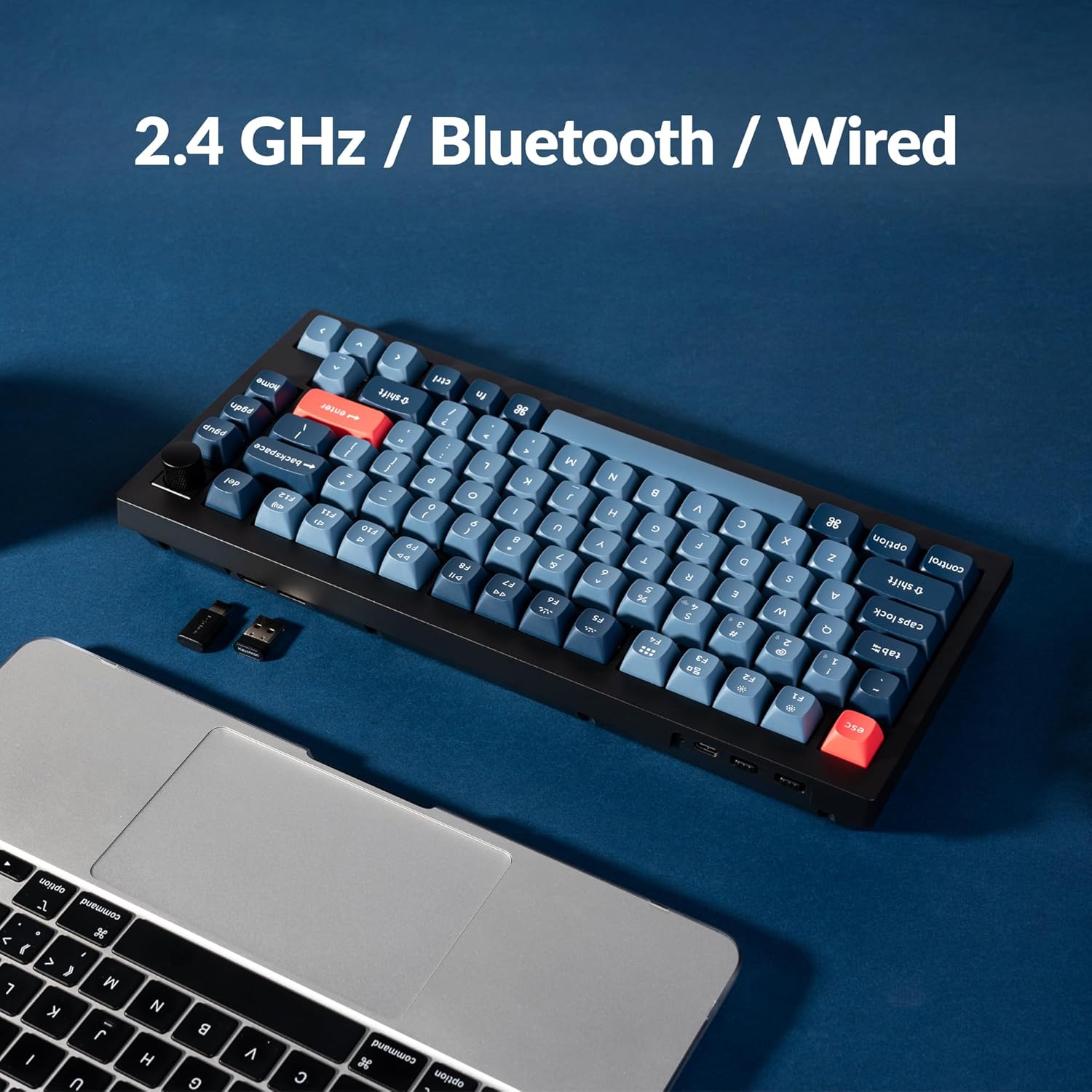

Seamless Connectivity with 2.4 GHz & Bluetooth 5.1
Designed for flexibility, the V1 Max supports three connectivity modes – 2.4 GHz wireless, Bluetooth 5.1, and wired USB-C. The 2.4 GHz connection boasts a 1000 Hz polling rate, ensuring near-instant responsiveness for gaming and fast typing. The Bluetooth 5.1 mode allows seamless switching between up to three devices, making it easy to multitask between a computer, tablet, and phone.
Superior Typing Experience with Gasket Mount Design
The gasket mount structure of the Keychron V1 Max enhances typing comfort by providing a soft, flexible, and quiet keystroke feel. This design, combined with a polycarbonate (PC) plate, minimizes noise and vibration while delivering a smooth and cushioned typing experience.

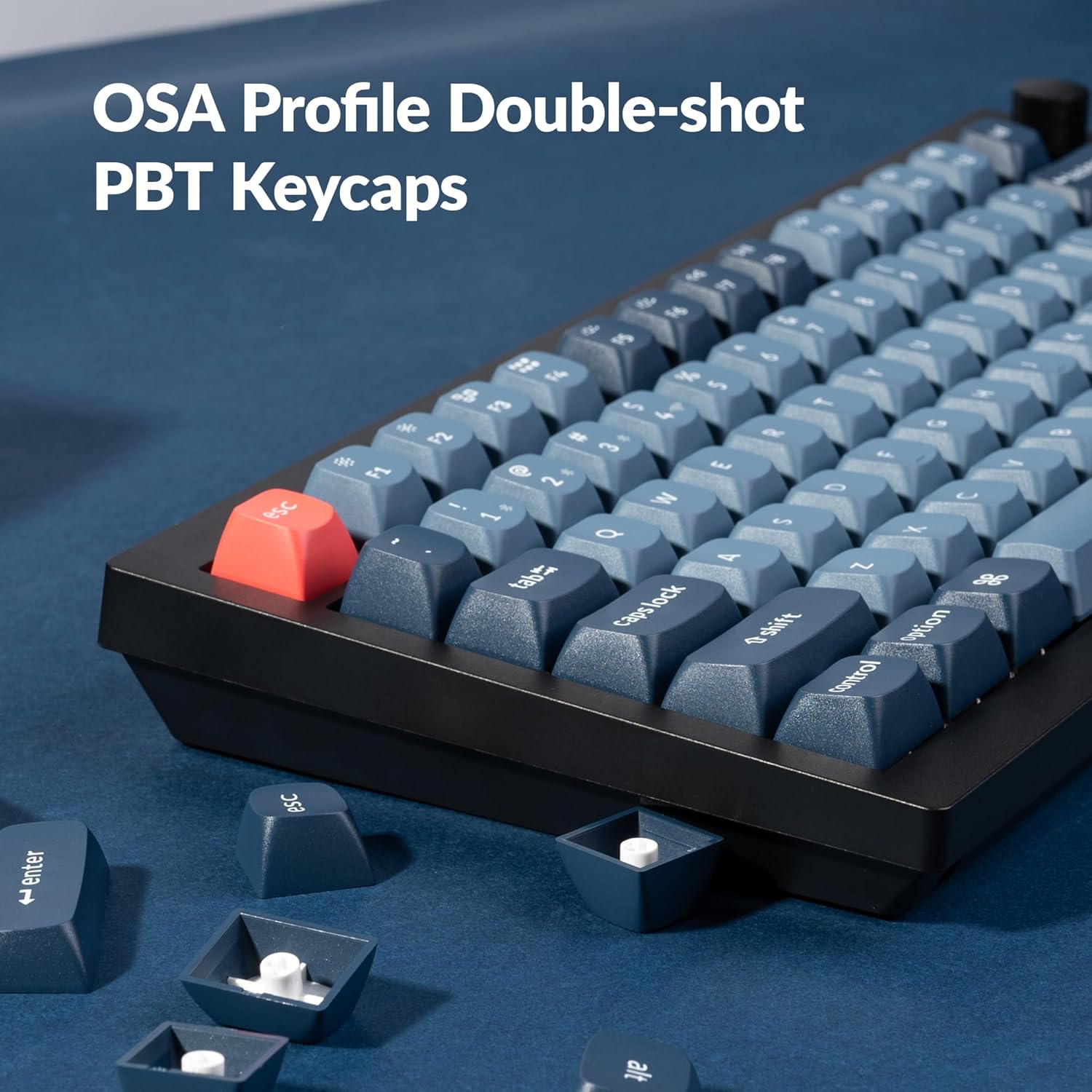

Durable Double-Shot OSA PBT Keycaps
The V1 Max is equipped with double-shot OSA (OEM Spherical Angled) PBT keycaps, offering excellent durability and oil resistance. These keycaps have the same height as OEM profiles but feature an SA-like shape, ensuring an ergonomic and comfortable typing feel. The legends are fade-resistant, ensuring long-lasting clarity even with extensive use.

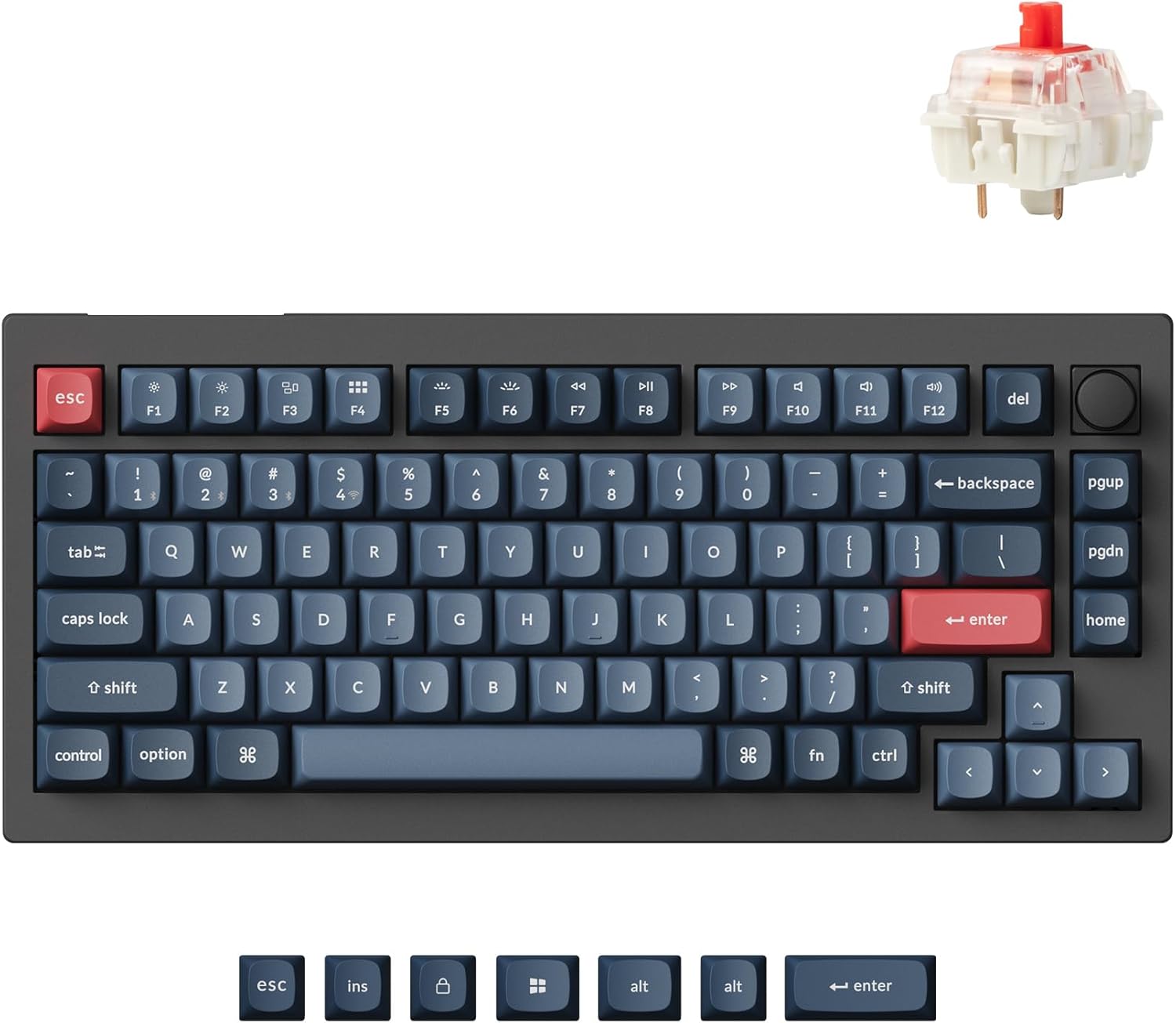

Gateron Jupiter Switches for Smooth Performance
The Gateron Jupiter mechanical switches, exclusive to Keychron, provide exceptional durability with a lifespan of up to 80 million keystrokes. These pre-lubed switches offer a smooth, consistent keystroke, reducing friction for effortless typing. Additionally, their unique LED diffuser design enhances RGB backlight clarity for a visually stunning experience.

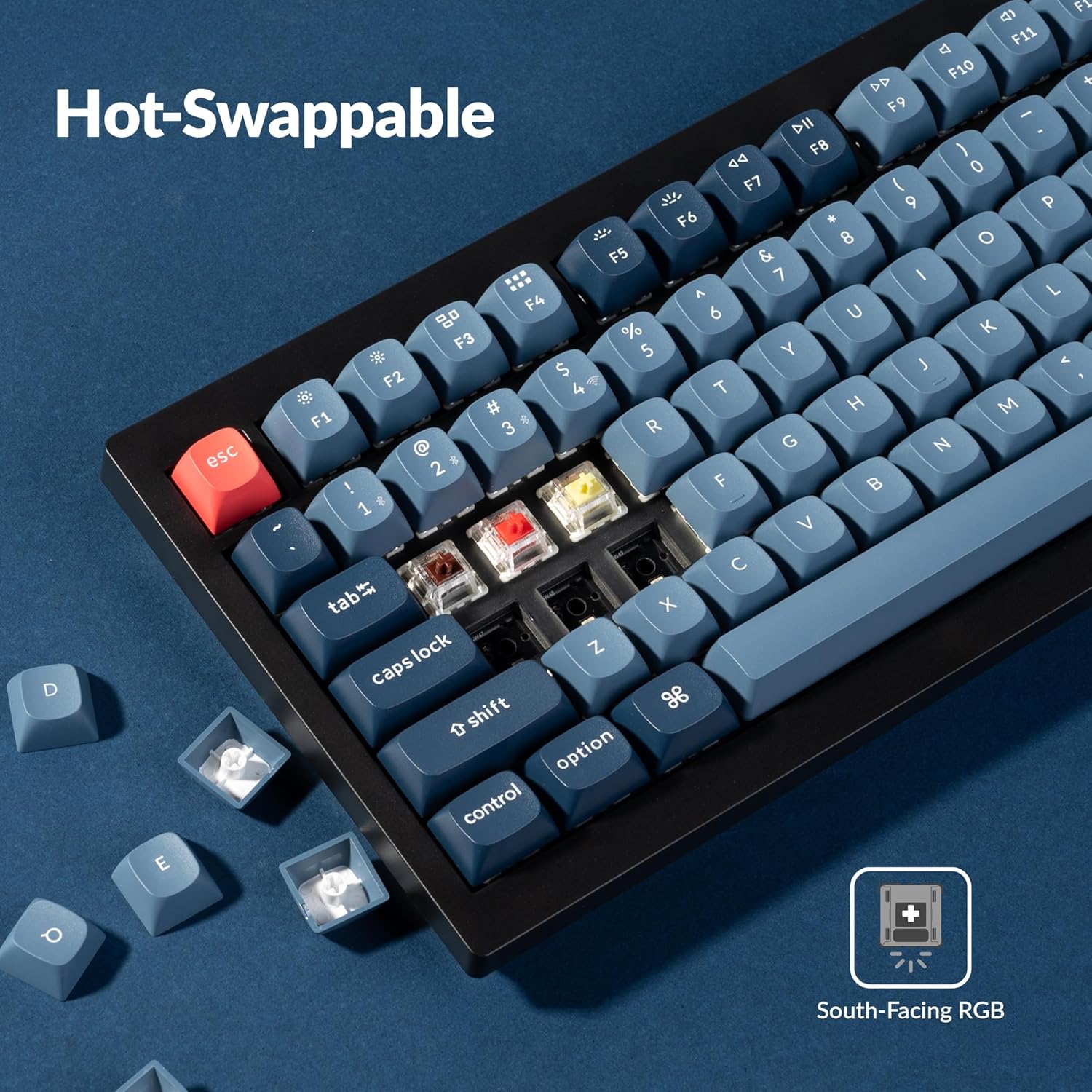

Hot-Swappable PCB for Customization
Customization is at the heart of the V1 Max, featuring a hot-swappable PCB that supports both 3-pin and 5-pin MX mechanical switches. This allows users to swap out switches without soldering, making it easy to experiment with different switch types to match personal preferences.
South-Facing RGB Lighting for Aesthetic Appeal
The south-facing RGB LEDs are designed to optimize backlight visibility from the typist’s angle, making the lighting more vibrant and uniform. Unlike north-facing LEDs, this design ensures better compatibility with third-party keycaps like OEM and Cherry-profile sets.

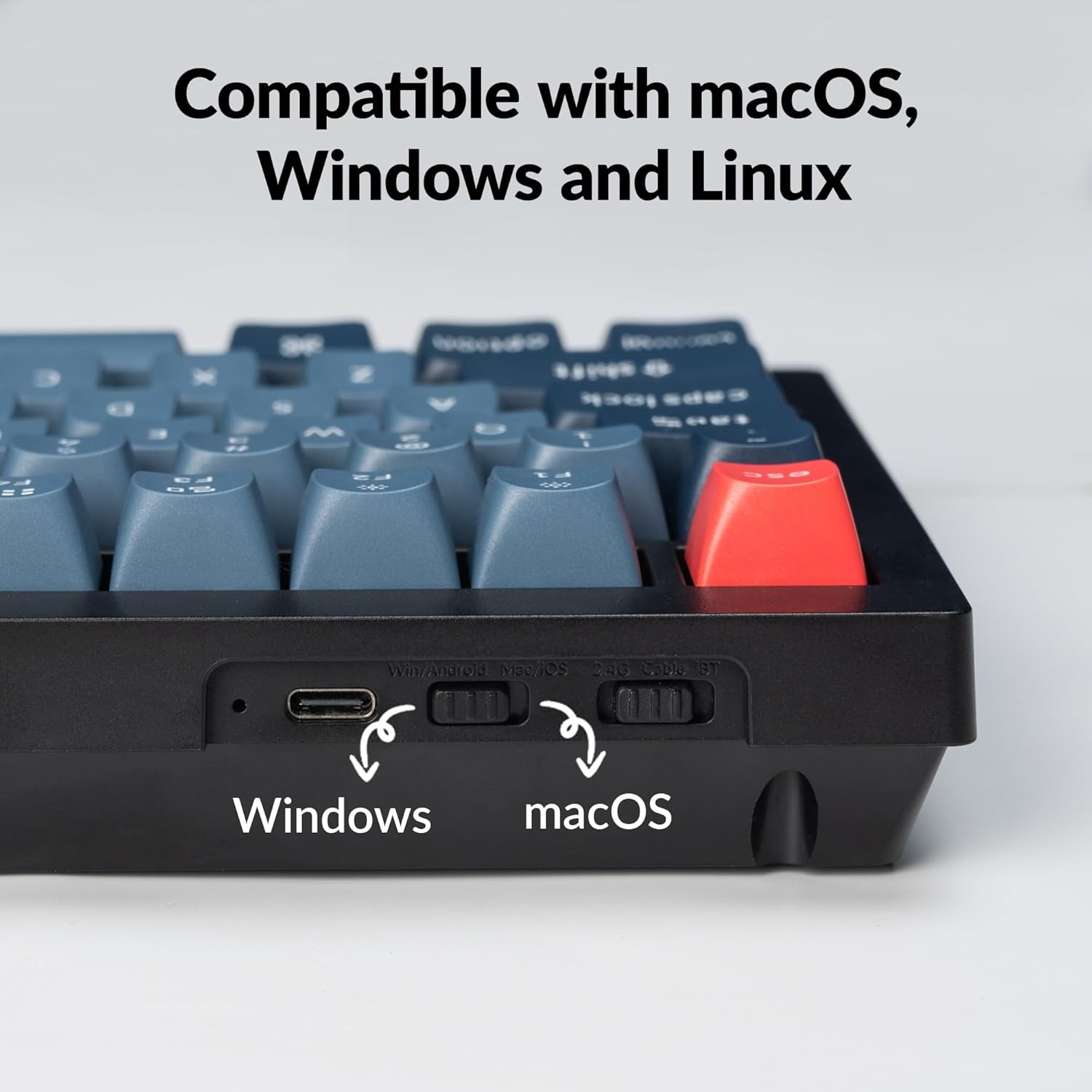

Dual OS Compatibility with Mac & Windows Support
The Keychron V1 Max is built with both macOS and Windows users in mind. It includes a system toggle switch and additional customized keycaps for macOS and Windows layouts. Users can save and switch between two different key mappings, ensuring a seamless transition between different operating systems.

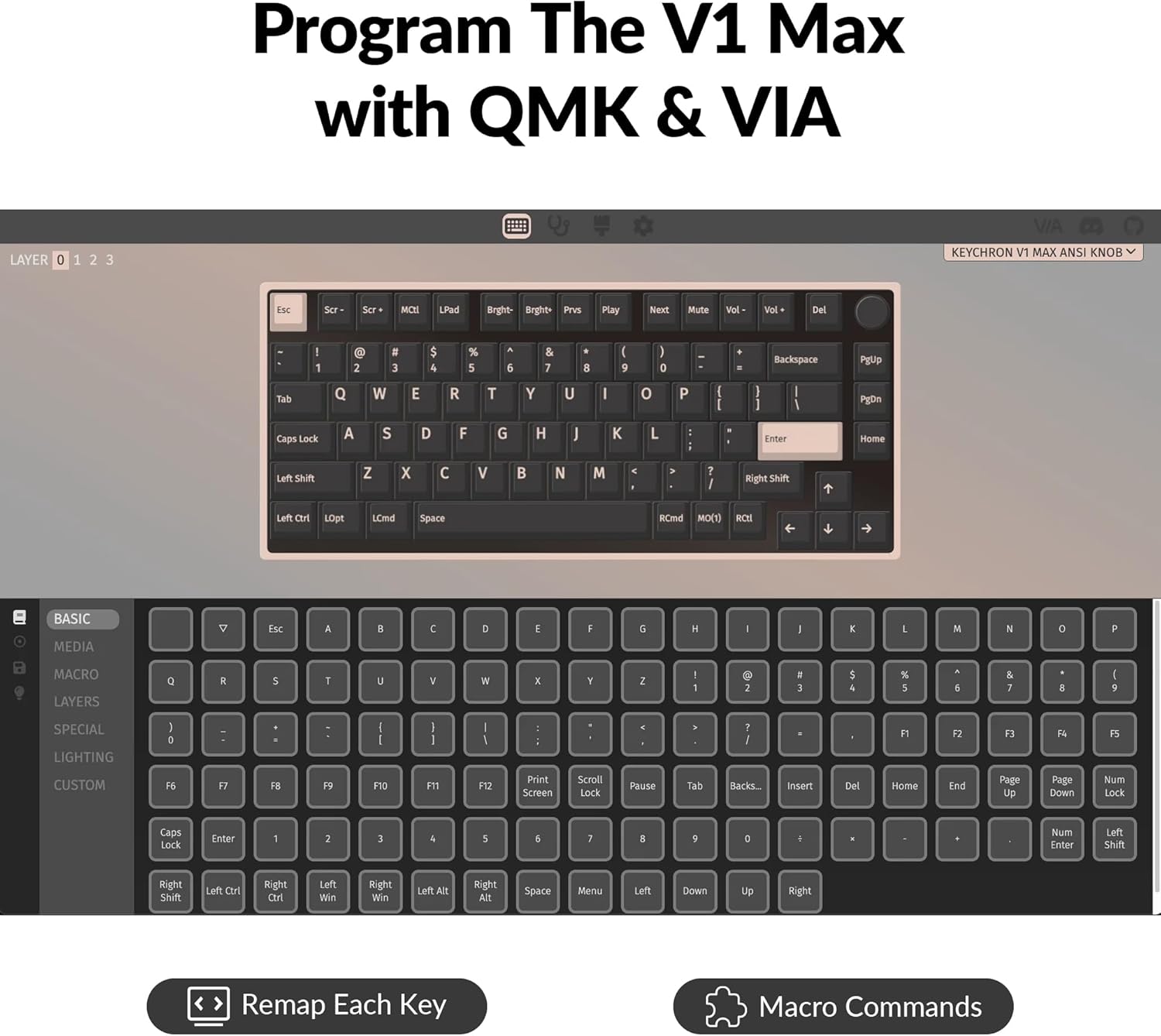

QMK & VIA Support for Advanced Programming
The V1 Max supports QMK and VIA, allowing full key remapping, macros, and shortcut customization. Users can easily reprogram each key using the Keychron Launcher web app, enabling an efficient and personalized workflow.
Long-Lasting Battery Life with Fast Charging
Powered by a 4000mAh battery, the V1 Max provides up to 225 hours of usage with the backlight turned off and 100 hours with RGB at the lowest brightness. It charges via USB Type-C, taking approximately 5 hours to fully recharge, ensuring uninterrupted performance.
Stable Typing with Screw-in PCB Stabilizers
The screw-in PCB stabilizers ensure a stable and smooth typing experience, especially for larger keys like spacebar, shift, enter, and delete. These stabilizers reduce wobbling and improve keystroke consistency, making each press feel precise and satisfying.
Warranty: 1 Year
