Description
The Keychron Q11 QMK Split Mechanical Keyboard is a premium 75% layout keyboard designed for ultimate ergonomic comfort, customization, and durability. Its innovative split design allows you to position each half independently for natural wrist alignment or connect them for traditional use, giving you complete control over your typing posture. Built from high-quality CNC-machined 6063 aluminum through 24+ meticulous processes, the Q11 delivers outstanding durability, stability, and a refined metallic finish that feels as good as it looks.
Powered by open-source QMK/VIA support, the Q11 offers limitless programming potential, letting you remap keys, create macros, and set up custom layouts with ease. A programmable rotary encoder knob enhances workflows by allowing quick control over volume, brightness, zoom, and more. The keyboard is equipped with a high-performance ARM MCU with 128K Flash and a 1000Hz polling rate, ensuring ultra-low latency and pro-grade responsiveness suitable for both work and gaming.
For switch enthusiasts, the hot-swappable PCB supports both 3-pin and 5-pin MX mechanical switches, enabling effortless customization without soldering. The included Gateron G Pro Red switches provide a smooth, quiet, and pre-lubed typing experience. With OSA profile double-shot PBT keycaps, south-facing RGB lighting, dual-system support (macOS & Windows), and screw-in stabilizers, the Keychron Q11 combines style, performance, and versatility in a single ergonomic masterpiece.
Specification
- Layout
- 75% split design
- Can be used as split or traditional with included bridge cable
- Build Material
- CNC-machined 6063 aluminum body
- 24+ manufacturing stages (CNC machining, polishing, anodizing, sandblasting)
- Switches
- Type: Gateron G Pro (pre-lubed, 50M keystroke lifespan)
- Option: Gateron G Pro Red
- Behavior: Linear
- Operating force: 45 ±15gf
- Pre-travel: 2 ±0.6mm
- Total travel: 4 ±0.6mm
- Quiet and smooth, suitable for office/gaming
- Keycaps
- OSA profile (OEM height + SA-like spherical shape)
- Double-shot PBT construction
- Oil-resistant, fade-resistant legends
- Connectivity
- Type-C wired connection
- Included:
- Type-C to Type-C cable
- Type-A to Type-C adapter
- Type-C to Type-C bridge cable
- Performance
- ARM MCU with 128K Flash
- 1000Hz polling rate for ultra-low latency
- Programming & Customization
- QMK/VIA support
- Keychron Launcher web app
- Programmable aluminum rotary encoder knob
- RGB & Lighting
- South-facing RGB LEDs
- Optimized for OEM/Cherry profile keycaps
- Stabilizers
- Pre-installed screw-in PCB stabilizers
- Supports 3rd-party stabilizers
- Hot-Swappable
- Supports both 3-pin and 5-pin MX mechanical switches
- No soldering required
- System Compatibility
- macOS & Windows supported
- Dedicated system toggle
- Extra keycap sets for both platforms
- Color
- Carbon Black B
- Package Contents
- Fully assembled keyboard (knob version)
- Metal case + PCB + sound absorbing foam
- Stabilizers (5 sets)
- Keycaps (double-shot PBT set)
- Switches (Gateron G Pro set)
- Tools: switch puller, keycap puller, screwdriver

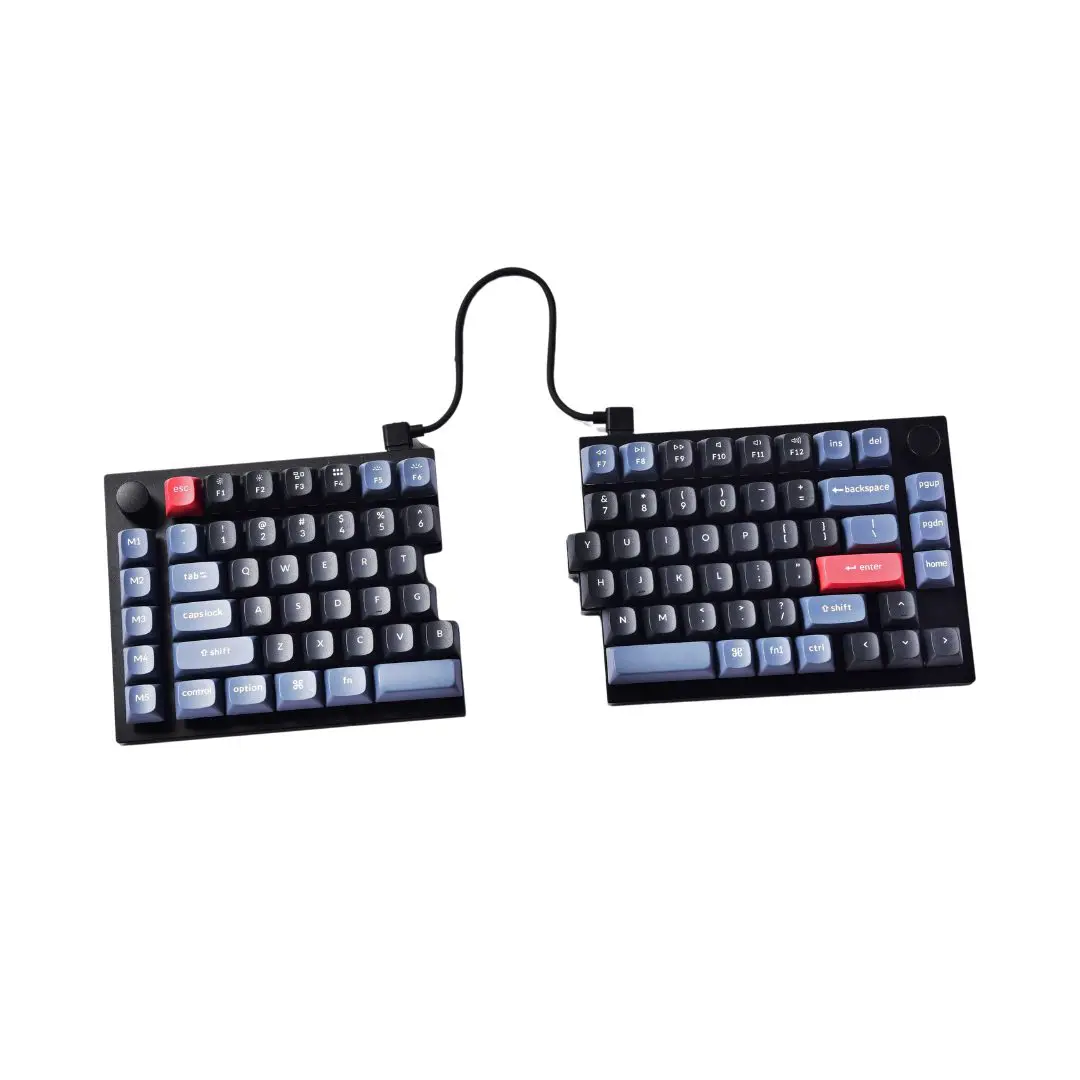

Ergonomic Split Design
The Keychron Q11 QMK Split Mechanical Keyboard stands out with its innovative split layout, designed to maximize comfort and reduce wrist strain. Each half of the keyboard can be positioned independently, allowing you to find the most natural angle for your typing style. This flexibility supports healthier hand placement, which is especially beneficial for long typing or gaming sessions. For users who prefer a traditional keyboard experience, the halves can easily be reconnected with the included bridge cable, offering both ergonomic freedom and conventional usability in one device.
Premium CNC Aluminum Construction
Built to last, the Q11 features a full metal body crafted from 6063 aluminum through more than 24 stages of production, including CNC machining, polishing, anodizing, and sandblasting. This meticulous process results in a refined and durable finish that not only looks professional but also feels exceptionally solid. The aluminum frame provides enhanced stability during use and is resistant to wear and tear, ensuring that the keyboard maintains its premium appearance and performance over time. The recyclable material also reflects a commitment to sustainability, making it both a functional and eco-friendly choice.
Hot-Swappable Switches
One of the standout features of the Q11 is its hot-swappable PCB design, which allows users to install or swap out switches without soldering. This makes experimenting with different switch types effortless, enabling you to fine-tune the typing feel to your exact preference. The keyboard supports both 3-pin and 5-pin MX mechanical switches, giving you wide compatibility with a variety of popular switch options. Pre-installed with Gateron G Pro Red switches, the Q11 offers a smooth, linear, and quiet typing experience right out of the box, ideal for both office work and gaming.
Professional QMK/VIA Support
Customization is at the heart of the Q11, with full support for open-source QMK firmware and the user-friendly VIA software. These platforms enable you to remap keys, create complex macros, and design custom layouts to fit your workflow or gaming setup. The inclusion of the Keychron Launcher web app makes the customization process even more accessible, providing an intuitive way to program the keyboard without requiring advanced technical knowledge. With QMK and VIA, the possibilities for personalization are virtually limitless.
Programmable Rotary Encoder Knob
Adding another layer of functionality, the Q11 includes a programmable aluminum rotary encoder knob. This versatile control can be assigned to tasks like adjusting volume, screen brightness, zooming, or even setting creative shortcuts for design and editing software. Through VIA, you can program the knob to handle any macro command you choose, giving you quick and efficient access to frequently used functions. This feature is particularly valuable for professionals and creators looking to streamline their workflow.
Advanced RGB & Stabilizers
The Q11 is equipped with south-facing RGB LEDs that ensure vibrant illumination from the typist’s perspective. This positioning enhances the visual effect of the backlighting while maintaining compatibility with OEM and Cherry-profile keycaps. In addition, the keyboard comes with pre-installed screw-in PCB stabilizers, which provide a smoother, more consistent typing experience on larger keys such as the spacebar, shift, and enter. These stabilizers not only reduce key wobble but also enhance durability, making the Q11 an ideal choice for users who demand both style and performance.

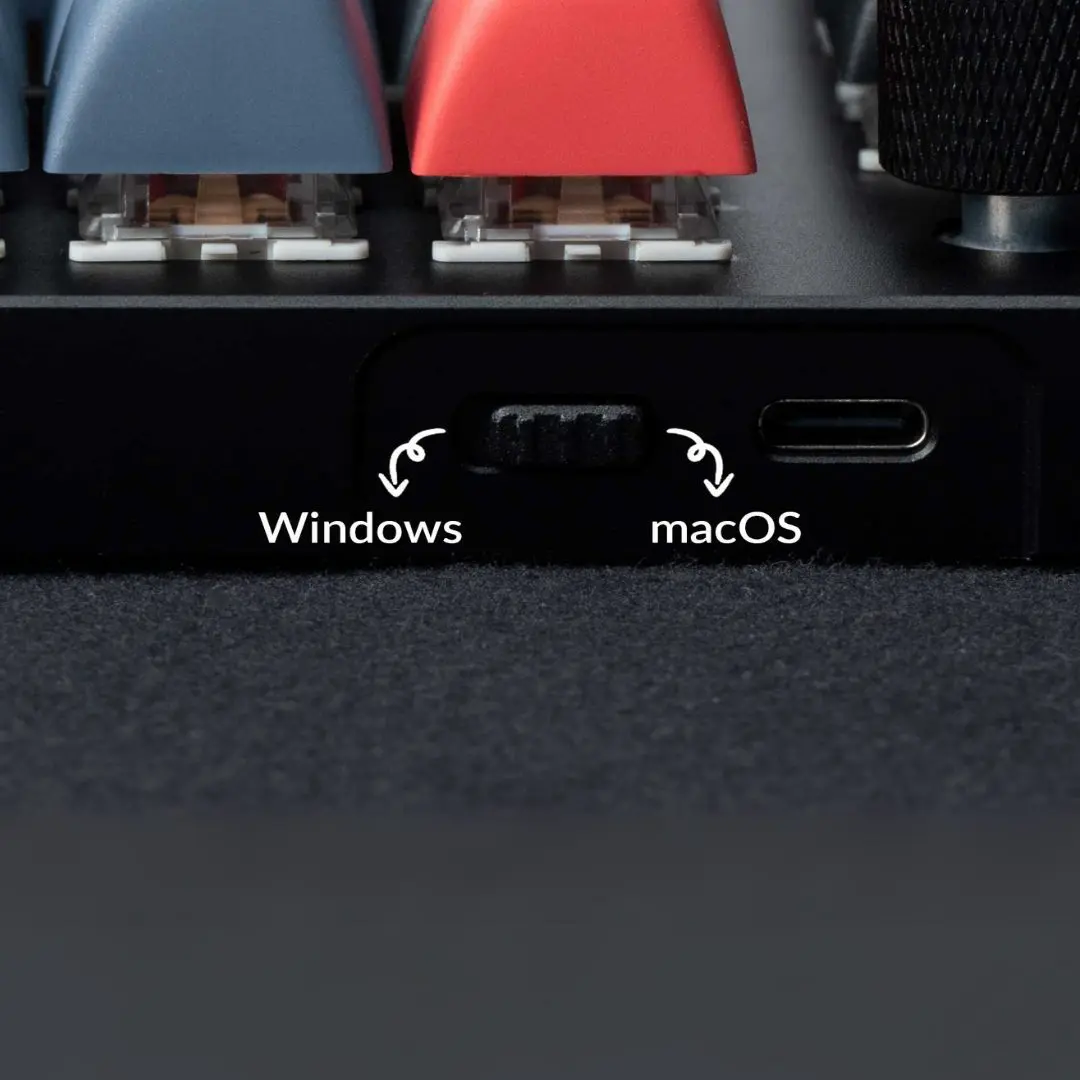

Dual System Compatibility
Designed with versatility in mind, the Q11 seamlessly supports both macOS and Windows operating systems. A dedicated system toggle allows you to switch between the two platforms instantly, while additional keycap sets are included to match the layout of each system. Users can save separate layouts for macOS and Windows, ensuring optimal key mapping and consistent productivity across devices. Whether you’re a Mac user, a Windows user, or someone who frequently switches between both, the Q11 provides a seamless typing experience without compromise.
