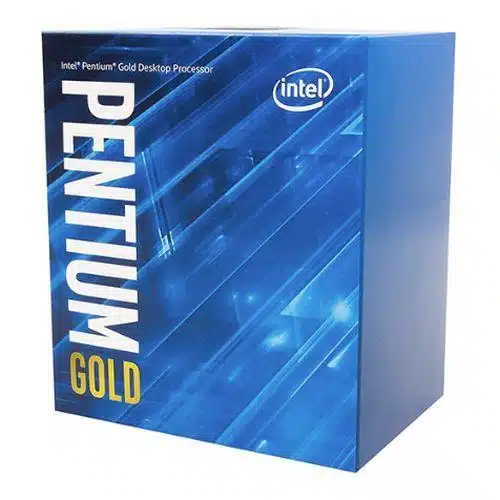

Intel Pentium Gold G6400 10th gen Coffee Lake Processor
The Intel Pentium Gold G6400 10th gen Coffee Lake Processor comes with a new breed that has an integrated GPU, so a separate graphics card is not required for its functionality. This new 10th gen Comet Lake microarchitecture is manufactured with the 14nm process that comes with two cores and HyperThreading. As this chip is updated to the latest BIOS revision, it nicely fits into any Intel 300-series motherboard. Focusing on this, all the major motherboard manufacturers have already started BIOS updates for their 300-series lineup
Core Benefits of the Processor
Intel Pentium Gold G6400 10th gen Coffee Lake Processor having the base frequency of 4.00 GHz. It has the L3 SmartCache of 4 MB containing 2 cores and 4 threads. With the bus speed of 8 GT/s DMI, it has thermal design power (TDP) rating of 58W. This latest microchip has few expansion options such 3.0 PCI express revision having configured up to 1×16, 2×8, 1×8+2×4 and maximum 16 lanes. Considering the memory this processor has dual channel of max 128 GB of size that supports up to DDR4-2666 bus speed.
Advanced Facilities
On the process of advance technology this processor has 2.0 Intel turbo boost and Intel virtualization that is directed to I/O (VT-d). This Optane Memory supported chip also has Intel VT-x with extended page tables (EPT). Furthermore, Enhanced Intel SpeedStep and Intel Identity Protection Technology are integrated to increase its efficiency.
Specifications
- Base Frequency: 4.00 GHz
- Cache: 4 MB SmartCache
- Cores: 2
- Threads: 4
- Default TDP: 58 W
- Maximum Size: 128 GB
- Maximum Speed: 41.6 GB/s
- Type: DDR4-2666
- Max Number of Channels: 2
- Processor Graphics: Intel UHD Graphics 610
- Base Frequency: 350 MHz
- Max Dynamic Frequency: 1.05 GHz
- Max Video Memory: 64 GB
- Max Resolution:
Max Resolution (HDMI): 4096×2160@30Hz
Max Resolution (DP): 4096×2304@60Hz
Max Resolution (eDP – Integrated Flat Panel): 4096×2304@60Hz
