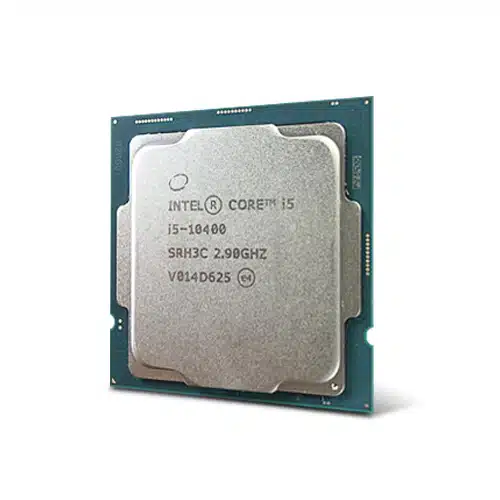

Intel 10th Gen Core i5-10400 Processor (Tray)

Description

Intel 10th Gen Core i5-10400 Processor (Tray)

The Intel 10th Gen Core i5-10400 Processor (Tray) comes with Intel UHD Graphics 630 graphics. This new 10th gen Comet Lake microarchitecture is manufactured with the 14nm process that comes with six cores but lacks HyperThreading. As this chip is updated to the latest BIOS revision, it nicely fits into any Intel 400-series motherboard. Focusing on this, all the major motherboard manufacturers have already started BIOS updates for their 400-series lineup. These Processors also support 64-bit computing on Intel architecture require an Intel 64 architecture-enabled BIOS.

Core Benefits of the Processor

Intel 10th Gen Core i5-10400 Processor (Tray) having a base frequency of 2.90 GHz that can be reached as max turbo frequency at 4.30 GHz. It has a SmartCache of 12 MB containing 6 cores and 12 threads. With a bus speed of 8 GT/s DMI3, it has thermal design power (TDP) rating of 65W. This latest microchip has few expansion options such as 3.0 PCI express revision having configured up to 1×16, 2×8, 1×8+2×4, and a maximum of 16 lanes. Considering the memory this processor has a dual-channel of max 128GB of the size that supports up to DDR4-2666 bus speed.

Specifications

• Base Frequency: 2.90 GHz
• Maximum Turbo Frequency: 4.30 GHz
• Cache: 12 MB SmartCache
• Cores: 6
• Threads: 12
• Default TDP: 65 W
• Sockets Supported: FCLGA1200
• Maximum Size: 128 GB
• Maximum Speed: 2666
• Type: DDR4
• Max Number of Channels: 2
• Processor Graphics
• Intel UHD Graphics 630
• Base Frequency: 350 MHz
• Max Dynamic Frequency: 1.10 GHz
• Max Video Memory: 64 GB
• Max Resolution:
  Max Resolution (HDMI 1.4): 4096×2304@30Hz
  Max Resolution (DP)‡: 4096×2304@60Hz
  Max Resolution (eDP – Integrated Flat Panel): 4096×2304@60Hz
• Core Count: 6

Warranty: 3 Years
