Description

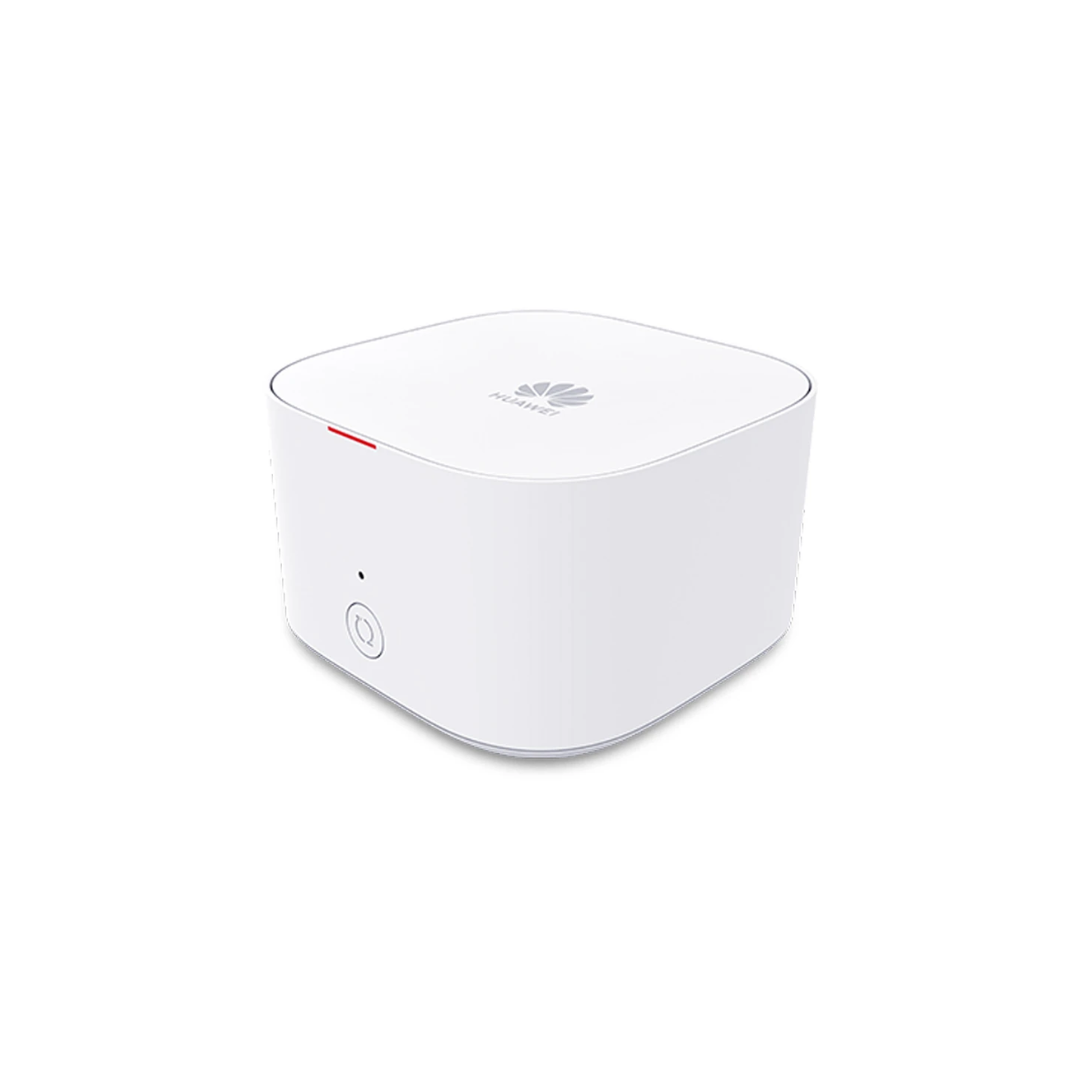

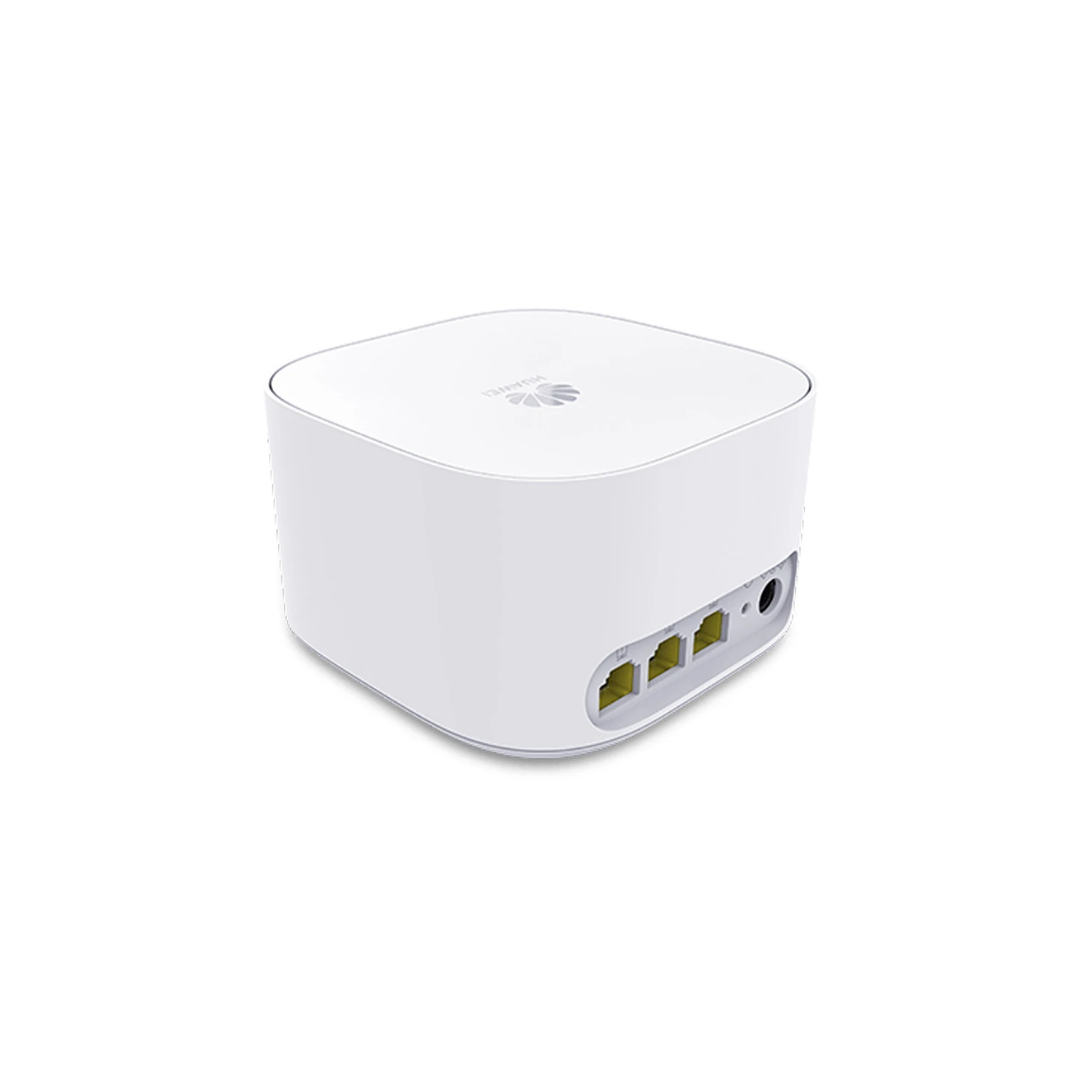

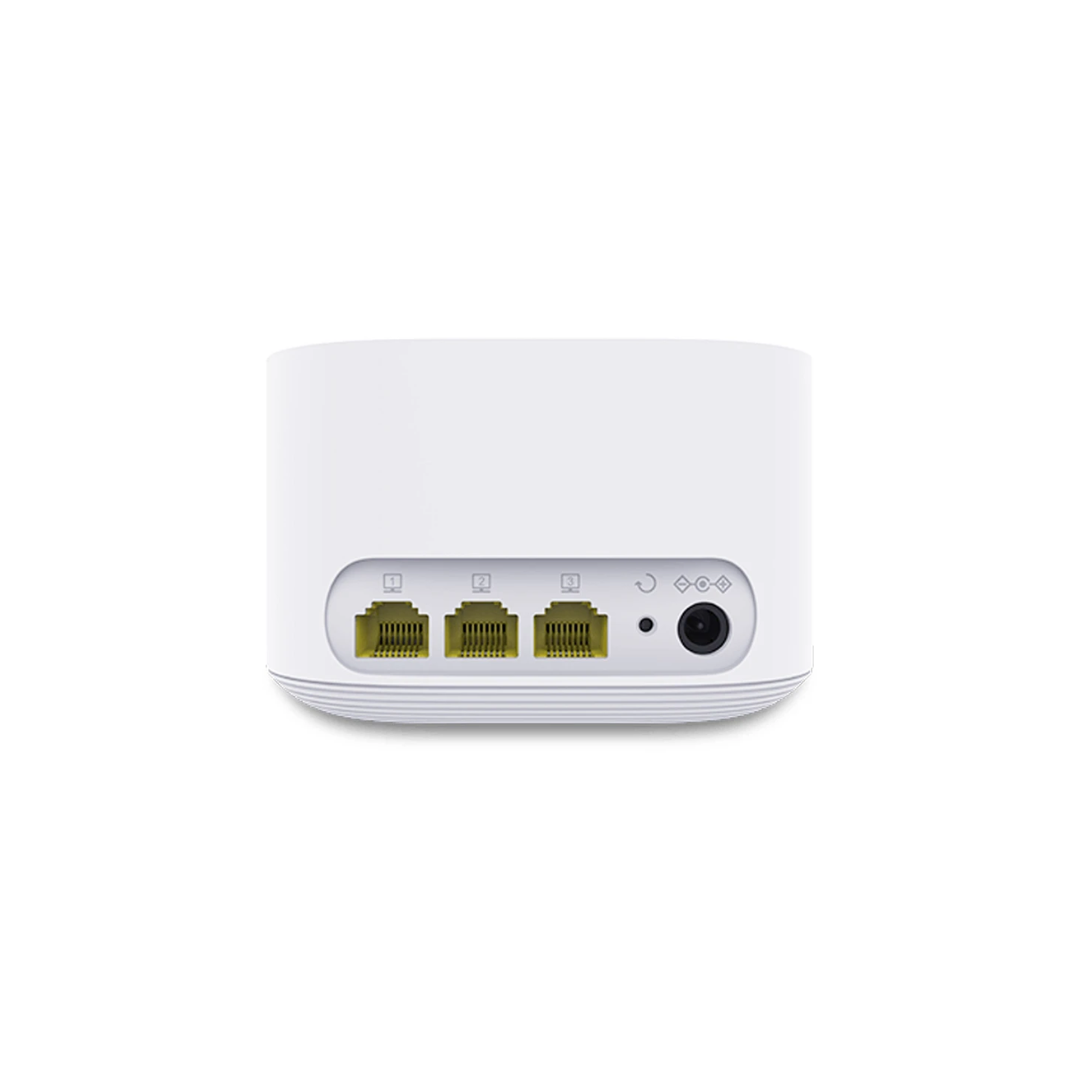

Introducing the Huawei WA8021V5 AC1200 Mesh Router, a powerful and compact dual-band Wi-Fi solution designed to bring seamless internet coverage to your home. Supporting both 2.4GHz and 5GHz frequencies, this device ensures stable and fast wireless connectivity across multiple rooms. With up to 300 Mbps on 2.4GHz and 867 Mbps on 5GHz, it delivers a combined speed of 1200 Mbps, perfect for HD streaming, online gaming, and smart home integration.
This mesh router is designed for flexibility, supporting both Ethernet and wireless uplink modes. Its plug-and-play functionality, automatic Wi-Fi configuration synchronization, and one-click pairing make setup effortless. The Huawei WA8021V5 also features advanced roaming protocols (802.11k/v), enabling devices to automatically switch to the strongest signal while moving around the house.
Built with smart network management in mind, it supports remote maintenance via technician and user apps. Compact yet powerful, it’s ideal for creating a mesh network that ensures uninterrupted connectivity with minimal power consumption. Whether you’re upgrading your home internet or expanding coverage, the WA8021V5 delivers consistent, high-performance connectivity in a sleek and efficient form.
Specifications:
| Specification | Details |
|---|---|
| Model | Huawei WA8021V5 |
| Interface (NNI) | Wi-Fi or 1GE |
| UNI (Wi-Fi uplink) | 2.4GHz & 5GHz Wi-Fi + 3GE |
| UNI (1GE uplink) | 2.4GHz & 5GHz Wi-Fi + 2GE |
| Dimensions (H x W x D) | 65.5mm × 105mm × 105mm (without pads) |
| Weight | Approx. 195g (without power adapter) |
| Rated Power Input (Adapter) | 100 – 240V AC, 50/60Hz |
| System Power Supply | 12V DC, 1A |
| Static Power Consumption | 3.4W |
| Max Power Consumption | 7.8W |
| Installation Mode | Desktop |
| Operating Temperature | 0°C to +40°C |
| Humidity (Operating) | 5% RH to 95% RH (non-condensing) |
| Wi-Fi Standards | IEEE 802.11 b/g/n (2.4GHz), a/n/ac (5GHz) |
| MIMO | 2×2 MIMO (2.4GHz & 5GHz) |
| Air Interface Rate | 300 Mbps (2.4GHz), 867 Mbps (5GHz) |
| Mesh Support | Yes (Tree Type) |
| Wi-Fi Roaming | 802.11k / 802.11v |
| Network Management | Remote maintenance, Technician & User App |
| Upstream Modes | Ethernet & Wi-Fi |
Seamless Mesh Network for Whole-Home Coverage
The Huawei WA8021V5 is built for modern smart homes that demand consistent connectivity in every corner. Supporting a tree-type mesh architecture, it allows users to expand their Wi-Fi network effortlessly. With one-click pairing and automatic synchronization of Wi-Fi settings, setting up a robust, whole-home network becomes a hassle-free experience.
Dual-Band Wi-Fi for Enhanced Performance
Equipped with dual-band capabilities, this router delivers 300 Mbps on the 2.4GHz band and 867 Mbps on the 5GHz band. Whether you’re streaming HD videos, attending virtual meetings, or gaming online, the WA8021V5 ensures smooth and lag-free connectivity by intelligently distributing bandwidth across devices.
Smart Roaming with 802.11k/v Support
Say goodbye to signal drops when moving around the house. Thanks to 802.11k and 802.11v Wi-Fi roaming protocols, your devices seamlessly switch between access points with the best signal strength. This ensures uninterrupted connections for voice calls, video conferences, and streaming, even while walking from room to room.
Flexible Uplink Modes
The router supports both Ethernet and Wi-Fi upstream connections, offering maximum flexibility based on your setup. Whether your home network depends on wired backhaul or wireless uplinks, the WA8021V5 adapts to deliver strong and reliable signals in both modes.
Remote Management with Smart Apps
Network control is at your fingertips with the WA8021V5. Technicians can perform remote maintenance, and users can monitor and manage their home network using intuitive mobile apps. This empowers both end-users and support staff to troubleshoot and optimize network performance easily.
Compact Design with Efficient Power Use
Weighing only 195g and sized compactly, the WA8021V5 fits neatly on any desk. Despite its small footprint, it boasts efficient power consumption with just 3.4W static and 7.8W maximum usage, making it ideal for all-day operation without spiking your electricity bill.
