Description

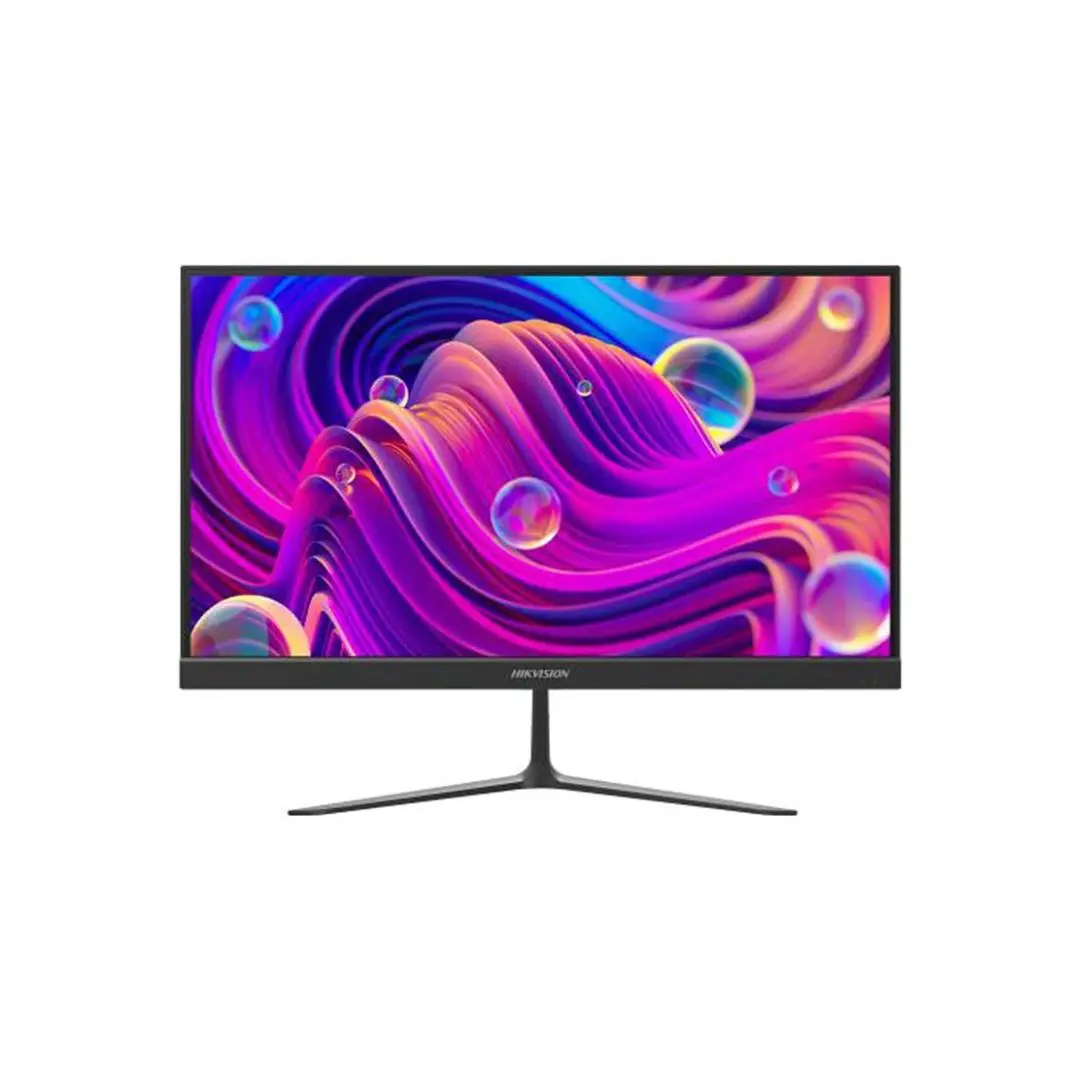

The Hikvision DS-D5022F2-CBD 21.5 Inch FHD Monitor is a professional-grade display solution designed to deliver exceptional visual performance for both home and office environments. Featuring a stunning 21.5-inch IPS panel with Full HD 1920 × 1080 resolution, this monitor ensures crystal-clear images with vibrant colors and sharp details. The IPS technology provides an impressive 178° viewing angle both horizontally and vertically, making it perfect for collaborative workspaces and multi-user scenarios.
With a remarkable 100Hz refresh rate and 1ms response time, the DS-D5022F2-CBD offers smooth, fluid motion that’s ideal for fast-paced content, video playback, and everyday computing tasks. The monitor boasts a 1000:1 contrast ratio and 250 cd/m² brightness, delivering deep blacks and bright whites for enhanced visual clarity. The ultra-slim bezel design (2.38mm on three sides) maximizes screen real estate and creates a modern, sleek aesthetic that complements any workspace.
Connectivity is made simple with HDMI and VGA ports, ensuring compatibility with a wide range of devices. The monitor features Low Blue Light technology to reduce eye strain during extended use, and VESA mounting compatibility (75mm × 75mm and 100mm × 100mm) provides flexible installation options. Energy-efficient with a maximum power consumption of just 24W, this Hikvision monitor combines performance, comfort, and versatility in one exceptional package.
Specifications
| Specification | Details |
|---|---|
| Model | Hikvision DS-D5022F2-CBD |
| Display Size | 21.45 inches |
| Panel Type | IPS |
| Resolution | FHD 1920 × 1080 |
| Aspect Ratio | 16:9 |
| Refresh Rate | 100Hz |
| Response Time | 1ms |
| Brightness | 250 cd/m² (typical) |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 178° (H) / 178° (V) |
| Color Depth | 8-bit (16.7M colors) |
| Color Gamut | 72% NTSC |
| Backlight Type | E-LED |
| Pixel Pitch | 0.0831 mm (H) × 0.241 mm (V) |
| Haze | 25%, 3H |
| Bezel Width | 2.38mm (top/left/right), 21.55mm (bottom) |
| Connectivity | HDMI×1, VGA×1 |
| Power Input | DC 12V, 2.0A |
| Power Consumption | ≤24W (maximum), 0.5W (standby) |
| VESA Mounting | 75mm × 75mm / 100mm × 100mm (4–M4×6mm) |
| Weight | 2.0 ± 0.5 kg |
| Color | Black |
| Special Features | Low Blue Light, VESA Wall Mount |
Superior IPS Display Technology
The Hikvision DS-D5022F2-CBD features advanced IPS (In-Plane Switching) panel technology that delivers outstanding color accuracy and consistency across the entire screen. With support for 16.7 million colors through 8-bit color depth and 72% NTSC color gamut coverage, this monitor reproduces vivid, lifelike images that bring your content to life. The IPS technology ensures that colors remain true and accurate regardless of your viewing position, with an exceptional 178-degree viewing angle both horizontally and vertically. This makes it perfect for graphic design, photo editing, content creation, and professional applications where color precision matters. The 1000:1 contrast ratio provides excellent differentiation between light and dark areas, while the 250 cd/m² brightness ensures clear visibility even in well-lit environments.
High-Speed Performance for Smooth Visuals
Equipped with a 100Hz refresh rate and an ultra-fast 1ms response time, the DS-D5022F2-CBD delivers incredibly smooth and responsive visual performance. The higher refresh rate means the display updates 100 times per second, resulting in fluid motion that reduces blur and judder during fast-moving content. Whether you’re watching videos, scrolling through documents, or working with dynamic content, the enhanced refresh rate provides a noticeably smoother experience compared to standard 60Hz monitors. The 1ms response time virtually eliminates ghosting and motion blur, ensuring that fast-paced action remains sharp and clear. This combination of high refresh rate and rapid response time makes the monitor suitable for a wide range of applications, from everyday productivity tasks to entertainment and casual gaming.
Modern Design with Ultra-Slim Bezels
The Hikvision DS-D5022F2-CBD showcases a contemporary design philosophy with ultra-slim bezels measuring just 2.38mm on the top, left, and right sides. This minimalist bezel design maximizes your viewing area and creates an immersive visual experience with minimal distractions. The sleek black finish adds a professional touch that seamlessly integrates into any modern workspace or home office setup. The slim bezel design also makes this monitor an excellent choice for multi-monitor configurations, as the narrow borders create a nearly seamless viewing experience when multiple displays are placed side by side. With a lightweight construction of approximately 2.0 kg, the monitor is easy to move and position according to your needs. The compact footprint and elegant aesthetics make it a versatile display solution that enhances the visual appeal of any environment.
Versatile Connectivity and Mounting Options
This Hikvision monitor offers flexible connectivity options with both HDMI and VGA ports, ensuring compatibility with a wide range of devices including computers, laptops, media players, and legacy systems. The dual-port configuration allows you to connect multiple sources simultaneously and switch between them as needed. For installation flexibility, the DS-D5022F2-CBD supports both 75mm × 75mm and 100mm × 100mm VESA mounting patterns, making it compatible with virtually all standard monitor arms, wall mounts, and mounting solutions available in the market. This versatility allows you to choose the perfect setup for your workspace, whether you prefer a traditional desk placement, a space-saving wall mount, or an ergonomic monitor arm. The VESA compatibility also enables easy adjustment of height, tilt, and rotation to achieve optimal viewing comfort and reduce neck and eye strain during extended use.
Eye Comfort Technology for Extended Use
Understanding the importance of eye health in today’s digital age, the Hikvision DS-D5022F2-CBD incorporates Low Blue Light technology designed to protect your eyes during prolonged viewing sessions. Blue light emitted from digital displays can contribute to eye fatigue, strain, and sleep disruption, especially during extended use. The Low Blue Light feature reduces harmful blue light emissions without compromising color accuracy or visual quality, making it more comfortable to work or enjoy entertainment for hours at a time. This eye-care technology is particularly beneficial for professionals who spend long hours in front of their screens, students engaged in online learning, or anyone who wants to minimize eye strain and maintain better eye health. Combined with the flicker-free E-LED backlight technology, this monitor creates a more comfortable viewing experience that helps reduce eye fatigue and maintains your productivity throughout the day.
Energy Efficiency and Environmental Responsibility
The DS-D5022F2-CBD demonstrates Hikvision’s commitment to energy efficiency and environmental sustainability. With a maximum power consumption of just 24 watts, this monitor delivers impressive performance while maintaining a minimal energy footprint. The efficient E-LED backlight technology provides excellent brightness and color reproduction while consuming significantly less power compared to traditional CCFL backlights. In standby mode, the monitor consumes only 0.5 watts, ensuring minimal energy waste when not in active use. The DC 12V, 2.0A power input makes it compatible with a wide range of power solutions and even enables the possibility of battery-powered operation in certain scenarios. This energy-efficient design not only helps reduce your electricity bills but also contributes to a smaller carbon footprint, making it an environmentally responsible choice for eco-conscious users and organizations looking to minimize their environmental impact while maintaining high-performance display capabilities.
