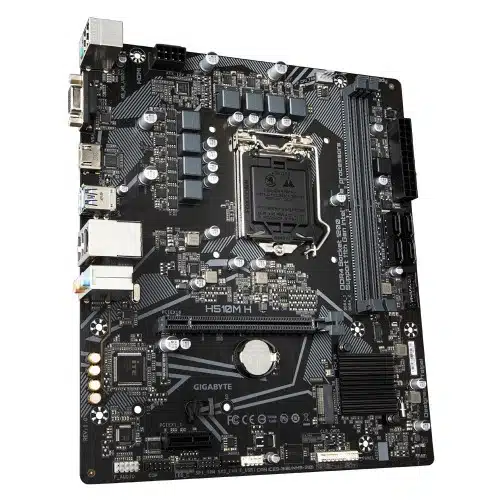

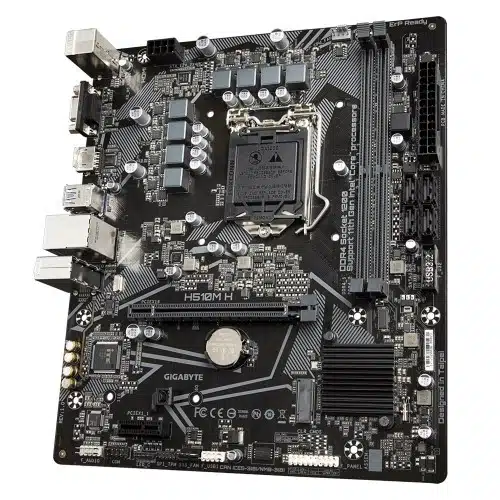

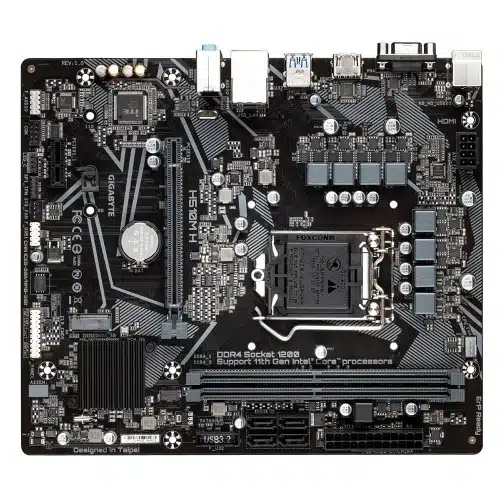

Gigabyte H510M H Intel 10th and 11th Gen Micro ATX Motherboard

Description

High Speed Gigabit LAN with Automatic Bandwidth Allocation

Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

High Current Support

Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection.

Precision Control

Gigabyte H510M H Intel 10th and 11th Gen Micro ATX Motherboard has up to 7 temperature/fan speed control points for precise fan curve.

Solid Pin Power Connectors

Gigabyte H510M H Intel 10th and 11th Gen Micro ATX Motherboard features solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Specifications

• Supported CPU:
  11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
  10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
  * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
• Chipset: Intel H510 Express Chipset
• BIOS: 1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Form Factor: Micro ATX Form Factor; 24.4cm x 21.0cm
• Audio: Realtek Audio CODEC
• High Definition Audio: 2/4/5.1/7.1-channel
• PCI:
  1 x PCI Express x16 slot, running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  (The PCIEX16 slot conforms to PCI Express 4.0 standard.)
  * Supported by 11th Generation processors only.
  1 x PCI Express x1 slot (PCIEX1_1)
  (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
• M.2 Socket:
  1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
  4 x SATA 6Gb/s connectors
  * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
• Type: Dual channel memory architecture
• Slots: 2 x DDR4 DIMM
• Supported Memory:
  11th Generation Intel Core i9/i7/i5 processors:
  Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
  10th Generation Intel Core i9/i7 processors:
  Support for DDR4 2933/2666/2400/2133 MHz memory modules
  10th Generation Intel Core i5/i3/Pentium/Celeron processors:
  Support for DDR4 2666/2400/2133 MHz memory modules
  2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture:
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
• Maximum Memory: 64 GB (32 GB single DIMM capacity)
• Integrated Graphics Processor-Intel HD Graphics support:
  1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
  * Support for HDMI 1.4 version and HDCP 2.3.
• HDMI: 1 x HDMI ports, supporting a maximum resolution of 4096×2160@30 Hz
• D-Sub (s): 1 x D-Sub port
• USB (s) Chipset:
  4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  LAN Port (s): Realtek GbE LAN chip (1 Gbit/100 Mbit)
• Supported Storage:
  1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
  4 x SATA 6Gb/s connectors
  * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
• Audio: 3 x audio jacks
• Internal I/O Ports:
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  1 x system fan header
  1 x RGB LED strip header
  1 x M.2 Socket 3 connector
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB 3.2 Gen 1 header
  1 x USB 2.0/1.1 header
  1 x serial port header
  1 x Clear CMOS jumper
• TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Warranty: 3 Years
