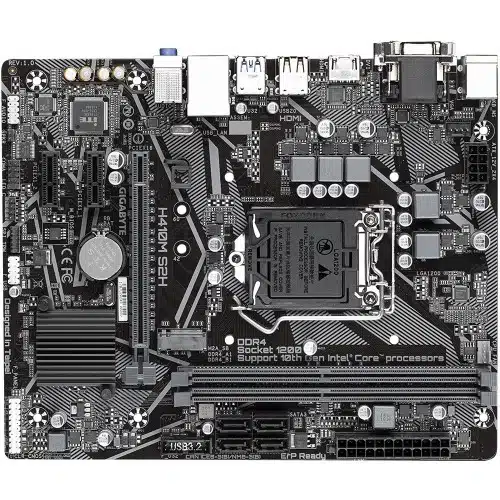

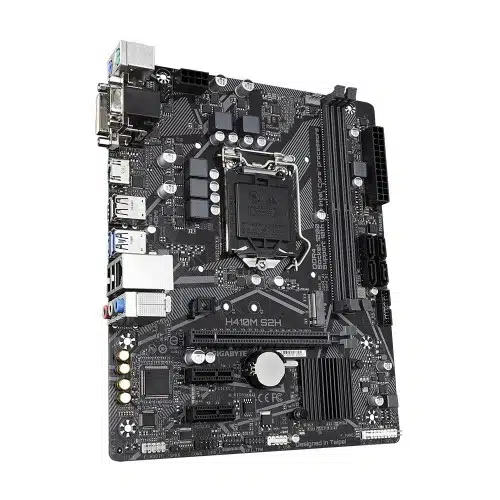

Gigabyte H410M S2H 10th Gen Micro ATX Motherboard

Description

High Speed Gigabit LAN with Automatic Bandwidth Allocation

Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application.  can provide users the most comprehensive features and the fastest and smoothest Internet experience.

NVMe PCIe Gen3 x2 2280 M.2 Connector

Gigabyte H410M S2H 10th Gen Micro ATX Motherboard is focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

High Definition Digital Outputs

Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

High-End Audio Capacitors

Gigabyte H410M S2H 10th Gen Micro ATX Motherboard uses high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

Gigabyte H410M S2H 10th Gen Micro ATX Motherboard features an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Specifications

• Supported CPU: Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
  L3 cache varies with CPU
• Chipset: Intel H410 Express Chipset
• BIOS:
  1 x 128 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  Form Factor: Micro ATX Form Factor; 22.6cm x 18.5cm
• PCI:
  1 x PCI Express x16 slot, running at x16
  2 x PCI Express x1 slot
• M.2 Socket: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
• Memory Type: Dual-channel architecture
• Slots: 2 x DDR4 DIMM
• Supported Memory:
  Intel Core i9/ i7 processors
  Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules
  Intel Core i5/ i3/ Pentium /Celeron processors:
  Support for DDR4 2666/ 2400/ 2133 MHz memory modules
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
• Maximum Memory: 64 GB
• Graphics:
• Integrated Graphics Processor-Intel HD Graphics support:
  1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
  1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
• Max Shared Memory: 512MB
• HDMI: 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
• D-Sub (s): 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
• DVI-D (s): 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz

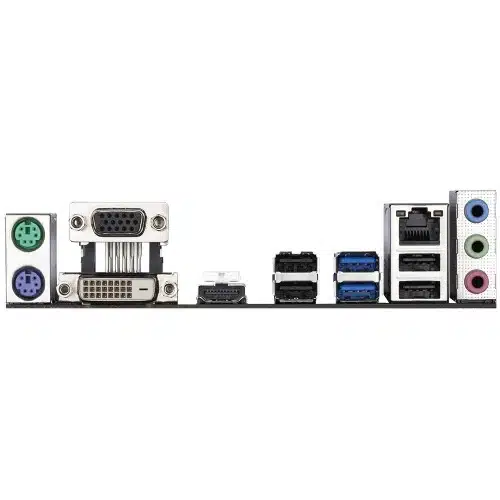

• USB (s):
  4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  LAN Port (s): Realtek GbE LAN chip (1000/100 Mbit)
• Supported Storage:
  1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
  4 x SATA 6Gb/s connectors
• Audio:
  Realtek ALC887 codec
  High Definition Audio
  2/4/5.1/7.1-channel
• Internal I/O Ports:
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  4 x SATA 6Gb/s connectors
  1 x CPU fan header
  1 x system fan header
  1 x RGB LED strip header
  1 x front panel header
  1 x front panel audio header
  1 x speaker header
  1 x USB 3.2 Gen 1 header
  1 x USB 2.0/1.1 header
  1 x serial port header
  1 x Clear CMOS jumper
  TPM (Trusted Platform Module )
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Warranty: 3 Years
