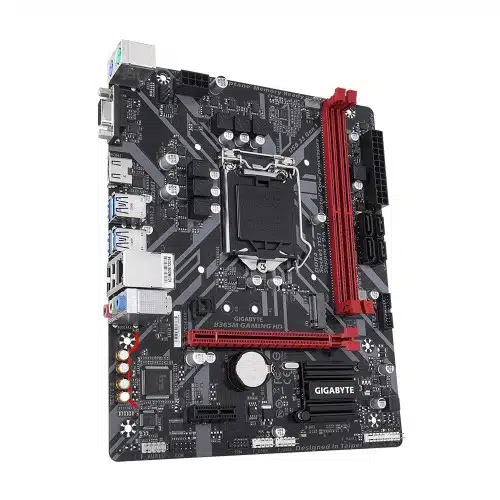

Gigabyte B365M Gaming HD 9th Gen Motherboard

Description

Compatibility

The Gigabyte B365M Gaming HD 9th Gen Motherboard is compatible with Intel 9th and 8th gen core i3, i5 i7 and i9 processor with supported Dual Channel DDR4 maximum 32GB memory motherboard has the capability of Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface.

Graphics

Considering the graphics, it will support integrated Intel HD Graphics having 1GB shared graphics memory with max resolution of 1920 x 1200 @ 60 Hz DVI-D & D-Sub port and 4096×2160@30 Hz of HDMI ports.

Features

The Gigabyte B365M Gaming HD 9th Gen Motherboard has the facility of USB 3.1 Gen 1 ports, USB 2.0/1.1 ports and Intel Optane Memory Ready. For extreme level of gaming it has GIGABYTE 8118 Gaming LAN, PCIe Gen3 x4 M.2 and Smart Fan 5.

Specifications

• Supported CPU:
  Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
  Chipset: Intel B365 Express Chipset
• BIOS:
  1 x 128 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  Form Factor: Micro ATX Form Factor; 22.6cm x 18.5cm
• Expansion Slots:
  PCI
  1 x PCI Express x16 slot, running at x16
  1 x PCI Express x1 slot
  (All of the PCI Express slots conform to PCI Express 3.0 standard.)
• M.2 Socket: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
• Type: Dual channel memory architecture
• Slots: 2 x DDR4 DIMM
• Supported Memory:
  Support for Extreme Memory Profile (XMP) memory modules
  * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor.
• Maximum Memory: 32 GB
• Graphics:
  Integrated Graphics Processor-Intel® HD Graphics support:
  1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
  * Support for HDMI 1.4 version and HDCP 2.2.
• Max Shared Memory: Maximum shared memory of 1 GB
• HDMI: 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
• D-Sub (s): 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
• USB (s):
  6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
• LAN Port (s):
  1 x RJ-45 port
  Realtek GbE LAN chip (10/100/1000 Mbit)
• Supported Storage:
  1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
  4 x SATA 6Gb/s connectors
  Support for RAID 0, RAID 1, RAID 5, and RAID 10
  * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
  Intel®Optane Memory
• Audio:
  Realtek® ALC887 codec
  High Definition Audio
  2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• Internal I/O Ports:
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  1 x system fan header
  1 x M.2 Socket 3 connector
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB 3.1 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x serial port header
  1 x Clear CMOS jumper
• TPM (Trusted Platform Module ): 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)

Warranty: 3 Years
