Description
Easy installation with Universal Compatibility

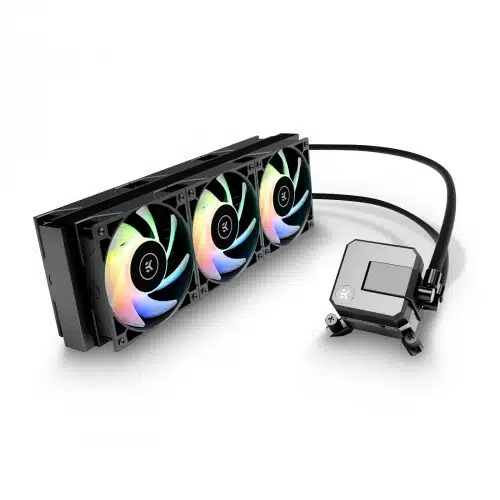

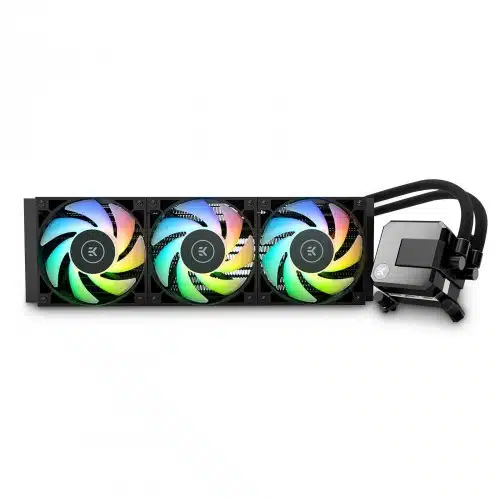

The EKWB EK-AIO Elite 360 D-RGB CPU Cooler comes with a universally compatible CPU water-block, fitting all the latest Intel & AMD CPU sockets as well as featuring a tool-less mounting mechanism for easy installation. Requiring just a single radiator mount, with diamond cut rotary fittings for easy tube adjustment, the EK AIO Elite offers compatibility with almost all modern case designs.
Dynamic Addressable D-RGB lighting
Customize your EKWB EK-AIO Elite 360 D-RGB CPU Cooler to match your set-up with its range of fully addressable D-RGB lighting effects. Built into both its CPU block and six Vardar S fans, the EK AIO Elite offers a range of color configurations controlled from either your motherboard or standalone D-RGB controller. The Black Nickel cover of the pump unit now offers a very elegant look with the subtle hint of D-RGB peeking through the EK logo.
This product is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the A-RGB (D_RGB) header.
Ultra-durable design with diamond-cut rotary fittings
The EKWB EK-AIO Elite 360 D-RGB CPU Cooler comes pre-installed with reinforced and sleeved rubber tubing, each fitted with an aluminum cover to ensure they’re ultra-durable. Its diamond-cut rotary fittings allow for easy installation and adjustment of the rubber tubing, featuring a full range of movement to make the EK AIO suitable for installation in even the tightest spaces.
EK-Vardar High-Performance Fans
The EK-Vardar S included with the EK AIO are industrial grade high-static PWM fans, designed and built primarily for high-performance liquid cooling systems. Controlled by either your motherboard or standalone fan controller, the EK Vardar can be adjusted to run at speeds between 550 – 2200RPM for either high airflow or silent running. The EK-AIO Elite includes six Vardar fans, which can be utilized to create a push-pull configuration or if there is not enough space, create a better airflow by positioning three of the fans on the case itself.
Cable management
To help manage the cables of EK-Vardar fans, the EK-AIO Elite unit comes with an included EK-Hub, offering multi-connection with seven sets of addressable RGB LED headers and 4-pin PWM fan headers. The EK-Hub will help you neatly organize the Push-Pull fan configuration.
Specification
| Key Features | ||
| Type | AIO Cooler | |
| Fan Speed | 550 – 2200 ± 10% | |
| Fan Airflow | 66,04 CFM = 112,20 m³/h (at maximum speed) | |
| Noise | 31,6 dBA (at maximum speed) | |
| Air Pressure | 1,9 mm H20 = 18,6 Pa (at maximum speed) | |
| Connector | – 4-Pin PWM Header for pump and fan operation – 3-Pin Addressable 5V D-RGB header |
|
| LED Number | RGB | |
| Material | Radiator: Aluminum Pump Unit: Black nickel Housing, Copper Cold plate, Steel Mounting Pump Tubing: Ultra-Low Evaporation Rubber with Nylon Braided Sleeve |
|
| Physical Specification | ||
| Dimension | Radiator Dimensions: 395 x 120 x 27 mm Pump Unit Dimensions: 88 x 70 x 64 mm Fan Dimensions: 120 x 120 x 25mm |
|
| Supported Sockets | ||
| Intel | 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066, 1200 | |
| AMD | AM4 | |
| Warranty Information | ||
| Warranty | 5 years warranty | |
