Description
The Edifier T5s Powered Subwoofer is a compact and powerful audio solution designed to enhance your music, movies, and gaming experience with deep, accurate bass. Equipped with an 8-inch front-firing long-throw woofer and a 70W RMS Class-D amplifier, it delivers rich low-frequency performance down to 35Hz. Advanced Digital Signal Processing (DSP) and a high-performance analog front end ensure precise sound reproduction with minimal distortion. The subwoofer offers adjustable volume, crossover frequency, and phase controls, allowing users to customize bass output and seamlessly integrate it with existing speaker systems. Its sturdy 18mm MDF cabinet minimizes resonance and vibration, resulting in cleaner and tighter bass performance. Featuring RCA audio inputs along with Signal In and Signal Out connectivity, the T5s is compatible with a wide range of desktop speakers, bookshelf speakers, and home theater systems. An automatic standby mode improves energy efficiency by powering down after periods of inactivity, making it a practical and high-performance addition to any audio setup.
Specifications
| Specification | Details |
|---|---|
| Product Type | Powered Subwoofer |
| Output Power | 70W RMS |
| Driver Unit | 8-inch (220mm) Front-Firing Woofer |
| Frequency Response | 35Hz – 115Hz |
| Signal-to-Noise Ratio | ≥85dB (A) |
| Input Sensitivity | 150 ± 20mV |
| Audio Inputs | RCA |
| Amplifier Type | Closed-Loop Class-D Amplifier |
| DSP | Yes |
| Cabinet Material | 18mm MDF |
| Connectivity | Signal In / Signal Out |
| Auto Standby | Yes |
| Dimensions | 399 × 400 × 170 mm |
| Weight | 10.38 kg |
| Power Consumption | 70W |

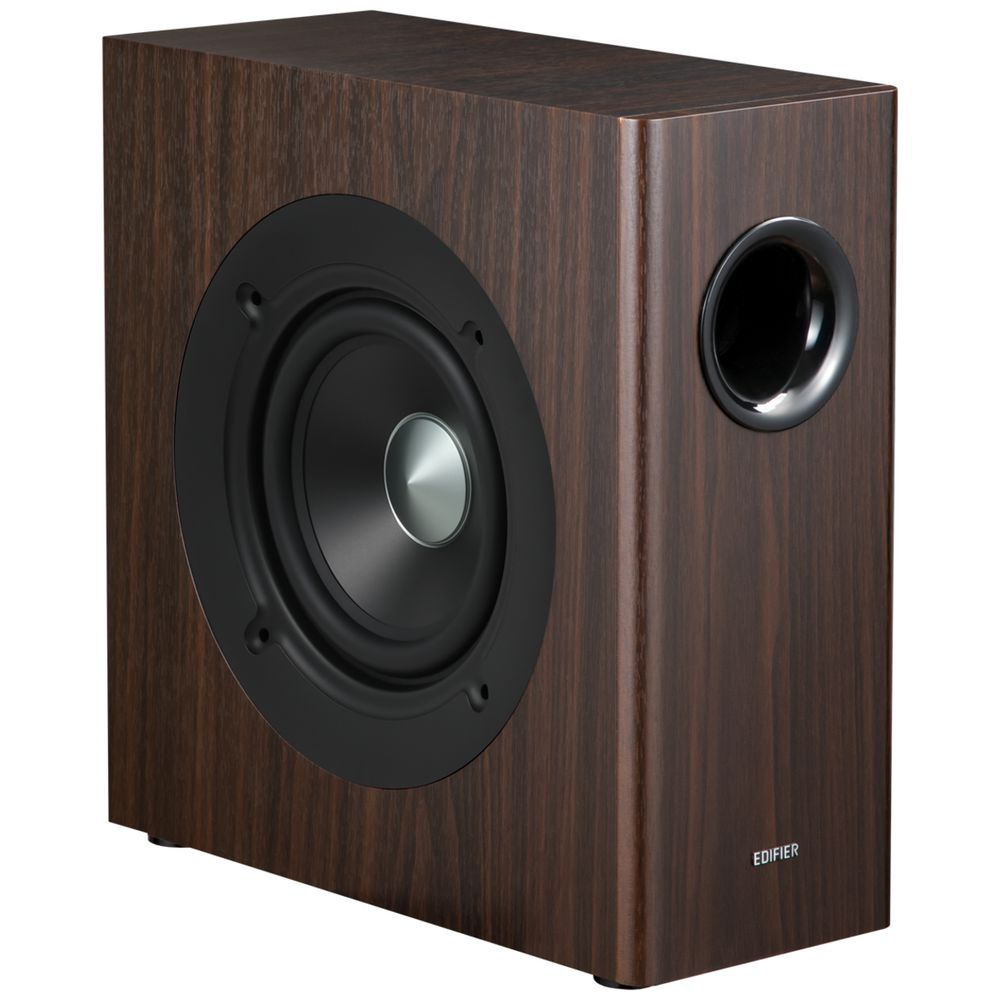

Powerful 8-Inch Woofer for Deep Bass
The Edifier T5s features a high-performance 8-inch front-firing long-throw woofer designed to deliver deep, impactful bass. With low-frequency extension down to 35Hz, it enhances music, movies, and gaming with powerful low-end performance.
Efficient 70W RMS Class-D Amplification
Powered by a 70W RMS amplifier with a high-efficiency switching power supply, the T5s delivers strong and consistent bass output while maintaining excellent energy efficiency and low distortion levels.
Advanced DSP Audio Processing
The built-in Digital Signal Processing (DSP) technology ensures accurate sound reproduction and optimized bass performance. It improves overall audio precision, providing cleaner and more controlled low frequencies.

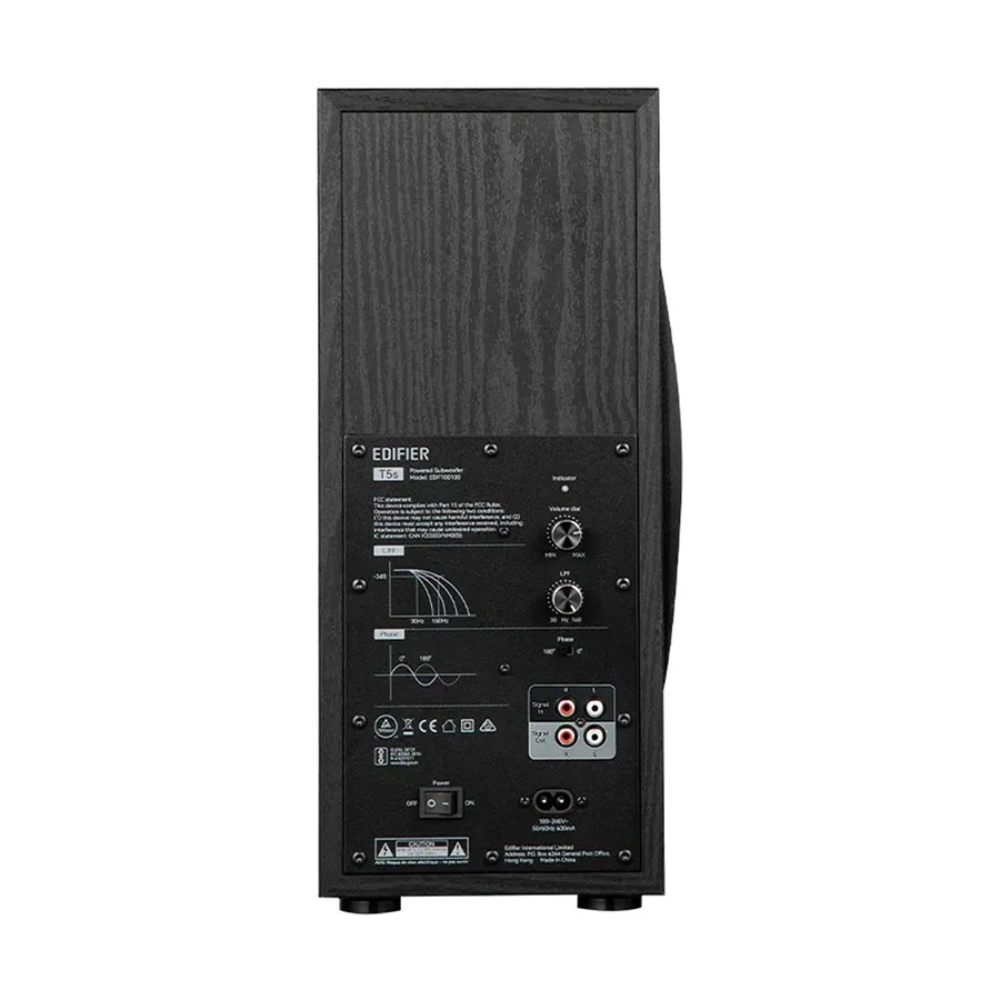

Customizable Sound Controls
Users can fine-tune their listening experience through adjustable volume, low-pass crossover frequency, and phase controls. These settings help achieve seamless integration with existing speaker systems and room acoustics.
Durable MDF Cabinet Design
Constructed from high-quality 18mm MDF, the cabinet effectively reduces unwanted resonance and vibration. This sturdy design helps produce tighter, cleaner, and more accurate bass reproduction.
Flexible Connectivity Options
The T5s comes equipped with RCA audio inputs and Signal In/Signal Out ports, making it compatible with a wide range of audio devices, including bookshelf speakers, desktop speaker systems, and home theater receivers.
Energy-Saving Auto Standby Function
For added convenience and efficiency, the subwoofer automatically enters standby mode after 15 minutes of inactivity and instantly resumes operation when an audio signal is detected.
