Description

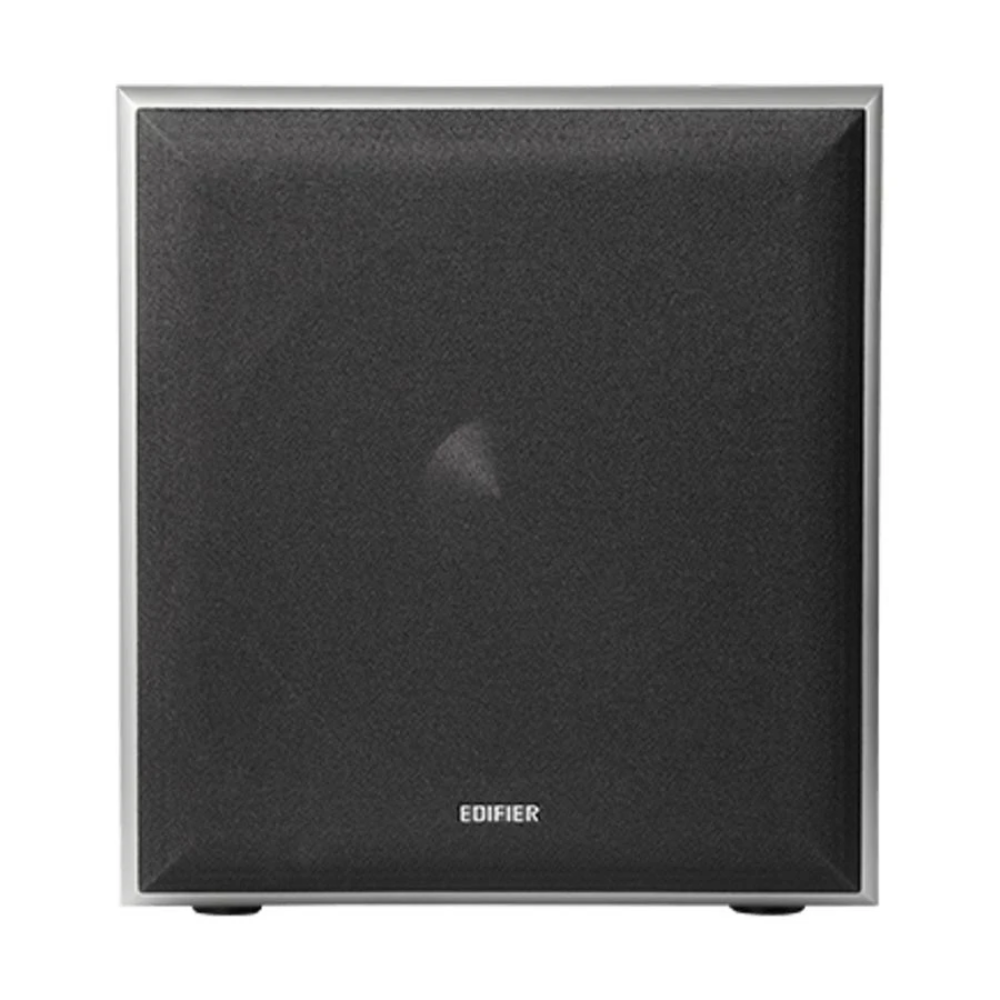

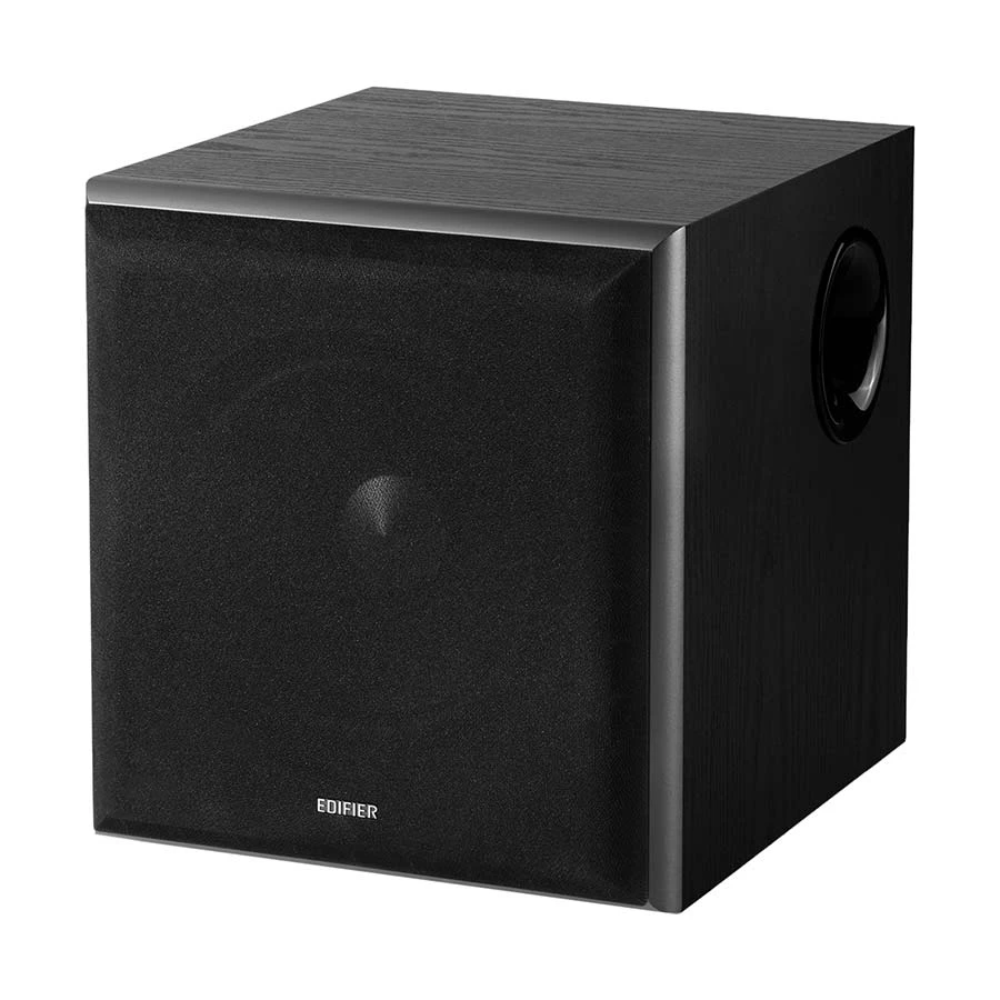

The Edifier T5 Powered Active Subwoofer is designed to add deep, powerful bass to your home audio system, delivering an immersive listening experience for music, movies, and gaming. Equipped with an 8-inch long-stroke driver and 70W RMS output power, it reproduces rich, punchy bass with frequencies extending down to 38Hz. The adjustable low-pass crossover and bass volume controls let you fine-tune the sound to match your speakers and room acoustics. Built with a 21mm thick MDF wooden enclosure, the T5 minimizes unwanted resonance and vibration, ensuring cleaner and more accurate bass reproduction. It also features RCA Line-in and Line-out (pass-through) connections, making it compatible with a wide range of audio systems. With a signal-to-noise ratio of ≥85dB(A) and a universal 100–240V power supply, the Edifier T5 offers reliable performance and easy integration into both desktop and home entertainment setups, making it an excellent choice for users seeking enhanced low-frequency performance.
Specifications
| Specification | Details |
|---|---|
| Product Type | Powered Active Subwoofer |
| Output Power | 70W RMS |
| Driver Unit | 8-inch Long Stroke Driver |
| Subwoofer | Yes |
| Frequency Response | 38Hz – 200Hz |
| Signal-to-Noise Ratio | ≥85dB (A) |
| Input Sensitivity | 50±20mV |
| Audio Connections | RCA Line-in / RCA Line-out (Pass Through) |
| Enclosure Material | 21mm Thick MDF Wooden Cabinet |
| Bass Control | Rear Panel Bass Volume Knob |
| Low Pass Filter | Adjustable |
| Power Supply | Universal 100–240V AC |
| Dimensions | 278 × 300 × 336 mm |
Powerful 70W RMS Output
The Edifier T5 delivers 70W RMS of continuous power, producing impactful and dynamic bass that enhances music, movies, and gaming. Its dedicated amplifier ensures consistent low-frequency performance without distortion.

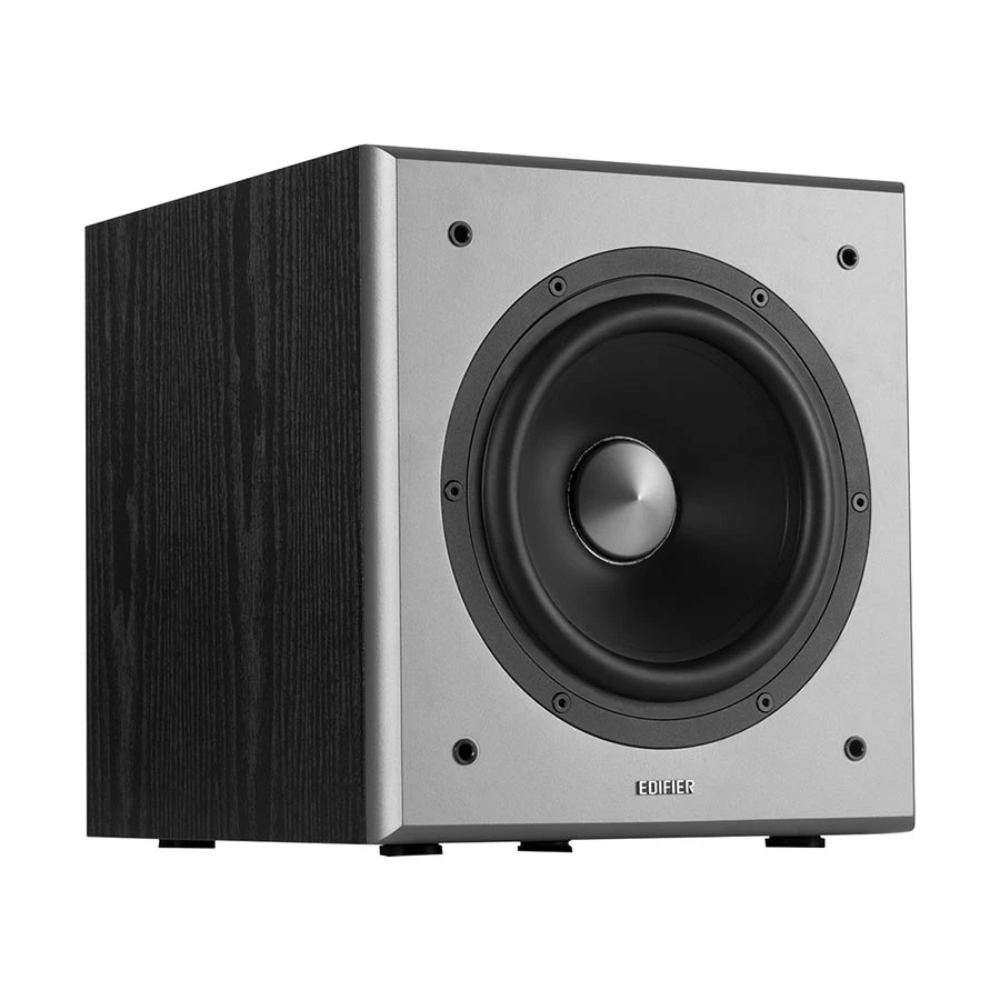

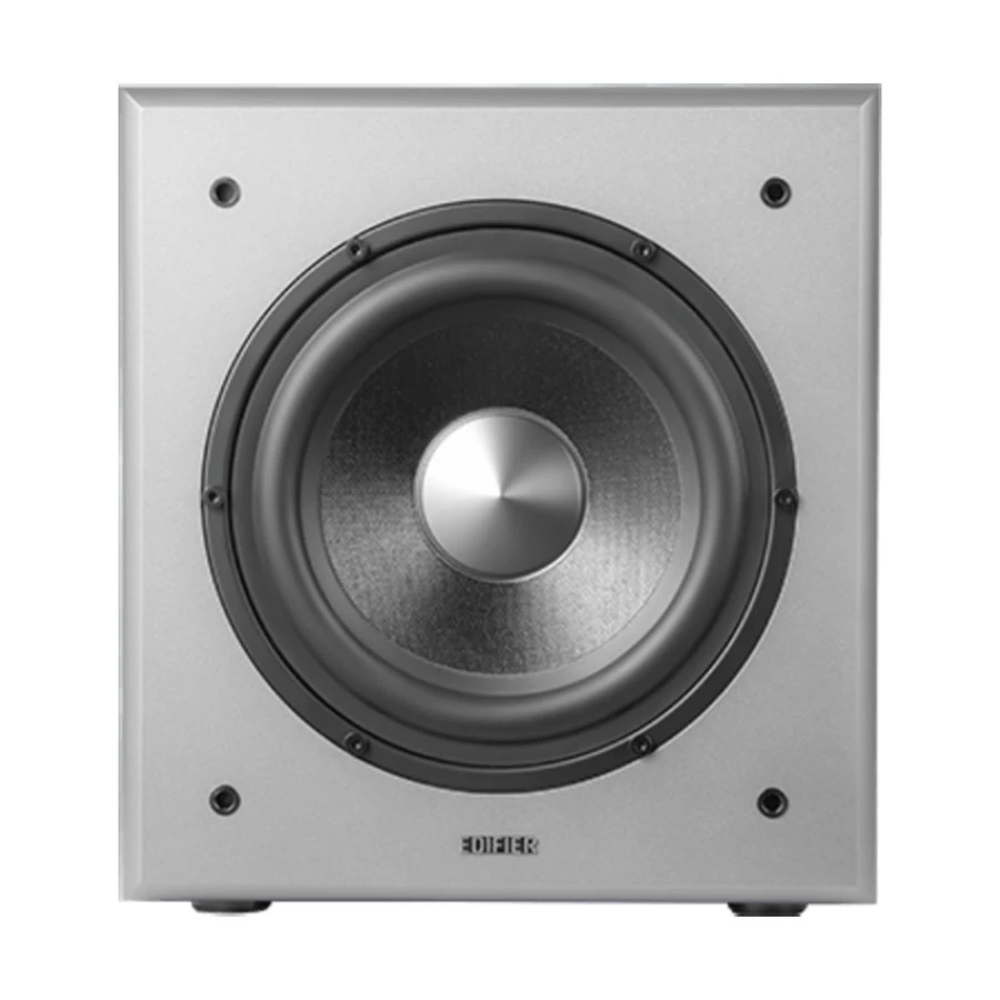

Deep Bass with an 8-Inch Driver
Featuring an 8-inch long-stroke speaker driver, the T5 generates rich and accurate bass with frequencies reaching as low as 38Hz, adding depth and realism to every listening session.
Adjustable Low-Pass Filter
The built-in adjustable low-pass crossover allows you to set the frequency at which the subwoofer takes over bass reproduction, ensuring seamless integration with bookshelf or multimedia speakers.

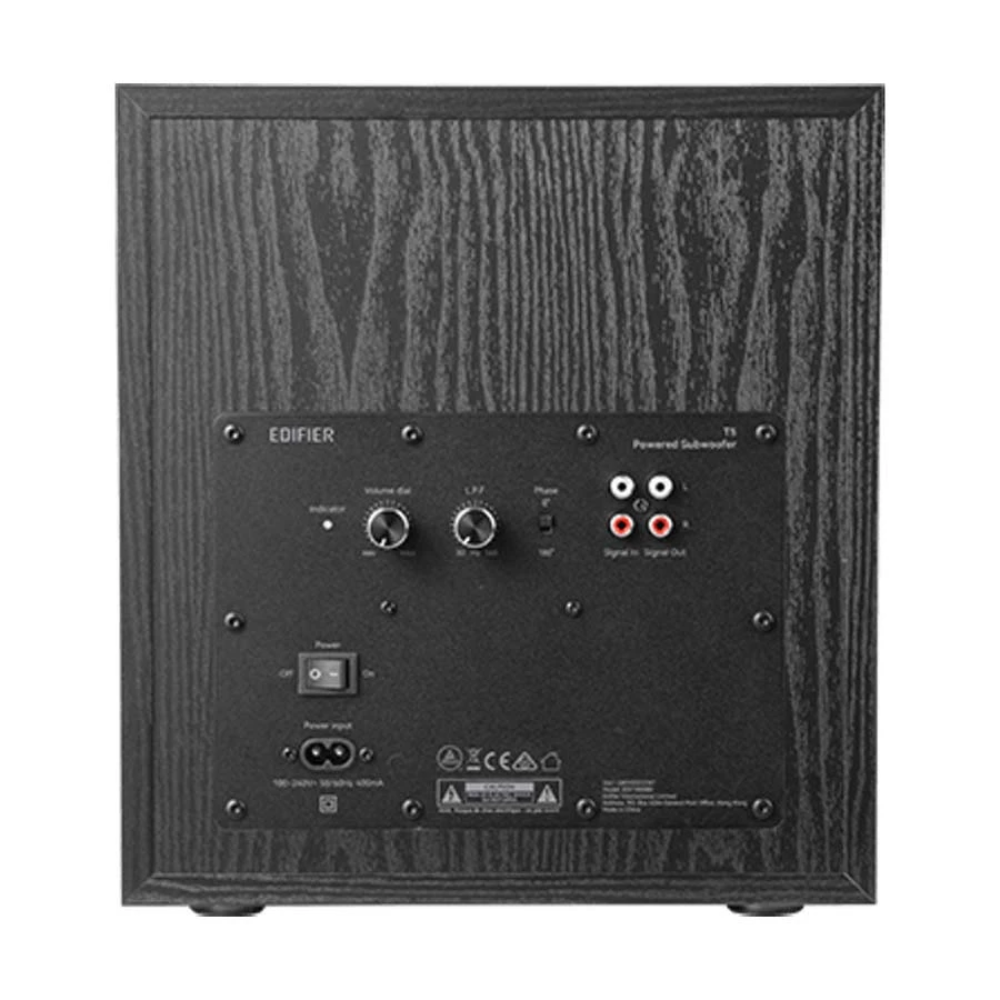

Convenient Bass Volume Control
A rear-mounted bass volume knob lets you easily adjust bass intensity according to your personal preference or room acoustics, providing greater flexibility for different types of content.

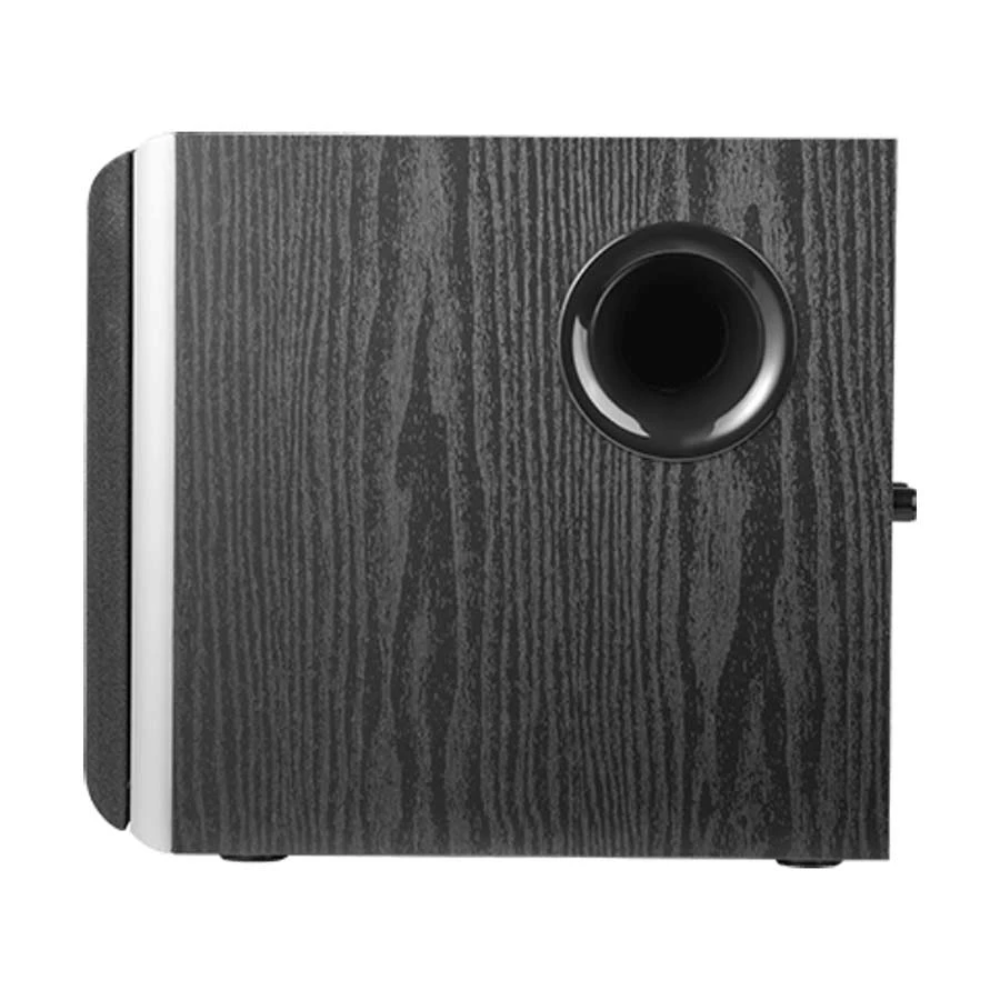

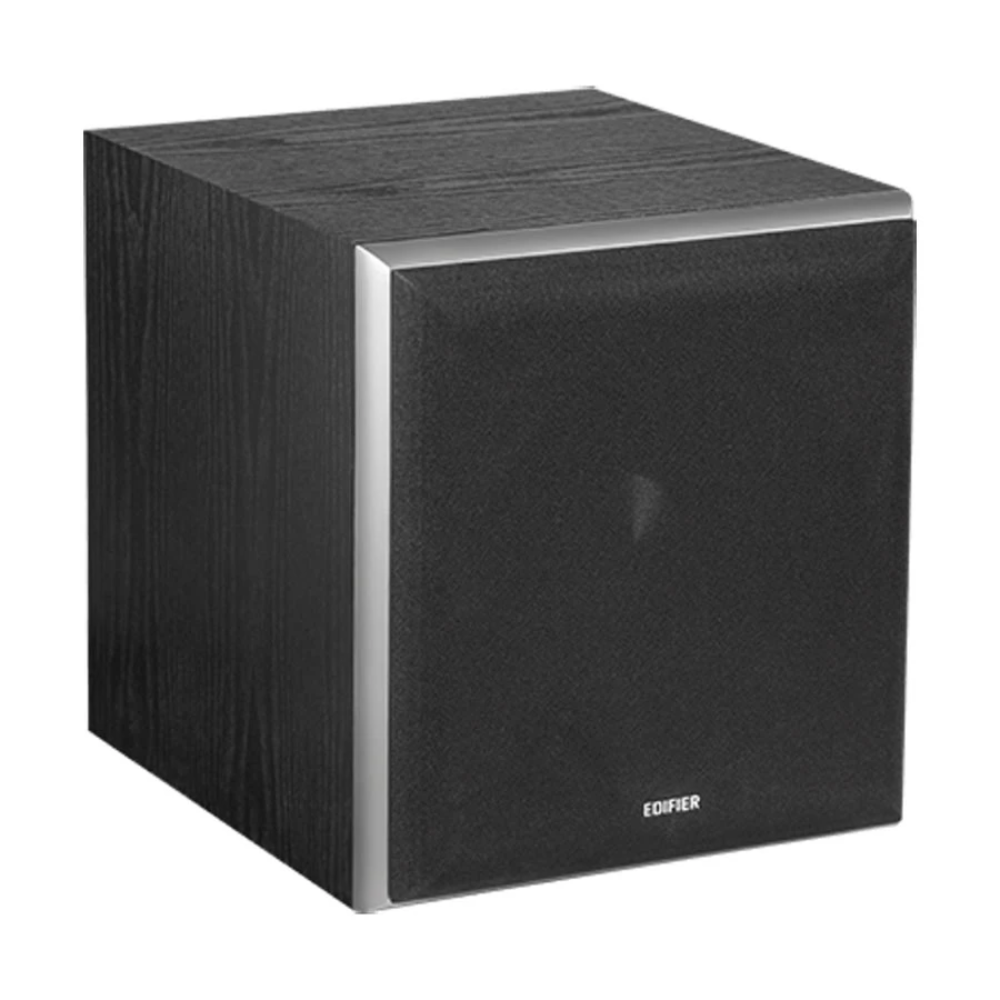

Premium MDF Wooden Enclosure
Constructed with a 21mm thick MDF wooden cabinet, the subwoofer minimizes vibration and unwanted resonance, resulting in tighter, cleaner, and more natural bass reproduction.
Flexible Connectivity
The RCA Line-in and Line-out (pass-through) connections make the Edifier T5 compatible with a wide variety of speakers, amplifiers, and multimedia audio systems for easy installation.
Reliable Universal Power Supply
Equipped with a 100–240V universal switching power supply, the T5 can operate efficiently across different voltage standards, making it suitable for use in various regions.
