Description
The DeepCool U PAL is an efficient laptop cooling pad designed to enhance notebook performance through superior heat dissipation. Inspired by the Arch of Constantine, its unique U-shaped design features two 140mm fans strategically placed on either side to directly cool common laptop hotspots while the central open area promotes optimal airflow, accelerating heat dispersion. The honeycomb metal mesh surface allows rapid air passage, further enhancing cooling efficiency. The U PAL offers six adjustable ergonomic angles, helping users find a comfortable posture to reduce neck and spine strain during prolonged use. Stability is ensured with anti-slip buckles and rubber feet, keeping laptops securely in place. Its dual fans operate at 1,000 RPM, delivering a maximum airflow of 92.22 CFM with a low noise output of just 26.3 dB(A), maintaining a quiet working environment. Additionally, it includes a USB 3.0 pass-through connector, enabling high-speed data transfer without sacrificing USB ports. Compatible with laptops up to 15.6 inches, the DeepCool U PAL blends aesthetic design with functional features, offering an effective cooling solution that improves laptop performance, extends device lifespan, and enhances user comfort.
Specification:
- Overall Dimensions: 390 x 280 x 27.5 mm
- Fan Dimensions: Two fans, each measuring 140 x 140 x 15 mm
- Net Weight: 765 g
- Bearing Type: Hydro Bearing
- Rated Voltage: 5 VDC
- Operating Voltage: 4.5–5 VDC
- Starting Voltage: 4 VDC
- Rated Current: 0.30 ±10% A
- Power Input: 1.5 W
- Fan Speed: 1,000 ±10% RPM
- Maximum Airflow: 92.22 CFM
- Noise Level: 26.3 dB(A)
- EAN: 6933412775607
- Part Number: DP-N214A5_UPAL

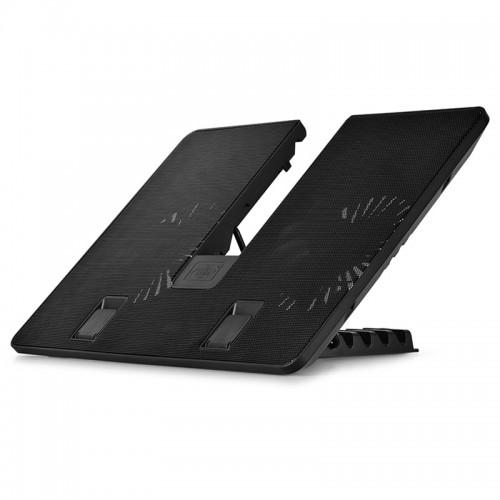

Innovative U-Shaped Design
The DeepCool U PAL features a unique U-shaped design, inspired by the Arch of Constantine in Rome. This thoughtful architectural influence isn’t just for aesthetics; it serves a functional purpose in optimizing airflow dynamics. The design includes dual 140mm fans positioned on either side of the cooler, leaving an open central space that promotes enhanced heat dispersion. This layout allows the fans to target critical laptop hotspots, such as the CPU and GPU areas, which are often the primary sources of heat. The open space in the middle creates a natural ventilation path, accelerating airflow beneath the laptop. This helps to maintain optimal operating temperatures, reducing the risk of thermal throttling and enhancing the laptop’s overall performance during demanding tasks like gaming, video editing, or heavy multitasking.

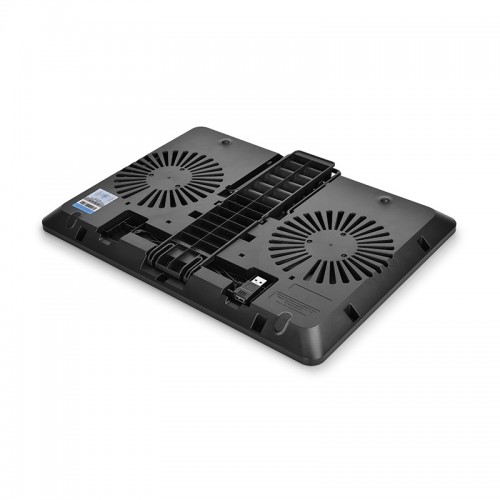

Efficient Dual 140mm Cooling Fans
At the heart of the U PAL are its two powerful 140mm fans, engineered to deliver superior cooling performance. These fans operate at a speed of 1,000 RPM (±10%), generating a substantial maximum airflow of 92.22 CFM. This airflow capacity ensures that heat is dissipated quickly and efficiently from the laptop’s base. Despite their powerful cooling capabilities, the fans maintain a low noise level of just 26.3 dB(A), making them whisper-quiet and suitable for noise-sensitive environments like libraries, offices, or late-night work sessions. The hydro bearing technology used in the fans enhances durability, reduces friction, and contributes to the cooler’s long lifespan.

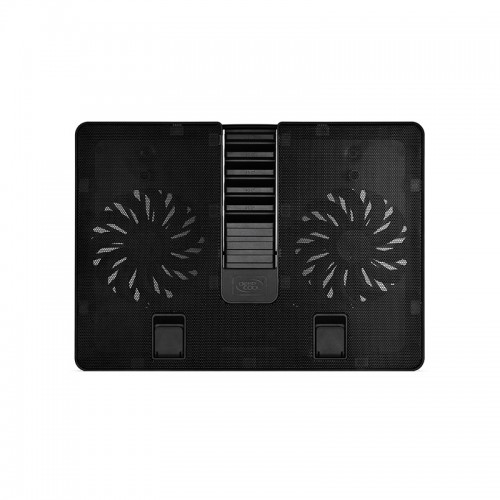

Honeycomb Metal Mesh Surface
The U PAL’s cooling efficiency is further boosted by its honeycomb metal mesh surface. This high-quality metallic mesh not only adds to the device’s durability but also allows for maximum air passage. The open mesh design reduces airflow resistance, enabling the fans to push cool air effectively while drawing out hot air from the laptop’s underside. This ensures even heat distribution, preventing hotspots from forming. The metal surface also adds a premium feel to the cooling pad, making it both functional and stylish. Additionally, the sturdy mesh can support laptops of various sizes, up to 15.6 inches, without warping or bending.

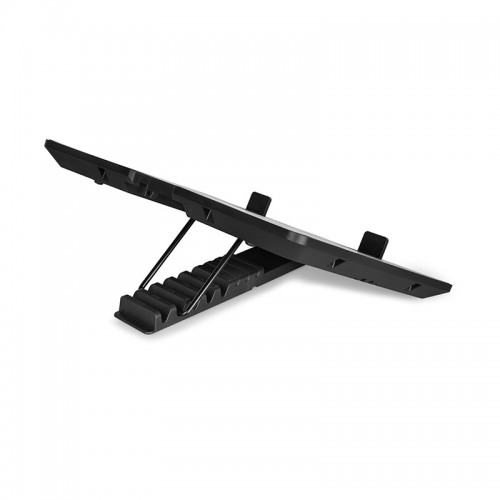

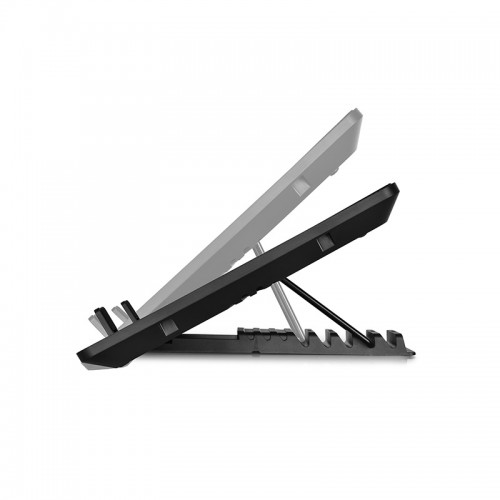

Ergonomic Design with Adjustable Angles
Comfort is a key focus of the U PAL’s design, as reflected in its six adjustable viewing angles. Users can easily modify the cooler’s height to achieve an ergonomic setup that reduces neck, shoulder, and back strain during extended periods of laptop use. Whether you’re typing, browsing, watching movies, or gaming, you can adjust the angle for the most comfortable posture. This flexibility not only promotes better body alignment but also enhances cooling efficiency, as an inclined laptop allows for better air circulation underneath. The anti-slip buckles ensure that your laptop remains securely in place, even when tilted at steeper angles.
Silent Operation for Distraction-Free Use
Despite housing two large fans, the DeepCool U PAL operates with remarkable quietness, producing only 26.3 dB(A) of noise. This is equivalent to the sound level of a soft whisper, making the cooler ideal for quiet environments such as study rooms, libraries, or shared workspaces. The hydro bearing mechanism in the fans minimizes friction, reducing both noise and wear over time. This ensures that the cooler remains efficient and silent even after prolonged use. Whether you’re attending virtual meetings, recording content, or focusing on intensive tasks, the U PAL’s silent operation ensures zero distractions.
USB 3.0 Pass-Through Connector
To enhance convenience, the U PAL comes equipped with a USB 3.0 pass-through connector. This feature allows you to connect the cooler without sacrificing a valuable USB port on your laptop. In fact, it enables high-speed data transfer, maintaining the full functionality of your USB connection while powering the cooling pad. This is particularly beneficial for users with laptops that have limited USB ports, as it ensures you can still connect other essential devices like external hard drives, keyboards, or mice alongside the cooling pad.
Sturdy Build and Wide Compatibility
The DeepCool U PAL is designed to support laptops up to 15.6 inches in size, making it compatible with a wide range of devices, from ultrabooks to gaming laptops. Its sturdy construction, combined with anti-slip buckles and rubber feet, ensures that the laptop remains stable even during intense typing or gaming sessions. Weighing just 765 grams, the cooler is lightweight enough for easy portability yet durable enough to withstand daily use. The combination of robust materials and thoughtful design makes the U PAL not just a cooling accessory but a reliable companion for improving laptop performance and user comfort.
