Description

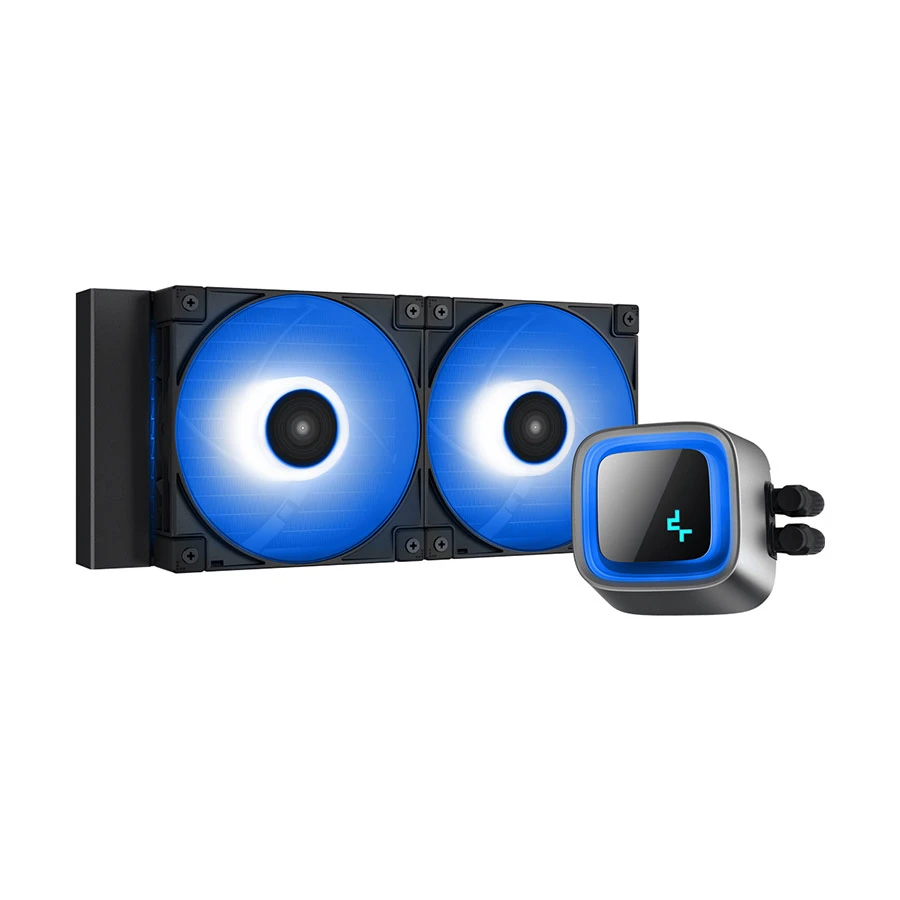

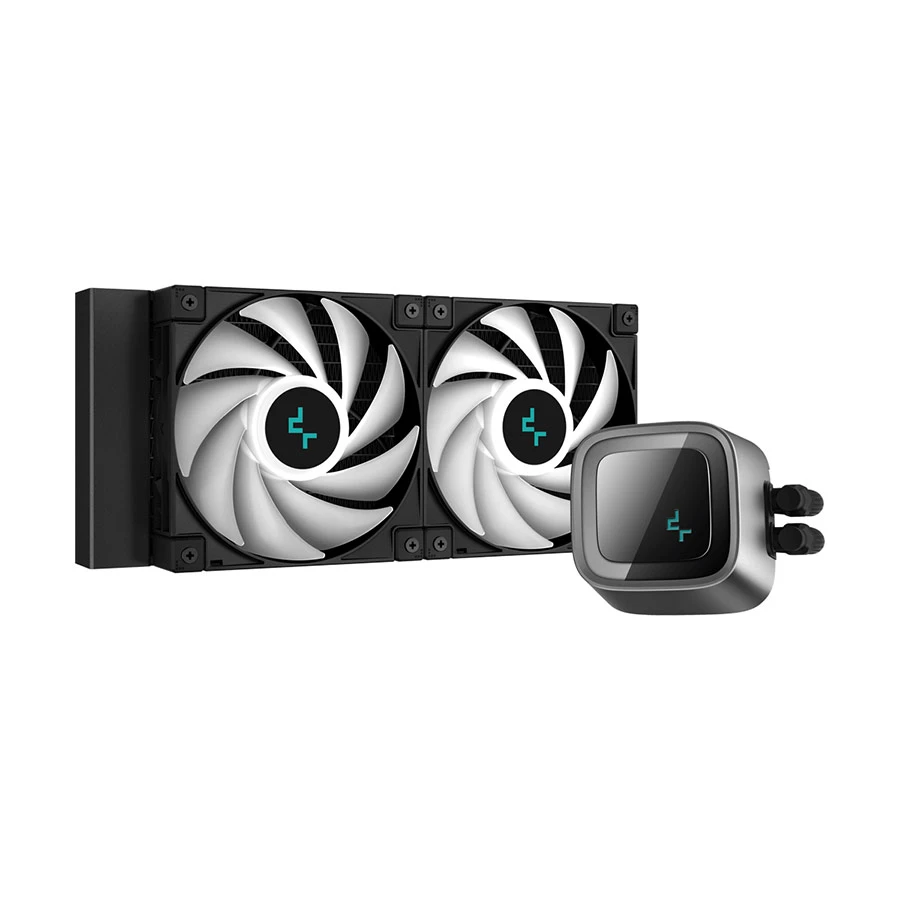

The Deepcool LS520 Premium A-RGB Black Liquid CPU Cooler is engineered for enthusiasts who demand both powerful performance and stunning aesthetics. Designed to deliver exceptional cooling efficiency for high-performance CPUs, the LS520 features a sleek 240mm radiator paired with dual 120mm Fluid Dynamic Bearing fans for optimal airflow and low noise. The powerful pump operates at up to 3100 RPM with minimal noise, ensuring your system remains cool and quiet even under heavy workloads.
The LS520 also boasts a beautiful addressable RGB lighting system on both the pump and fans, easily synchronized with your motherboard or RGB controller for customized lighting effects. With universal compatibility for Intel (LGA 2066/2011-v3/2011/1851/1700/1200/1151/1150/1155) and AMD (sTRX4/sTR4/AM5/AM4) sockets, this cooler is a perfect match for modern builds. The high-quality aluminum radiator, reinforced tubing, and advanced PWM control deliver reliability and control, making it ideal for gamers, overclockers, and PC enthusiasts.
Whether you’re building a new rig or upgrading your current one, the Deepcool LS520 ensures peak thermal performance with a stylish, modern touch. It is a powerful and visually striking solution for keeping your CPU cool under pressure.
Specifications:
| Category | Details |
|---|---|
| Application | Intel LGA2066/2011-v3/2011/1851/1700/1200/1151/1150/1155 AMD sTRX4/sTR4/AM5/AM4 |
| Net Weight | 1305 g |
| Radiator Dimensions | 282 × 120 × 27 mm (L×W×H) |
| Radiator Material | Aluminum |
| Tube Length | 410 mm |
| Pump Dimensions | 86 × 74 × 57 mm (L×W×H) |
| Pump Speed | 3100 RPM ±10% |
| Pump Noise | 19 dB(A) |
| Pump Connector | 3-pin |
| Pump Voltage/Current | 12 VDC / 0.47 A |
| Pump Power Consumption | 5.64 W |
| Fan Dimensions | 120 × 120 × 25 mm (L×W×H) |
| Fan Speed | 500~2250 RPM ±10% |
| Fan Airflow | 85.85 CFM |
| Fan Air Pressure | 3.27 mmAq |
| Fan Noise | ≤32.9 dB(A) |
| Fan Connector | 4-pin PWM |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Fan Voltage/Current | 12 VDC / 0.29 A |
| Fan Power Consumption | 3.48 W |
| LED Type | Addressable RGB |
| LED Connector | 3-pin (+5V-D-G) |
| LED Voltage | 5 VDC |
| LED Power Consumption | 2.2 W (Pump) / 3.6 W (Fans x2) |
Exceptional Cooling Performance
The Deepcool LS520 is built for users who demand outstanding thermal control. With a large 240mm radiator and dual high-speed 120mm fans, it provides superior heat dissipation that keeps even the most powerful CPUs running cool. The pump runs at up to 3100 RPM to efficiently transfer heat away from the CPU with minimal noise.
Low-Noise Operation
Despite its high performance, the LS520 remains incredibly quiet. The advanced pump design limits acoustic output to just 19 dB(A), while the Fluid Dynamic Bearing fans keep noise levels under 32.9 dB(A) even at maximum speed. This makes it perfect for silent or media-centric builds where noise is a key concern.
Premium Build Quality

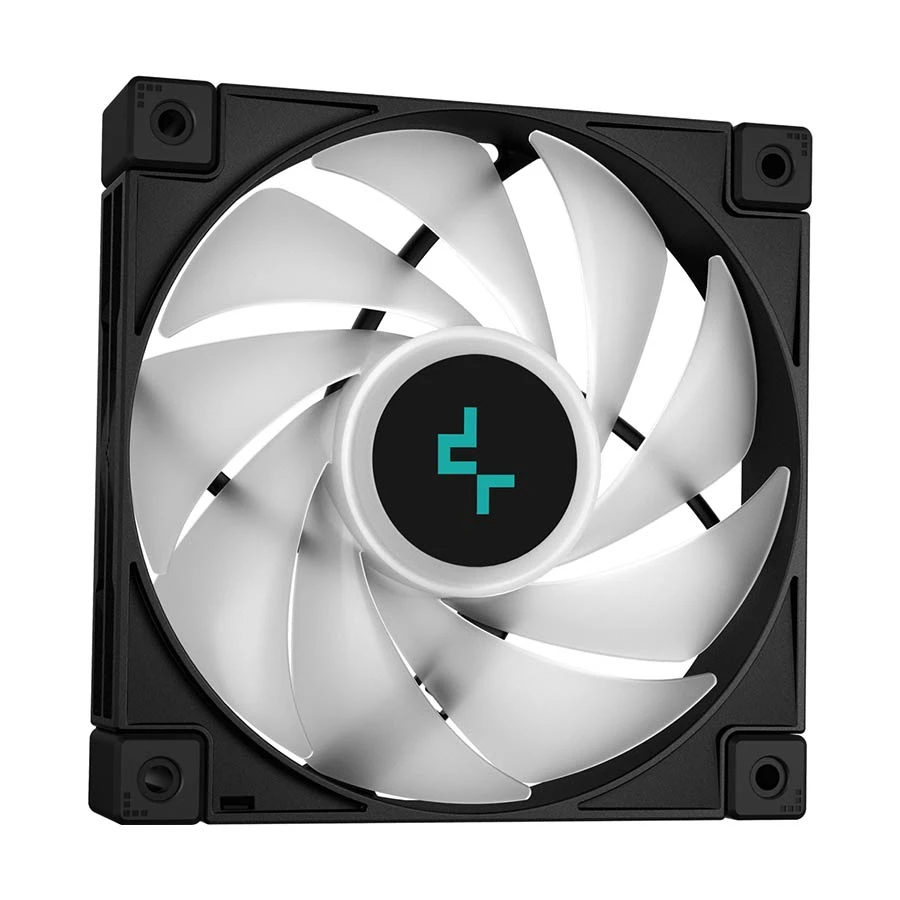

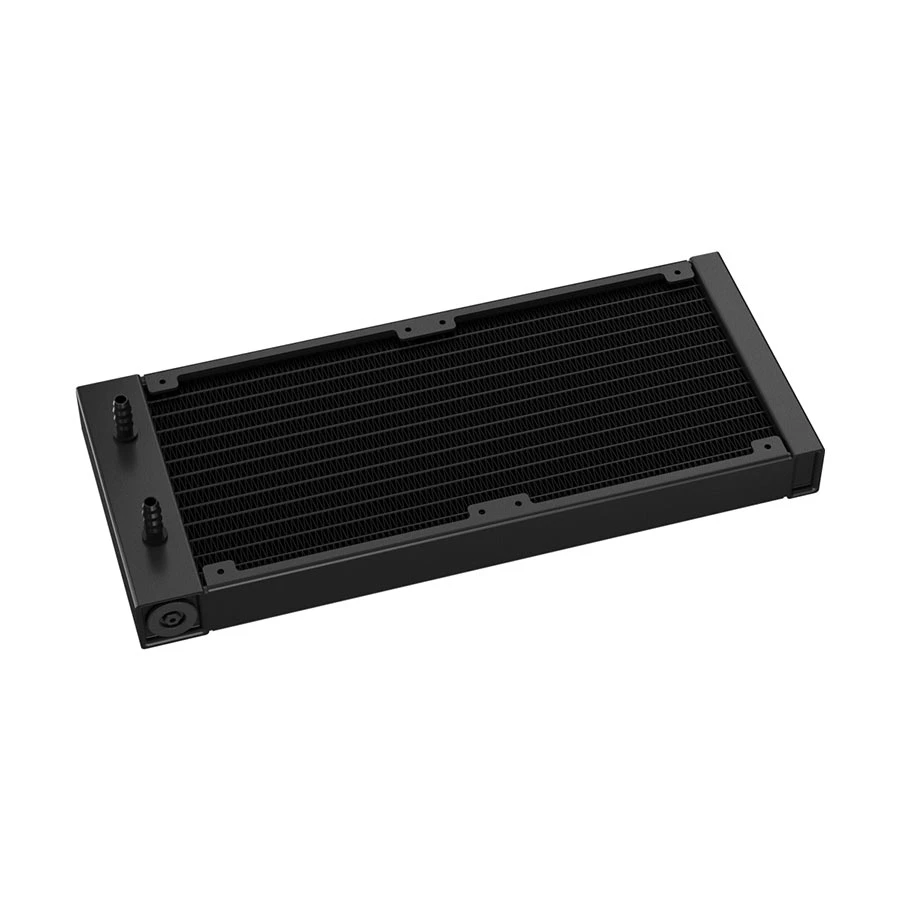

Every component of the LS520 is engineered with quality in mind. From the aluminum radiator to the braided 410mm tubing, this cooler is built to last. The fans use Fluid Dynamic Bearings for long life and smooth operation, ensuring consistent performance over years of use.
Stylish Addressable RGB Lighting

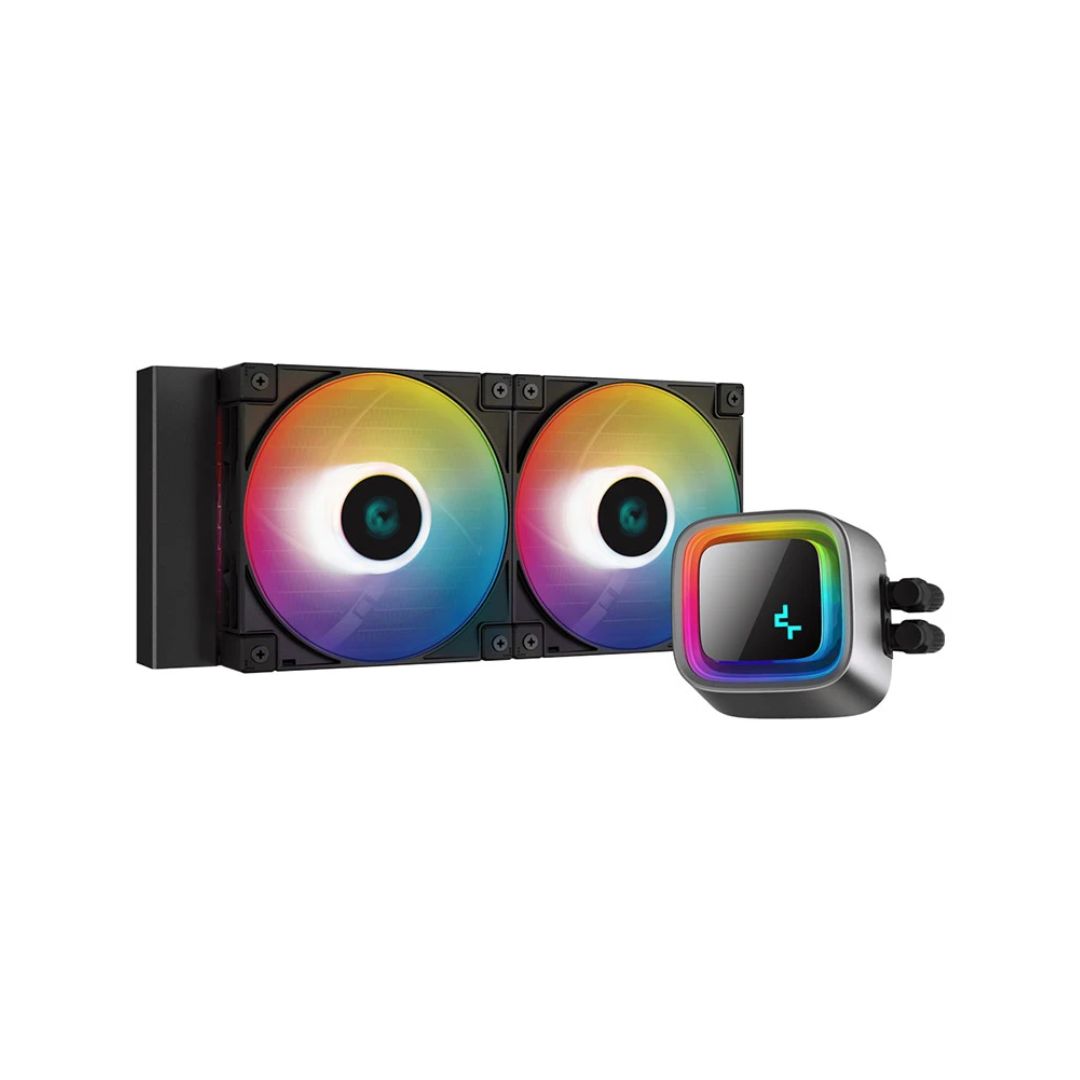

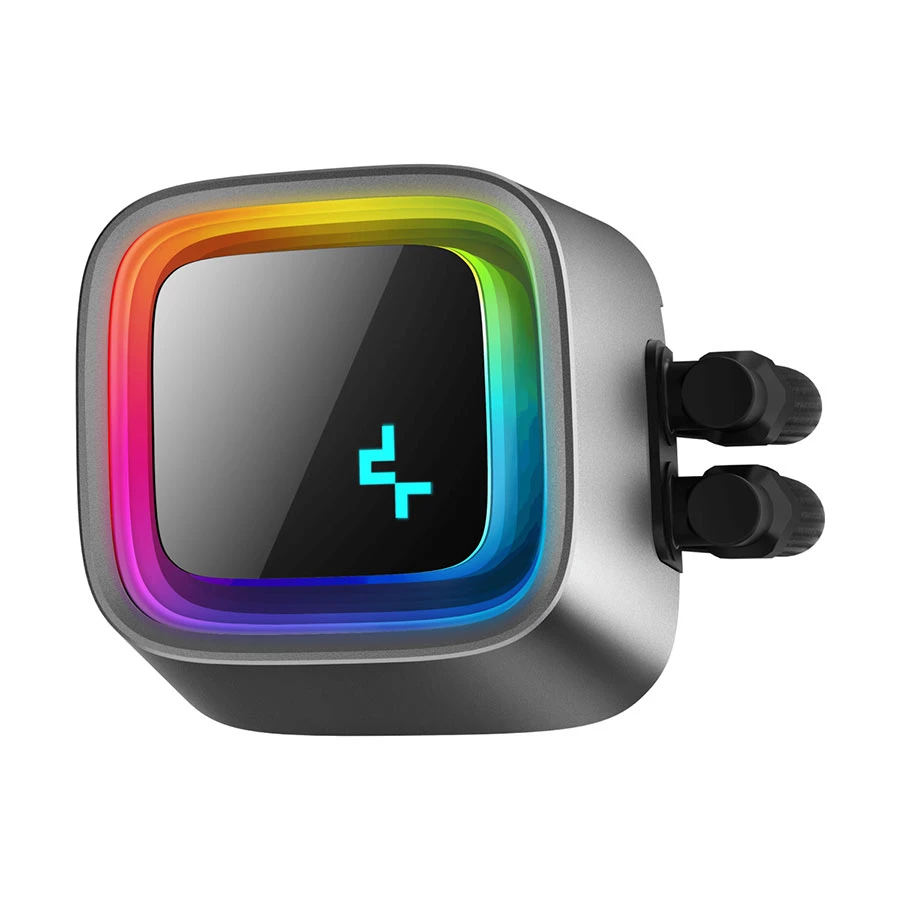

A key highlight of the LS520 is its vibrant A-RGB lighting on both the pump and fans. The addressable RGB LEDs can be synchronized with your motherboard or external RGB controller, allowing for custom lighting effects that complement your build’s aesthetic.
Broad Compatibility
The LS520 supports a wide range of CPU sockets from both Intel and AMD, including the latest AM5 and LGA 1700 platforms. Whether you’re building a gaming rig or a workstation, the LS520 is ready to support the latest processors without the need for additional brackets.
Optimized for Performance Control
The LS520’s PWM fans and pump allow precise speed regulation based on system load. This ensures optimal cooling during intensive tasks and reduces power consumption during idle times. With full control, you can tailor the performance-noise balance to suit your preference.
