Description

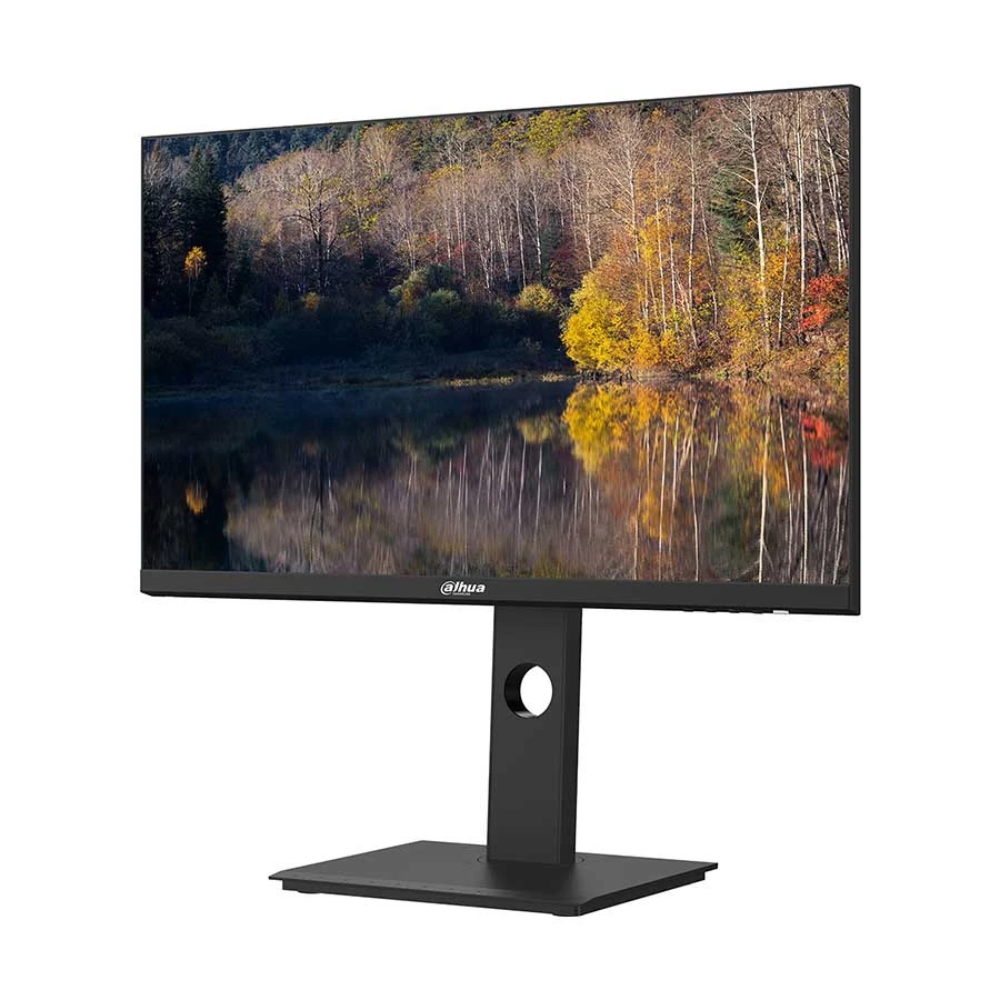

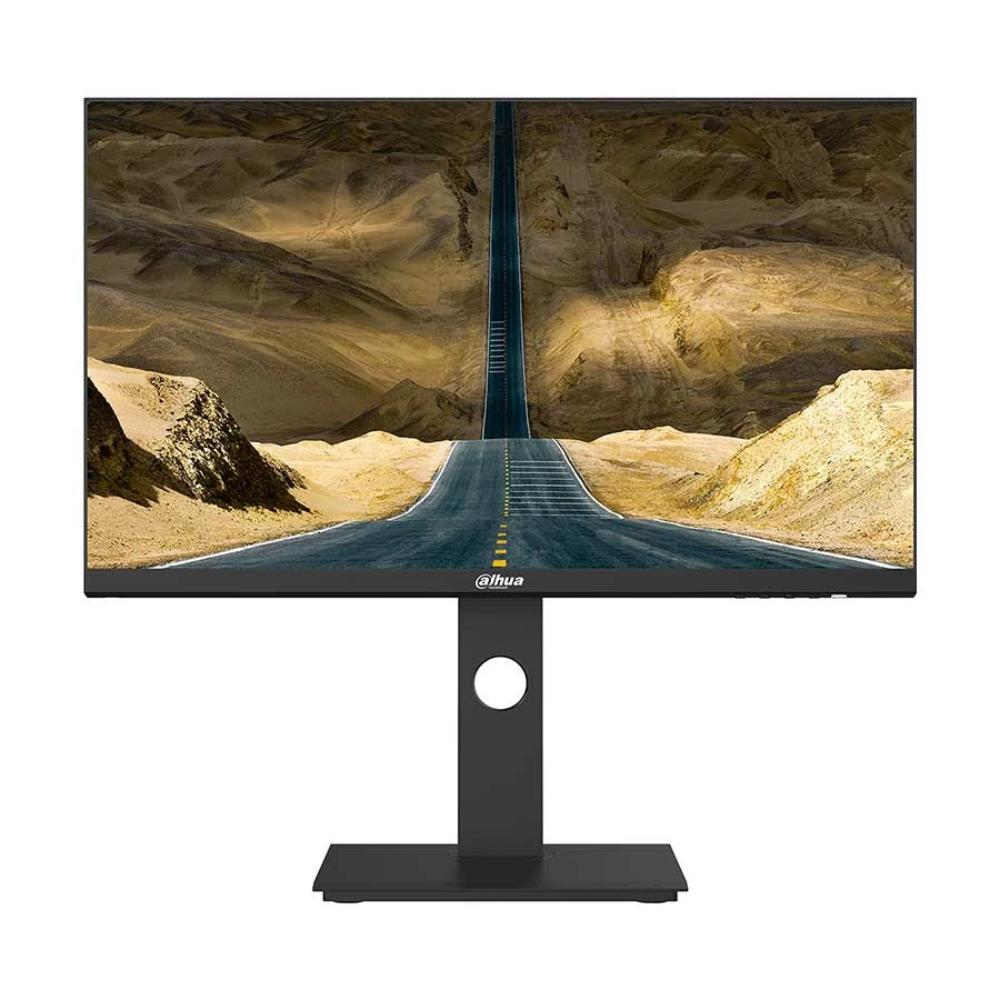

The Dahua DHI-LM24-P301A 23.8″ 2K QHD IPS Monitor is a versatile professional display designed for productivity, creative work, and entertainment. Its 23.8-inch IPS panel delivers sharp 2560×1440 QHD resolution with a high 123.41 PPI, 99% sRGB color gamut, and 16.7 million colors for detailed and vibrant visuals. The 100Hz refresh rate and 5ms OD response time provide smooth on-screen motion, while Flicker-Free and Low Blue Light technologies help improve viewing comfort during extended use. Connectivity includes DisplayPort 1.4, HDMI 2.0, and a 65W USB Type-C port for modern workstation setups. The ergonomic stand supports tilt, swivel, pivot, and 120mm height adjustment. With its three-sided frameless design, anti-glare surface, VESA support, and built-in power supply, it is an excellent choice for professional and everyday computing.
Specifications
| Specification | Details |
|---|---|
| Model | Dahua DHI-LM24-P301A |
| Display Size | 23.8″ |
| Display Type | E-LED |
| Panel Type | IPS |
| Resolution | 2K QHD (2560 × 1440) |
| Pixels Per Inch (PPI) | 123.41 |
| Pixel Pitch | 0.2058 mm × 0.2058 mm |
| Aspect Ratio | 16:9 |
| Viewing Angle | 178° (H) / 178° (V) |
| Brightness | 300 cd/m² (Max) |
| Contrast Ratio | 1300:1 |
| Refresh Rate | 100Hz |
| Color Support | 16.7M Colors |
| Color Gamut | 99% sRGB (Typ.) |
| Response Time | OD 5ms |
| Curvature | Flat |
| Lifespan | 30,000 Hours |
| Surface Treatment | Haze 25%, 3H |
| Screen-to-Body Ratio | ≥90% |
| Flicker-Free | Yes |
| Low Blue Light | Yes |
| DisplayPort | 1 × DP 1.4 (1920 × 1080 @ 100Hz) |
| HDMI | 1 × HDMI 2.0 (1920 × 1080 @ 100Hz) |
| USB Type-C | 1 × Type-C (65W) |
| Audio Jack | 1 × Audio Out |
| Tilt Adjustment | -5° / 20° |
| Swivel Adjustment | -45° / +45° |
| Pivot Adjustment | -90° / +90° |
| Height Adjustment | 120mm (4.72″) |
| VESA Wall Mount | 75 × 75mm |
| Color | Black |
| Dimensions | 539.6 × 324.5 × 61.0mm (W × H × D), without wall-mount bracket |
| Net Weight | 5.8kg (12.79 lb) |
| Gross Weight | 7.25kg (15.98 lb) |
| Power Type | Built-in Power Supply |
| Power Consumption (Basic) | 20W |
| Power Consumption (Typical) | 27W |
| Power Consumption (Max.) | 130W |
| Standby Power Consumption | ≤0.5W |
| Voltage | 100–240 VAC (±10%), 50/60Hz |
Sharp 2K QHD Resolution
The monitor features a 2560 × 1440 2K QHD resolution on a 23.8-inch screen, providing sharper and more detailed visuals than standard Full HD displays. With 123.41 PPI, text, images, graphics, and fine details appear crisp and clear.
IPS Panel with Accurate Colors
Its IPS panel provides 178° horizontal and vertical viewing angles, ensuring consistent image quality from different viewing positions. With 99% sRGB coverage and support for 16.7 million colors, it is well suited for creative tasks, content creation, design, and everyday professional work.
Smooth 100Hz Performance
The 100Hz refresh rate delivers smoother scrolling, animations, and motion compared to traditional 60Hz monitors. Combined with an OD 5ms response time, it provides responsive performance for multitasking, media consumption, and light gaming.
Eye Comfort Technologies
For extended viewing sessions, the monitor includes Flicker-Free technology and Low Blue Light mode. These features are designed to reduce visual discomfort and make long periods of work or screen use more comfortable.
Modern Connectivity with USB Type-C
The monitor offers versatile connectivity through DP 1.4, HDMI 2.0, and USB Type-C. Its 65W USB Type-C port supports signal transmission and power delivery, making it a convenient option for modern laptops and streamlined workstation setups.

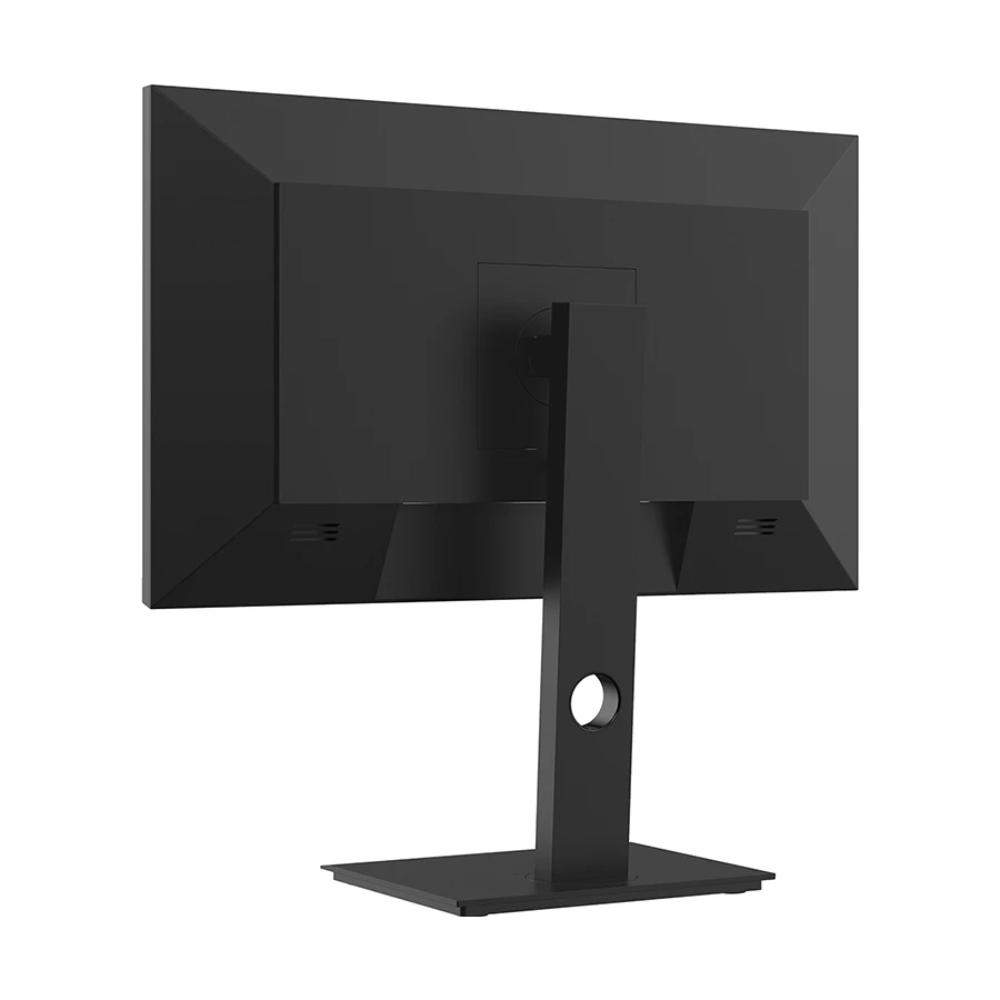

Fully Adjustable Ergonomic Stand

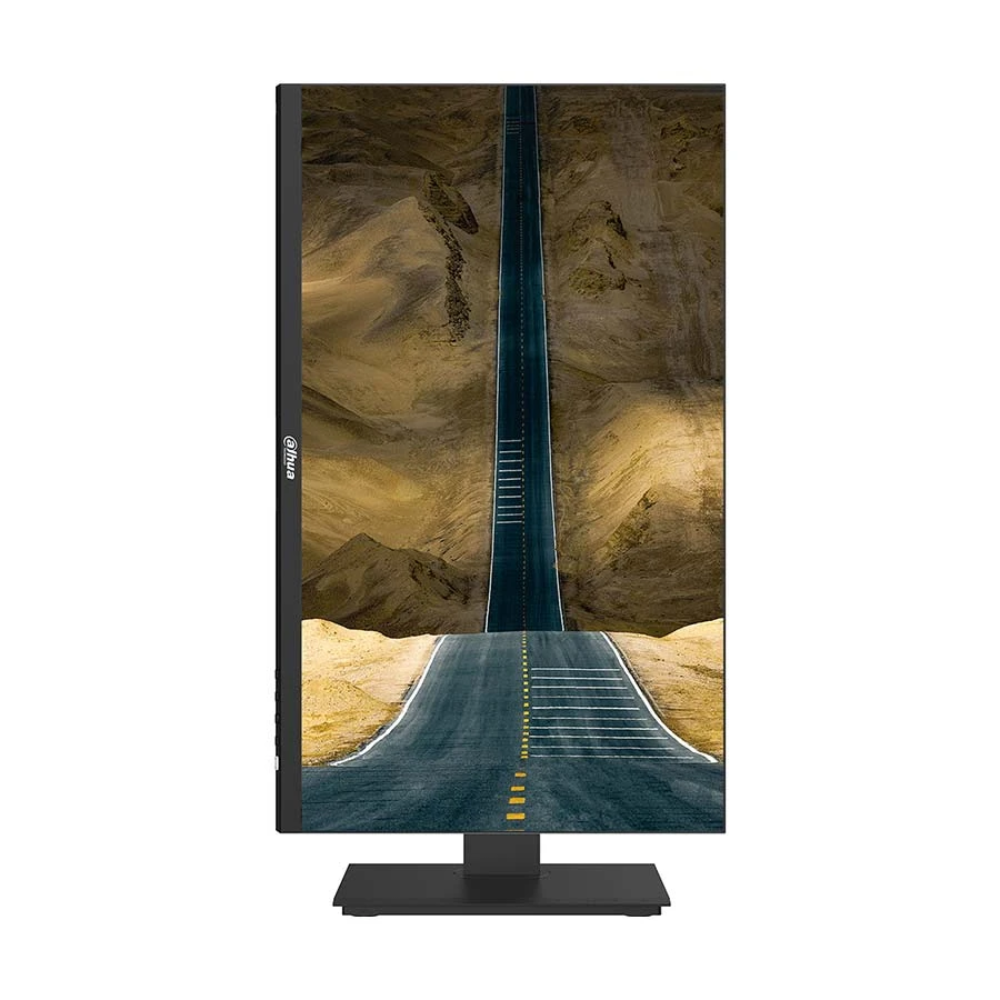

The ergonomic stand provides extensive adjustment options, including tilt, swivel, pivot, and 120mm height adjustment. This allows users to position the screen comfortably for different desks, working styles, and viewing preferences. It also supports 75 × 75mm VESA mounting.
Slim Frameless Design
With a three-sided ultra-slim frameless design and a screen-to-body ratio of at least 90%, the Dahua DHI-LM24-P301A delivers a clean and modern appearance. The Haze 25%, 3H anti-glare surface helps reduce reflections, while the built-in power supply keeps the overall setup neat and practical.
