Description

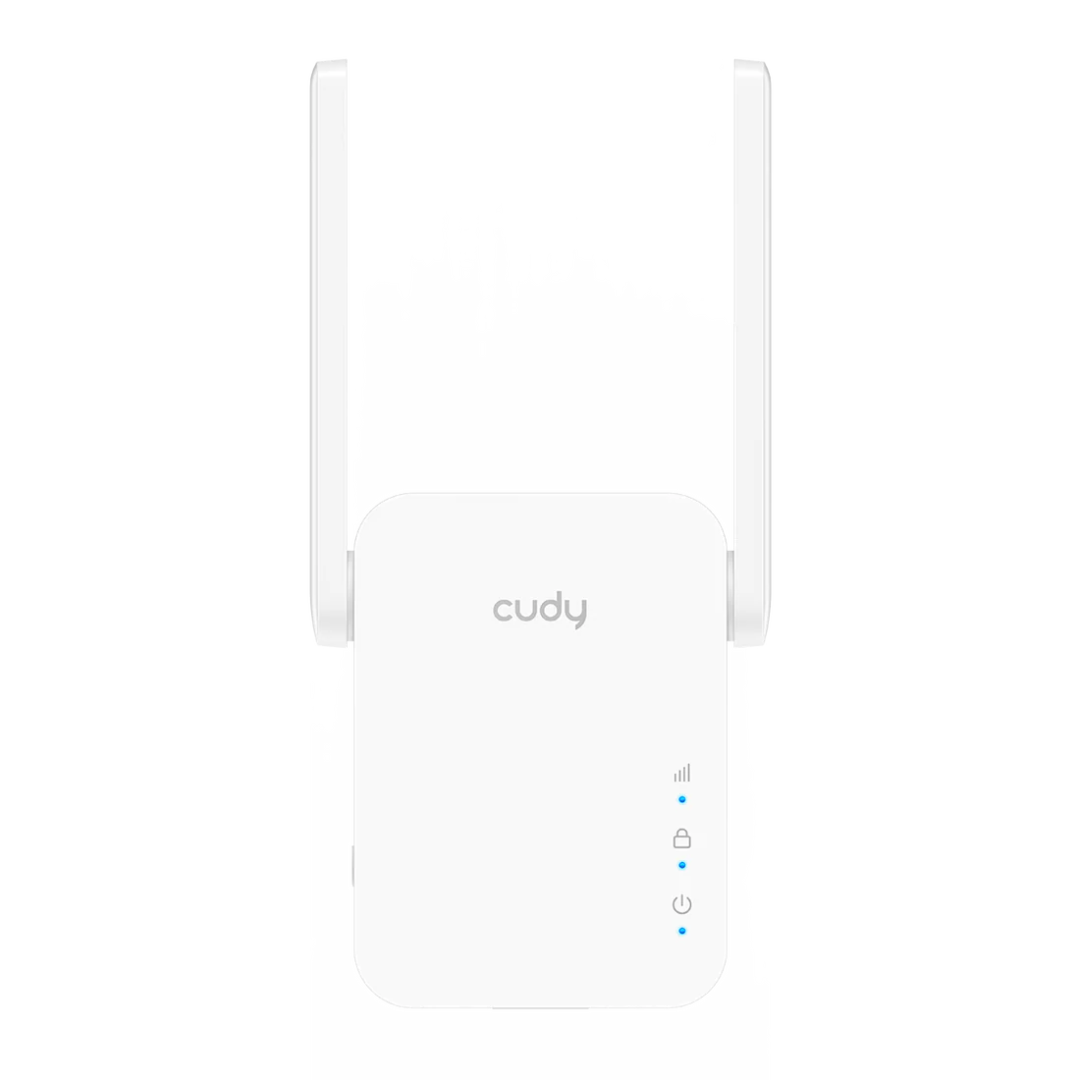

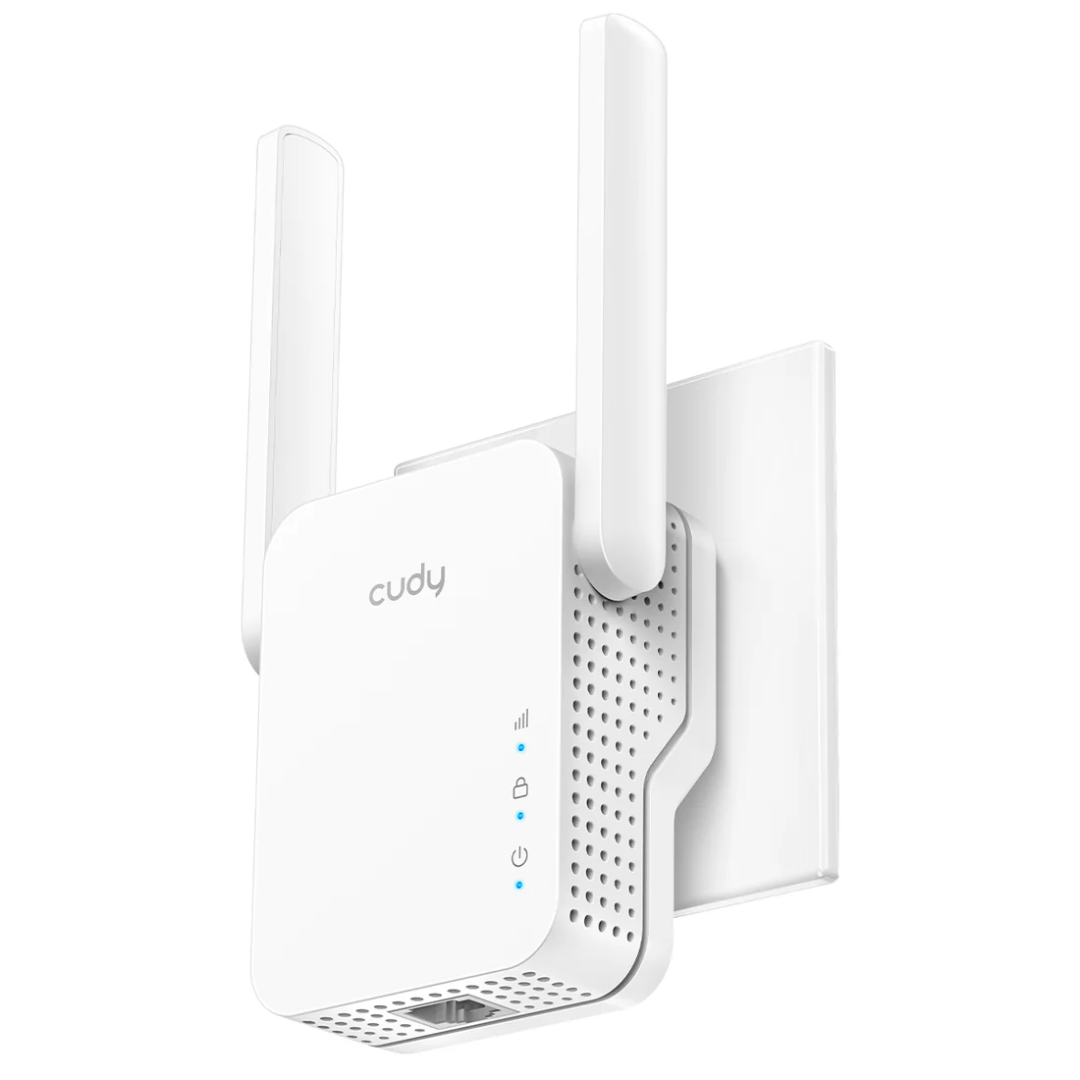

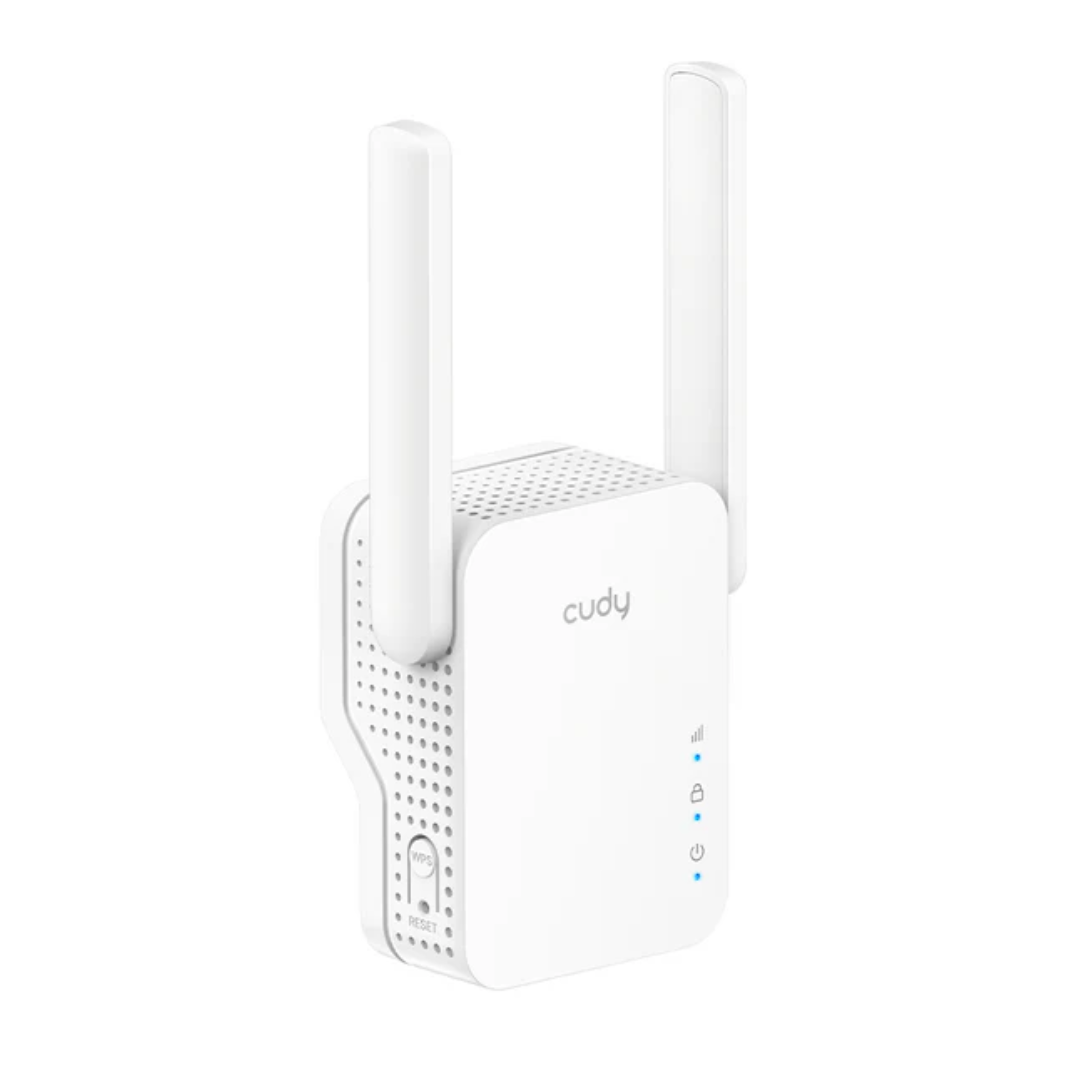

The Cudy RE300 N300 Mesh WiFi Range Extender is designed to enhance your home or office network by extending Wi-Fi coverage and improving connectivity. Supporting Wi-Fi 4 standards with 64-QAM modulation and 40MHz channel width, it delivers speeds up to 300 Mbps on the 2.4GHz band, ensuring smooth browsing, streaming, and online gaming. Equipped with 2× fixed antennas and an internal 2.4GHz FEM with PA/LNA, the RE300 boosts signal strength and extends coverage up to 130 meters, maintaining stable connections across multiple rooms.
This range extender supports up to 64 devices, with a recommended optimal limit of 30 connected devices, making it ideal for households or small offices. The device offers flexible operation modes, including Access Point, Range Extender, and Client modes, and functions seamlessly as a Cudy Mesh Satellite with both wireless and wired backhaul support. The 1× 10/100 Mbps Fast Ethernet port allows for wired connections and improved network stability.
Security is enhanced with WPA/WPA2/WPA3 protocols, while True WPS functionality enables quick pairing with compatible routers using the dedicated WPS button. Users can manage the RE300 via a web interface or mobile app, with support for firmware updates and remote management. Warranty: 1 Year ensures reliable performance and peace of mind.
Specification
- Model: RE300
- Wi-Fi Speed: 300 Mbps
- Frequency: 2.4 GHz
- Wi-Fi Standard: Wi-Fi 4
- Wi-Fi Streams: 2T2R (2×2 MIMO)
- Antennas: 2× Fixed Wi-Fi Antennas
- Ethernet Port: 1× 10/100 Mbps RJ45
- Supported Devices: Up to 30 connected devices (optimal), 64 maximum
- Operation Modes: Access Point, Range Extender, Client
- Mesh Support: Cudy Mesh Satellite, Ethernet Backhaul
- Security: WPA/WPA2/WPA3
- Buttons: WPS Button, Reset Button
- Memory: 64 MB DDR2
- Storage: 8 MB NOR Flash
- Coverage Range: Up to 130 meters
- Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
- Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~158 ℉)
- Dimensions: 80×60×38 mm (3.15×2.36×1.5 inches)
High-Speed Wi-Fi Connectivity
The Cudy RE300 N300 Mesh WiFi Range Extender delivers wireless speeds of up to 300 Mbps on the 2.4GHz band, making it ideal for smooth web browsing, HD streaming, and online gaming. Utilizing Wi-Fi 4 standards with 64-QAM modulation and 40MHz channel width, it ensures stable and reliable performance across all connected devices. This speed is optimized for both single-device and multi-device environments, allowing users to enjoy uninterrupted internet connectivity throughout their home or office.
Advanced Antenna Design
Equipped with 2 fixed Wi-Fi antennas and internal 2.4GHz FEM with PA/LNA, the RE300 strengthens and extends the Wi-Fi signal efficiently. This advanced antenna design increases coverage up to 130 meters, ensuring that even distant corners of your space receive a strong and stable connection. The combination of external and internal signal enhancement mechanisms helps maintain consistent speeds even when multiple devices are connected simultaneously.
Flexible Operation Modes
The RE300 offers versatile operation modes including Access Point, Range Extender, and Client modes, allowing users to configure their network according to specific needs. In Access Point mode, it creates a new Wi-Fi hotspot using a wired connection. In Range Extender mode, it boosts the existing Wi-Fi network to cover dead zones. Client mode enables devices without Wi-Fi to connect to the network through the extender, enhancing network flexibility for various setups.
Mesh Network Capability
This range extender functions as a Cudy Mesh Satellite, supporting seamless mesh networking with both wireless and wired backhaul. Mesh capability ensures smooth handoff between devices and consistent Wi-Fi performance throughout the network. The Ethernet backhaul option through the 10/100 Mbps LAN port provides a more stable connection for larger homes or environments with potential interference, optimizing speed and reliability.
Security and Easy Setup
The RE300 supports WPA, WPA2, and WPA3 security protocols, safeguarding your network from unauthorized access. Setup is simplified with the True WPS functionality, allowing quick and secure pairing with compatible routers at the push of a button. The device also includes LED indicators for power, signal strength, and WPS status, helping users easily monitor network status and connectivity.
Reliable Performance and Management
Built with 64 MB DDR2 memory and 8 MB NOR Flash storage, the RE300 ensures stable performance and quick data processing. Users can manage the extender via a web interface or mobile app, with support for remote management and firmware updates. Additional reliability features include timed reboot, backup and restore functions, and a compact plug-in design for easy installation in any standard socket.
Compact Design and Durability
Measuring 80×60×38 mm (3.15×2.36×1.5 inches), the RE300 is compact and unobtrusive, fitting seamlessly into any home or office environment. It operates effectively within temperatures ranging from 0 ℃ to 40 ℃ and storage temperatures from -40 ℃ to 70 ℃, with humidity tolerance up to 90% non-condensing. This ensures the device remains durable and reliable under varying environmental conditions, providing long-term stability for all your networking needs.
